0-50 — OIL COOLER AND OIL FILTER (#113322) — 106 parça

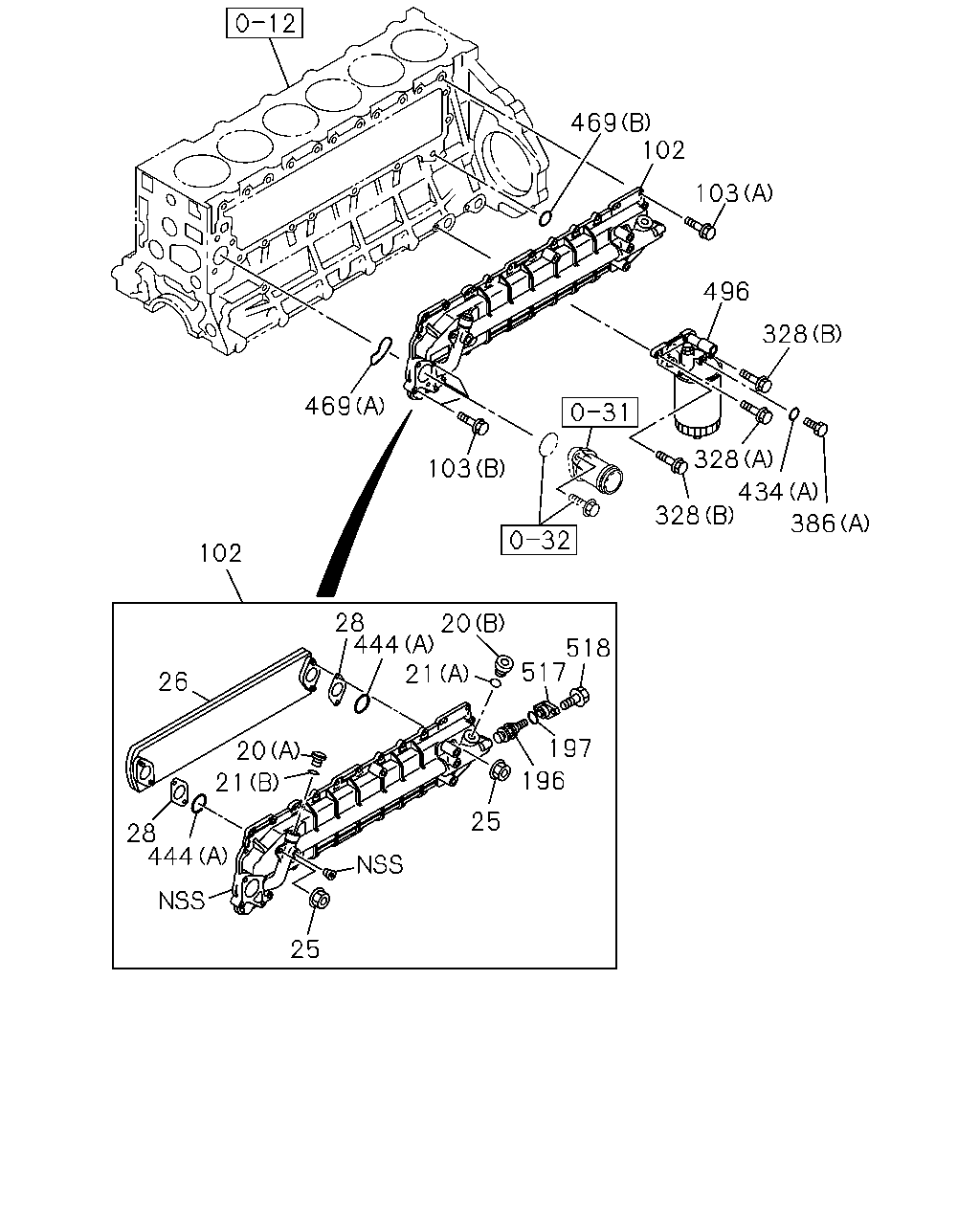

469 102 103 496 328 328 434 386 328 103 469 102 26 28 444 20 21 517 518 197 196 25 20 21 28 444 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (C)	1-13219-240-0	02	1	1602-	●	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (D)	8-97608-567-0	02	1	1602-	●	●
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1302-1601	●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1602-	●	●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1302-1601	●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1602-	●	●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (C) ID=17.8	8-97608-568-0	02	1	1602-	●	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	1302-1601	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1602-	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	1302-1601	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1602-	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-	●	●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	1602-	●	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1302-1601	●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1602-	●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-	●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1602-	●	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1302-1601	●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1602-	●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (C) M8X18 FLANGE	8-98251-758-0	04	1	1602-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-	●	●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	1602-	●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1302-1601	●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1602-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B) ID=38.7	1-09623-299-0	02	1	1602-	●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (C)	8-97601-801-0	02	1	1602-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-810-0	02	1	1302-1601	●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1602-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-	●	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	1602-	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1302-1601	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1602-	●	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	1302-1601	●	●
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1602-	●	●

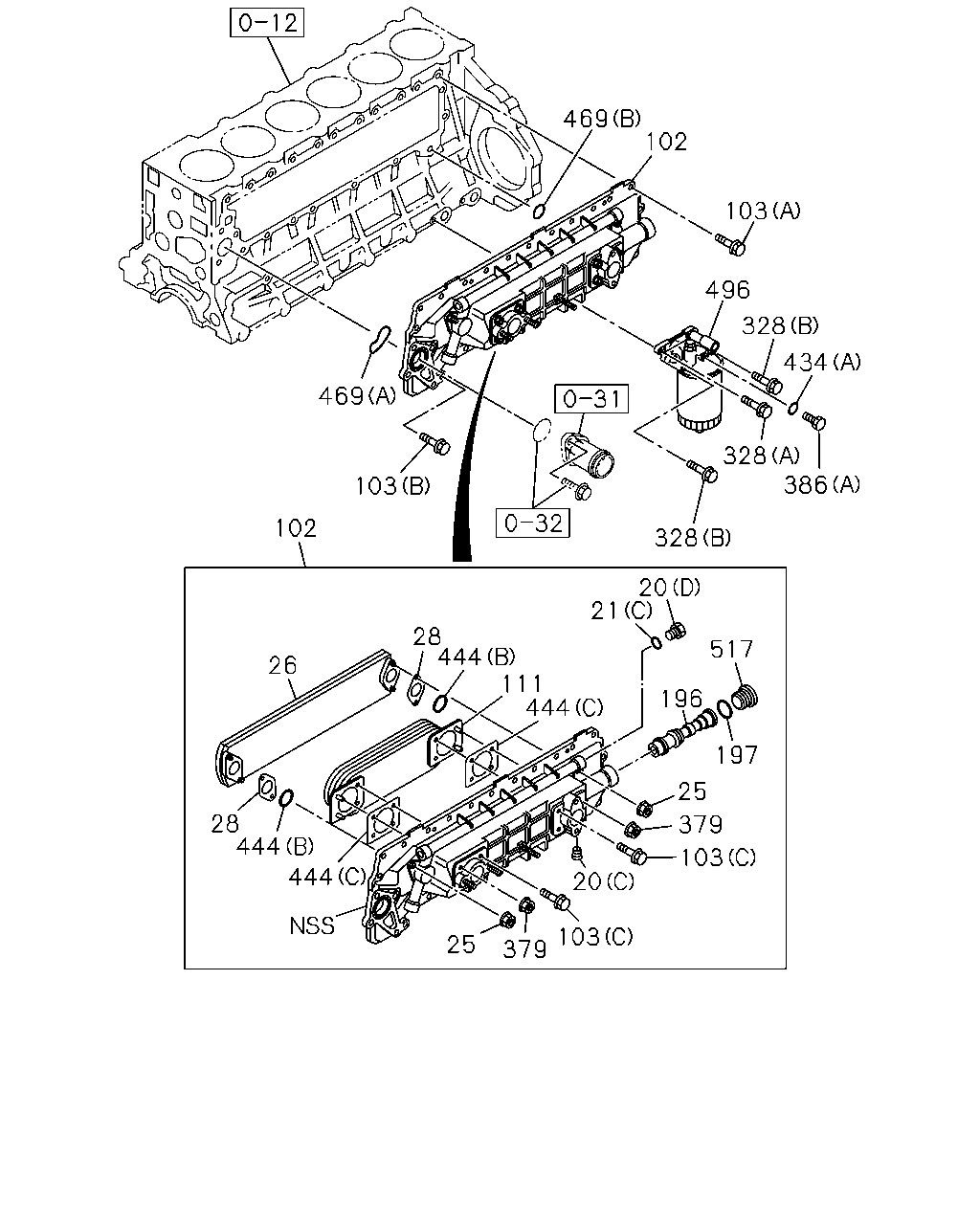

469 469 102 26 28 444 444 25 379 103 20 103 379 25 197 196 517 21 20 328 103 386 328 434 328 496 103 102 444 111 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (C)	1-13219-240-0	02	1	1602-	●	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (D)	8-97608-567-0	02	1	1602-	●	●
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1302-1601	●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1602-	●	●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1302-1601	●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1602-	●	●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (C) ID=17.8	8-97608-568-0	02	1	1602-	●	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	1302-1601	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1602-	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	1302-1601	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1602-	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-	●	●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	1602-	●	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1302-1601	●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1602-	●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-	●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1602-	●	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1302-1601	●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1602-	●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (C) M8X18 FLANGE	8-98251-758-0	04	1	1602-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-	●	●
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1602-	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-	●	●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	1602-	●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1302-1601	●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1602-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-	●	●
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1602-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B) ID=38.7	1-09623-299-0	02	1	1602-	●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (C)	8-97601-801-0	02	1	1602-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-810-0	02	1	1302-1601	●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1602-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-	●	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	1602-	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1302-1601	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1602-	●	●

496 386 434 66 13 265 2 308 307 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-	●	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-	●	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-	●	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307	●	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	1302-1307	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	1302-1307	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1302-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1302-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
