0-50 — OIL COOLER AND OIL FILTER (#113321) — 161 parça

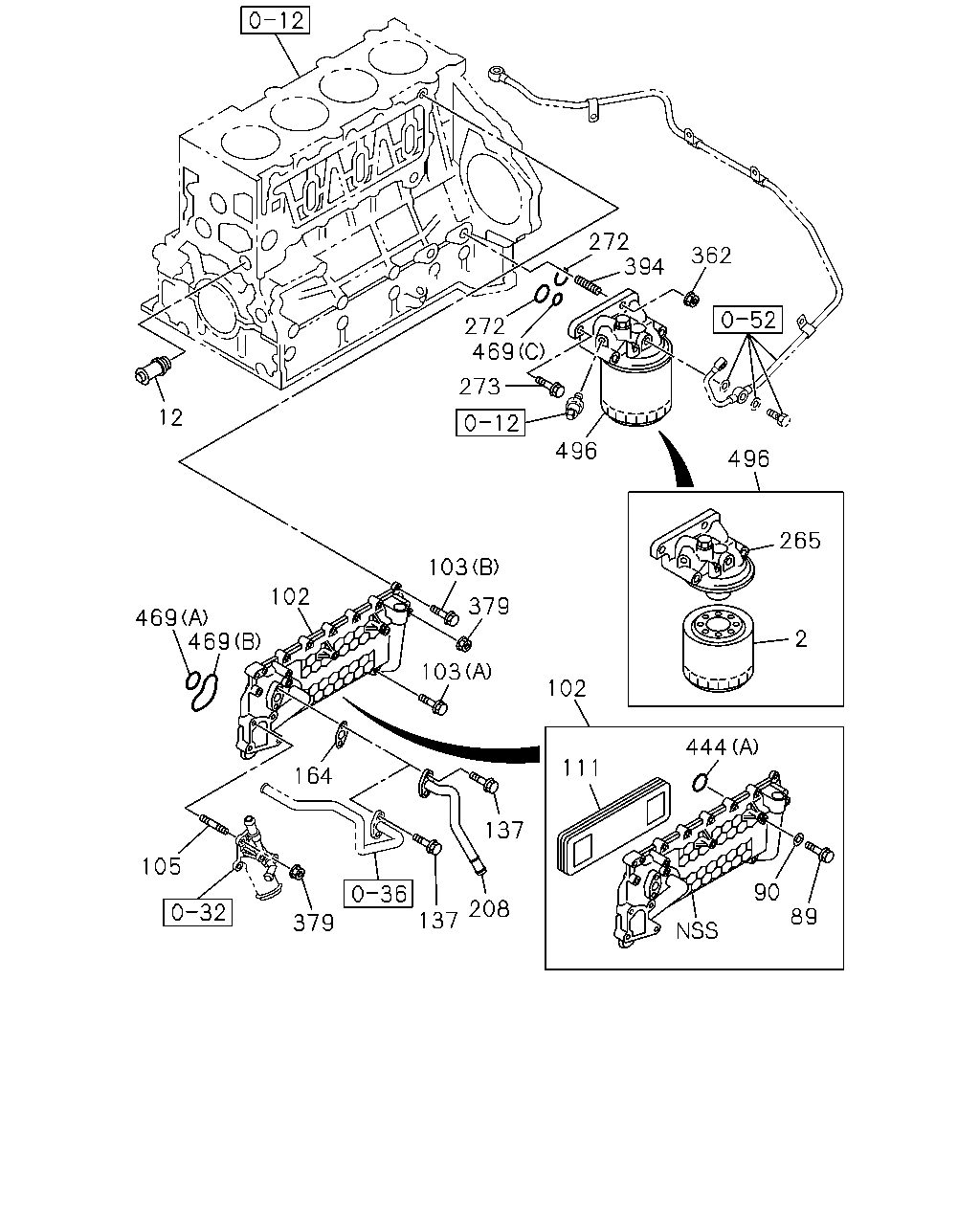

272 362 394 272 469 273 496 496 265 444 2 90 89 111 102 103 103 379 102 12 469 469 105 379 137 208 137 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1302-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-		●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1302-1509	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-		●	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1302-	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1302-	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1302-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1302-	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	1302-1307		●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-		●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1302-		●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-		●	●
103	BOLT; OIL COOLER (A) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-		●	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1302-		●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1302-	●
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-		●	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1302-	●
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
137	BOLT EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1302-	●
208	PIPE; WATER,HTR EURO2 SPECIFICATION<NT2>	8-97146-519-0	01	1	1302-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1302-	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307		●	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-		●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1302-	●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1302-	●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	1302-	●
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-		●	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1302-	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1302-	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (C)	8-97601-801-0	02	1	1309-		●	●
444	GASKET; ELEMENT TO BODY (A)	8-97384-130-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B) ID=38.7	1-09623-299-0	02	1	1302-		●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-810-0	02	1	1302-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94338-878-1	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=9.8	8-94399-339-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) OD=30.2 W/PLATE	8-98045-447-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1302-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1302-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307		●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-		●	●

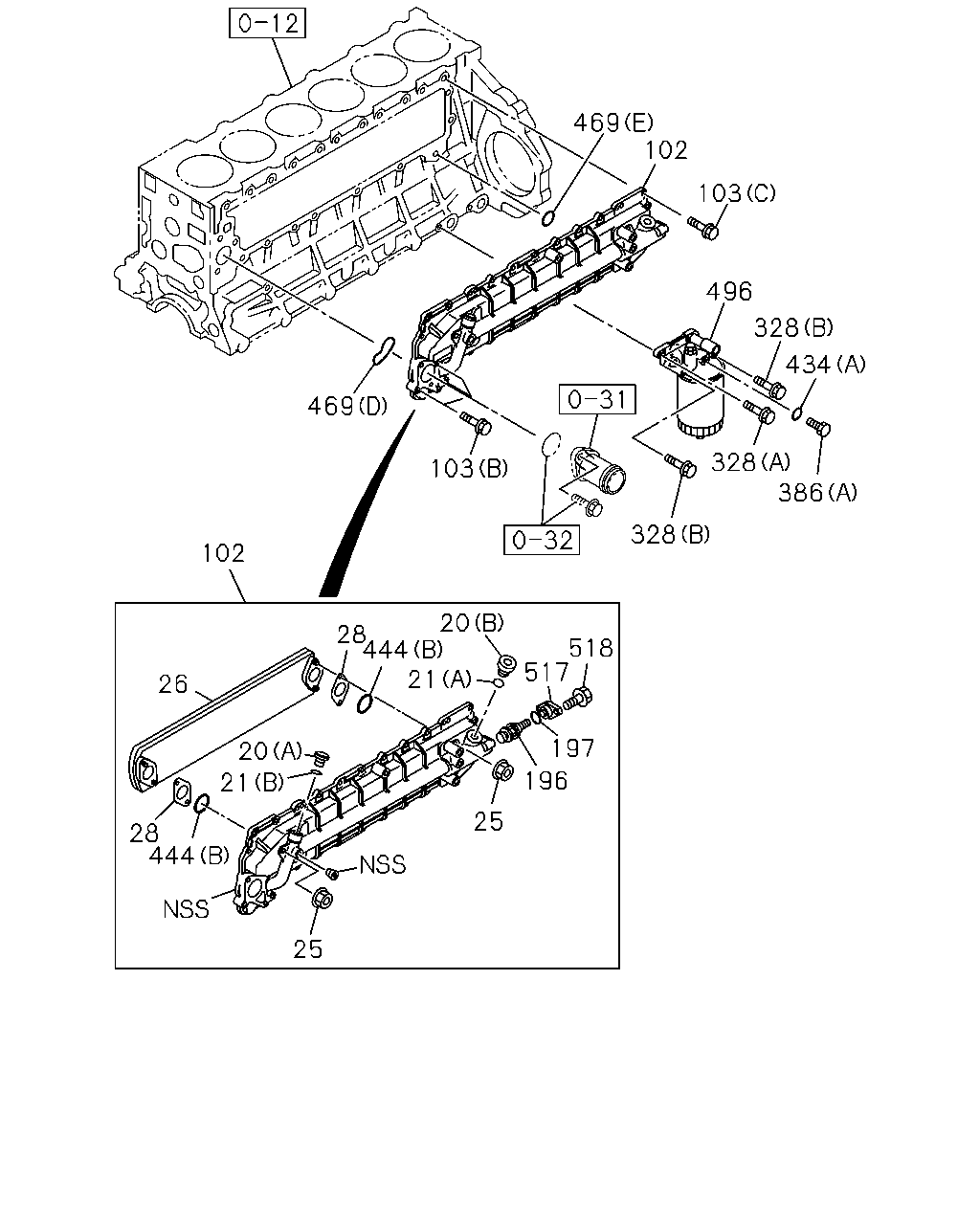

25 444 28 26 20 21 28 444 21 20 517 197 196 25 518 102 328 386 328 103 469 469 102 103 496 328 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (A)	1-13219-240-0	02	1	1302-		●	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (B)	8-97608-567-0	02	1	1302-		●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1302-		●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1302-		●	●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (C) ID=17.8	8-97608-568-0	02	1	1302-		●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1302-		●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1302-		●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-		●	●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	1302-		●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1302-		●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-		●	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1302-	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	1302-1307		●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-		●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1302-		●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-		●	●
103	BOLT; OIL COOLER (A) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-		●	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1302-		●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-		●	●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	1302-		●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1302-		●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-		●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-		●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-		●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-		●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-		●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-		●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (C)	8-97601-801-0	02	1	1309-		●	●
444	GASKET; ELEMENT TO BODY (A)	8-97384-130-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B) ID=38.7	1-09623-299-0	02	1	1302-		●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-810-0	02	1	1302-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94338-878-1	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=9.8	8-94399-339-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) OD=30.2 W/PLATE	8-98045-447-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1302-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1302-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307		●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-		●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	1302-		●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1302-		●	●
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●

496 386 66 434 13 265 308 307 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1302-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-		●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1302-1509	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-		●	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-		●	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-		●	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1302-	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307		●	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-		●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	1302-1307		●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	1302-1307		●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1302-		●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1302-		●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-		●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-		●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-		●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307		●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-		●	●

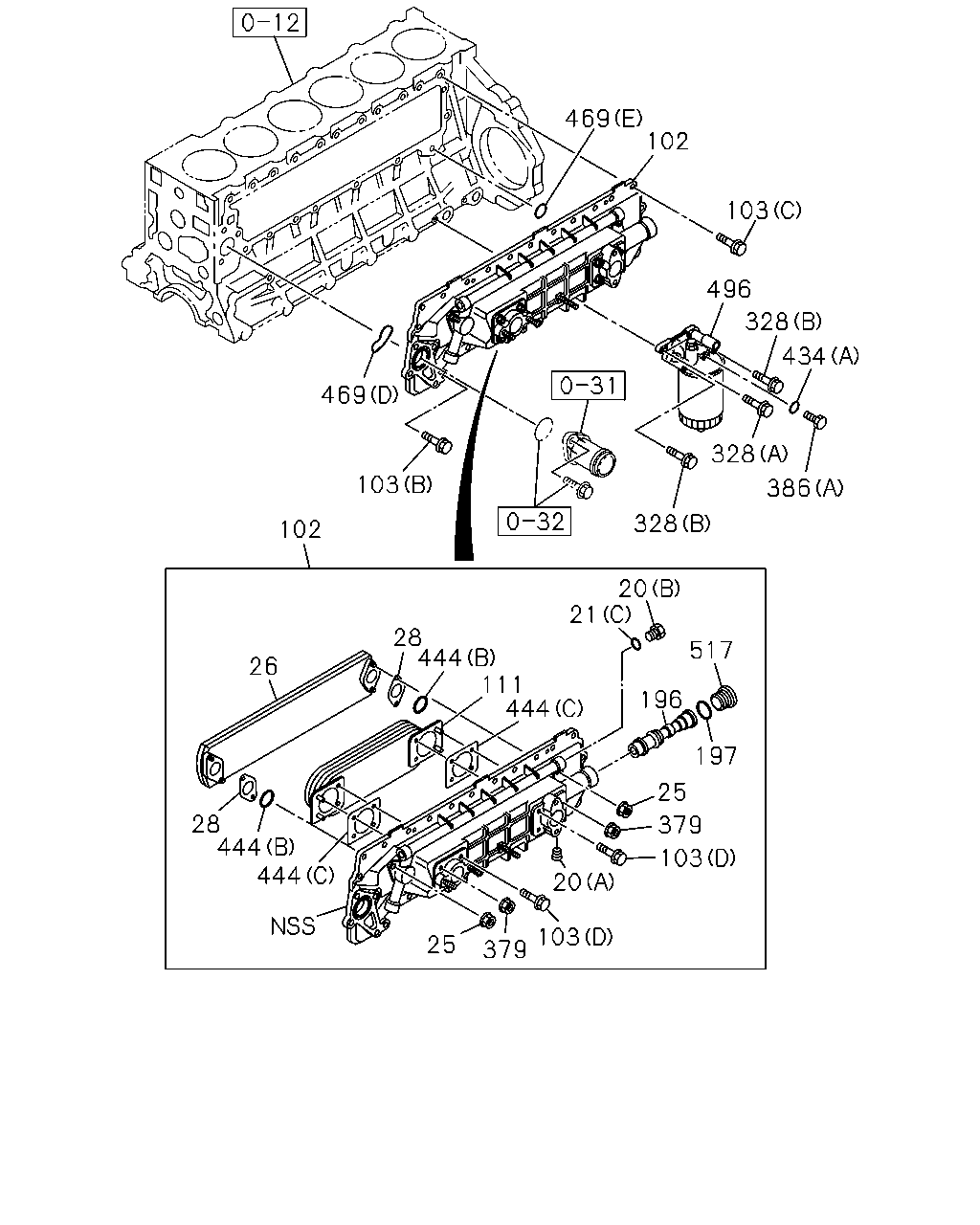

469 102 103 496 328 434 386 328 328 103 469 102 26 28 444 444 25 379 103 20 103 379 25 197 196 517 20 21 444 111 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (A)	1-13219-240-0	02	1	1302-		●	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (B)	8-97608-567-0	02	1	1302-		●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1302-		●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1302-		●	●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (C) ID=17.8	8-97608-568-0	02	1	1302-		●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1302-		●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1302-		●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-		●	●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	1302-		●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1302-		●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-		●	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1302-	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	1302-1307		●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-		●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1302-		●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-		●	●
103	BOLT; OIL COOLER (A) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-		●	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1302-		●	●
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-		●	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1302-	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-		●	●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	1302-		●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1302-		●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-		●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-		●	●
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-		●	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1302-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-		●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-		●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-		●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-		●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (C)	8-97601-801-0	02	1	1309-		●	●
444	GASKET; ELEMENT TO BODY (A)	8-97384-130-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B) ID=38.7	1-09623-299-0	02	1	1302-		●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-810-0	02	1	1302-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94338-878-1	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=9.8	8-94399-339-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) OD=30.2 W/PLATE	8-98045-447-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1302-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1302-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307		●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-		●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	1302-		●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1302-		●	●
