1 |

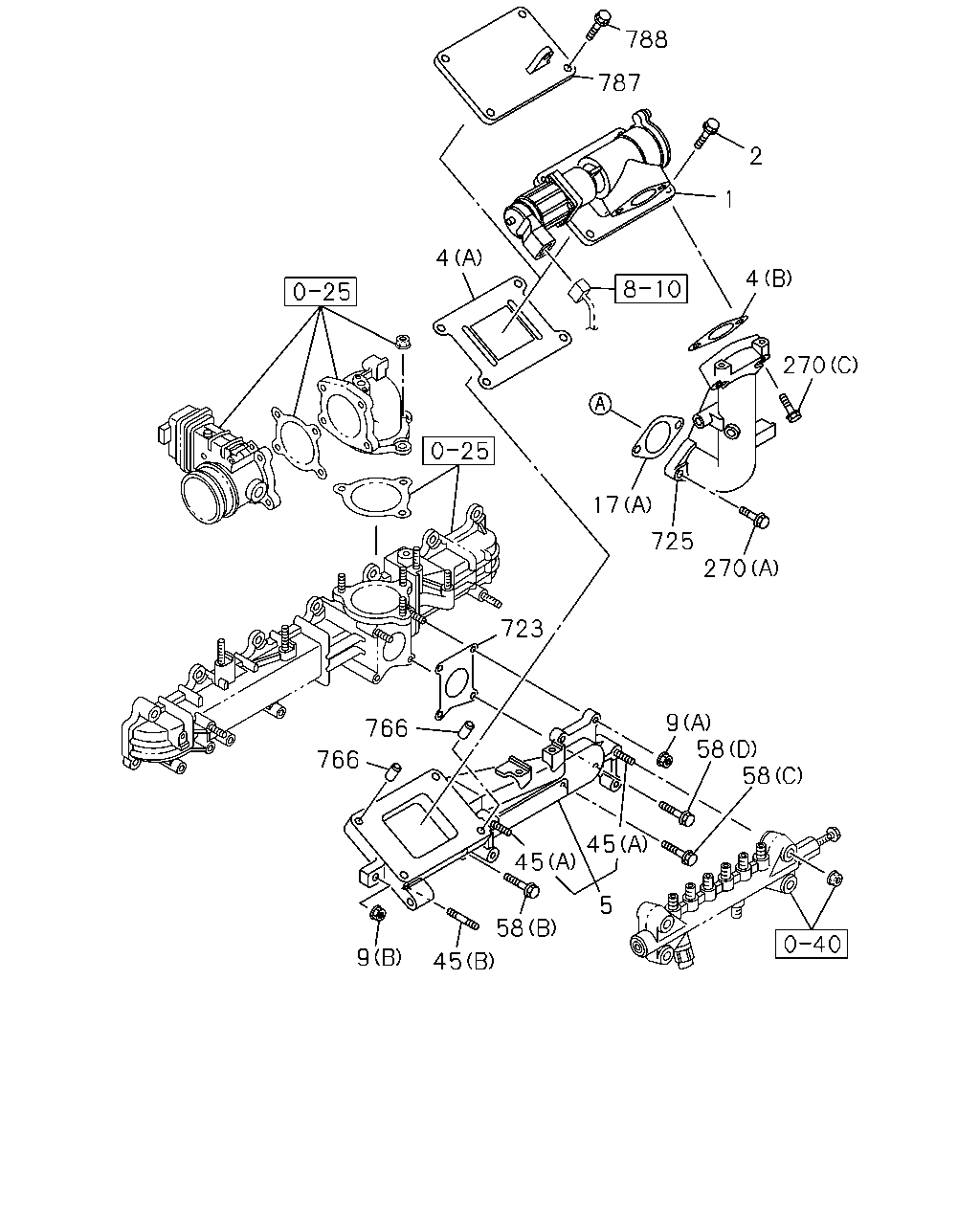

VALVE; EGR
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
|
8-97383-005-9 |
01 |
1 |
1302- |
| |
2 |
BOLT; EGR VLV
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
M10X35 FLANGE
|
0-28751-035-0 |
04 |
1 |
1302- |
| |
4 |
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
|
8-97608-423-0 |
01 |
1 |
1302- |
| |
4 |
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
(B)
|
8-97603-282-0 |
01 |
1 |
1302- |
| |
5 |
ADAPTER ASM
|
8-97606-201-3 |
01 |
1 |
1302-1305 |
| |
5 |
ADAPTER ASM
|
8-98240-157-0 |
01 |
1 |
1306- |
| |
9 |
NUT; EGR ADAPTER
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302- |
| |
9 |
NUT; EGR ADAPTER
(B)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1302- |
| |
17 |
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
(B)
|
8-97600-167-0 |
01 |
1 |
1302- |
| |
17 |
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
(A)
|
8-97601-144-0 |
02 |
1 |
1302- |
| |
45 |
STUD; ADAPTER,EGR
(B)
M10X30 L=45
|
0-44011-030-0 |
01 |
1 |
1302- |
| |
45 |
STUD; ADAPTER,EGR
(A)
M10X50 L=65
|
0-44011-050-0 |
02 |
1 |
1302- |
| |
58 |
BOLT; PIPE
(B)
M10X30 FLANGE
|
0-28151-030-0 |
01 |
1 |
1302- |
| |
58 |
BOLT; PIPE
(C)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1302- |
| |
58 |
BOLT; PIPE
(D)
M8X30 FLANGE
|
8-98034-764-0 |
01 |
1 |
1302- |
| |
58 |
BOLT; PIPE
EURO3 SPECIFICATION<NT3>
(A)
M8X60 FLANGE
|
0-28050-860-0 |
02 |
1 |
1302- |
| |
58 |
BOLT; PIPE
EURO4 SPECIFICATION<NT4>
(A)
M8X60 FLANGE
|
0-28050-860-0 |
05 |
1 |
1302- |
| |
58 |
BOLT; PIPE
EURO4 SPECIFICATION<NT4>
(E)
M10X35 FLANGE
|
0-28751-035-0 |
04 |
1 |
1302- |
| |
270 |
BOLT
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
(A)
M8X25 FLANGE
|
0-28050-825-0 |
02 |
1 |
1302- |
| |
270 |
BOLT
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
(C)
M10X45 FLANGE
|
0-28151-045-0 |
02 |
1 |
1302- |
| |
270 |
BOLT
EURO4 SPECIFICATION<NT4>
(B)
M8X35 FLANGE
|
0-28050-835-0 |
02 |
1 |
1302- |
| |
270 |
BOLT
EURO4 SPECIFICATION<NT4>
(D)
M8X28 FLANGE
|
8-98043-528-0 |
03 |
1 |
1302- |
| |
723 |
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97605-995-0 |
01 |
1 |
1302- |
| |
725 |
DUCT; EGR VLV
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
|
8-97604-972-2 |
01 |
1 |
1302-1305 |
| |
725 |
DUCT; EGR VLV
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
|
8-98240-120-0 |
01 |
1 |
1306- |
| |
766 |
DOWEL; EGR VLV
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>
OD=14 L=10
|
9-11319-065-3 |
02 |
1 |
1302- |
| |
787 |
COVER; DUCT,EGR VLV
EURO2 SPECIFICATION<NT2>
|
8-98058-709-0 |
01 |
1 |
1302-1402 |
| |
787 |
COVER; DUCT,EGR VLV
EURO2 SPECIFICATION<NT2>
|
8-98238-416-0 |
01 |
1 |
1403- |
| |
788 |
BOLT; COVER
EURO2 SPECIFICATION<NT2>
M10X35 FLANGE
|
0-28751-035-0 |
04 |
1 |
1302-1402 |
| |
788 |
BOLT; COVER
EURO2 SPECIFICATION<NT2>
M10X25 FLANGE
|
0-28751-025-0 |
04 |
1 |
1403- |
