0-51 — OIL PUMP AND OIL STRAINER
(#113313) — 44 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀

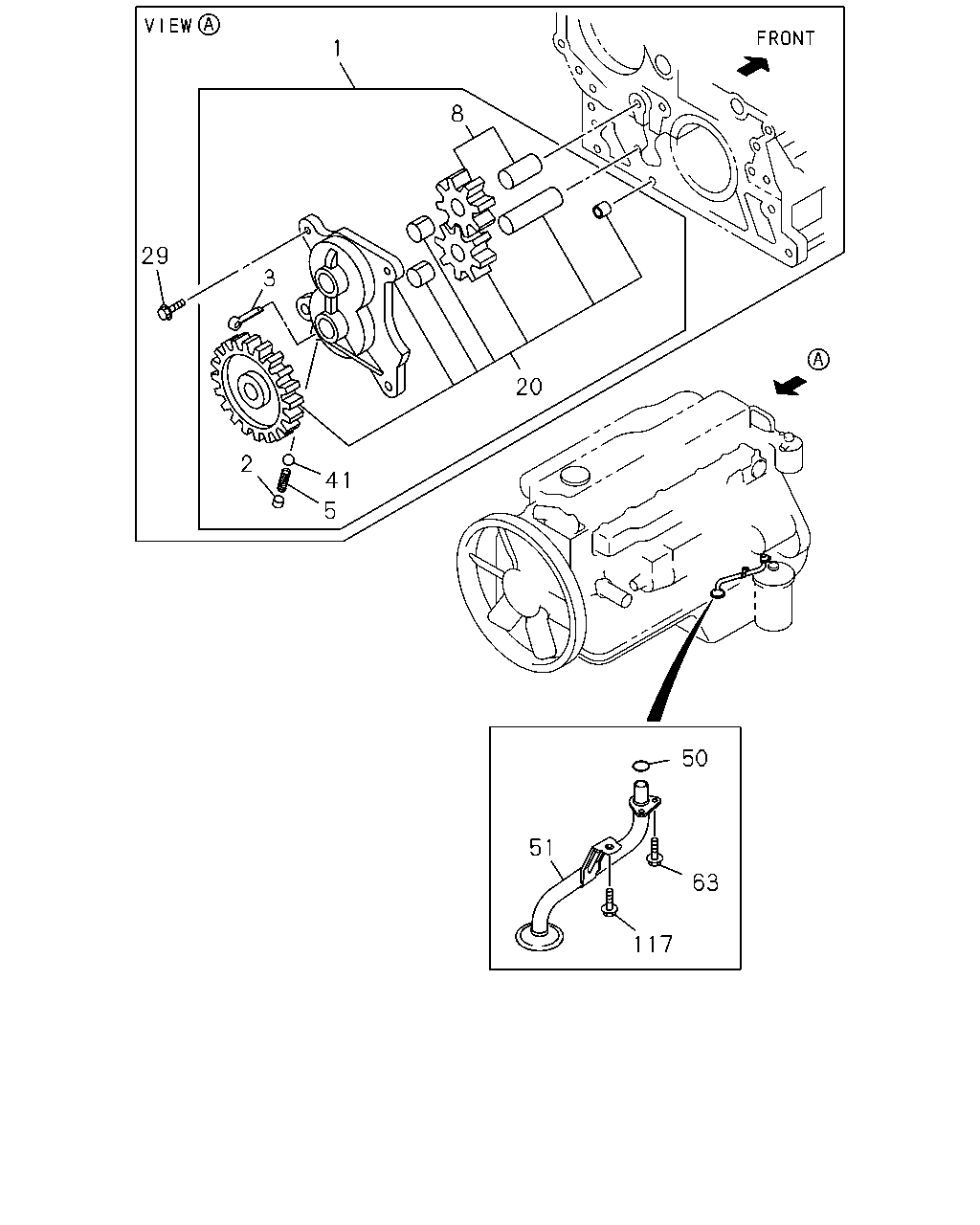

[051A] 6HK1 (28 parça)
[051A] 4HK1 (16 parça)
▶
8
1
20
3
29
41
5
2
50
51
117
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; OIL
8-97641-835-0
01
1
1302-
●
1
PUMP ASM; OIL
8-98017-585-1
01
1
1305-
●
2
SEAT; SPR
5-13165-004-0
01
1
1302-
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
1302-1304
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
1305-
●
●
5
SPRING; COIL
5-09580-098-0
01
1
1302-1304
●
5
SPRING; COIL
5-09580-098-0
01
1
1305-
●
●
8
GEAR; DRIVEN,OIL PUMP
8-97641-838-0
01
1
1302-
●
20
GEAR; DRIVE,OIL PUMP
8-97641-839-0
01
1
1302-
●
20
GEAR; DRIVE,OIL PUMP
8-98059-192-0
01
1
1305-
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
1302-
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28060-825-0
02
1
1305-
●
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28060-830-0
02
1
1305-
●
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
1302-
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1302-
●
51
STRAINER & PIPE ASM; OIL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
8-98204-153-0
01
1
1406-1505
●
51
STRAINER & PIPE ASM; OIL
EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
8-98204-153-0
01
1
1506-
●
51
STRAINER & PIPE ASM; OIL
EURO5 SPECIFICATION<NT5>
8-98204-153-0
01
1
1506-
●
51
STRAINER & PIPE ASM; OIL
8-98204-158-0
01
1
1302-1401
●
51
STRAINER & PIPE ASM; OIL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
8-98204-158-0
01
1
1402-1511
●
51
STRAINER & PIPE ASM; OIL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
8-98204-158-0
01
1
1512-
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X14 FLANGE
0-28080-814-0
02
1
1406-1505
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X14 FLANGE
0-28080-814-0
02
1
1506-
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
EURO5 SPECIFICATION<NT5> M8X14 FLANGE
0-28080-814-0
02
1
1506-
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X16 HEX SOCKET
0-58330-816-0
02
1
1302-1401
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X16 HEX SOCKET
0-58330-816-0
02
1
1402-1511
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X16 HEX SOCKET
0-58330-816-0
02
1
1512-
●
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
1302-
●
1
29
102
42
49
49
20
1
44
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; OIL
8-97641-835-0
01
1
1302-
●
1
PUMP ASM; OIL
8-98017-585-1
01
1
1305-
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
1302-1304
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
1305-
●
●
5
SPRING; COIL
5-09580-098-0
01
1
1302-1304
●
5
SPRING; COIL
5-09580-098-0
01
1
1305-
●
●
20
GEAR; DRIVE,OIL PUMP
8-97641-839-0
01
1
1302-
●
20
GEAR; DRIVE,OIL PUMP
8-98059-192-0
01
1
1305-
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
1302-
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28060-825-0
02
1
1305-
●
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28060-830-0
02
1
1305-
●
42
STRAINER; OIL,OIL PUMP
8-98213-867-0
01
1
1305-
●
44
BALL; RELIEF VLV
5-09843-003-0
01
1
1305-
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28060-816-0
02
1
1305-
●
49
BOLT; STRAINER,OIL PUMP
(A) M10X80
8-97071-956-0
01
1
1305-
●
102
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1305-
●
