◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶

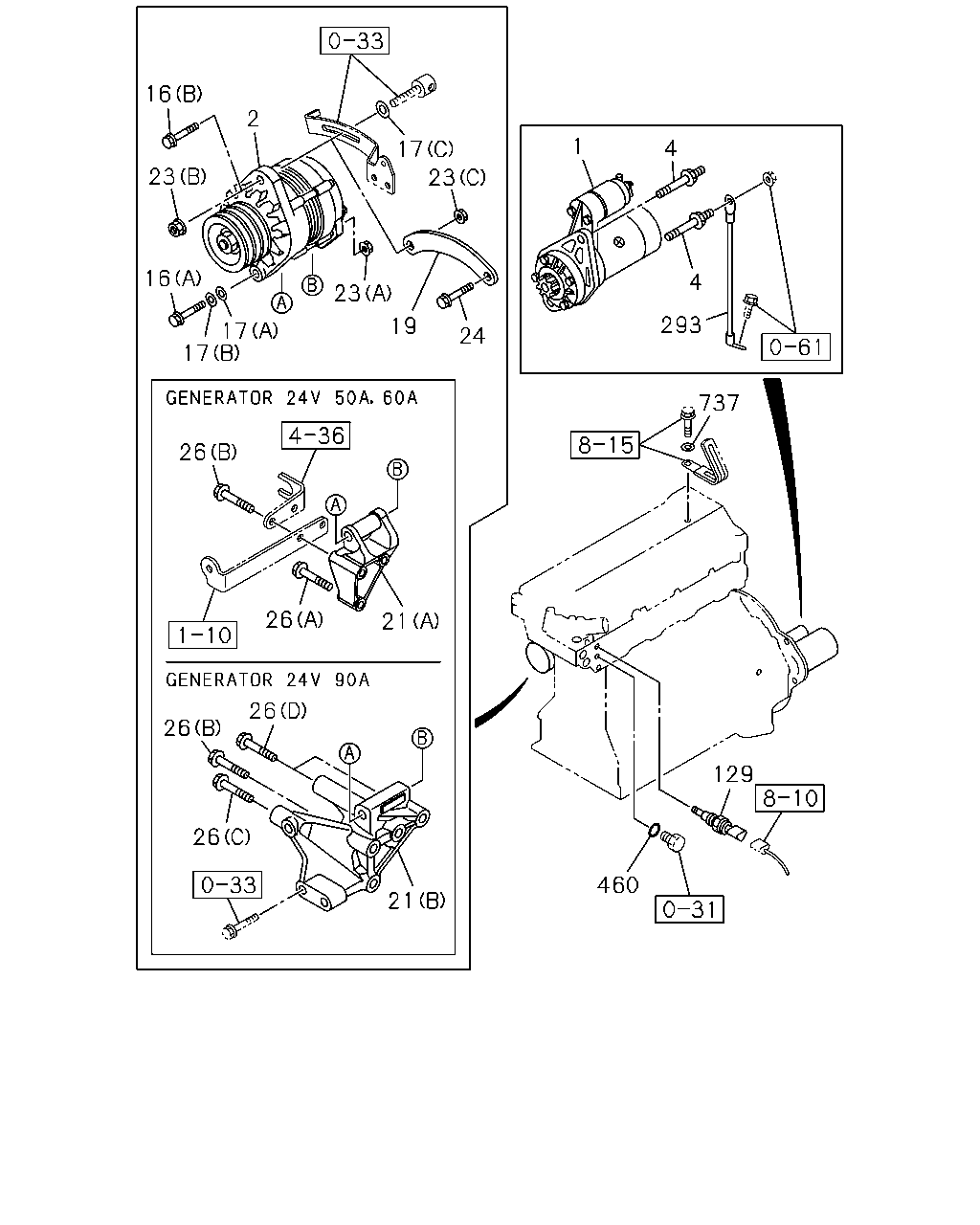

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#113310) — 106 parça

16 23 16 17 17 23 19 24 23 17 2 1 4 4 293 737 129 460 21 21 26 26 26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98222-023-0	01	1	1302-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-3	01	1	1302-1508
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-085-0	01	1	1509-
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	1302-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1302-
16	BOLT; GEN GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	1302-
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	1302-
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1302-
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1302-
19	BRACKET; GEN GENERATOR 24V90A(K44)	8-98032-273-0	01	1	1302-
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1302-
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1302-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1302-
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1302-
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1302-
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X70 FLANGE	0-28151-070-0	02	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M8X70 FLANGE	0-28050-870-0	01	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (D) M10X60 FLANGE	0-28151-060-0	02	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (B) M10X70 FLANGE	0-28151-070-0	01	1	1302-
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1302-1503
129	SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1504-
293	CABLE; STARTER EARTH L=410	8-97620-375-0	01	1	1302-
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	1302-
737	WASHER; PL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	01	1	1401-1511
737	WASHER; PL EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	01	1	1512-
737	WASHER; PL EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	01	1	1302-1312
737	WASHER; PL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	02	1	1401-1505
737	WASHER; PL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> ID=6.4 OD=18	0-91610-706-0	02	1	1506-
737	WASHER; PL EURO4 SPECIFICATION<NT4> ID=9 OD=18 T=5	9-14149-173-0	01	1	1302-1312
737	WASHER; PL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> ID=9 OD=18 T=5	9-14149-173-0	01	1	1401-1511
737	WASHER; PL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=9 OD=18 T=5	9-14149-173-0	01	1	1512-

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

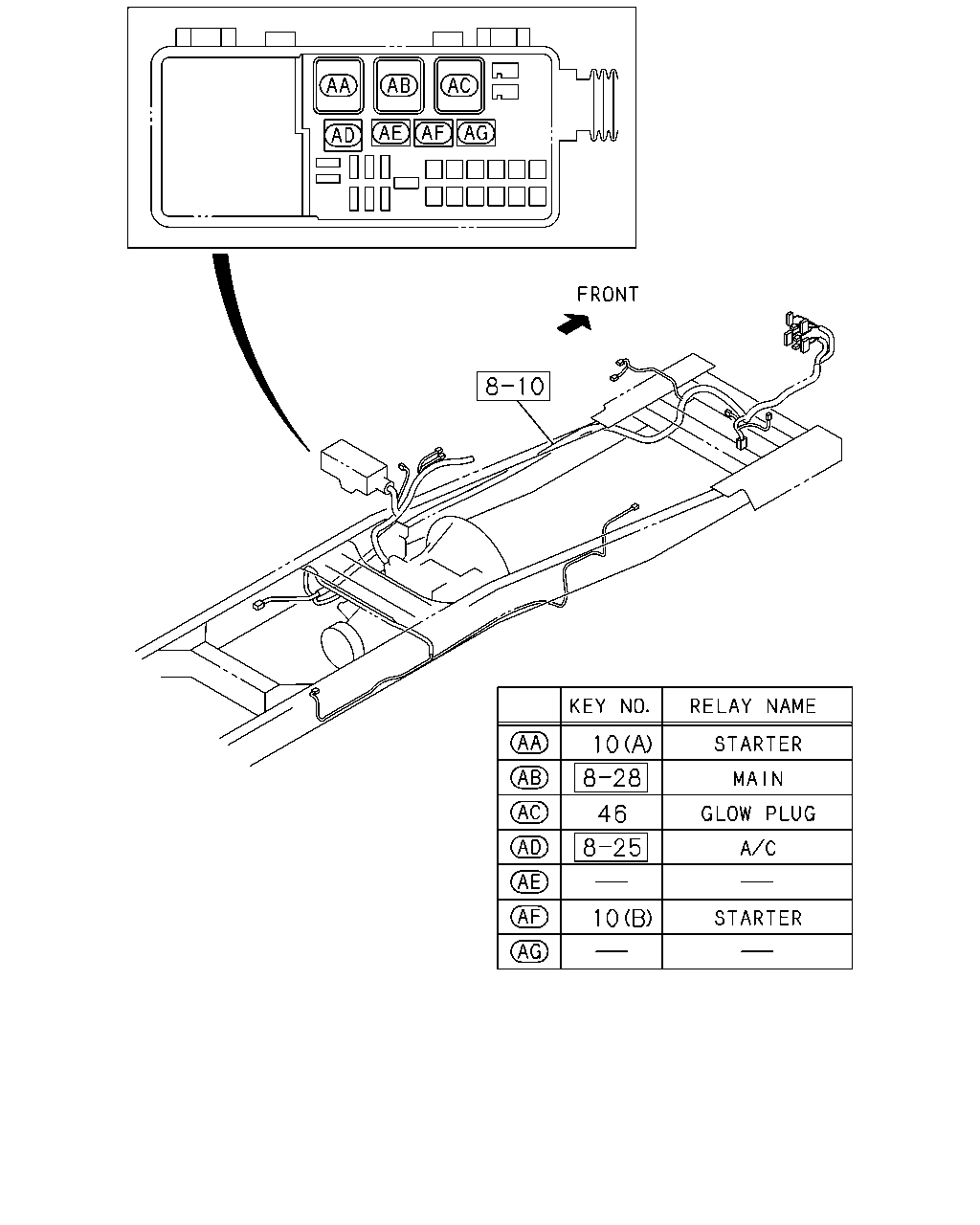

10	RELAY; STARTER (A) 24V 50A	8-97264-947-0	01	1	1302-
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-98167-173-0	01	1	1302-
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1302-1311
46	RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1312-

748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

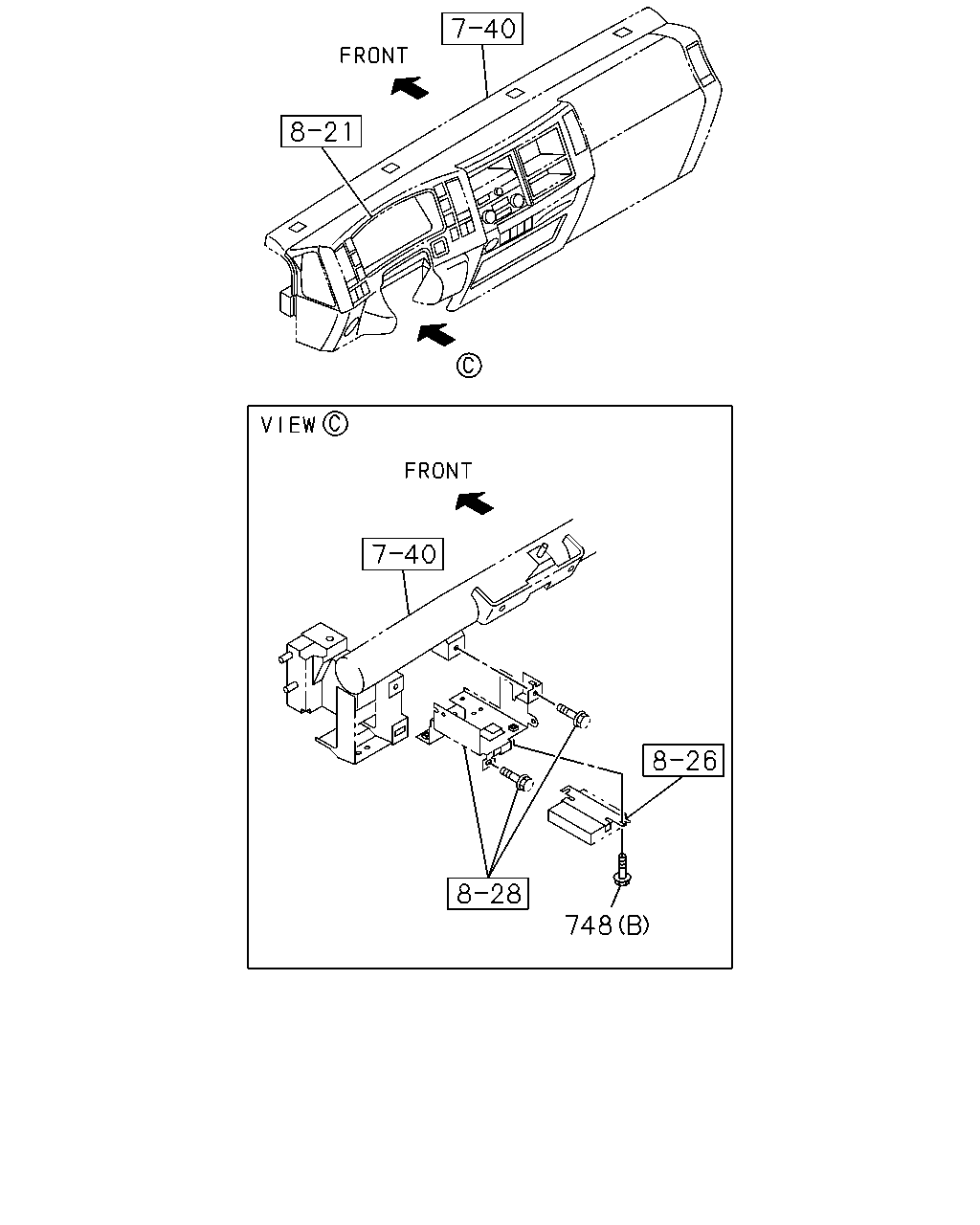

748	BOLT; CONT UNIT EURO5 SPECIFICATION<NT5> (A) M6X12 FLANGE	0-28050-612-0	04	1	1506-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1302-1505
748	BOLT; CONT UNIT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-1511
748	BOLT; CONT UNIT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M6X12 FLANGE	0-28050-612-0	03	1	1512-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1302-

732 593 613 606 749 593 748 301 749 748 587

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

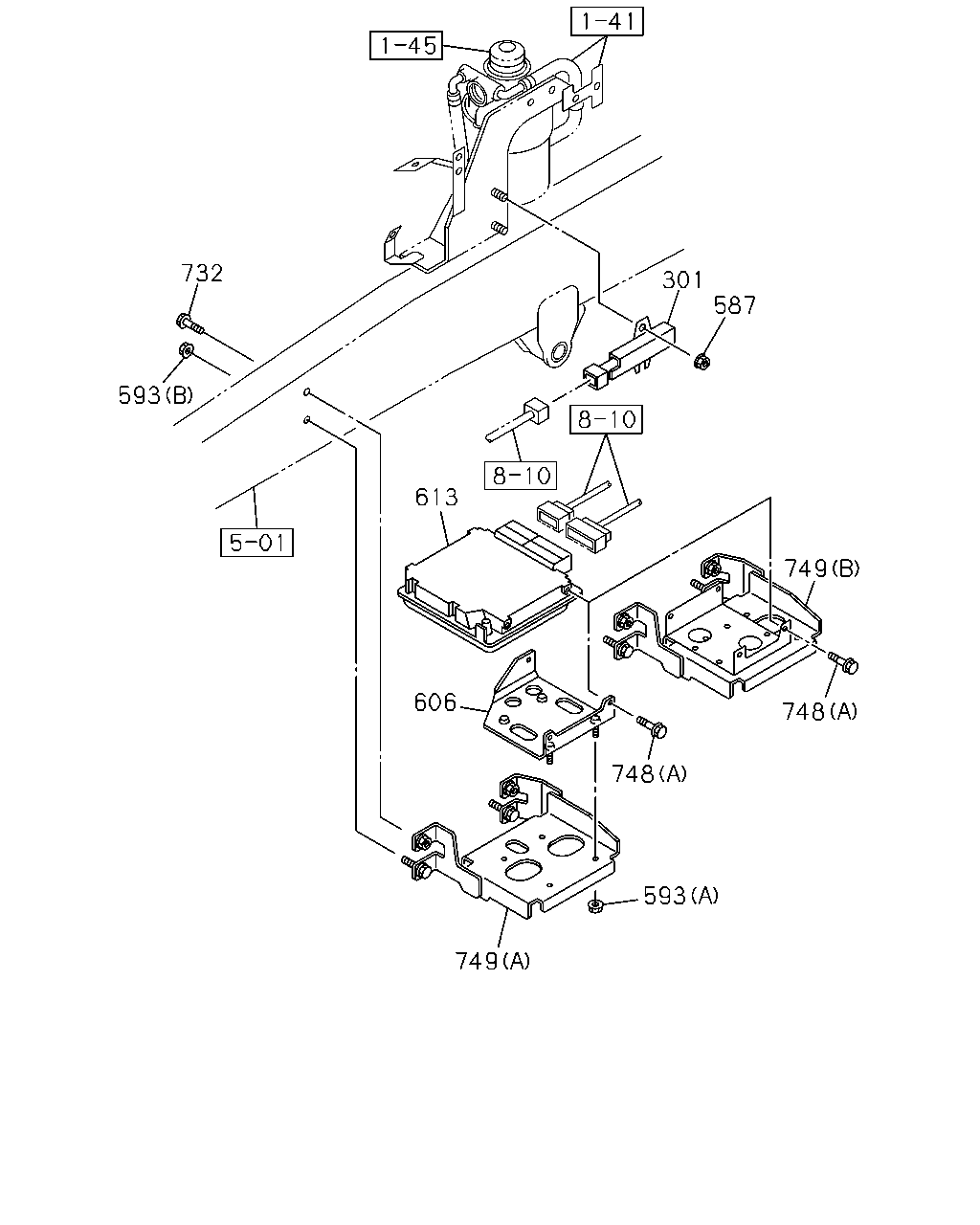

301	RESISTOR; DROPPING EURO4 SPECIFICATION<NT4>	8-97357-613-0	01	1	1302-
587	NUT; RESISTOR & RELAY EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	02	1	1302-
593	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	04	1	1302-1505
593	NUT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M6 FLANGE	0-91180-106-0	04	1	1506-1511
593	NUT; BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M6 FLANGE	0-91180-106-0	04	1	1512-
593	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1302-1505
593	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1506-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1302-1505
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>	1-53194-675-0	01	1	1506-1511
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	1-53194-675-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) AUTO CRUISE<K30> SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7)	8-98200-350-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) AUTO CRUISE<K30> SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98330-414-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) AUTO CRUISE<K30> SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98330-415-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) AUTO CRUISE<K30> EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7),SPEED LIMITER 90KM(NMJ)	8-98288-048-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO5 SPECIFICATION<NT5> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> CATALYSIS CONTROL<6MZ>	8-98270-715-0	01	1	1506-1507
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO5 SPECIFICATION<NT5> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> CATALYSIS CONTROL<6MZ>	8-98270-719-1	01	1	1508-1510
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO5 SPECIFICATION<NT5> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> CATALYSIS CONTROL<6MZ> EXC. AUTO CRUISE<K30>	8-98270-719-1	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) COLOMBIA EQUIPMENT(CB7) EURO4 SPECIFICATION<NT4> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98288-863-0	01	1	1502-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK>	8-98257-202-0	01	1	1312-1510
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,SPEED LIMITER 90KM(NMJ)	8-98257-202-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-203-0	01	1	1312-1510
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,SPEED LIMITER 90KM(NMJ),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-203-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK>	8-98257-198-0	01	1	1312-1510
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,SPEED LIMITER 90KM(NMJ)	8-98257-198-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-199-0	01	1	1312-1510
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,SPEED LIMITER 90KM(NMJ),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-199-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98172-459-0	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98172-459-0	01	1	1312-1510
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. AUTO CRUISE<K30>,SPEED LIMITER 90KM(NMJ),GLOW SYSTEM DELETE<7RK>	8-98172-459-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98172-460-0	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98172-460-0	01	1	1312-1510
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE<K30>,SPEED LIMITER 90KM(NMJ),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98172-460-0	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98172-461-0	01	1	1302-1511
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98181-826-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98181-827-0	01	1	1302-1501
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7)	8-98181-827-0	01	1	1502-1510
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7),AUTO CRUISE<K30>	8-98181-827-0	01	1	1511-1511
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7),AUTO CRUISE<K30>,GLOW SYSTEM DELETE<7RK>	8-98181-827-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98181-828-0	01	1	1302-1501
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> EXC. COLOMBIA EQUIPMENT(CB7),INJ PUMP Q SET SPECIAL+5%Q(T1A)	8-98181-828-0	01	1	1502-1511
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> EXC. COLOMBIA EQUIPMENT(CB7),INJ PUMP Q SET SPECIAL+5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98181-828-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98114-763-1	01	1	1302-1511
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98081-130-4	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98081-130-4	01	1	1312-1510
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. AUTO CRUISE<K30>,SPEED LIMITER 90KM(NMJ),GLOW SYSTEM DELETE<7RK>	8-98081-130-4	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98081-129-4	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98081-129-4	01	1	1312-1510
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE<K30>,SPEED LIMITER 90KM(NMJ),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98081-129-4	01	1	1511-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98190-668-0	01	1	1302-1511
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98210-869-0	01	1	1302-1511
732	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-1505
732	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1506-
748	BOLT; CONT UNIT EURO5 SPECIFICATION<NT5> (A) M6X12 FLANGE	0-28050-612-0	04	1	1506-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1302-1505
748	BOLT; CONT UNIT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-1511
748	BOLT; CONT UNIT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M6X12 FLANGE	0-28050-612-0	03	1	1512-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1302-
749	STAY; CONT UNIT EURO5 SPECIFICATION<NT5> (B)	8-98229-663-0	01	1	1506-
749	STAY; CONT UNIT (A)	8-98056-967-0	01	1	1302-1505
749	STAY; CONT UNIT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A)	8-98056-967-0	01	1	1506-1511
749	STAY; CONT UNIT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98056-967-0	01	1	1512-
