◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#113304) — 774 parça

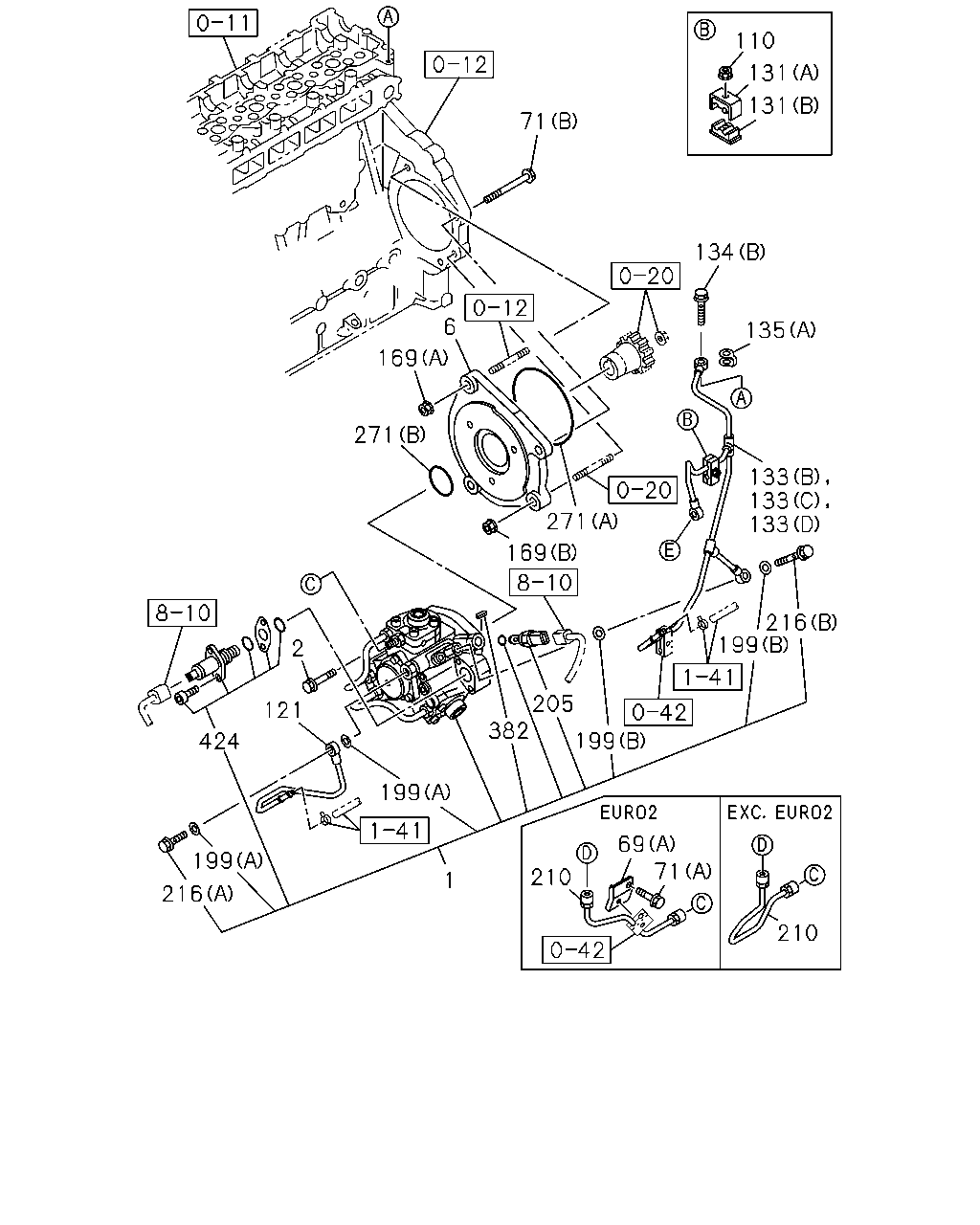

çizim 326546
71 110 131 131 134 135 169 271 271 169 133 133 6 382 199 205 133 2 121 424 199 216 199 199 69 210 210 71 216 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
EURO5 SPECIFICATION<NT5> 		8-98239-521-1 01 1 1506- ● ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1302-1505 ● ●
1 PUMP ASM; INJ
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97605-946-7 01 1 1506-1511 ● ●
1 PUMP ASM; INJ
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97605-946-7 01 1 1512- ● ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1305- ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1302-1505 ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1506- ● ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1302-1505 ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1506- ● ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1506- ● ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO5 SPECIFICATION<NT5> (E) 		8-98241-203-0 01 1 1506- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) 		8-98038-941-0 01 1 1506-1511 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) 		8-98038-941-0 01 1 1512- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98049-015-0 01 1 1506-1511 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98049-015-0 01 1 1512- ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (A) 		8-98059-807-0 01 1 1302- ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1302-1505 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1302-1505 ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1506- ● ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X16 FLANGE 		0-28151-016-0 01 1 1302- ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
71 BOLT; BRKT
(G) M8X40 FLANGE 		0-28050-840-0 01 1 1305- ●
71 BOLT; BRKT
(F) M10X60 FLANGE 		0-28051-060-0 03 1 1305- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1305-1511 ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1512- ●
71 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE 		0-28050-860-0 01 1 1305- ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1302-1505 ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1506- ● ● ●
110 NUT; CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 04 1 1305-1511 ●
110 NUT; CLIP
EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 04 1 1512- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1302-1505 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1506- ● ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1302-1505 ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1506- ● ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1302-1505 ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1506- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1506- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1302-1505 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO5 SPECIFICATION<NT5> (D) 		8-98163-854-1 01 1 1506- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 1302- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-97610-504-0 01 1 1302-1511 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO4 SPECIFICATION<NT4> (C) 		8-97610-504-0 01 1 1512- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1302-1505 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1506- ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1302-1505 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1506- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1302-1505 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1506- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1302-1505 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1506- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302-1505 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1506- ● ● ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 1302-1505 ● ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 1506- ● ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 1302-1505 ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 1506- ● ● ●
169 NUT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8 FLANGE 		0-91180-108-0 02 1 1305- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1506- ● ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1506- ● ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1302-1304 ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1305-1505 ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1506- ● ● ● ●
210 PIPE; INJ,C/R
EURO5 SPECIFICATION<NT5> 		8-98242-356-0 01 1 1506- ● ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-98059-805-0 01 1 1302- ● ●
210 PIPE; INJ,C/R
EURO3 SPECIFICATION<NT3> 		8-97608-480-1 01 1 1302-1511 ● ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-98145-414-0 01 1 1302- ● ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97376-779-0 01 1 1305-1511 ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-97376-779-0 01 1 1512- ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-98172-184-0 01 1 1305- ●
216 BOLT; EYE
EURO5 SPECIFICATION<NT5> (D) 		8-98035-828-0 01 1 1506- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1506-1511 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1506-1511 ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1512- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1512- ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1302-1505 ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1506- ● ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1302-1505 ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1506- ● ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1302-1304 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1305-1505 ● ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1506- ● ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1302-1505 ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1506- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1305- ●

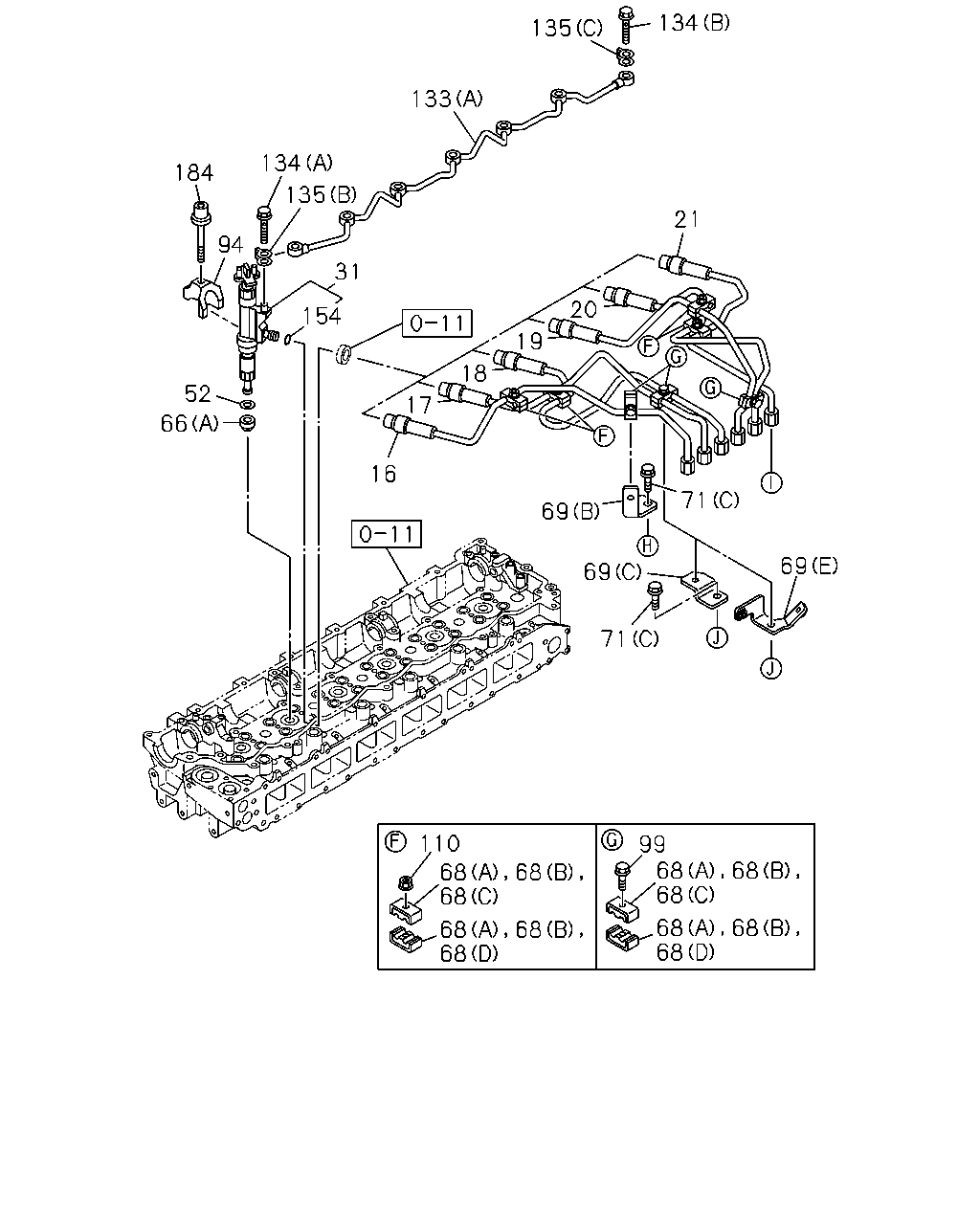

çizim 326561
184 134 133 135 134 135 94 52 66 154 31 16 17 18 19 20 21 69 69 71 69 71 110 68 68 68 68 68 68 99 68 68 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 PIPE; INJ NO.1
EURO5 SPECIFICATION<NT5> 		8-98242-350-0 01 1 1506- ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1302-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502-1505 ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-611-0 01 1 1506-1511 ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-611-0 01 1 1512- ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-344-0 01 1 1305-1404 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-606-0 01 1 1502-1511 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2> 		8-98298-606-0 01 1 1512- ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98185-352-0 01 1 1305-1404 ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98271-218-0 01 1 1405-1502 ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98298-628-0 01 1 1503- ●
17 PIPE; INJ NO.2
EURO5 SPECIFICATION<NT5> 		8-98242-351-0 01 1 1506- ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1302-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502-1505 ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-612-0 01 1 1506-1511 ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-612-0 01 1 1512- ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-345-0 01 1 1305-1404 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-607-0 01 1 1502-1511 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2> 		8-98298-607-0 01 1 1512- ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98185-353-0 01 1 1305-1404 ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98271-219-0 01 1 1405-1502 ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98298-629-0 01 1 1503- ●
18 PIPE; INJ NO.3
EURO5 SPECIFICATION<NT5> 		8-98242-352-0 01 1 1506- ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1302-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502-1505 ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-613-0 01 1 1506-1511 ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-613-0 01 1 1512- ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-346-0 01 1 1305-1404 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-608-0 01 1 1502-1511 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2> 		8-98298-608-0 01 1 1512- ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98185-354-0 01 1 1305-1404 ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98271-220-0 01 1 1405-1502 ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98298-630-0 01 1 1503- ●
19 PIPE; INJ NO.4
EURO5 SPECIFICATION<NT5> 		8-98242-353-0 01 1 1506- ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1302-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502-1505 ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-614-0 01 1 1506-1511 ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-614-0 01 1 1512- ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-347-0 01 1 1305-1306 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98245-980-0 01 1 1307-1404 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-230-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-609-0 01 1 1502-1511 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2> 		8-98298-609-0 01 1 1512- ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98185-355-0 01 1 1305-1404 ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98271-221-0 01 1 1405-1502 ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98298-631-0 01 1 1503- ●
20 PIPE; INJ NO.5
EURO5 SPECIFICATION<NT5> 		8-98242-354-0 01 1 1506- ● ●
20 PIPE; INJ NO.5
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-366-0 01 1 1302-1403 ● ●
20 PIPE; INJ NO.5
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-211-0 01 1 1404-1501 ● ●
20 PIPE; INJ NO.5
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-615-0 01 1 1502-1511 ● ●
20 PIPE; INJ NO.5
EURO2 SPECIFICATION<NT2> 		8-98298-615-0 01 1 1512- ● ●
20 PIPE; INJ NO.5
EURO4 SPECIFICATION<NT4> 		8-98185-368-0 01 1 1302-1403 ● ●
20 PIPE; INJ NO.5
EURO4 SPECIFICATION<NT4> 		8-98272-050-0 01 1 1404-1501 ● ●
20 PIPE; INJ NO.5
EURO4 SPECIFICATION<NT4> 		8-98298-616-0 01 1 1502- ● ●
21 PIPE; INJ NO.6
EURO5 SPECIFICATION<NT5> 		8-98242-355-0 01 1 1506- ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1302-1403 ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501 ● ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502-1505 ● ●
21 PIPE; INJ NO.6
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-617-0 01 1 1506-1511 ● ●
21 PIPE; INJ NO.6
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-617-0 01 1 1512- ● ●
31 NOZZLE ASM; INJ
EURO5 SPECIFICATION<NT5> 		8-98207-435-0 06 1 1506- ● ●
31 NOZZLE ASM; INJ
EURO2 SPECIFICATION<NT2> 		8-97609-789-6 06 1 1302- ● ●
31 NOZZLE ASM; INJ
EURO3 SPECIFICATION<NT3> 		8-98172-046-1 06 1 1302-1511 ● ●
31 NOZZLE ASM; INJ
EURO4 SPECIFICATION<NT4> 		8-98160-061-3 06 1 1302- ● ●
31 NOZZLE ASM; INJ 8-98219-181-0 04 1 1305- ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1302-1505 ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1506- ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1302-1505 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1506- ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1305- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1305- ●
68 CLIP; INJ PIPE
EURO5 SPECIFICATION<NT5> (D) ID=7 & 7 L=22 		8-97330-118-3 07 1 1506- ● ●
68 CLIP; INJ PIPE
EURO5 SPECIFICATION<NT5> (C) ID=7 & 7 L=22 		8-97330-119-3 07 1 1506- ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19 		8-98039-293-0 14 1 1302-1405 ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1406-1505 ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1506-1511 ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1512- ● ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1302-1304 ● ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1305-1405 ● ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1305-1405 ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19 		8-98148-996-2 04 1 1302-1405 ● ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=7 & 7 L=22 		8-97330-118-3 01 1 1305-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (D) ID=7 & 7 L=22 		8-97330-118-3 01 1 1512- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) ID=7 & 7 L=22 		8-97330-119-3 01 1 1305-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22 		8-97330-119-3 01 1 1512- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 06 1 1305-1405 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1512- ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1506- ● ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO5 SPECIFICATION<NT5> (E) 		8-98241-203-0 01 1 1506- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) 		8-98038-941-0 01 1 1506-1511 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) 		8-98038-941-0 01 1 1512- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98049-015-0 01 1 1506-1511 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98049-015-0 01 1 1512- ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (A) 		8-98059-807-0 01 1 1302- ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1302-1505 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1302-1505 ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1506- ● ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X16 FLANGE 		0-28151-016-0 01 1 1302- ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
71 BOLT; BRKT
(G) M8X40 FLANGE 		0-28050-840-0 01 1 1305- ●
71 BOLT; BRKT
(F) M10X60 FLANGE 		0-28051-060-0 03 1 1305- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1305-1511 ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1512- ●
71 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE 		0-28050-860-0 01 1 1305- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1302-1505 ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1506- ● ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1305- ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1302-1505 ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1506- ● ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1302-1505 ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1506- ● ● ●
110 NUT; CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 04 1 1305-1511 ●
110 NUT; CLIP
EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 04 1 1512- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1506- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1302-1505 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO5 SPECIFICATION<NT5> (D) 		8-98163-854-1 01 1 1506- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 1302- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-97610-504-0 01 1 1302-1511 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO4 SPECIFICATION<NT4> (C) 		8-97610-504-0 01 1 1512- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1302-1505 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1506- ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1302-1505 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1506- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1302-1505 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1506- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1302-1505 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1506- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302-1505 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1506- ● ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1302-1505 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1506- ● ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1305- ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1302-1505 ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1506- ● ● ●

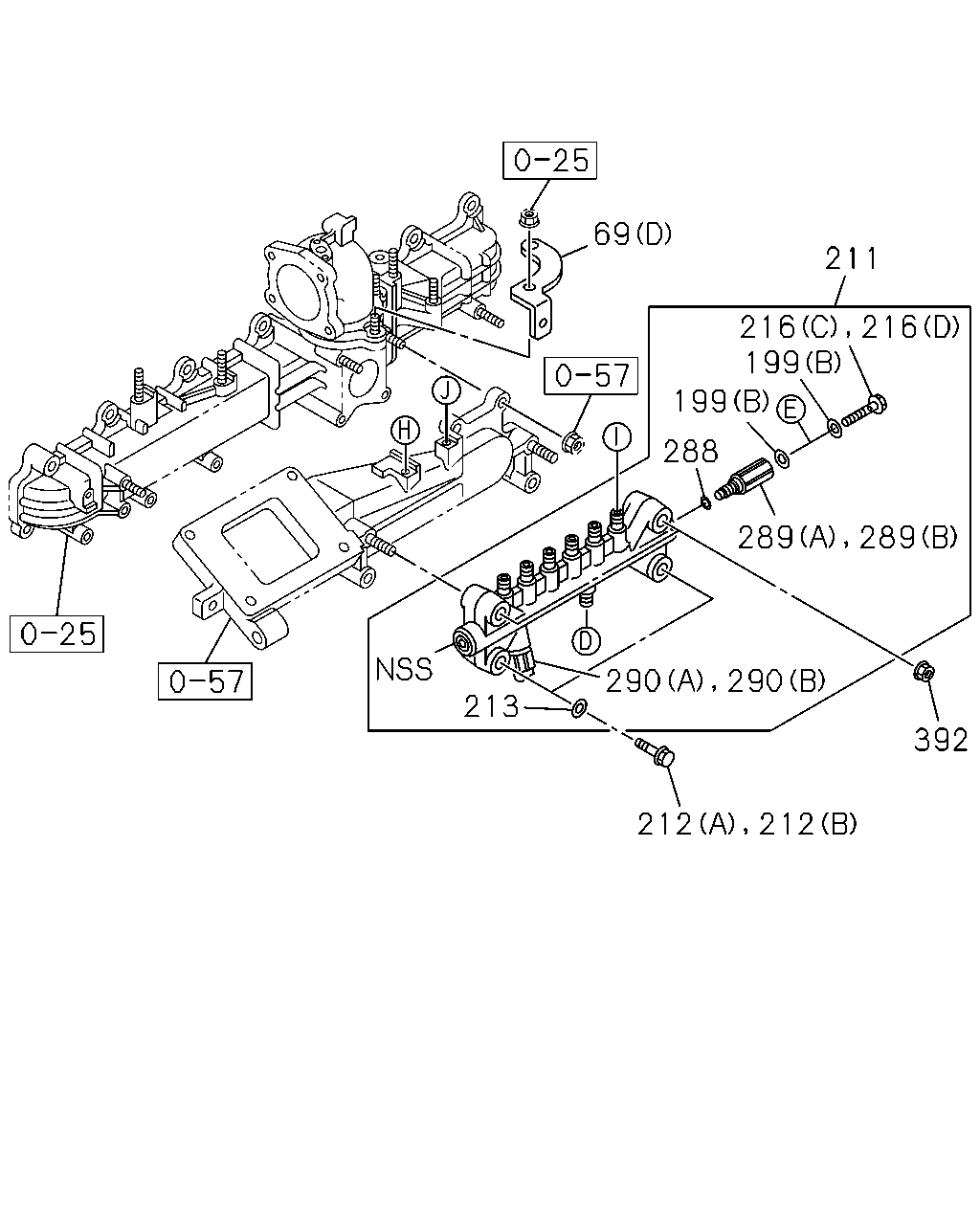

çizim 331351
69 216 216 199 199 288 289 289 392 290 290 213 212 212 211
BalonParca AdiParca NoAdetTipApplied Date A B C D
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1506- ● ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO5 SPECIFICATION<NT5> (E) 		8-98241-203-0 01 1 1506- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) 		8-98038-941-0 01 1 1506-1511 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) 		8-98038-941-0 01 1 1512- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1302-1505 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98049-015-0 01 1 1506-1511 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98049-015-0 01 1 1512- ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (A) 		8-98059-807-0 01 1 1302- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1506- ● ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1506- ● ● ● ●
211 RAIL ASM; COMMON
EURO5 SPECIFICATION<NT5> 		8-98239-520-0 01 1 1506- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1302-1505 ● ●
211 RAIL ASM; COMMON
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97609-980-2 01 1 1506-1511 ● ●
211 RAIL ASM; COMMON
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-97609-980-2 01 1 1512- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1305- ●
212 BOLT; RAIL ASM
EURO5 SPECIFICATION<NT5> (B) M10X55 FLANGE 		8-97365-449-0 02 1 1506- ● ●
212 BOLT; RAIL ASM
(A) M10X50 FLANGE 		8-97372-243-0 02 1 1302-1505 ● ●
212 BOLT; RAIL ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M10X50 FLANGE 		8-97372-243-0 02 1 1506-1511 ● ●
212 BOLT; RAIL ASM
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M10X50 FLANGE 		8-97372-243-0 02 1 1512- ● ●
213 WASHER; RAIL ASM
EURO5 SPECIFICATION<NT5> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1506- ● ●
216 BOLT; EYE
EURO5 SPECIFICATION<NT5> (D) 		8-98035-828-0 01 1 1506- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1506-1511 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1506-1511 ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1512- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1512- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1302-1304 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1305-1505 ● ● ●
288 GASKET
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=11 OD=16.3 		1-15641-046-0 01 1 1506-1511 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1506-1511 ●
288 GASKET
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=11 OD=16.3 		1-15641-046-0 01 1 1512- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1512- ●
289 LIMITER; FUEL PRESS
EURO5 SPECIFICATION<NT5> (B) 		8-98138-695-0 01 1 1506- ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1302-1304 ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1305-1505 ● ● ●
289 LIMITER; FUEL PRESS
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 		8-98032-549-0 01 1 1506-1511 ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1506-1511 ●
289 LIMITER; FUEL PRESS
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-98032-549-0 01 1 1512- ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1512- ●
290 SENSOR; PRESS
EURO5 SPECIFICATION<NT5> (B) 		8-98138-736-0 01 1 1506- ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1302-1304 ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1305-1505 ● ● ●
290 SENSOR; PRESS
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 		8-98119-790-0 01 1 1506-1511 ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1506-1511 ●
290 SENSOR; PRESS
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-98119-790-0 01 1 1512- ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1512- ●
392 NUT; RAIL ASM
EURO5 SPECIFICATION<NT5> M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 1302-1505 ● ●
392 NUT; RAIL ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-110-0 02 1 1506-1511 ● ●
392 NUT; RAIL ASM
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-110-0 02 1 1512- ● ●
392 NUT; RAIL ASM
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 1305- ●

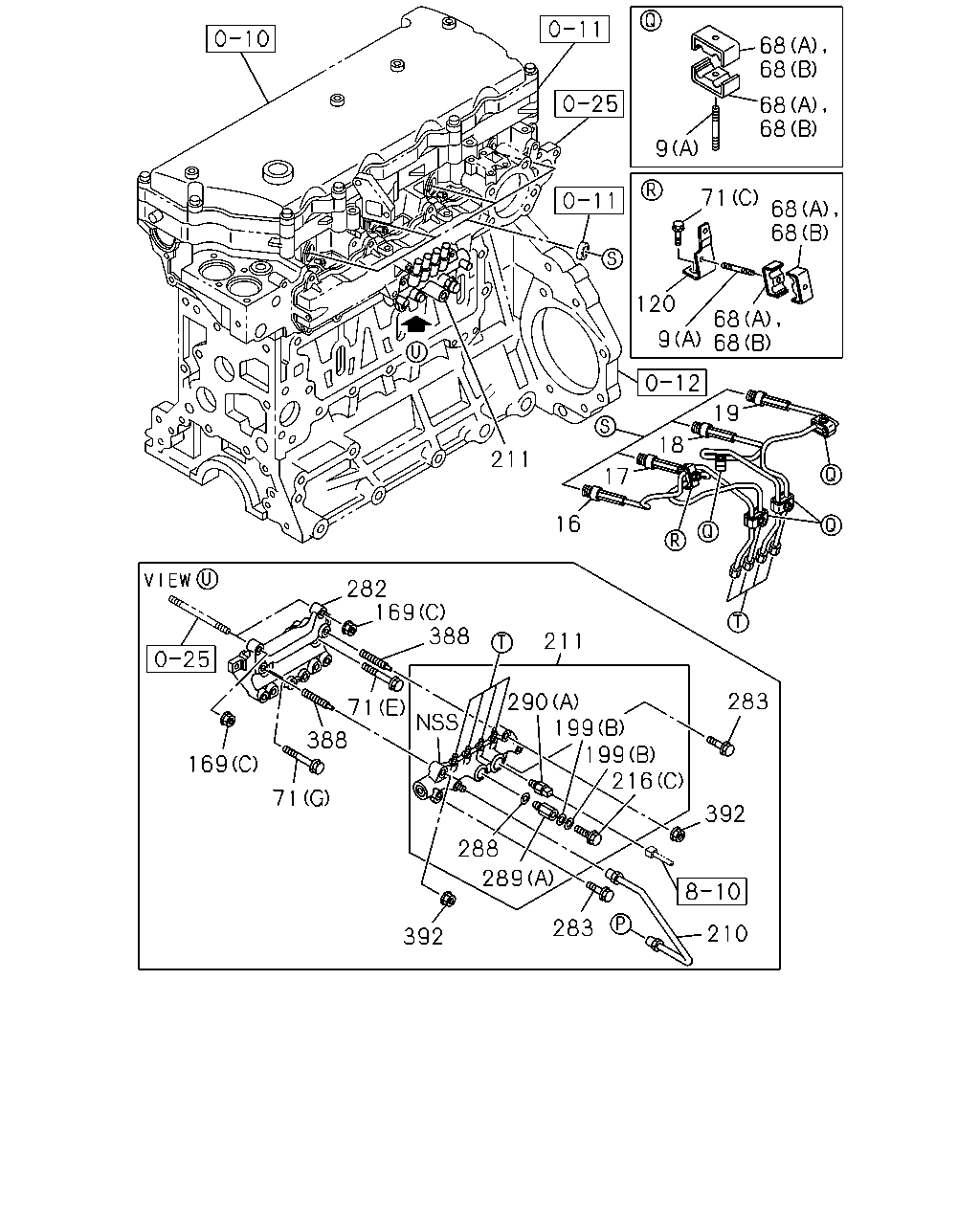

çizim 350254
282 169 388 71 169 388 71 211 290 199 288 199 216 289 392 283 392 283 210 68 68 68 68 71 68 120 68 68 68 19 211 16 17 18 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1305- ●
9 STUD; CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X30 L=38 		0-41010-630-0 02 1 1305-1511 ●
9 STUD; CLIP
EURO2 SPECIFICATION<NT2> (A) M6X30 L=38 		0-41010-630-0 02 1 1512- ●
9 STUD; CLIP
EURO4 SPECIFICATION<NT4> (A) M6X30 L=38 		0-41010-630-0 04 1 1305- ●
16 PIPE; INJ NO.1
EURO5 SPECIFICATION<NT5> 		8-98242-350-0 01 1 1506- ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1302-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502-1505 ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-611-0 01 1 1506-1511 ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-611-0 01 1 1512- ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-344-0 01 1 1305-1404 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-606-0 01 1 1502-1511 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2> 		8-98298-606-0 01 1 1512- ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98185-352-0 01 1 1305-1404 ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98271-218-0 01 1 1405-1502 ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98298-628-0 01 1 1503- ●
17 PIPE; INJ NO.2
EURO5 SPECIFICATION<NT5> 		8-98242-351-0 01 1 1506- ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1302-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502-1505 ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-612-0 01 1 1506-1511 ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-612-0 01 1 1512- ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-345-0 01 1 1305-1404 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-607-0 01 1 1502-1511 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2> 		8-98298-607-0 01 1 1512- ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98185-353-0 01 1 1305-1404 ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98271-219-0 01 1 1405-1502 ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98298-629-0 01 1 1503- ●
18 PIPE; INJ NO.3
EURO5 SPECIFICATION<NT5> 		8-98242-352-0 01 1 1506- ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1302-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502-1505 ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-613-0 01 1 1506-1511 ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-613-0 01 1 1512- ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-346-0 01 1 1305-1404 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-608-0 01 1 1502-1511 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2> 		8-98298-608-0 01 1 1512- ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98185-354-0 01 1 1305-1404 ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98271-220-0 01 1 1405-1502 ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98298-630-0 01 1 1503- ●
19 PIPE; INJ NO.4
EURO5 SPECIFICATION<NT5> 		8-98242-353-0 01 1 1506- ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1302-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502-1505 ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-614-0 01 1 1506-1511 ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-614-0 01 1 1512- ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-347-0 01 1 1305-1306 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98245-980-0 01 1 1307-1404 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-230-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-609-0 01 1 1502-1511 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2> 		8-98298-609-0 01 1 1512- ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98185-355-0 01 1 1305-1404 ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98271-221-0 01 1 1405-1502 ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98298-631-0 01 1 1503- ●
68 CLIP; INJ PIPE
EURO5 SPECIFICATION<NT5> (D) ID=7 & 7 L=22 		8-97330-118-3 07 1 1506- ● ●
68 CLIP; INJ PIPE
EURO5 SPECIFICATION<NT5> (C) ID=7 & 7 L=22 		8-97330-119-3 07 1 1506- ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19 		8-98039-293-0 14 1 1302-1405 ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1406-1505 ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1506-1511 ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1512- ● ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1302-1304 ● ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1305-1405 ● ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1305-1405 ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19 		8-98148-996-2 04 1 1302-1405 ● ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=7 & 7 L=22 		8-97330-118-3 01 1 1305-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (D) ID=7 & 7 L=22 		8-97330-118-3 01 1 1512- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) ID=7 & 7 L=22 		8-97330-119-3 01 1 1305-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22 		8-97330-119-3 01 1 1512- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 06 1 1305-1405 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1512- ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1302-1505 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1302-1505 ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1506- ● ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X16 FLANGE 		0-28151-016-0 01 1 1302- ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
71 BOLT; BRKT
(G) M8X40 FLANGE 		0-28050-840-0 01 1 1305- ●
71 BOLT; BRKT
(F) M10X60 FLANGE 		0-28051-060-0 03 1 1305- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1305-1511 ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1512- ●
71 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE 		0-28050-860-0 01 1 1305- ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1305- ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 1302-1505 ● ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 1506- ● ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 1302-1505 ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 1506- ● ● ●
169 NUT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8 FLANGE 		0-91180-108-0 02 1 1305- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1506- ● ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1506- ● ● ● ●
210 PIPE; INJ,C/R
EURO5 SPECIFICATION<NT5> 		8-98242-356-0 01 1 1506- ● ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-98059-805-0 01 1 1302- ● ●
210 PIPE; INJ,C/R
EURO3 SPECIFICATION<NT3> 		8-97608-480-1 01 1 1302-1511 ● ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-98145-414-0 01 1 1302- ● ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97376-779-0 01 1 1305-1511 ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-97376-779-0 01 1 1512- ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-98172-184-0 01 1 1305- ●
211 RAIL ASM; COMMON
EURO5 SPECIFICATION<NT5> 		8-98239-520-0 01 1 1506- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1302-1505 ● ●
211 RAIL ASM; COMMON
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97609-980-2 01 1 1506-1511 ● ●
211 RAIL ASM; COMMON
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-97609-980-2 01 1 1512- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1305- ●
216 BOLT; EYE
EURO5 SPECIFICATION<NT5> (D) 		8-98035-828-0 01 1 1506- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1506-1511 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1506-1511 ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1512- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1512- ●
282 BRACKET; COMMON RAIL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98157-115-0 01 1 1305-1511 ●
282 BRACKET; COMMON RAIL
EURO2 SPECIFICATION<NT2> 		8-98157-115-0 01 1 1512- ●
282 BRACKET; COMMON RAIL
EURO4 SPECIFICATION<NT4> 		8-98106-661-1 01 1 1305- ●
283 BOLT; COMMON RAIL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X25 FLANGE 		0-28050-825-0 01 1 1305-1511 ●
283 BOLT; COMMON RAIL
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28050-825-0 01 1 1512- ●
283 BOLT; COMMON RAIL
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28050-820-0 02 1 1305- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1302-1304 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1305-1505 ● ● ●
288 GASKET
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=11 OD=16.3 		1-15641-046-0 01 1 1506-1511 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1506-1511 ●
288 GASKET
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=11 OD=16.3 		1-15641-046-0 01 1 1512- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1512- ●
289 LIMITER; FUEL PRESS
EURO5 SPECIFICATION<NT5> (B) 		8-98138-695-0 01 1 1506- ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1302-1304 ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1305-1505 ● ● ●
289 LIMITER; FUEL PRESS
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 		8-98032-549-0 01 1 1506-1511 ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1506-1511 ●
289 LIMITER; FUEL PRESS
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-98032-549-0 01 1 1512- ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1512- ●
290 SENSOR; PRESS
EURO5 SPECIFICATION<NT5> (B) 		8-98138-736-0 01 1 1506- ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1302-1304 ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1305-1505 ● ● ●
290 SENSOR; PRESS
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 		8-98119-790-0 01 1 1506-1511 ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1506-1511 ●
290 SENSOR; PRESS
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-98119-790-0 01 1 1512- ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1512- ●
388 STUD; RAIL
EURO4 SPECIFICATION<NT4> M8X35 L=53 		0-49140-835-0 02 1 1305- ●
392 NUT; RAIL ASM
EURO5 SPECIFICATION<NT5> M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 1302-1505 ● ●
392 NUT; RAIL ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-110-0 02 1 1506-1511 ● ●
392 NUT; RAIL ASM
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-110-0 02 1 1512- ● ●
392 NUT; RAIL ASM
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 1305- ●

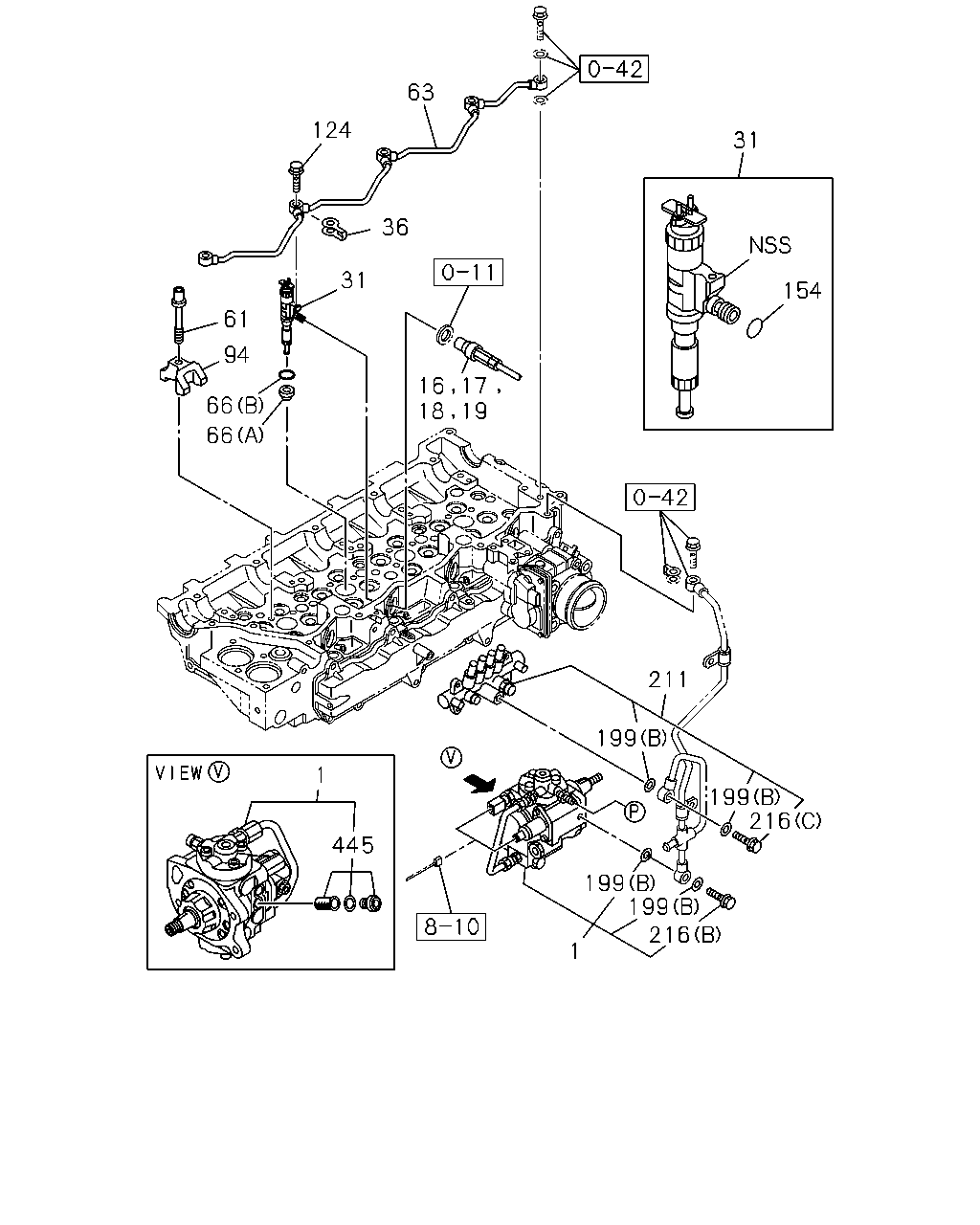

çizim 350256
31 154 63 124 36 31 61 66 94 66 16 17 18 19 211 1 445 199 199 216 199 199 216 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
EURO5 SPECIFICATION<NT5> 		8-98239-521-1 01 1 1506- ● ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1302-1505 ● ●
1 PUMP ASM; INJ
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97605-946-7 01 1 1506-1511 ● ●
1 PUMP ASM; INJ
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97605-946-7 01 1 1512- ● ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1305- ●
16 PIPE; INJ NO.1
EURO5 SPECIFICATION<NT5> 		8-98242-350-0 01 1 1506- ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1302-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502-1505 ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-611-0 01 1 1506-1511 ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-611-0 01 1 1512- ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-344-0 01 1 1305-1404 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-606-0 01 1 1502-1511 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2> 		8-98298-606-0 01 1 1512- ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98185-352-0 01 1 1305-1404 ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98271-218-0 01 1 1405-1502 ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98298-628-0 01 1 1503- ●
17 PIPE; INJ NO.2
EURO5 SPECIFICATION<NT5> 		8-98242-351-0 01 1 1506- ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1302-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502-1505 ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-612-0 01 1 1506-1511 ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-612-0 01 1 1512- ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-345-0 01 1 1305-1404 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-607-0 01 1 1502-1511 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2> 		8-98298-607-0 01 1 1512- ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98185-353-0 01 1 1305-1404 ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98271-219-0 01 1 1405-1502 ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98298-629-0 01 1 1503- ●
18 PIPE; INJ NO.3
EURO5 SPECIFICATION<NT5> 		8-98242-352-0 01 1 1506- ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1302-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502-1505 ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-613-0 01 1 1506-1511 ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-613-0 01 1 1512- ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-346-0 01 1 1305-1404 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-608-0 01 1 1502-1511 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2> 		8-98298-608-0 01 1 1512- ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98185-354-0 01 1 1305-1404 ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98271-220-0 01 1 1405-1502 ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98298-630-0 01 1 1503- ●
19 PIPE; INJ NO.4
EURO5 SPECIFICATION<NT5> 		8-98242-353-0 01 1 1506- ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1302-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502-1505 ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-614-0 01 1 1506-1511 ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-614-0 01 1 1512- ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-347-0 01 1 1305-1306 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98245-980-0 01 1 1307-1404 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-230-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-609-0 01 1 1502-1511 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2> 		8-98298-609-0 01 1 1512- ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98185-355-0 01 1 1305-1404 ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98271-221-0 01 1 1405-1502 ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98298-631-0 01 1 1503- ●
31 NOZZLE ASM; INJ
EURO5 SPECIFICATION<NT5> 		8-98207-435-0 06 1 1506- ● ●
31 NOZZLE ASM; INJ
EURO2 SPECIFICATION<NT2> 		8-97609-789-6 06 1 1302- ● ●
31 NOZZLE ASM; INJ
EURO3 SPECIFICATION<NT3> 		8-98172-046-1 06 1 1302-1511 ● ●
31 NOZZLE ASM; INJ
EURO4 SPECIFICATION<NT4> 		8-98160-061-3 06 1 1302- ● ●
31 NOZZLE ASM; INJ 8-98219-181-0 04 1 1305- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1305- ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1305- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1305- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1302-1505 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1506- ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1305- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1305- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1302-1505 ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1506- ● ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1305- ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1305- ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1302-1505 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1506- ● ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1305- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1506- ● ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1506- ● ● ● ●
211 RAIL ASM; COMMON
EURO5 SPECIFICATION<NT5> 		8-98239-520-0 01 1 1506- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1302-1505 ● ●
211 RAIL ASM; COMMON
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97609-980-2 01 1 1506-1511 ● ●
211 RAIL ASM; COMMON
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-97609-980-2 01 1 1512- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1305- ●
216 BOLT; EYE
EURO5 SPECIFICATION<NT5> (D) 		8-98035-828-0 01 1 1506- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1506-1511 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1506-1511 ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1512- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1512- ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1305- ●

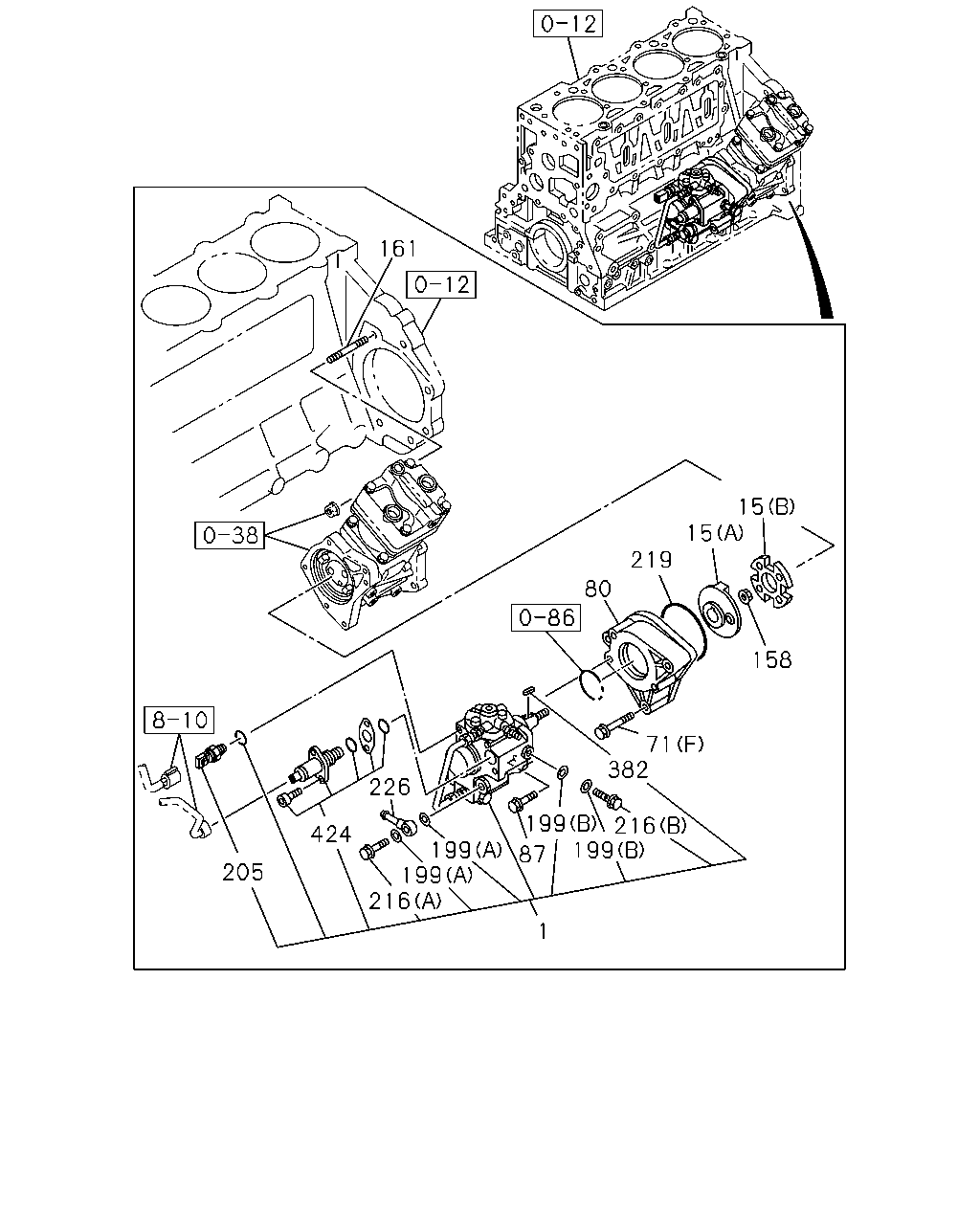

çizim 351924
161 80 15 219 15 158 71 382 199 216 199 87 199 199 216 424 226 205 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
EURO5 SPECIFICATION<NT5> 		8-98239-521-1 01 1 1506- ● ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1302-1505 ● ●
1 PUMP ASM; INJ
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97605-946-7 01 1 1506-1511 ● ●
1 PUMP ASM; INJ
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97605-946-7 01 1 1512- ● ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1305- ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1305- ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1305- ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1302-1505 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1302-1505 ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1506- ● ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X16 FLANGE 		0-28151-016-0 01 1 1302- ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
71 BOLT; BRKT
(G) M8X40 FLANGE 		0-28050-840-0 01 1 1305- ●
71 BOLT; BRKT
(F) M10X60 FLANGE 		0-28051-060-0 03 1 1305- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1305-1511 ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1512- ●
71 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE 		0-28050-860-0 01 1 1305- ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1305- ●
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1305- ●
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1305- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1305- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1506- ● ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1506- ● ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1302-1304 ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1305-1505 ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
EURO5 SPECIFICATION<NT5> (D) 		8-98035-828-0 01 1 1506- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1506-1511 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1506-1511 ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1512- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1512- ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1305- ●
226 PIPE; FUEL 8-98126-332-0 01 1 1305- ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1302-1304 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1305-1505 ● ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1506- ● ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1302-1505 ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1506- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1305- ●
çizim 351925
211 110 68 68 68 68 71 68 68 9 120 68 68 19 18 17 16 282 71 211 290 199 199 216 377 9 288 289 168 283 354 210 71 110 68 68 110
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1305- ●
9 STUD; CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X30 L=38 		0-41010-630-0 02 1 1305-1511 ●
9 STUD; CLIP
EURO2 SPECIFICATION<NT2> (A) M6X30 L=38 		0-41010-630-0 02 1 1512- ●
9 STUD; CLIP
EURO4 SPECIFICATION<NT4> (A) M6X30 L=38 		0-41010-630-0 04 1 1305- ●
16 PIPE; INJ NO.1
EURO5 SPECIFICATION<NT5> 		8-98242-350-0 01 1 1506- ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1302-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502-1505 ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-611-0 01 1 1506-1511 ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-611-0 01 1 1512- ● ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-344-0 01 1 1305-1404 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-606-0 01 1 1502-1511 ●
16 PIPE; INJ NO.1
EURO2 SPECIFICATION<NT2> 		8-98298-606-0 01 1 1512- ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98185-352-0 01 1 1305-1404 ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98271-218-0 01 1 1405-1502 ●
16 PIPE; INJ NO.1
EURO4 SPECIFICATION<NT4> 		8-98298-628-0 01 1 1503- ●
17 PIPE; INJ NO.2
EURO5 SPECIFICATION<NT5> 		8-98242-351-0 01 1 1506- ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1302-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502-1505 ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-612-0 01 1 1506-1511 ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-612-0 01 1 1512- ● ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-345-0 01 1 1305-1404 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-607-0 01 1 1502-1511 ●
17 PIPE; INJ NO.2
EURO2 SPECIFICATION<NT2> 		8-98298-607-0 01 1 1512- ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98185-353-0 01 1 1305-1404 ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98271-219-0 01 1 1405-1502 ●
17 PIPE; INJ NO.2
EURO4 SPECIFICATION<NT4> 		8-98298-629-0 01 1 1503- ●
18 PIPE; INJ NO.3
EURO5 SPECIFICATION<NT5> 		8-98242-352-0 01 1 1506- ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1302-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502-1505 ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-613-0 01 1 1506-1511 ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-613-0 01 1 1512- ● ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-346-0 01 1 1305-1404 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-608-0 01 1 1502-1511 ●
18 PIPE; INJ NO.3
EURO2 SPECIFICATION<NT2> 		8-98298-608-0 01 1 1512- ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98185-354-0 01 1 1305-1404 ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98271-220-0 01 1 1405-1502 ●
18 PIPE; INJ NO.3
EURO4 SPECIFICATION<NT4> 		8-98298-630-0 01 1 1503- ●
19 PIPE; INJ NO.4
EURO5 SPECIFICATION<NT5> 		8-98242-353-0 01 1 1506- ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1302-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502-1505 ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98298-614-0 01 1 1506-1511 ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98298-614-0 01 1 1512- ● ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98185-347-0 01 1 1305-1306 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98245-980-0 01 1 1307-1404 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98271-230-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98298-609-0 01 1 1502-1511 ●
19 PIPE; INJ NO.4
EURO2 SPECIFICATION<NT2> 		8-98298-609-0 01 1 1512- ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98185-355-0 01 1 1305-1404 ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98271-221-0 01 1 1405-1502 ●
19 PIPE; INJ NO.4
EURO4 SPECIFICATION<NT4> 		8-98298-631-0 01 1 1503- ●
68 CLIP; INJ PIPE
EURO5 SPECIFICATION<NT5> (D) ID=7 & 7 L=22 		8-97330-118-3 07 1 1506- ● ●
68 CLIP; INJ PIPE
EURO5 SPECIFICATION<NT5> (C) ID=7 & 7 L=22 		8-97330-119-3 07 1 1506- ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19 		8-98039-293-0 14 1 1302-1405 ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1406-1505 ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1506-1511 ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1512- ● ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1302-1304 ● ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1305-1405 ● ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 1305-1405 ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19 		8-98148-996-2 04 1 1302-1405 ● ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=7 & 7 L=22 		8-97330-118-3 01 1 1305-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (D) ID=7 & 7 L=22 		8-97330-118-3 01 1 1512- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) ID=7 & 7 L=22 		8-97330-119-3 01 1 1305-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22 		8-97330-119-3 01 1 1512- ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19 		8-98039-293-0 06 1 1305-1405 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406-1511 ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1512- ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1302-1505 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1302-1505 ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1506- ● ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X16 FLANGE 		0-28151-016-0 01 1 1302- ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
71 BOLT; BRKT
(G) M8X40 FLANGE 		0-28050-840-0 01 1 1305- ●
71 BOLT; BRKT
(F) M10X60 FLANGE 		0-28051-060-0 03 1 1305- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1305-1511 ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (D) M8X50 FLANGE 		0-28050-850-0 01 1 1512- ●
71 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE 		0-28050-860-0 01 1 1305- ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1302-1505 ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1506- ● ● ●
110 NUT; CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 04 1 1305-1511 ●
110 NUT; CLIP
EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 04 1 1512- ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1305- ●
168 BRACKET; FUEL PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98072-403-0 01 1 1305-1511 ●
168 BRACKET; FUEL PIPE
EURO2 SPECIFICATION<NT2> 		8-98072-403-0 01 1 1512- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1506- ● ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-1304 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1305-1505 ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1506- ● ● ● ●
210 PIPE; INJ,C/R
EURO5 SPECIFICATION<NT5> 		8-98242-356-0 01 1 1506- ● ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-98059-805-0 01 1 1302- ● ●
210 PIPE; INJ,C/R
EURO3 SPECIFICATION<NT3> 		8-97608-480-1 01 1 1302-1511 ● ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-98145-414-0 01 1 1302- ● ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97376-779-0 01 1 1305-1511 ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-97376-779-0 01 1 1512- ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-98172-184-0 01 1 1305- ●
211 RAIL ASM; COMMON
EURO5 SPECIFICATION<NT5> 		8-98239-520-0 01 1 1506- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1302-1505 ● ●
211 RAIL ASM; COMMON
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97609-980-2 01 1 1506-1511 ● ●
211 RAIL ASM; COMMON
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-97609-980-2 01 1 1512- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1305- ●
216 BOLT; EYE
EURO5 SPECIFICATION<NT5> (D) 		8-98035-828-0 01 1 1506- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1506- ● ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-1304 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1305-1505 ● ● ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1506-1511 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1506-1511 ●
216 BOLT; EYE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) 		8-98043-033-0 01 1 1512- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1512- ●
282 BRACKET; COMMON RAIL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98157-115-0 01 1 1305-1511 ●
282 BRACKET; COMMON RAIL
EURO2 SPECIFICATION<NT2> 		8-98157-115-0 01 1 1512- ●
282 BRACKET; COMMON RAIL
EURO4 SPECIFICATION<NT4> 		8-98106-661-1 01 1 1305- ●
283 BOLT; COMMON RAIL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X25 FLANGE 		0-28050-825-0 01 1 1305-1511 ●
283 BOLT; COMMON RAIL
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28050-825-0 01 1 1512- ●
283 BOLT; COMMON RAIL
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28050-820-0 02 1 1305- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1302-1304 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1305-1505 ● ● ●
288 GASKET
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=11 OD=16.3 		1-15641-046-0 01 1 1506-1511 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1506-1511 ●
288 GASKET
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=11 OD=16.3 		1-15641-046-0 01 1 1512- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1512- ●
289 LIMITER; FUEL PRESS
EURO5 SPECIFICATION<NT5> (B) 		8-98138-695-0 01 1 1506- ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1302-1304 ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1305-1505 ● ● ●
289 LIMITER; FUEL PRESS
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 		8-98032-549-0 01 1 1506-1511 ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1506-1511 ●
289 LIMITER; FUEL PRESS
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-98032-549-0 01 1 1512- ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-549-0 01 1 1512- ●
290 SENSOR; PRESS
EURO5 SPECIFICATION<NT5> (B) 		8-98138-736-0 01 1 1506- ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1302-1304 ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1305-1505 ● ● ●
290 SENSOR; PRESS
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 		8-98119-790-0 01 1 1506-1511 ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1506-1511 ●
290 SENSOR; PRESS
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-98119-790-0 01 1 1512- ● ●
290 SENSOR; PRESS
(A) 		8-98119-790-0 01 1 1512- ●
354 BOLT; FUEL PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X16 FLANGE 		0-28050-816-0 02 1 1305-1511 ●
354 BOLT; FUEL PIPE
EURO2 SPECIFICATION<NT2> M8X16 FLANGE 		0-28050-816-0 02 1 1512- ●
377 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97379-783-1 01 1 1305-1511 ●
377 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> 		8-97379-783-1 01 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
