8-21 — METER ASM
(#11330) — 68 parça
◀

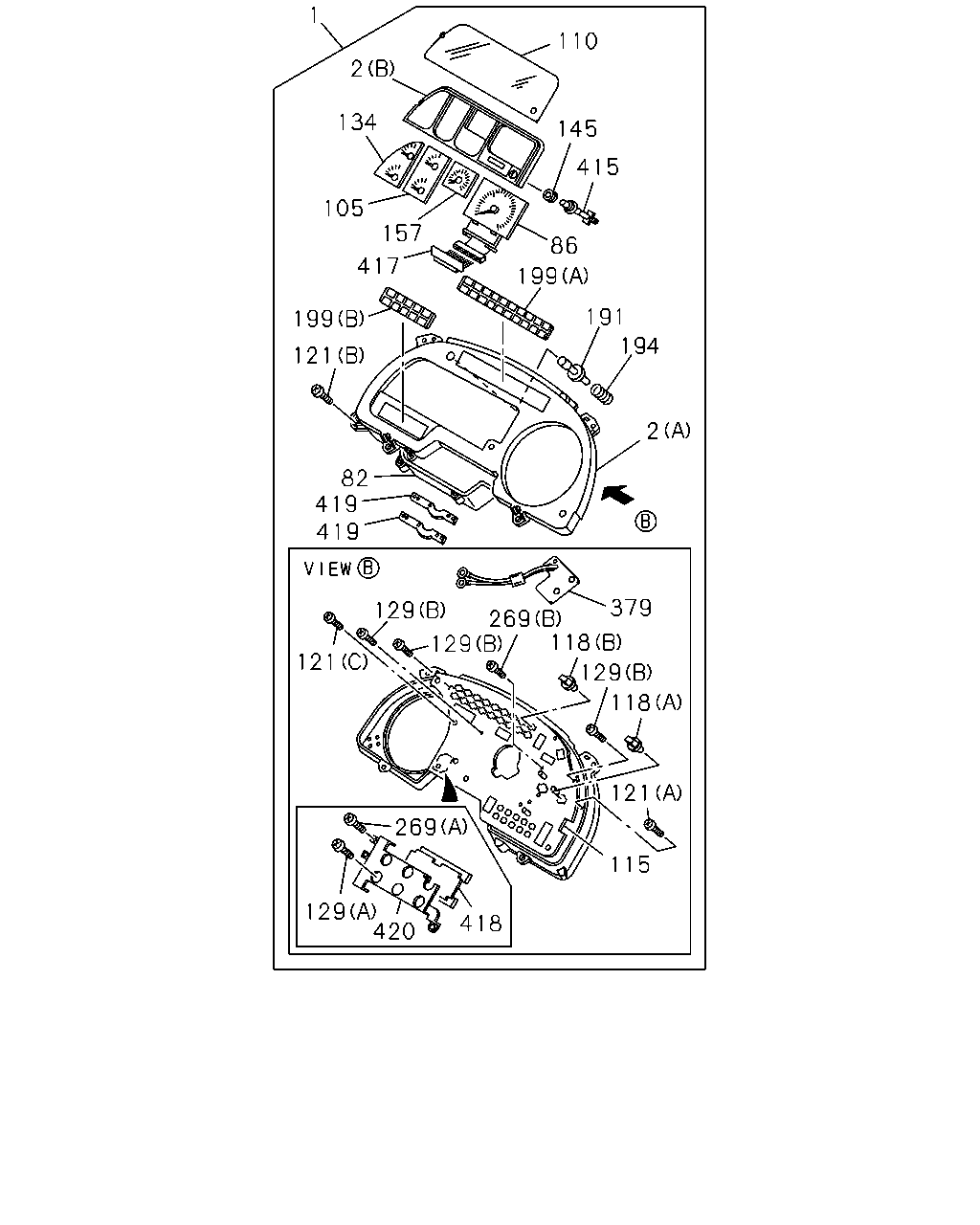

[821A] COMPONENT;METER (34 parça)

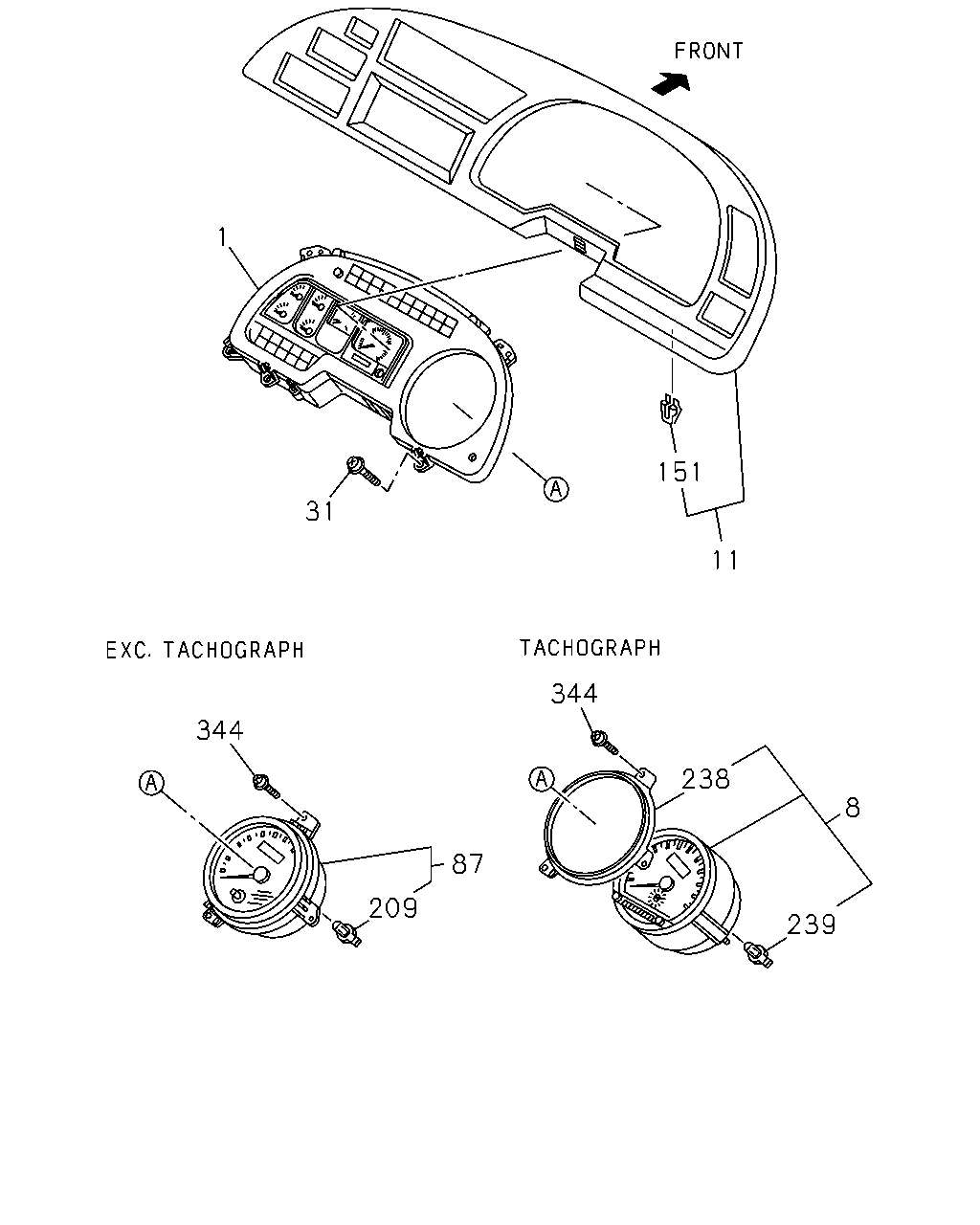

[821A] METER AND CLUSTER ASM (14 parça)

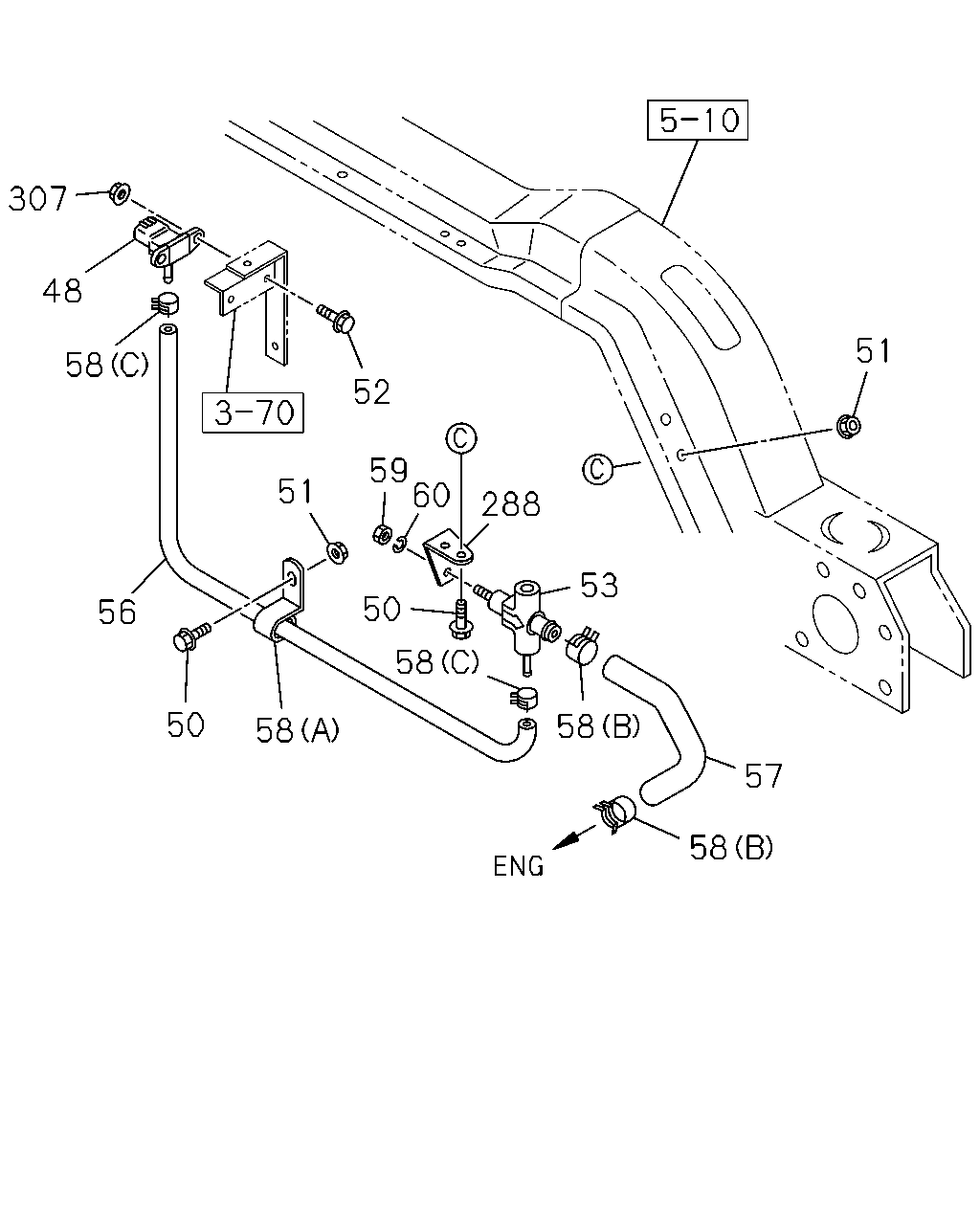

[821A] FIXING;BOOST SENSOR AND UNION (20 parça)
▶
1
134
2
110
145
86
415
157
105
417
199
121
419
82
419
121
129
129
269
129
420
418
115
121
118
118
269
379
2
194
191
199
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
6WA1 TC-C(55L),6WG1 TC-C(72L)
1-83115-842-3
01
1
0106-
1
METER COMPL; CLUSTER
6WF1 TC-C(1B8)
1-83115-855-3
01
1
0106-
2
PANEL; CLUSTER
(A)
1-83119-644-0
01
1
0106-
2
PANEL; CLUSTER
(B)
1-83119-652-0
01
1
0106-
82
CASE ASM; CLUSTER METER
1-83119-653-0
01
1
0106-
86
TACHOMETER; CLUSTER METER
6WA1 TC-C(55L),6WG1 TC-C(72L)
1-83120-879-0
01
1
0106-
86
TACHOMETER; CLUSTER METER
6WF1 TC-C(1B8)
1-83120-921-0
01
1
0106-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-281-0
01
1
0106-
110
GLASS; CLUSTER METER
1-83119-646-0
01
1
0106-
115
CIRCUIT; PRINTED,CLUSTER METER
1-83189-438-0
01
1
0106-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
0106-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
27
1
0106-
121
SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING
1-83119-084-0
01
1
0106-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING
1-83119-442-0
05
1
0106-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING
1-83119-676-0
02
1
0106-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING
1-83119-657-0
09
1
0106-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING
1-83119-675-0
06
1
0106-
134
GAUGE; OIL PRESSURE & VOLTAGE
1-83180-283-0
01
1
0106-
145
GROMMET; GLASS,KNOB HOLE,CLUSTER METER
1-83119-680-0
01
1
0106-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-235-0
01
1
0106-0109
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-261-0
01
1
0110-
191
KNOB; BULB CHECK
1-83119-672-0
01
1
0106-
194
SPRING; BULB CHECK KNOB
1-83119-673-0
01
1
0106-
199
LENS; WARNING LAMP
(A)
1-83119-795-1
01
1
0106-
199
LENS; WARNING LAMP
(B)
1-83119-796-0
01
1
0106-
269
SCREW; METER CLUSTER
(A) M3
1-83119-273-0
02
1
0106-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-677-0
05
1
0106-
379
CIRCUIT; DROP
1-83189-369-0
01
1
0106-
415
KNOB; TRIP,METER
1-83119-674-0
01
1
0106-
417
DISPLAY; ODO & TRIP,METER
1-83119-671-0
01
1
0106-
418
CIRCUIT; CONTROL,METER
6WA1 TC-C(55L),6WG1 TC-C(72L)
1-83189-399-0
01
1
0106-
418
CIRCUIT; CONTROL,METER
6WF1 TC-C(1B8)
1-83189-442-0
01
1
0106-
419
SPACER; CIRCUIT,METER
1-83119-678-0
02
1
0106-
420
HEAT SINK; METER
1-83119-679-0
01
1
0106-
1
31
151
11
344
238
8
239
87
209
344
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
6WA1 TC-C(55L),6WG1 TC-C(72L)
1-83115-842-3
01
1
0106-
1
METER COMPL; CLUSTER
6WF1 TC-C(1B8)
1-83115-855-3
01
1
0106-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8>
1-83120-856-0
01
1
0106-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
1-83120-857-0
01
1
0106-
11
CLUSTER ASM; METER
1-72418-022-7
01
1
0106-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0106-0604
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
87
SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>
1-83120-844-0
01
1
0106-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
0106-
209
BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET
1-82194-061-0
01
1
0106-
238
PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>
1-83129-311-0
01
1
0106-
239
BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W
5-82194-034-0
03
1
0106-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0106-0604
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
51
288
53
57
58
58
58
50
56
51
59
50
58
52
60
58
48
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
SENSOR; BOOST
ELECTRONIC GOV RED3(KG5)
1-80220-018-0
01
1
0106-
50
BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE
0-28680-825-0
03
1
0106-0512
50
BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE
0-28650-825-0
03
1
0601-
51
NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE
0-91150-108-0
03
1
0106-0602
51
NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE
0-91180-108-0
03
1
0603-
52
BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M6X16 FLANGE
0-28680-616-0
02
1
0106-0512
52
BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M6X16 FLANGE
0-28650-616-0
02
1
0601-
53
UNION; BOOST UNIT
ELECTRONIC GOV RED3(KG5)
1-09661-017-0
01
1
0106-
56
HOSE; NIPPLE TO SENSOR
ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000
0-04740-300-0
01
1
0106-
57
HOSE; BOOST
ELECTRONIC GOV RED3(KG5)
1-83159-017-0
01
1
0106-
58
CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20
1-09700-604-0
01
1
0106-
58
CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (B) ID=20.8
8-94125-862-1
02
1
0106-
58
CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (C) ID=7.8
8-94246-958-0
02
1
0106-
59
NUT; UNION
ELECTRONIC GOV RED3(KG5) M10
9-09111-410-0
01
1
0106-0512
59
NUT; UNION
ELECTRONIC GOV RED3(KG5) M10
0-91111-510-0
01
1
0601-
60
WASHER; LK,UNION
ELECTRONIC GOV RED3(KG5) ID=10.2
9-09150-510-0
01
1
0106-0603
60
WASHER; LK,UNION
ELECTRONIC GOV RED3(KG5) ID=10.2
0-91510-510-0
01
1
0604-
288
BRACKET
ELECTRONIC GOV RED3(KG5)
1-47477-469-0
01
1
0106-
307
NUT
ELECTRONIC GOV RED3(KG5) M6
9-09110-406-0
02
1
0106-0512
307
NUT
ELECTRONIC GOV RED3(KG5) M6
0-91110-506-0
02
1
0601-
