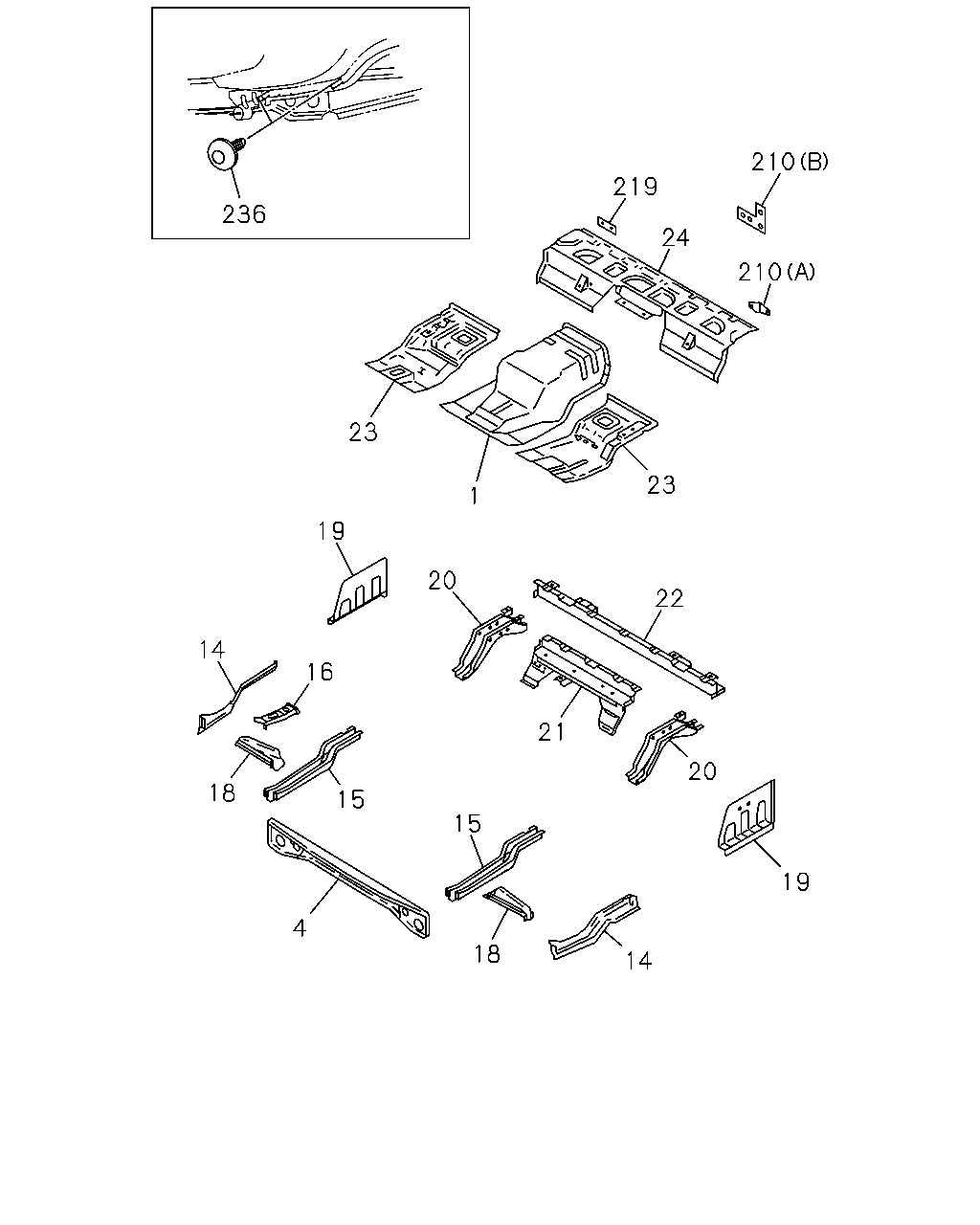

6-70 — FLOOR PANEL (#1133) — 26 parça

210 219 236 24 210 23 23 1 19 20 22 14 16 21 20 18 15 15 19 4 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; FLOOR	1-62182-796-2	01	1	9202-	●	●
4	FRAME; FLOOR,FRT	1-62482-792-9	01	1	9202-	●
4	FRAME; FLOOR,FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-62482-792-9	01	1	9202-		●
4	FRAME; FLOOR,FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-62483-066-0	01	1	9308-		●
14	PANEL; FLOOR SIDE,FRT	1-62482-657-1	01	1	9202-	●	●
14	PANEL; FLOOR SIDE,FRT	1-62482-656-1	01	1	9202-	●	●
15	FRAME; UNDER	1-62482-802-1	01	1	9202-	●	●
15	FRAME; UNDER	1-62482-326-6	01	1	9202-	●	●
16	PANEL; SUPPORT CHANNEL,FLOOR PANEL FRT	1-62482-297-2	01	1	9202-	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-078-4	01	1	9202-	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-077-4	01	1	9202-	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-661-0	01	1	9202-	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-660-0	01	1	9202-	●	●
20	FRAME; FLOOR SIDE,REAR	1-62482-208-3	01	1	9202-	●	●
20	FRAME; FLOOR SIDE,REAR	1-62482-207-3	01	1	9202-	●	●
21	FRAME; FLOOR CENTER	1-62482-648-1	01	1	9202-	●	●
22	FRAME; FLOOR REAR	1-62482-066-5	01	1	9202-	●	●
23	PANEL; FLOOR,SIDE DUMP CONTROL LEVER<RC4>	1-62182-537-3	01	1	9202-	●
23	PANEL; FLOOR,SIDE EXC. DUMP CONTROL LEVER<RC4>	1-62182-536-5	01	1	9202-	●
23	PANEL; FLOOR,SIDE	1-62182-536-5	01	1	9202-		●
23	PANEL; FLOOR,SIDE	1-62182-061-8	01	1	9202-	●	●
24	PANEL; BED PAN	1-62182-685-4	01	1	9202-	●	●
210	PANEL; HAND BRAKE LEVER BRKT (A)	1-62182-085-0	01	1	9202-	●	●
210	PANEL; HAND BRAKE LEVER BRKT (B)	1-62182-361-1	01	1	9202-	●	●
219	PATCH; AIR DUCT LWR	1-62182-197-0	01	1	9202-	●	●
236	PLUG; MUD GUARD,CAB FLOOR D4.7X11	1-76378-154-0	09	1	9202-9203	●	●
