1-31 — AIR DUCT
(#113293) — 83 parça
Tümü
A - 6HK1-TCN ENG
B - 6HK1-TCS ENG
◀

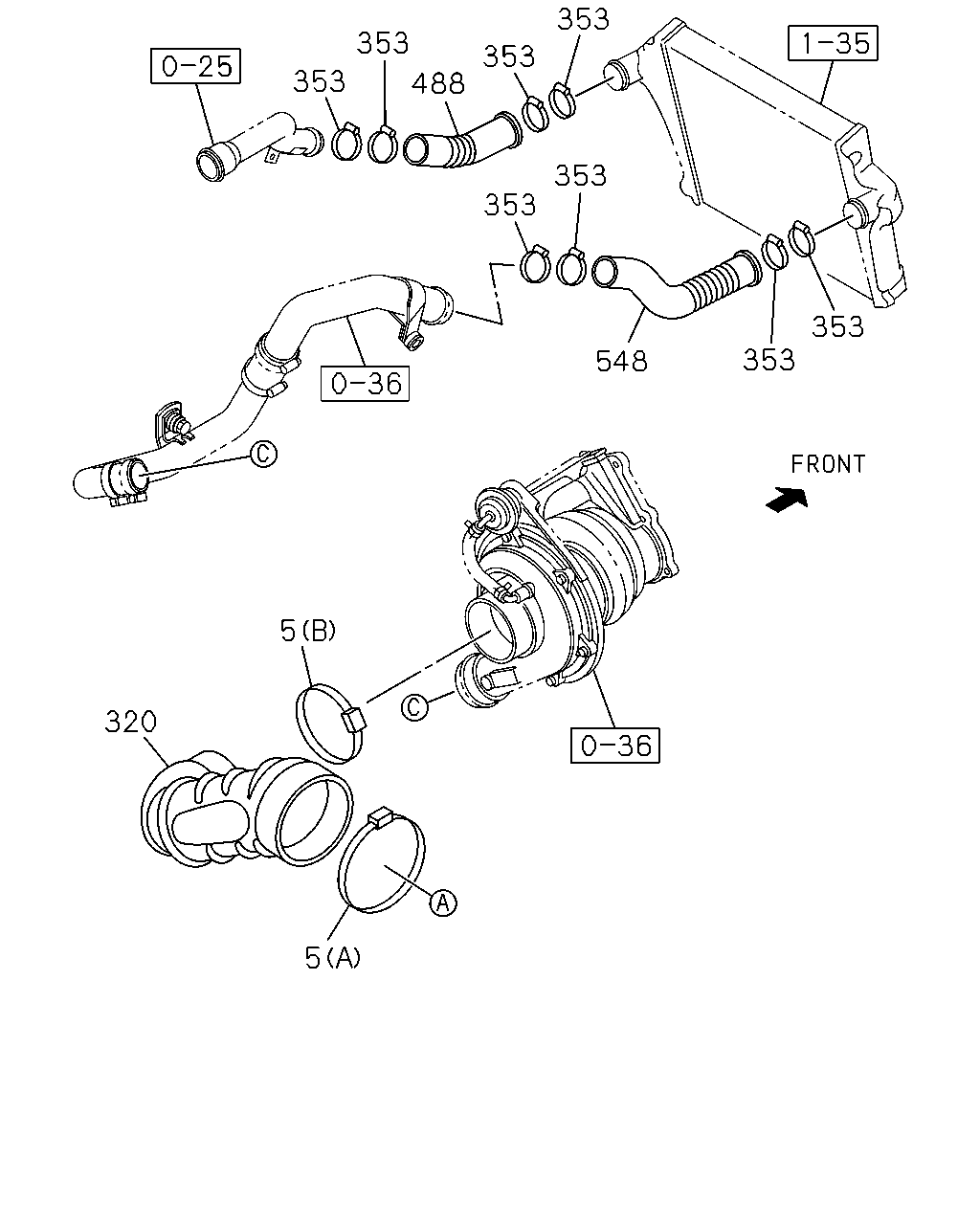

[131A] PIPING (12 parça)

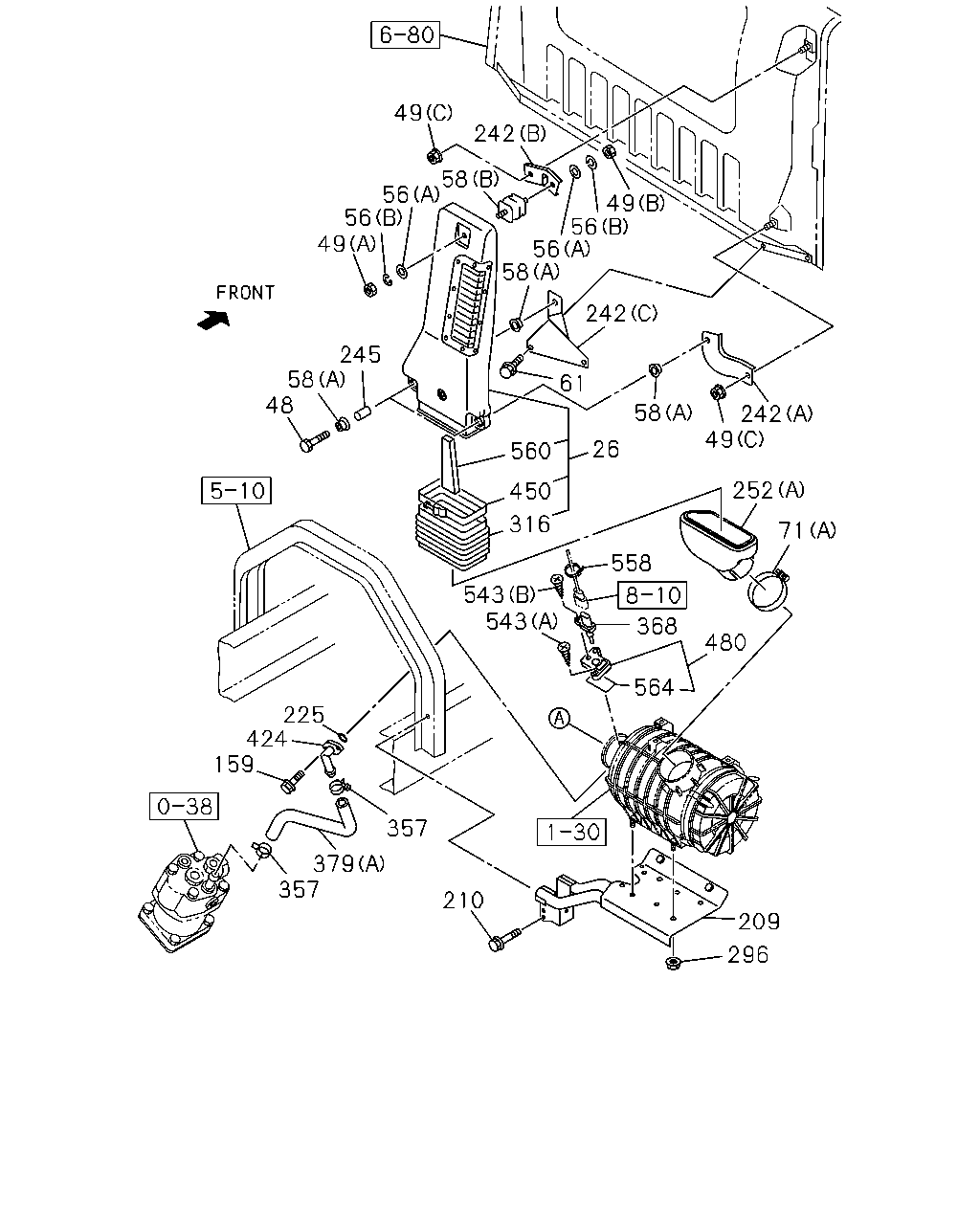

[131A] DUCT FIXING;6HK1-TCN (37 parça)

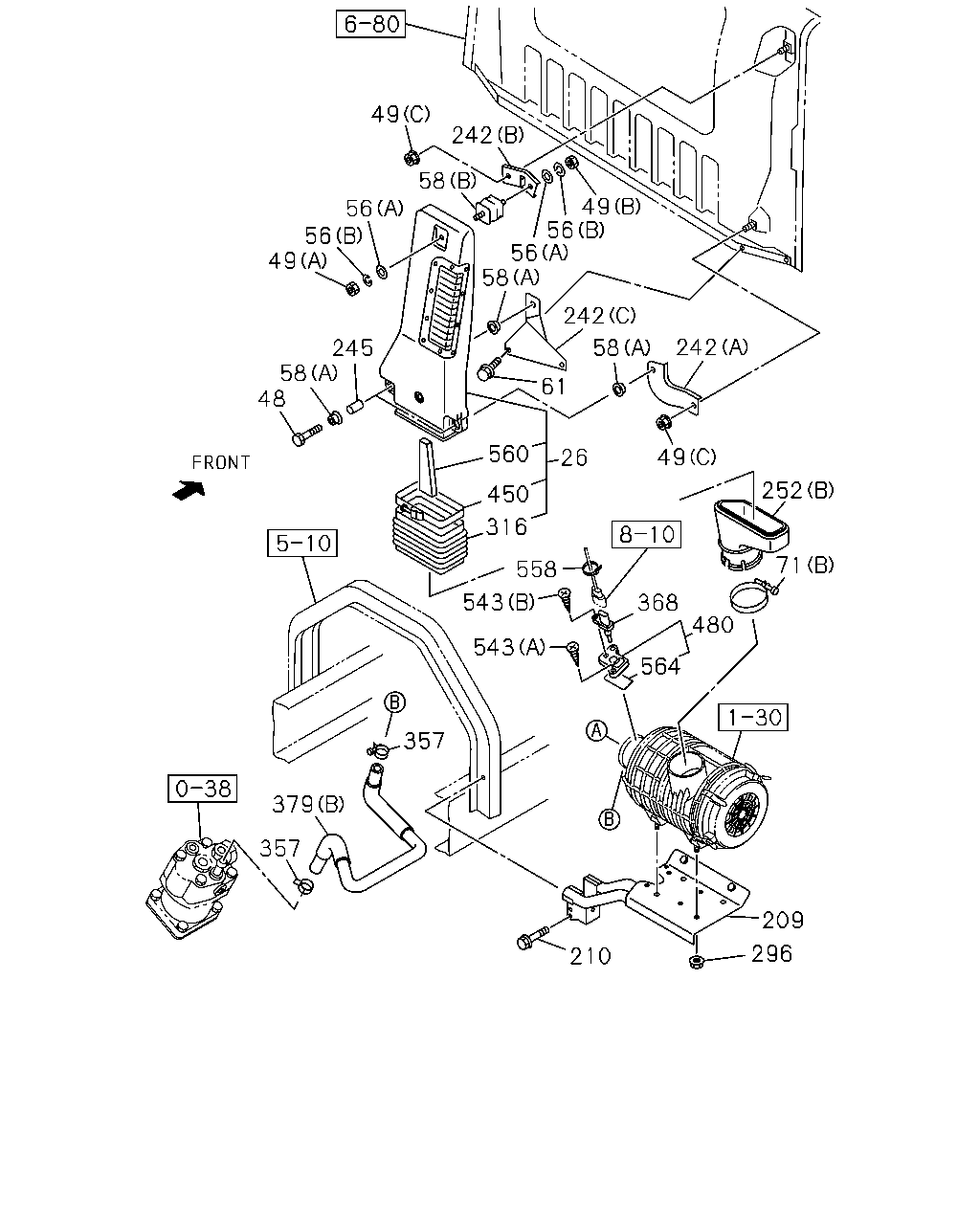

[131A] DUCT FIXING;6HK1-TCS (34 parça)
▶
353
353
488
353
353
353
353
548
353
353
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130
8-98133-359-0
01
1
1302-
●
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1302-
●
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110
8-98133-365-0
01
1
1302-
●
●
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116
1-09707-138-0
01
1
1302-
●
●
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=130-150
8-98133-360-0
01
1
1302-
●
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=130-169
8-98155-950-0
01
1
1302-
●
320
HOSE; CONN,ACL
8-98073-257-0
01
1
1302-
●
320
HOSE; CONN,ACL
8-98073-259-0
01
1
1302-
●
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
08
1
1302-
●
●
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
08
1
1302-
●
●
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1302-
●
●
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98181-974-1
01
1
1302-
●
●
49
56
56
49
58
48
245
225
424
159
357
357
379
210
209
296
564
368
543
316
543
450
560
26
558
252
49
58
242
242
58
56
56
49
242
58
61
71
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
DUCT; AIR INT
8-98010-361-2
01
1
1302-
●
●
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1302-
●
●
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1302-
●
●
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1302-
●
●
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1302-
●
●
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1302-
●
●
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1302-
●
●
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1302-
●
●
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1302-
●
●
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1302-
●
●
71
CLIP; AIR DUCT
(A) ID=120-140
8-98133-367-0
01
1
1302-
●
71
CLIP; AIR DUCT
(B) ID=140-160
8-98133-368-0
01
1
1302-
●
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
1302-
●
209
BRACKET; ACL
8-98021-995-1
01
1
1302-
●
●
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1302-
●
●
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1302-
●
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1302-
●
●
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1302-
●
●
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1302-
●
●
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1302-
●
●
252
DUCT; AIR INT
(A)
8-98012-861-1
01
1
1302-
●
252
DUCT; AIR INT
(B)
8-98021-989-1
01
1
1302-
●
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1302-
●
●
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1302-
●
●
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
1302-
●
●
368
SENSOR; TEMP
8-98065-377-0
01
1
1302-
●
●
379
HOSE; RUBBER
(A)
8-98077-469-0
01
1
1302-
●
379
HOSE; RUBBER
(B)
8-98077-470-0
01
1
1302-
●
424
PIPE; AIR,INL
8-98081-834-0
01
1
1302-
●
450
CLAMP; HOSE
9-09915-504-1
01
1
1302-
●
●
480
ADAPTER
8-98086-417-0
01
1
1302-
●
●
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1302-
●
●
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1302-
●
●
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1302-
●
●
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1302-
●
●
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1302-
●
●
564
GASKET; ADAPTER
8-98071-416-0
01
1
1302-
●
●
49
58
242
56
56
49
49
56
56
58
245
58
48
560
61
242
242
58
49
26
450
558
316
252
71
480
368
543
543
564
357
379
357
209
296
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
DUCT; AIR INT
8-98010-361-2
01
1
1302-
●
●
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1302-
●
●
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1302-
●
●
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1302-
●
●
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1302-
●
●
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1302-
●
●
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1302-
●
●
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1302-
●
●
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1302-
●
●
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1302-
●
●
71
CLIP; AIR DUCT
(A) ID=120-140
8-98133-367-0
01
1
1302-
●
71
CLIP; AIR DUCT
(B) ID=140-160
8-98133-368-0
01
1
1302-
●
209
BRACKET; ACL
8-98021-995-1
01
1
1302-
●
●
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1302-
●
●
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1302-
●
●
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1302-
●
●
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1302-
●
●
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1302-
●
●
252
DUCT; AIR INT
(A)
8-98012-861-1
01
1
1302-
●
252
DUCT; AIR INT
(B)
8-98021-989-1
01
1
1302-
●
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1302-
●
●
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1302-
●
●
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
1302-
●
●
368
SENSOR; TEMP
8-98065-377-0
01
1
1302-
●
●
379
HOSE; RUBBER
(A)
8-98077-469-0
01
1
1302-
●
379
HOSE; RUBBER
(B)
8-98077-470-0
01
1
1302-
●
450
CLAMP; HOSE
9-09915-504-1
01
1
1302-
●
●
480
ADAPTER
8-98086-417-0
01
1
1302-
●
●
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1302-
●
●
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1302-
●
●
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1302-
●
●
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1302-
●
●
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1302-
●
●
564
GASKET; ADAPTER
8-98071-416-0
01
1
1302-
●
●
