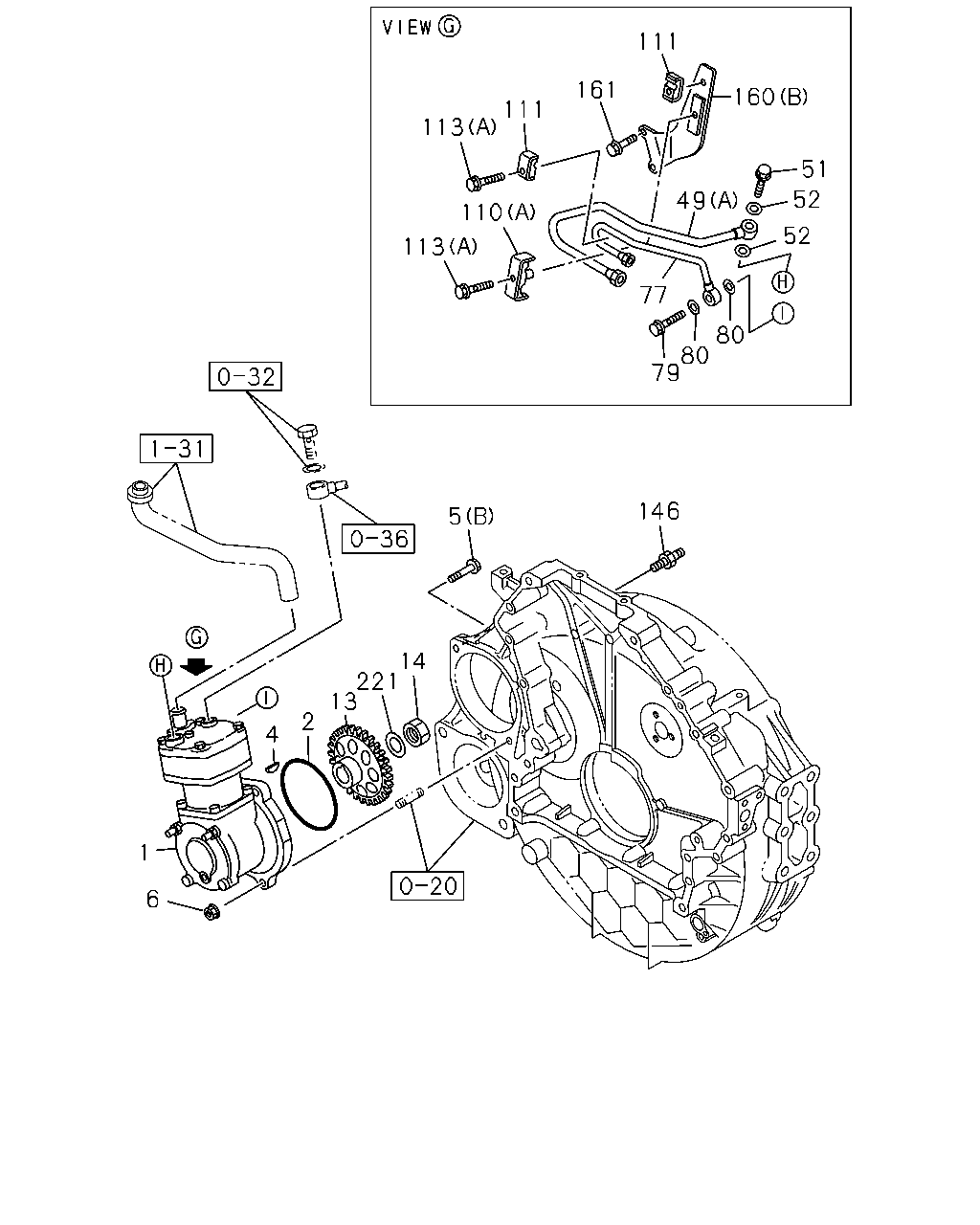

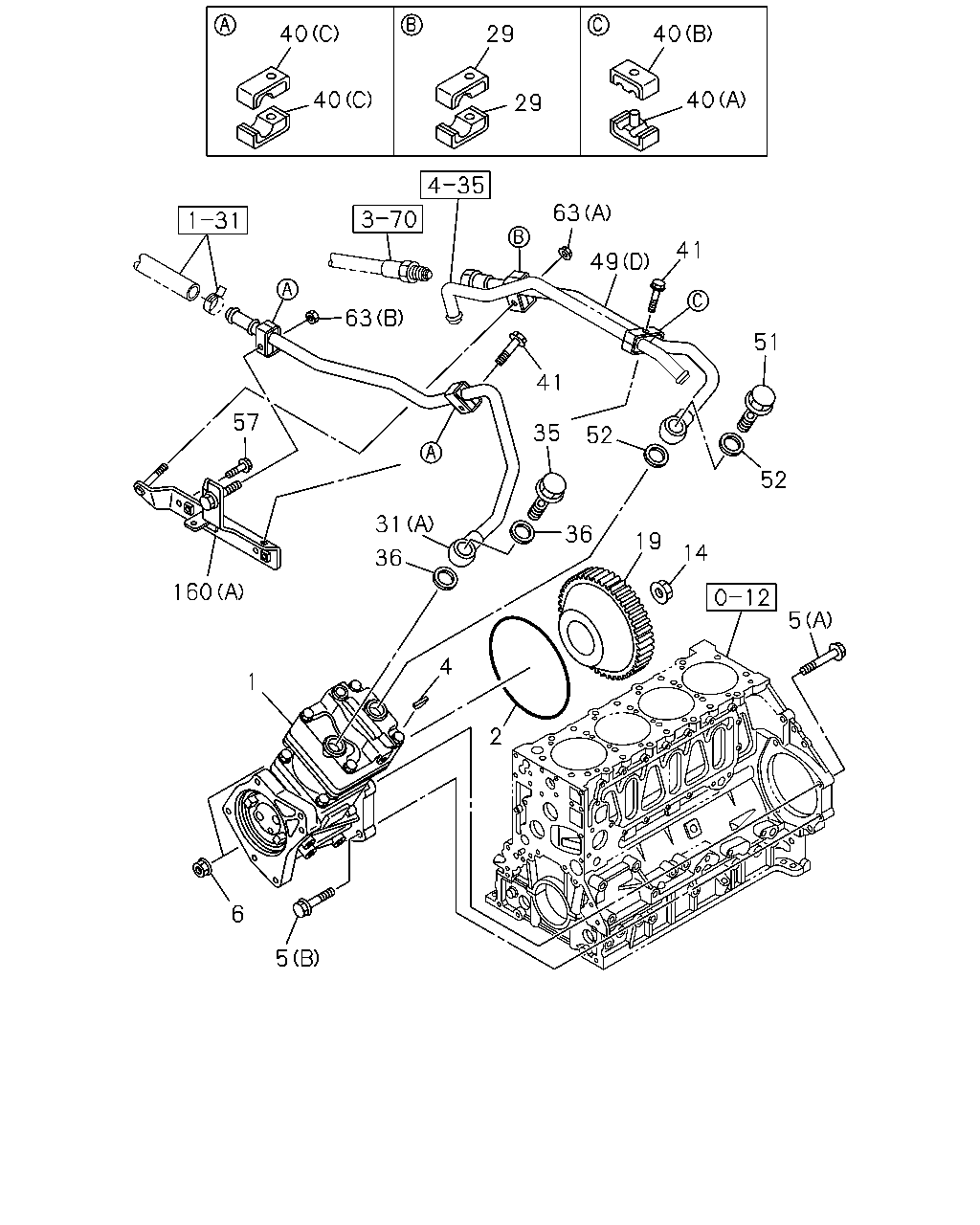

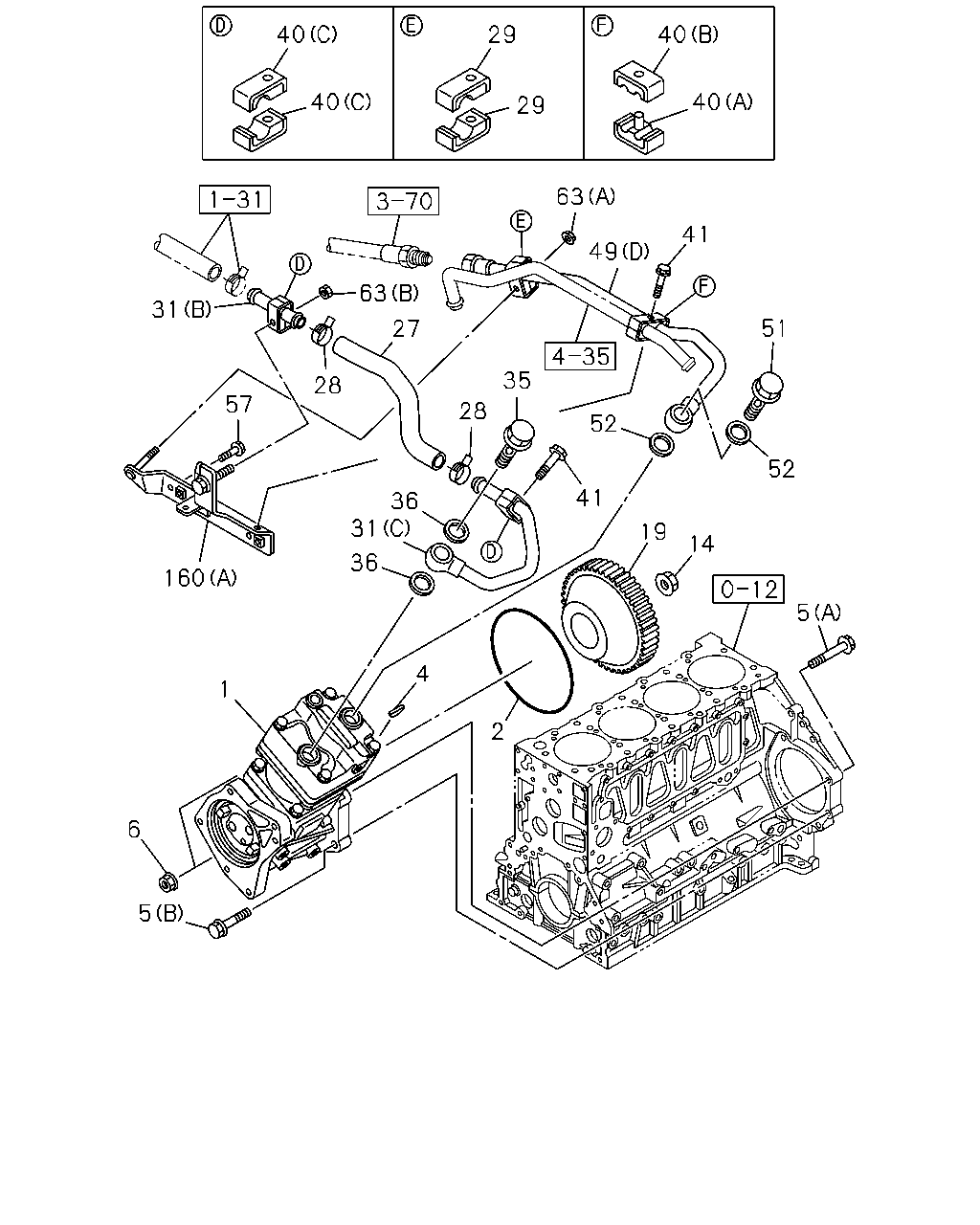

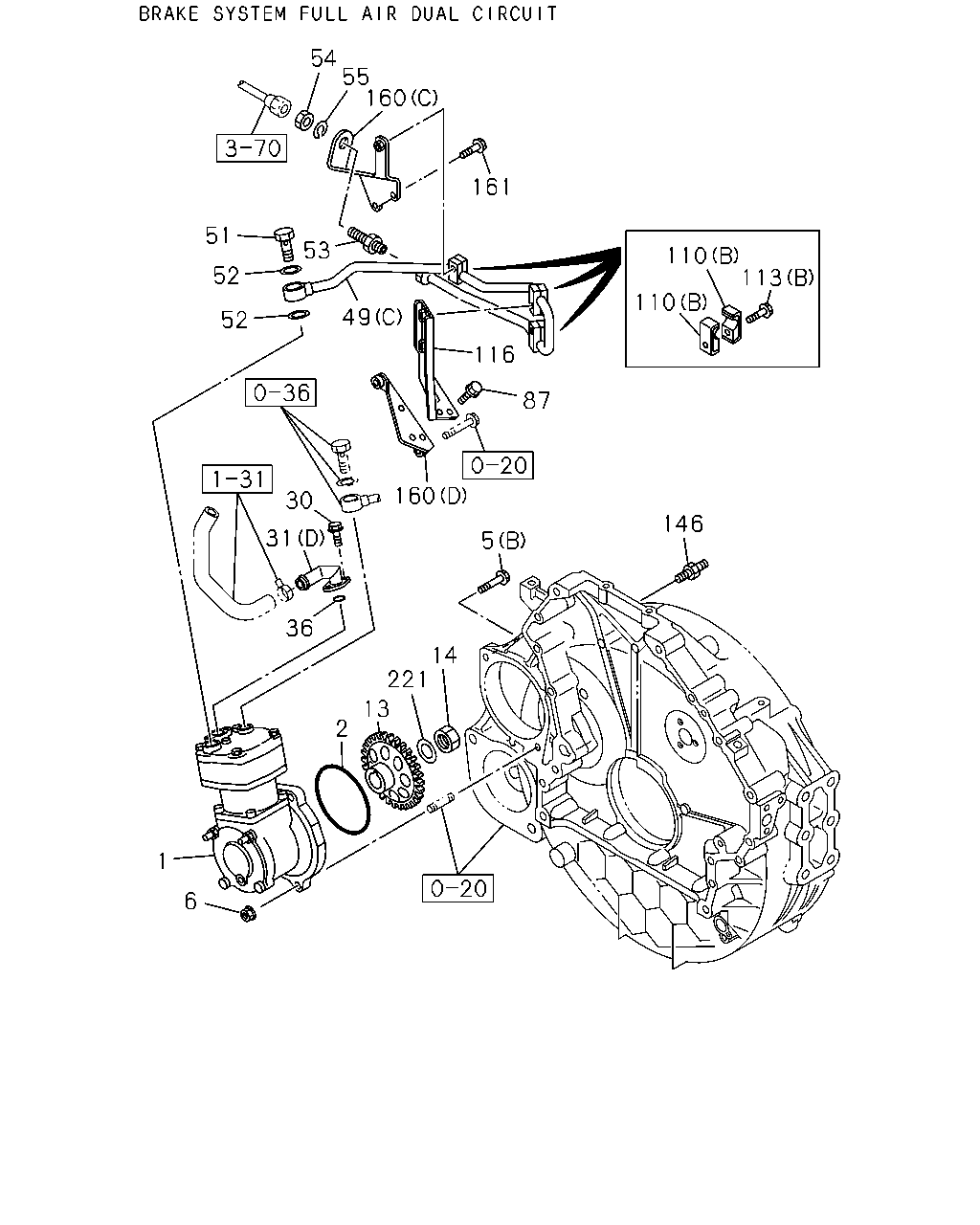

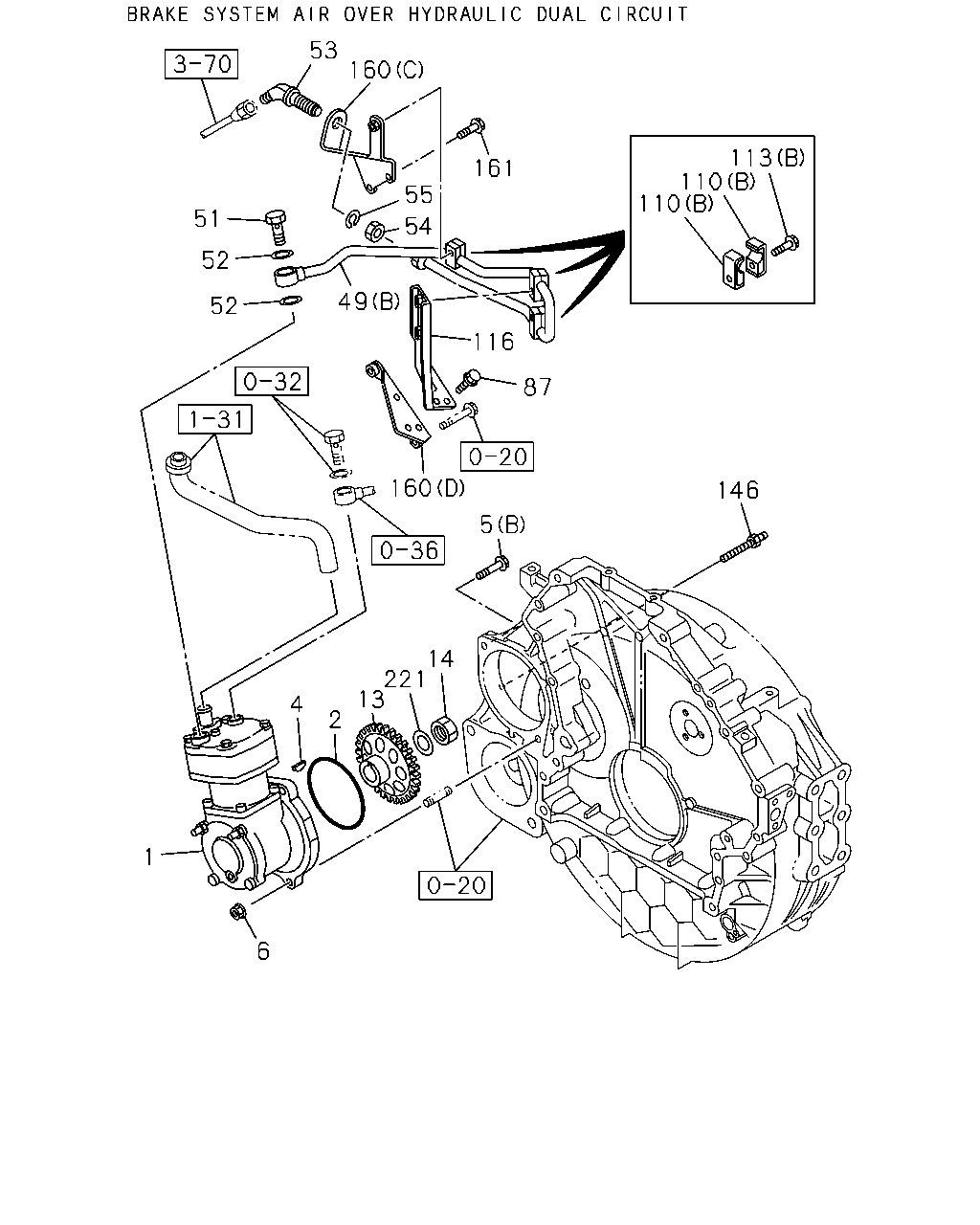

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#113289) — 253 parça

40 40 29 29 40 40 41 49 63 51 12 5 14 19 36 2 4 36 1 5 6 160 31 57 35 41 52 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1302-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-301-1	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1302-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-		●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-516-0	01	1	1302-			●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1302-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1302-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	1302-		●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1302-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-		●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1302-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-		●	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1302-	●
29	CLIP; AIR PIPE	1-09701-282-0	02	1	1302-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98076-324-0	01	1	1309-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (A)	8-98233-806-1	01	1	1302-1308	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (C)	8-98023-170-0	01	1	1309-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (A)	8-98067-830-1	01	1	1302-	●
31	PIPE; AIR,AIR CMPR SUCTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97620-948-0	01	1	1302-			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-97620-948-0	01	1	1302-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1302-1404	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06). ID=24.4	1-09623-057-0	01	1	1302-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	1302-		●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1302-	●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1302-	●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1302-	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1302-	●
49	PIPE; AIR,CHARGE (D)	8-98069-425-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (C)	8-98052-612-0	01	1	1302-		●	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1302-			●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (B)	8-98042-002-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97618-723-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-723-0	01	1	1302-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1302-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-	●	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
57	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28050-820-0	01	1	1302-	●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	01	1	1302-	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1302-	●
160	BRACKET; AIR PIPE (A)	8-98076-098-0	01	1	1302-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (D)	8-97614-182-2	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1302-		●	●

51 41 63 49 35 28 41 14 19 5 52 4 2 1 6 5 57 28 27 63 31 29 29 40 40 40 40 52 160 36 31 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1302-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-301-1	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1302-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-		●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-516-0	01	1	1302-			●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1302-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1302-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	1302-		●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1302-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-		●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1302-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-		●	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1302-	●
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4>	8-98057-031-1	01	1	1309-	●
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	1309-	●
29	CLIP; AIR PIPE	1-09701-282-0	02	1	1302-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98076-324-0	01	1	1309-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (A)	8-98233-806-1	01	1	1302-1308	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (C)	8-98023-170-0	01	1	1309-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (A)	8-98067-830-1	01	1	1302-	●
31	PIPE; AIR,AIR CMPR SUCTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97620-948-0	01	1	1302-			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-97620-948-0	01	1	1302-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1302-1404	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06). ID=24.4	1-09623-057-0	01	1	1302-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	1302-		●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1302-	●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1302-	●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1302-	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1302-	●
49	PIPE; AIR,CHARGE (D)	8-98069-425-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (C)	8-98052-612-0	01	1	1302-		●	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1302-			●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (B)	8-98042-002-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97618-723-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-723-0	01	1	1302-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1302-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-	●	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
57	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28050-820-0	01	1	1302-	●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	01	1	1302-	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1302-	●
160	BRACKET; AIR PIPE (A)	8-98076-098-0	01	1	1302-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (D)	8-97614-182-2	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1302-		●	●

6 1 4 2 5 13 221 14 160 49 116 87 146 110 110 113 161 55 54 51 52 52 53 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1302-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-301-1	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1302-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-		●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-516-0	01	1	1302-			●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1302-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1302-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	1302-		●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1302-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-		●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1302-		●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1302-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-		●	●
49	PIPE; AIR,CHARGE (D)	8-98069-425-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (C)	8-98052-612-0	01	1	1302-		●	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1302-			●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (B)	8-98042-002-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97618-723-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-723-0	01	1	1302-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1302-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-	●	●	●
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1302-		●	●
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> M22	0-91111-522-0	01	1	1302-		●	●
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> ID=22.5	0-91510-522-0	01	1	1302-		●	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	03	1	1302-		●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1302-		●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-94393-037-0	01	1	1302-		●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	03	1	1302-		●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	02	1	1302-		●	●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>	8-97614-183-1	01	1	1302-		●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1302-		●	●
160	BRACKET; AIR PIPE (A)	8-98076-098-0	01	1	1302-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (D)	8-97614-182-2	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1302-		●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1302-		●	●

6 1 4 14 13 2 221 5 146 111 113 161 111 113 110 49 160 51 52 80 80 79 77 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1302-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-301-1	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1302-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-		●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-516-0	01	1	1302-			●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1302-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1302-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	1302-		●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1302-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-		●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1302-		●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1302-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-		●	●
49	PIPE; AIR,CHARGE (D)	8-98069-425-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (C)	8-98052-612-0	01	1	1302-		●	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1302-			●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (B)	8-98042-002-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97618-723-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-723-0	01	1	1302-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1302-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-	●	●	●
77	PIPE; AIR,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-97618-724-0	01	1	1302-			●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97618-725-0	01	1	1302-			●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2>	8-97618-725-0	01	1	1302-		●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2> M10X23	8-98037-824-0	01	1	1302-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ID=10.2 OD=15.2	1-09630-083-0	02	1	1302-		●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1302-		●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-94393-037-0	01	1	1302-		●	●
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=5.5 L=10.5	8-98029-953-1	02	1	1302-		●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	03	1	1302-		●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	02	1	1302-		●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1302-		●	●
160	BRACKET; AIR PIPE (A)	8-98076-098-0	01	1	1302-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (D)	8-97614-182-2	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1302-		●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1302-		●	●

6 1 2 5 14 221 13 146 87 160 36 31 30 52 52 51 54 55 160 161 116 53 110 110 113 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1302-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-301-1	01	1	1302-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1302-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-		●	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1302-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1302-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	1302-		●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1302-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-		●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1302-		●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1302-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-		●	●
30	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1302-			●
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98076-324-0	01	1	1309-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (A)	8-98233-806-1	01	1	1302-1308	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (C)	8-98023-170-0	01	1	1309-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (A)	8-98067-830-1	01	1	1302-	●
31	PIPE; AIR,AIR CMPR SUCTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97620-948-0	01	1	1302-			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-97620-948-0	01	1	1302-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06). ID=24.4	1-09623-057-0	01	1	1302-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	1302-		●
49	PIPE; AIR,CHARGE (D)	8-98069-425-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (C)	8-98052-612-0	01	1	1302-		●	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1302-			●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (B)	8-98042-002-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97618-723-0	01	1	1302-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-723-0	01	1	1302-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1302-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-	●	●	●
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1302-		●	●
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> M22	0-91111-522-0	01	1	1302-		●	●
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> ID=22.5	0-91510-522-0	01	1	1302-		●	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	03	1	1302-		●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1302-		●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-94393-037-0	01	1	1302-		●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	03	1	1302-		●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	02	1	1302-		●	●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>	8-97614-183-1	01	1	1302-		●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1302-		●	●
160	BRACKET; AIR PIPE (A)	8-98076-098-0	01	1	1302-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (D)	8-97614-182-2	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1302-		●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1302-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
