Sayfa 1-31 - Isuzu EPC

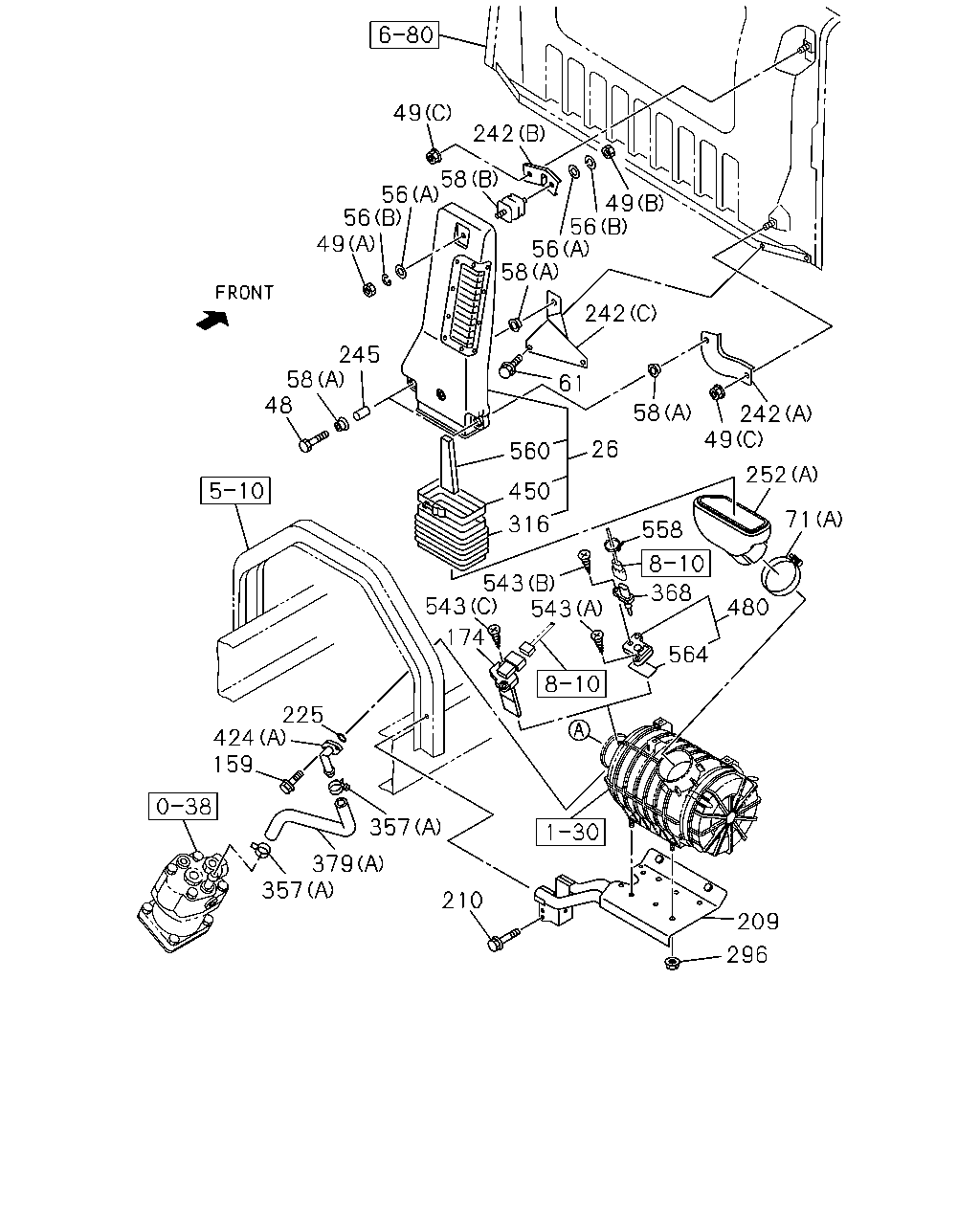

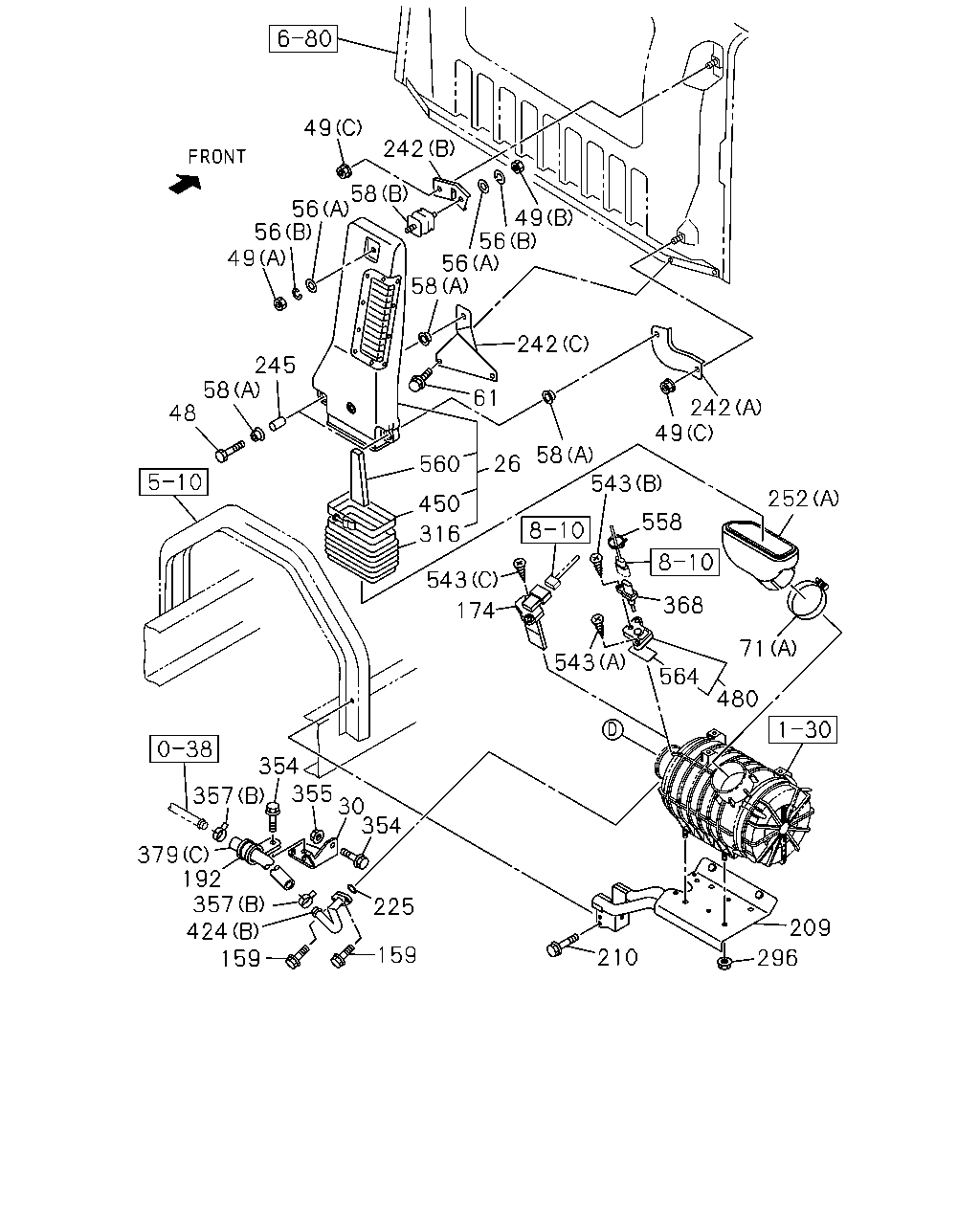

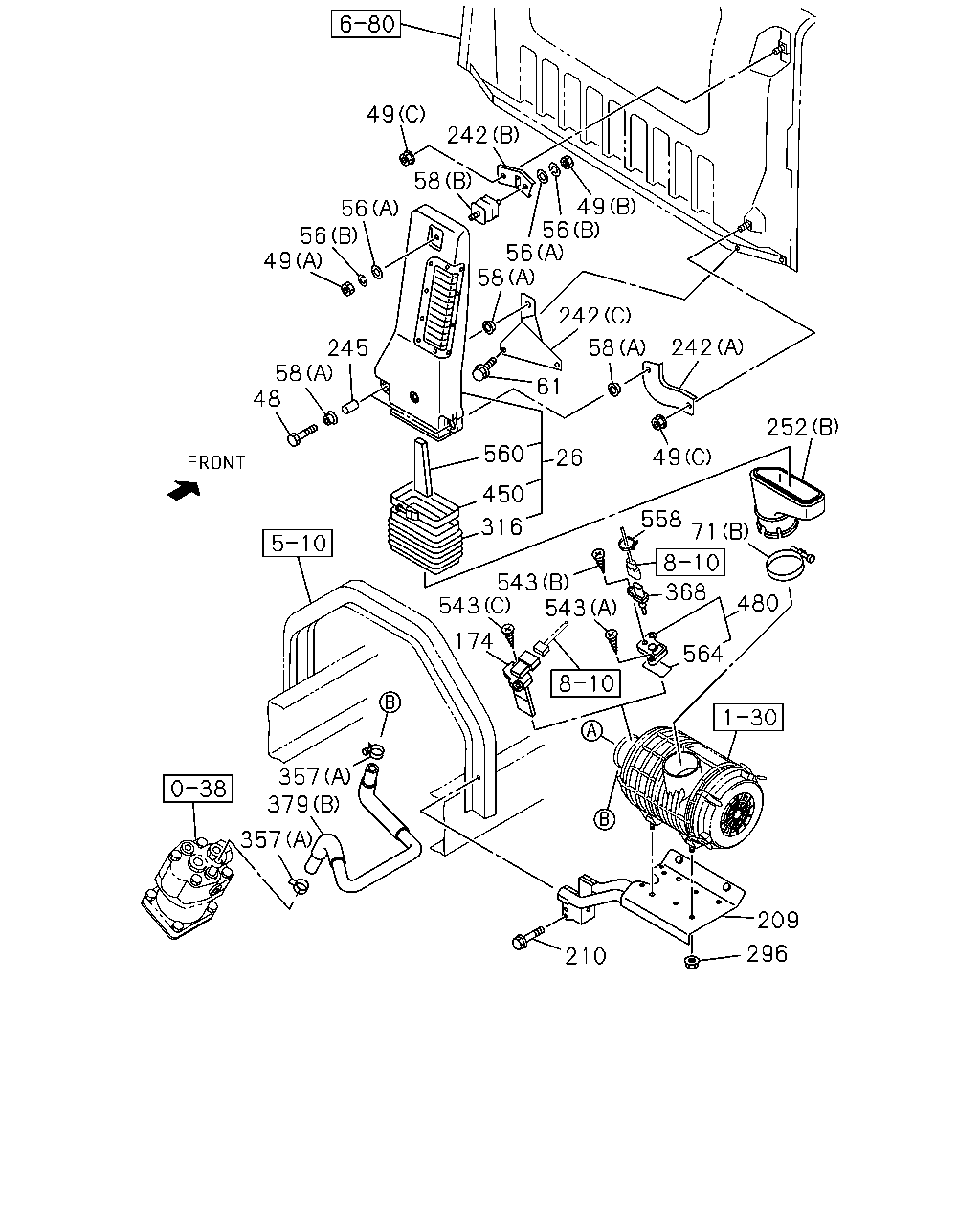

1-31 — AIR DUCT (#113288) — 589 parça

49 242 58 56 56 49 49 56 56 58 242 242 58 61 26 49 252 245 58 48 560 558 368 450 71 480 564 543 543 174 357 379 357 543 210 209 296 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	DUCT; AIR INT	8-98010-361-2	01	1	1302-	●	●	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1302-	●	●	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1302-	●	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1302-	●	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1302-	●	●	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1302-	●	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1302-	●	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1302-	●	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1302-	●	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1302-	●	●	●	●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1302-1304			●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1305-1505			●	●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1506-		●	●	●
71	CLIP; AIR DUCT (B) ID=140-160	8-98133-368-0	01	1	1302-	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	1302-1505	●		●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97601-967-0	01	1	1506-	●	●	●	●
209	BRACKET; ACL	8-98021-995-1	01	1	1302-	●	●	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-	●	●	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1302-	●	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1302-	●	●	●	●
242	BRACKET; AIR DUCT RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A)	8-98229-015-0	01	1	1302-	●		●	●
242	BRACKET; AIR DUCT EXC. RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A)	8-98019-304-1	01	1	1302-	●		●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1302-	●	●	●	●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1302-1304			●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1305-1505			●	●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1506-		●	●	●
252	DUCT; AIR INT (B)	8-98021-989-1	01	1	1302-	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1302-	●	●	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1302-	●	●	●	●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=26	1-09707-091-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=29.5	8-97354-979-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1302-1505	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1506-	●	●	●
357	CLIP; RUBBER HOSE (B) ID=24	8-98025-921-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	01	1	1305-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	01	1	1305-				●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	02	1	1305-				●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98065-377-0	01	1	1302-1511	●		●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	1512-	●		●	●
379	HOSE; RUBBER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97619-194-0	01	1	1302-			●
379	HOSE; RUBBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98077-469-0	01	1	1302-1505			●
379	HOSE; RUBBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98077-469-0	01	1	1506-		●	●
379	HOSE; RUBBER (B)	8-98077-470-0	01	1	1302-	●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98188-903-0	01	1	1305-1511				●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (C)	8-98188-903-0	01	1	1512-				●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98232-625-0	01	1	1305-				●
450	CLAMP; HOSE	9-09915-504-1	01	1	1302-	●	●	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98086-417-0	01	1	1302-1511	●		●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	1512-	●		●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1304	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1506-1511	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●	●	●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	1302-	●	●	●	●
558	CLIP; AIR FLOW SENSOR L=250	5-09707-030-1	02	1	1302-	●	●	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1302-	●	●	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98071-416-0	01	1	1302-1511	●		●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	1512-	●		●	●

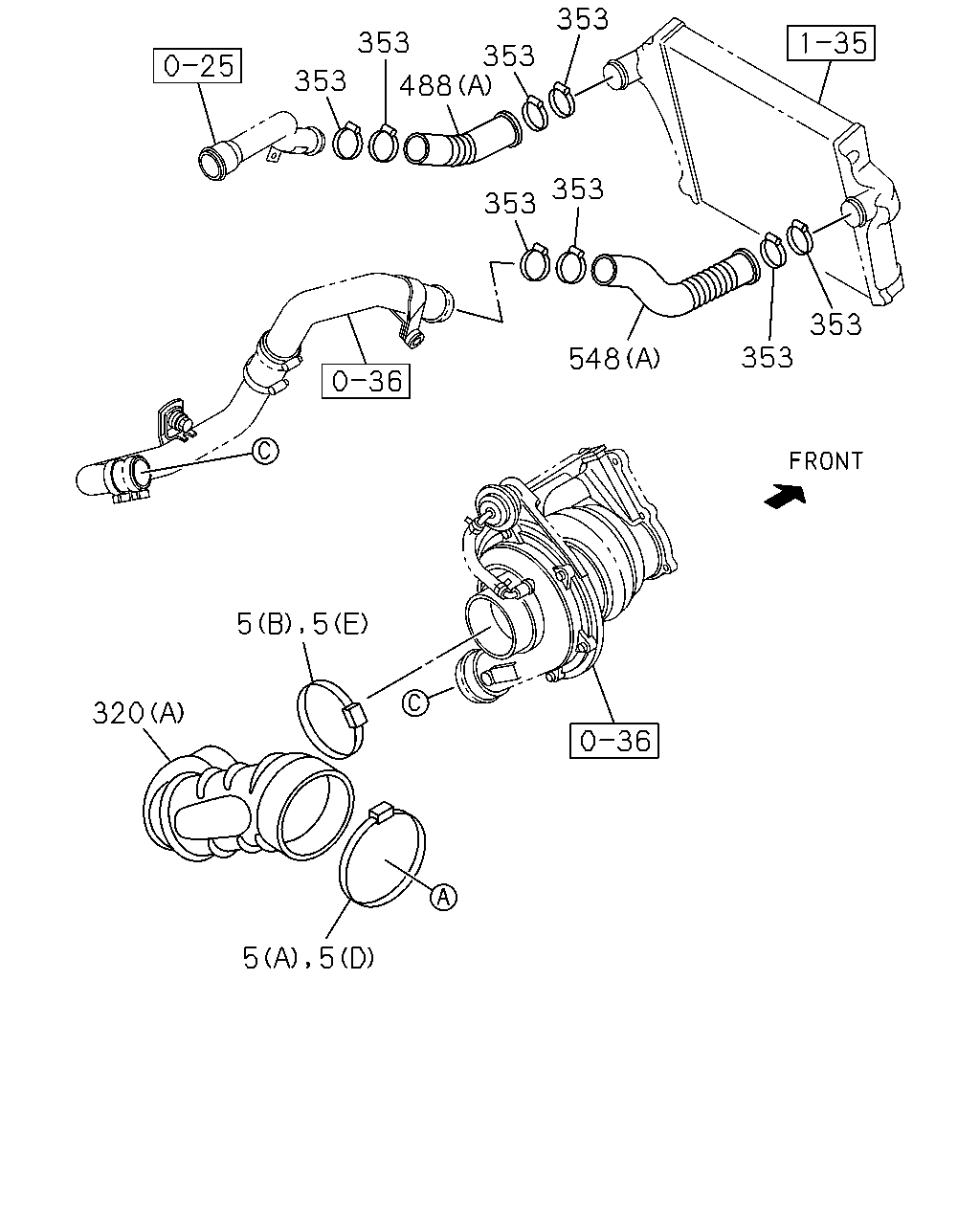

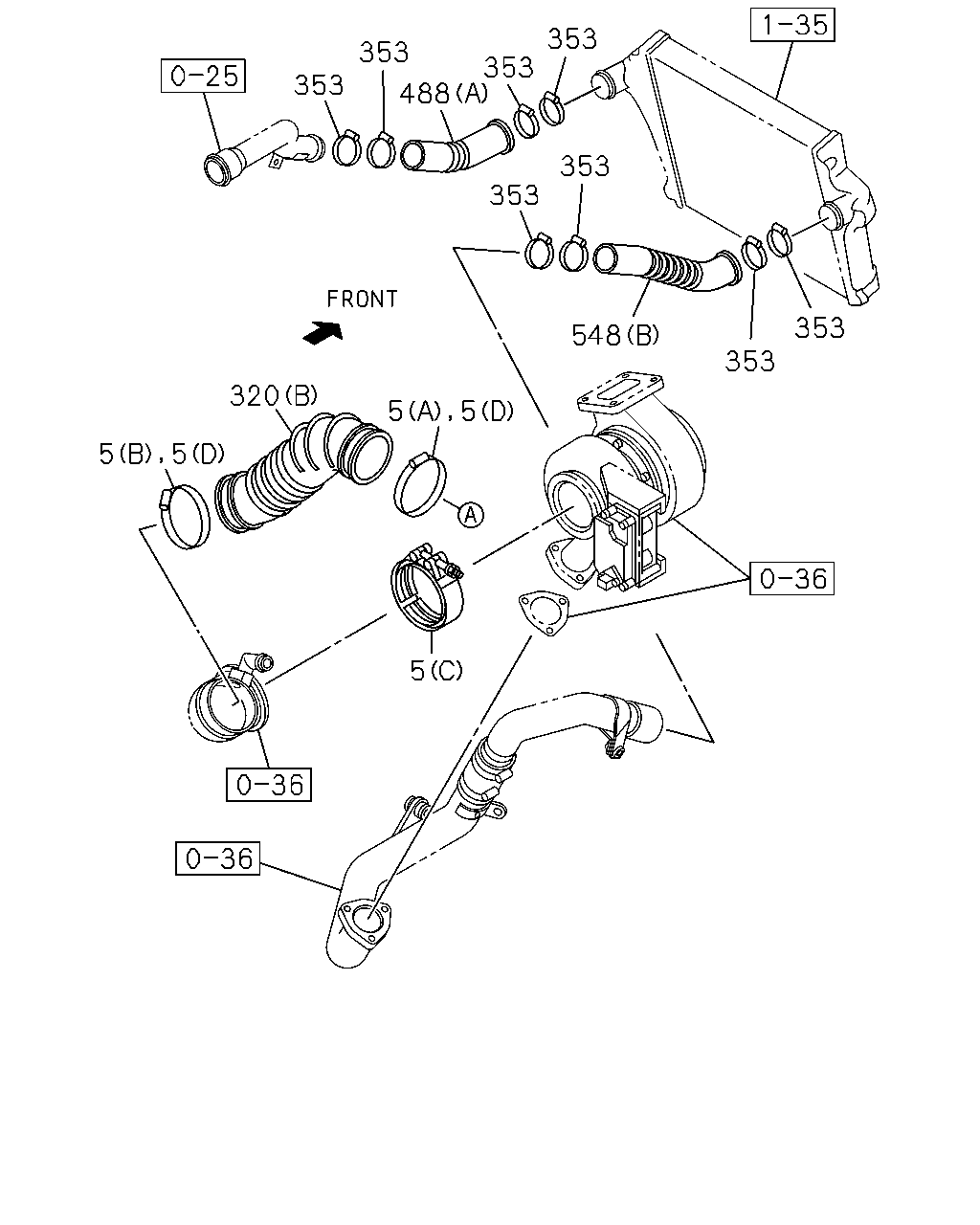

353 353 353 488 353 353 353 548 353 353 5 5 320 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1302-1304			●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1305-1505			●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1506-		●	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1302-1511	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1512-	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (E) ID=87-116	1-09707-138-0	01	1	1302-1511	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=87-116	1-09707-138-0	01	1	1512-	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=100-120	8-98133-366-0	01	1	1302-1505	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=100-120	8-98133-366-0	01	1	1506-	●	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1302-1304	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1302-1304			●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1305-1505	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1305-1505			●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1506-	●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1506-			●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (C) ID=114	8-15178-030-0	01	1	1302-1505	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=114	8-15178-030-0	01	1	1506-			●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (C) ID=114	8-15178-030-0	01	1	1506-	●
5	CLIP; AIR DUCT EURO5 SPECIFICATION<NT5> (C) ID=114	8-15178-030-0	01	1	1506-		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=130-150	8-98133-360-0	01	1	1302-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=130-169	8-98155-950-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (F) ID=55-75	8-98133-349-0	01	1	1305-1511				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (F) ID=55-75	8-98133-349-0	01	1	1512-				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (F) ID=75	8-98206-613-0	01	1	1305-1511				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (F) ID=75	8-98206-613-0	01	1	1512-				●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (G) ID=75-95	8-98133-357-0	01	1	1305-				●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (G) ID=77-99	1-09707-141-0	01	1	1305-				●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98073-257-0	01	1	1302-1511			●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	1512-			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98012-859-2	01	1	1302-1505			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98012-859-2	01	1	1506-		●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98073-259-0	01	1	1302-1511	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-259-0	01	1	1512-	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98021-990-2	01	1	1302-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98188-580-0	01	1	1305-1511				●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (C)	8-98188-580-0	01	1	1512-				●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (D)	8-98203-655-1	01	1	1305-1308				●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (E)	8-98251-226-0	01	1	1309-				●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1302-1505	●		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1506-	●	●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1302-1505	●		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1506-	●	●	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=45-65	8-98133-348-0	02	1	1305-				●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	02	1	1305-				●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	02	1	1305-				●
353	CLIP; RUBBER HOSE TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1305-				●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1305-				●
488	HOSE; RUBBER,PIPE (A)	8-98012-936-1	01	1	1302-1505	●		●
488	HOSE; RUBBER,PIPE (A)	8-98012-936-1	01	1	1506-	●	●	●
488	HOSE; RUBBER,PIPE (B)	8-98204-041-0	01	1	1305-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98204-040-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98317-804-0	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98181-974-1	01	1	1302-1511	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-974-1	01	1	1512-	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (B)	8-98065-044-0	01	1	1302-1505	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98065-044-0	01	1	1506-	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (D)	8-98211-753-0	01	1	1305-1308				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98211-753-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (D)	8-98211-753-0	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-98181-971-1	01	1	1305-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (E)	8-98181-971-1	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98211-752-0	01	1	1305-1308				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98204-039-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98317-803-0	01	1	1512-				●

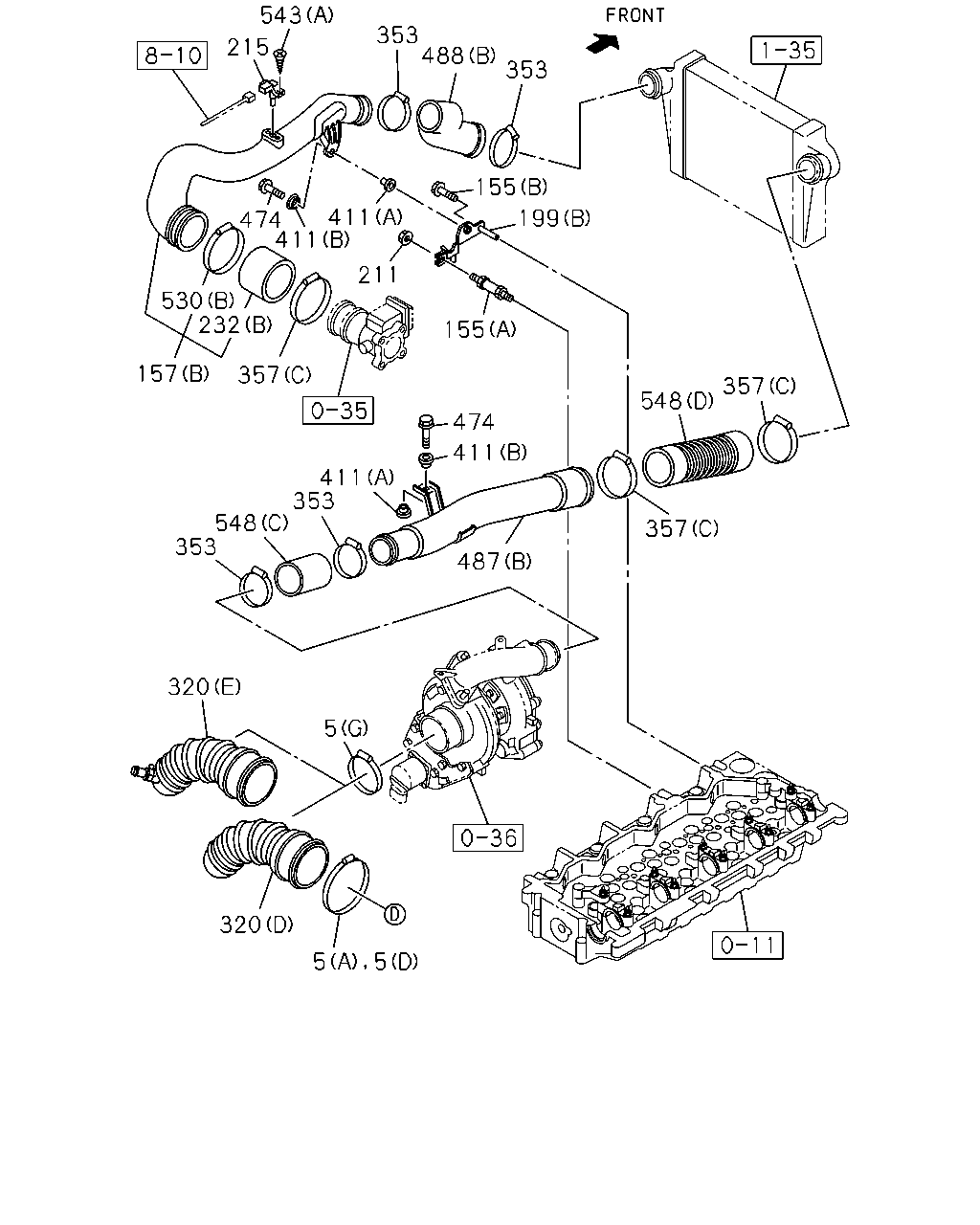

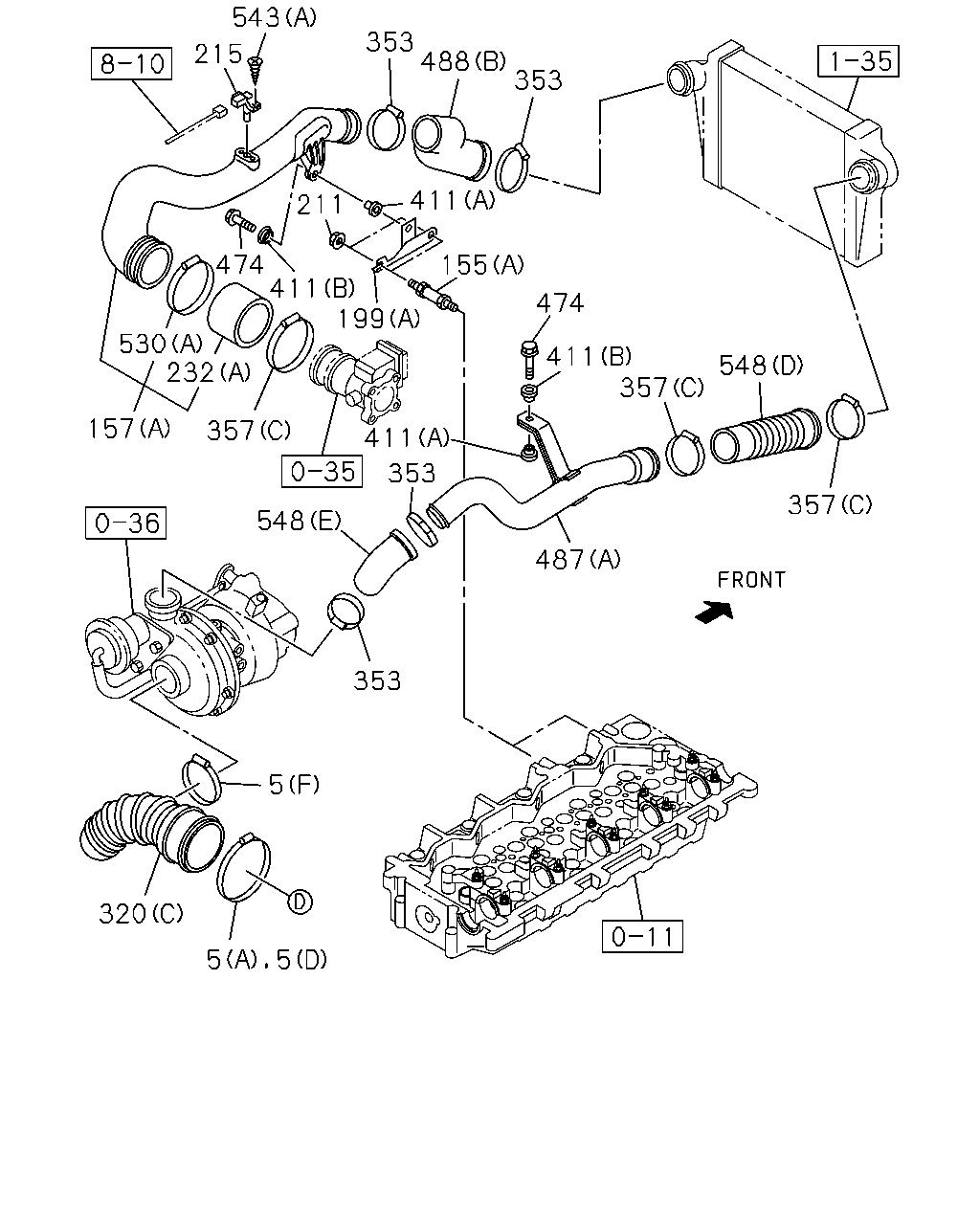

353 353 488 353 353 353 353 320 5 5 5 5 548 353 353 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1302-1304			●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1305-1505			●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1506-		●	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1302-1511	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1512-	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (E) ID=87-116	1-09707-138-0	01	1	1302-1511	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=87-116	1-09707-138-0	01	1	1512-	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=100-120	8-98133-366-0	01	1	1302-1505	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=100-120	8-98133-366-0	01	1	1506-	●	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1302-1304	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1302-1304			●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1305-1505	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1305-1505			●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1506-	●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1506-			●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (C) ID=114	8-15178-030-0	01	1	1302-1505	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=114	8-15178-030-0	01	1	1506-			●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (C) ID=114	8-15178-030-0	01	1	1506-	●
5	CLIP; AIR DUCT EURO5 SPECIFICATION<NT5> (C) ID=114	8-15178-030-0	01	1	1506-		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=130-150	8-98133-360-0	01	1	1302-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=130-169	8-98155-950-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (F) ID=55-75	8-98133-349-0	01	1	1305-1511				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (F) ID=55-75	8-98133-349-0	01	1	1512-				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (F) ID=75	8-98206-613-0	01	1	1305-1511				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (F) ID=75	8-98206-613-0	01	1	1512-				●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (G) ID=75-95	8-98133-357-0	01	1	1305-				●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (G) ID=77-99	1-09707-141-0	01	1	1305-				●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98073-257-0	01	1	1302-1511			●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	1512-			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98012-859-2	01	1	1302-1505			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98012-859-2	01	1	1506-		●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98073-259-0	01	1	1302-1511	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-259-0	01	1	1512-	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98021-990-2	01	1	1302-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98188-580-0	01	1	1305-1511				●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (C)	8-98188-580-0	01	1	1512-				●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (D)	8-98203-655-1	01	1	1305-1308				●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (E)	8-98251-226-0	01	1	1309-				●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1302-1505	●		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1506-	●	●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1302-1505	●		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1506-	●	●	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=45-65	8-98133-348-0	02	1	1305-				●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	02	1	1305-				●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	02	1	1305-				●
353	CLIP; RUBBER HOSE TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1305-				●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1305-				●
488	HOSE; RUBBER,PIPE (A)	8-98012-936-1	01	1	1302-1505	●		●
488	HOSE; RUBBER,PIPE (A)	8-98012-936-1	01	1	1506-	●	●	●
488	HOSE; RUBBER,PIPE (B)	8-98204-041-0	01	1	1305-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98204-040-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98317-804-0	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98181-974-1	01	1	1302-1511	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-974-1	01	1	1512-	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (B)	8-98065-044-0	01	1	1302-1505	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98065-044-0	01	1	1506-	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (D)	8-98211-753-0	01	1	1305-1308				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98211-753-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (D)	8-98211-753-0	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-98181-971-1	01	1	1305-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (E)	8-98181-971-1	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98211-752-0	01	1	1305-1308				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98204-039-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98317-803-0	01	1	1512-				●

296 209 210 357 357 159 225 424 564 543 174 543 368 480 558 316 71 252 49 242 58 26 450 560 61 543 48 58 245 49 242 58 56 56 49 56 56 58 242 49 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	DUCT; AIR INT	8-98010-361-2	01	1	1302-	●	●	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1302-	●	●	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1302-	●	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1302-	●	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1302-	●	●	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1302-	●	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1302-	●	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1302-	●	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1302-	●	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1302-	●	●	●	●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1302-1304			●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1305-1505			●	●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1506-		●	●	●
71	CLIP; AIR DUCT (B) ID=140-160	8-98133-368-0	01	1	1302-	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	1302-1304			●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	1305-1505			●	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	1506-		●	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	1302-1505	●		●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97601-967-0	01	1	1506-	●	●	●	●
209	BRACKET; ACL	8-98021-995-1	01	1	1302-	●	●	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-	●	●	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1302-1304			●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1305-1505			●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1506-		●	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1302-	●	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1302-	●	●	●	●
242	BRACKET; AIR DUCT RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A)	8-98229-015-0	01	1	1302-	●		●	●
242	BRACKET; AIR DUCT EXC. RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A)	8-98019-304-1	01	1	1302-	●		●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1302-	●	●	●	●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1302-1304			●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1305-1505			●	●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1506-		●	●	●
252	DUCT; AIR INT (B)	8-98021-989-1	01	1	1302-	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1302-	●	●	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1302-	●	●	●	●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=26	1-09707-091-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=29.5	8-97354-979-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1302-1505	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1506-	●	●	●
357	CLIP; RUBBER HOSE (B) ID=24	8-98025-921-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	01	1	1305-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	01	1	1305-				●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	02	1	1305-				●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98065-377-0	01	1	1302-1511	●		●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	1512-	●		●	●
379	HOSE; RUBBER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97619-194-0	01	1	1302-			●
379	HOSE; RUBBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98077-469-0	01	1	1302-1505			●
379	HOSE; RUBBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98077-469-0	01	1	1506-		●	●
379	HOSE; RUBBER (B)	8-98077-470-0	01	1	1302-	●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98188-903-0	01	1	1305-1511				●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (C)	8-98188-903-0	01	1	1512-				●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98232-625-0	01	1	1305-				●
424	PIPE; AIR,INL (A)	8-98081-834-0	01	1	1302-1505			●
424	PIPE; AIR,INL (A)	8-98081-834-0	01	1	1506-		●	●
424	PIPE; AIR,INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98081-837-0	01	1	1305-1511				●
424	PIPE; AIR,INL EURO2 SPECIFICATION<NT2> (B)	8-98081-837-0	01	1	1512-				●
424	PIPE; AIR,INL EURO4 SPECIFICATION<NT4> (B)	8-98208-938-1	01	1	1305-				●
450	CLAMP; HOSE	9-09915-504-1	01	1	1302-	●	●	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98086-417-0	01	1	1302-1511	●		●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	1512-	●		●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1304	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1506-1511	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●	●	●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	1302-	●	●	●	●
558	CLIP; AIR FLOW SENSOR L=250	5-09707-030-1	02	1	1302-	●	●	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1302-	●	●	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98071-416-0	01	1	1302-1511	●		●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	1512-	●		●	●

353 543 215 488 353 411 155 411 548 357 474 199 411 474 530 157 357 232 411 487 353 5 320 5 5 548 211 353 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1302-1304			●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1305-1505			●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1506-		●	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1302-1511	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1512-	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (E) ID=87-116	1-09707-138-0	01	1	1302-1511	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=87-116	1-09707-138-0	01	1	1512-	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=100-120	8-98133-366-0	01	1	1302-1505	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=100-120	8-98133-366-0	01	1	1506-	●	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1302-1304	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1302-1304			●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1305-1505	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1305-1505			●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1506-	●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1506-			●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (C) ID=114	8-15178-030-0	01	1	1302-1505	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=114	8-15178-030-0	01	1	1506-			●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (C) ID=114	8-15178-030-0	01	1	1506-	●
5	CLIP; AIR DUCT EURO5 SPECIFICATION<NT5> (C) ID=114	8-15178-030-0	01	1	1506-		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=130-150	8-98133-360-0	01	1	1302-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=130-169	8-98155-950-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (F) ID=55-75	8-98133-349-0	01	1	1305-1511				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (F) ID=55-75	8-98133-349-0	01	1	1512-				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (F) ID=75	8-98206-613-0	01	1	1305-1511				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (F) ID=75	8-98206-613-0	01	1	1512-				●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (G) ID=75-95	8-98133-357-0	01	1	1305-				●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (G) ID=77-99	1-09707-141-0	01	1	1305-				●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1305-1511				●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1512-				●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE	0-28156-011-0	01	1	1305-				●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1305-				●
157	PIPE; AIR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98010-719-3	01	1	1305-1511				●
157	PIPE; AIR EURO2 SPECIFICATION<NT2> (A)	8-98010-719-3	01	1	1512-				●
157	PIPE; AIR EURO4 SPECIFICATION<NT4> (B)	8-98166-967-0	01	1	1305-				●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97385-293-1	01	1	1305-1511				●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2> (A)	8-97385-293-1	01	1	1512-				●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-98109-137-1	01	1	1305-1403				●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-98252-223-0	01	1	1404-				●
211	NUT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1305-1511				●
211	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1512-				●
211	NUT; BRKT EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-210-0	01	1	1305-				●
215	SENSOR; MAP	8-98009-418-0	01	1	1305-				●
232	HOSE; CONN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98067-929-0	01	1	1305-1511				●
232	HOSE; CONN EURO2 SPECIFICATION<NT2> (A)	8-98067-929-0	01	1	1512-				●
232	HOSE; CONN EURO4 SPECIFICATION<NT4> (B)	8-98128-293-0	01	1	1305-				●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98073-257-0	01	1	1302-1511			●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	1512-			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98012-859-2	01	1	1302-1505			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98012-859-2	01	1	1506-		●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98073-259-0	01	1	1302-1511	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-259-0	01	1	1512-	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98021-990-2	01	1	1302-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98188-580-0	01	1	1305-1511				●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (C)	8-98188-580-0	01	1	1512-				●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (D)	8-98203-655-1	01	1	1305-1308				●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (E)	8-98251-226-0	01	1	1309-				●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1302-1505	●		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1506-	●	●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1302-1505	●		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1506-	●	●	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=45-65	8-98133-348-0	02	1	1305-				●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	02	1	1305-				●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	02	1	1305-				●
353	CLIP; RUBBER HOSE TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1305-				●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1305-				●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=26	1-09707-091-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=29.5	8-97354-979-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1302-1505	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1506-	●	●	●
357	CLIP; RUBBER HOSE (B) ID=24	8-98025-921-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	01	1	1305-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	01	1	1305-				●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	02	1	1305-				●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1305-				●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1305-				●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1305-				●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98211-755-0	01	1	1305-1511				●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98211-755-0	01	1	1512-				●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98204-042-0	01	1	1305-				●
488	HOSE; RUBBER,PIPE (A)	8-98012-936-1	01	1	1302-1505	●		●
488	HOSE; RUBBER,PIPE (A)	8-98012-936-1	01	1	1506-	●	●	●
488	HOSE; RUBBER,PIPE (B)	8-98204-041-0	01	1	1305-				●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=75-95	8-98133-357-0	01	1	1305-1511				●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=75-95	8-98133-357-0	01	1	1512-				●
530	CLAMP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=65-85	8-98133-350-0	01	1	1305-				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1304	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1506-1511	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98204-040-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98317-804-0	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98181-974-1	01	1	1302-1511	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-974-1	01	1	1512-	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (B)	8-98065-044-0	01	1	1302-1505	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98065-044-0	01	1	1506-	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (D)	8-98211-753-0	01	1	1305-1308				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98211-753-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (D)	8-98211-753-0	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-98181-971-1	01	1	1305-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (E)	8-98181-971-1	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98211-752-0	01	1	1305-1308				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98204-039-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98317-803-0	01	1	1512-				●

353 488 353 543 215 474 411 211 411 411 411 155 155 199 530 157 357 353 548 353 487 474 548 357 357 320 232 5 320 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1302-1304			●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1305-1505			●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1506-		●	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1302-1511	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1512-	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (E) ID=87-116	1-09707-138-0	01	1	1302-1511	●		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=87-116	1-09707-138-0	01	1	1512-	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=100-120	8-98133-366-0	01	1	1302-1505	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=100-120	8-98133-366-0	01	1	1506-	●	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1302-1304	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1302-1304			●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1305-1505	●		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1305-1505			●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1506-	●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142	1-09707-139-0	01	1	1506-			●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (C) ID=114	8-15178-030-0	01	1	1302-1505	●		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=114	8-15178-030-0	01	1	1506-			●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (C) ID=114	8-15178-030-0	01	1	1506-	●
5	CLIP; AIR DUCT EURO5 SPECIFICATION<NT5> (C) ID=114	8-15178-030-0	01	1	1506-		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=130-150	8-98133-360-0	01	1	1302-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (D) ID=130-169	8-98155-950-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (F) ID=55-75	8-98133-349-0	01	1	1305-1511				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (F) ID=55-75	8-98133-349-0	01	1	1512-				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (F) ID=75	8-98206-613-0	01	1	1305-1511				●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (F) ID=75	8-98206-613-0	01	1	1512-				●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (G) ID=75-95	8-98133-357-0	01	1	1305-				●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (G) ID=77-99	1-09707-141-0	01	1	1305-				●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1305-1511				●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1512-				●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE	0-28156-011-0	01	1	1305-				●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1305-				●
157	PIPE; AIR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98010-719-3	01	1	1305-1511				●
157	PIPE; AIR EURO2 SPECIFICATION<NT2> (A)	8-98010-719-3	01	1	1512-				●
157	PIPE; AIR EURO4 SPECIFICATION<NT4> (B)	8-98166-967-0	01	1	1305-				●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97385-293-1	01	1	1305-1511				●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2> (A)	8-97385-293-1	01	1	1512-				●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-98109-137-1	01	1	1305-1403				●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-98252-223-0	01	1	1404-				●
211	NUT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1305-1511				●
211	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1512-				●
211	NUT; BRKT EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-210-0	01	1	1305-				●
215	SENSOR; MAP	8-98009-418-0	01	1	1305-				●
232	HOSE; CONN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98067-929-0	01	1	1305-1511				●
232	HOSE; CONN EURO2 SPECIFICATION<NT2> (A)	8-98067-929-0	01	1	1512-				●
232	HOSE; CONN EURO4 SPECIFICATION<NT4> (B)	8-98128-293-0	01	1	1305-				●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98073-257-0	01	1	1302-1511			●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	1512-			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98012-859-2	01	1	1302-1505			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98012-859-2	01	1	1506-		●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98073-259-0	01	1	1302-1511	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-259-0	01	1	1512-	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98021-990-2	01	1	1302-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98188-580-0	01	1	1305-1511				●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (C)	8-98188-580-0	01	1	1512-				●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (D)	8-98203-655-1	01	1	1305-1308				●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (E)	8-98251-226-0	01	1	1309-				●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1302-1505	●		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1506-	●	●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1302-1505	●		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1506-	●	●	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=45-65	8-98133-348-0	02	1	1305-				●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	02	1	1305-				●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	02	1	1305-				●
353	CLIP; RUBBER HOSE TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1305-				●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1305-				●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=26	1-09707-091-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=29.5	8-97354-979-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1302-1505	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1506-	●	●	●
357	CLIP; RUBBER HOSE (B) ID=24	8-98025-921-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	01	1	1305-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	01	1	1305-				●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	02	1	1305-				●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1305-				●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1305-				●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1305-				●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98211-755-0	01	1	1305-1511				●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98211-755-0	01	1	1512-				●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98204-042-0	01	1	1305-				●
488	HOSE; RUBBER,PIPE (A)	8-98012-936-1	01	1	1302-1505	●		●
488	HOSE; RUBBER,PIPE (A)	8-98012-936-1	01	1	1506-	●	●	●
488	HOSE; RUBBER,PIPE (B)	8-98204-041-0	01	1	1305-				●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=75-95	8-98133-357-0	01	1	1305-1511				●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=75-95	8-98133-357-0	01	1	1512-				●
530	CLAMP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=65-85	8-98133-350-0	01	1	1305-				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1304	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1506-1511	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98204-040-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98317-804-0	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98181-974-1	01	1	1302-1511	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-974-1	01	1	1512-	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (B)	8-98065-044-0	01	1	1302-1505	●		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98065-044-0	01	1	1506-	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (D)	8-98211-753-0	01	1	1305-1308				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98211-753-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (D)	8-98211-753-0	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-98181-971-1	01	1	1305-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (E)	8-98181-971-1	01	1	1512-				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98211-752-0	01	1	1305-1308				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98204-039-0	01	1	1309-1511				●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98317-803-0	01	1	1512-				●

49 49 56 56 58 242 242 242 56 49 56 58 48 245 49 252 558 543 58 26 560 450 316 543 174 543 368 71 564 480 209 296 210 159 225 159 424 192 357 379 357 355 354 30 354 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	DUCT; AIR INT	8-98010-361-2	01	1	1302-	●	●	●	●
30	BRACKET; HOSE EURO4 SPECIFICATION<NT4>	8-98232-578-2	01	1	1305-				●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1302-	●	●	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1302-	●	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1302-	●	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1302-	●	●	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1302-	●	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1302-	●	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1302-	●	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1302-	●	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1302-	●	●	●	●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1302-1304			●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1305-1505			●	●
71	CLIP; AIR DUCT (A) ID=120-140	8-98133-367-0	01	1	1506-		●	●	●
71	CLIP; AIR DUCT (B) ID=140-160	8-98133-368-0	01	1	1302-	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	1302-1304			●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	1305-1505			●	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	1506-		●	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	1302-1505	●		●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97601-967-0	01	1	1506-	●	●	●	●
192	CLIP; HOSE EURO4 SPECIFICATION<NT4> ID=28 L=40	1-09701-261-0	01	1	1305-				●
209	BRACKET; ACL	8-98021-995-1	01	1	1302-	●	●	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-	●	●	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1302-1304			●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1305-1505			●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1506-		●	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1302-	●	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1302-	●	●	●	●
242	BRACKET; AIR DUCT RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A)	8-98229-015-0	01	1	1302-	●		●	●
242	BRACKET; AIR DUCT EXC. RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A)	8-98019-304-1	01	1	1302-	●		●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1302-	●	●	●	●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1302-1304			●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1305-1505			●	●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	1506-		●	●	●
252	DUCT; AIR INT (B)	8-98021-989-1	01	1	1302-	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1302-	●	●	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1302-	●	●	●	●
354	BOLT; BRKT,AIR INT HOSE EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	02	1	1305-				●
355	NUT; AIR INT HOSE TO BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	1305-				●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=26	1-09707-091-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=29.5	8-97354-979-0	01	1	1302-	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1302-1505	●		●
357	CLIP; RUBBER HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=26	1-09707-091-0	02	1	1506-	●	●	●
357	CLIP; RUBBER HOSE (B) ID=24	8-98025-921-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1305-1511				●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	01	1	1512-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	01	1	1305-				●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	01	1	1305-				●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=65-85	8-98133-350-0	02	1	1305-				●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85	8-98096-592-0	02	1	1305-				●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98065-377-0	01	1	1302-1511	●		●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	1512-	●		●	●
379	HOSE; RUBBER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97619-194-0	01	1	1302-			●
379	HOSE; RUBBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98077-469-0	01	1	1302-1505			●
379	HOSE; RUBBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98077-469-0	01	1	1506-		●	●
379	HOSE; RUBBER (B)	8-98077-470-0	01	1	1302-	●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98188-903-0	01	1	1305-1511				●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (C)	8-98188-903-0	01	1	1512-				●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98232-625-0	01	1	1305-				●
424	PIPE; AIR,INL (A)	8-98081-834-0	01	1	1302-1505			●
424	PIPE; AIR,INL (A)	8-98081-834-0	01	1	1506-		●	●
424	PIPE; AIR,INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98081-837-0	01	1	1305-1511				●
424	PIPE; AIR,INL EURO2 SPECIFICATION<NT2> (B)	8-98081-837-0	01	1	1512-				●
424	PIPE; AIR,INL EURO4 SPECIFICATION<NT4> (B)	8-98208-938-1	01	1	1305-				●
450	CLAMP; HOSE	9-09915-504-1	01	1	1302-	●	●	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98086-417-0	01	1	1302-1511	●		●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	1512-	●		●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1304	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1305-1511				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-				●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1506-1511	●		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●		●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●	●	●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	1302-	●	●	●	●
558	CLIP; AIR FLOW SENSOR L=250	5-09707-030-1	02	1	1302-	●	●	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1302-	●	●	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98071-416-0	01	1	1302-1511	●		●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	1512-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
