0-50 — OIL COOLER AND OIL FILTER (#113287) — 95 parça

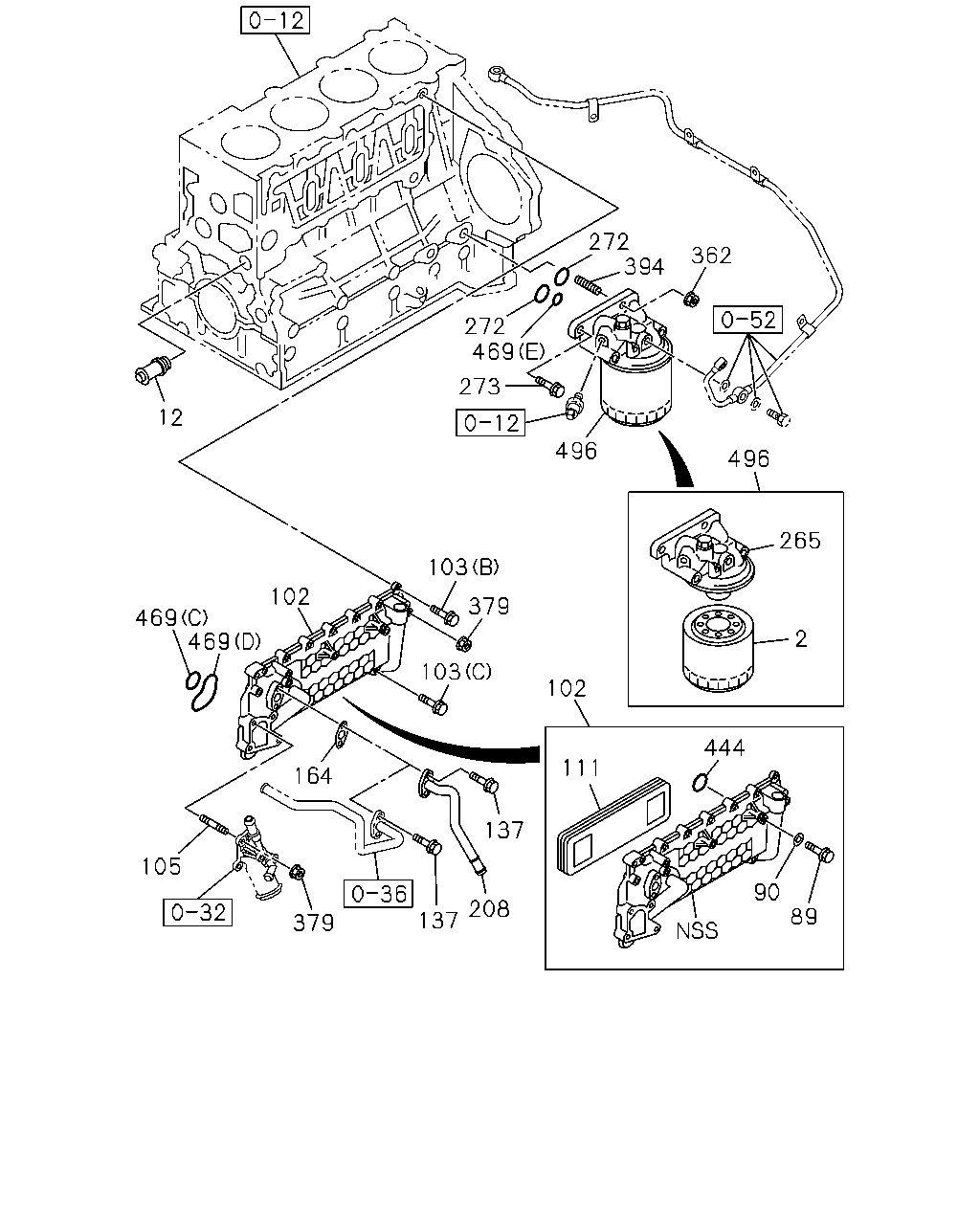

89 90 111 444 2 265 102 103 379 103 137 208 137 379 105 164 469 469 102 496 496 362 272 272 394 469 273 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1302-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1302-1509	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-		●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1302-	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1302-	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1302-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1302-	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1302-		●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-		●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-		●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1302-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1302-	●
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
137	BOLT EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1302-	●
208	PIPE; WATER,HTR EURO2 SPECIFICATION<NT2>	8-97146-519-0	01	1	1302-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1302-	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-		●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1302-	●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1302-	●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	1302-	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1302-	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1302-	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-		●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-		●

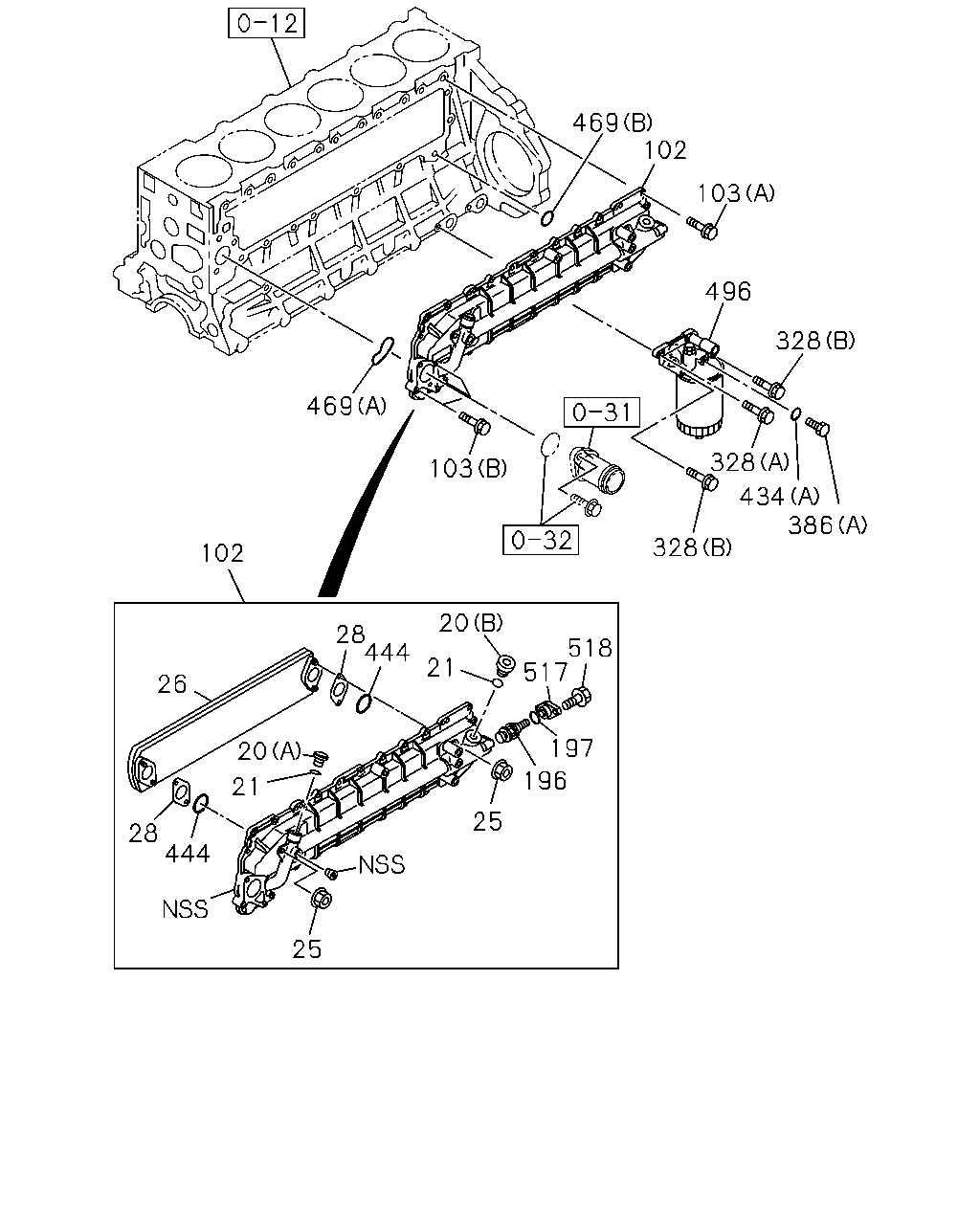

469 103 496 328 328 386 328 103 469 102 434 518 517 197 196 25 25 444 28 21 26 102 28 444 21 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1302-		●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1302-		●
21	GASKET; PLUG	1-13219-253-0	01	1	1302-		●
21	GASKET; PLUG M24	8-94396-755-0	01	1	1302-		●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-		●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1302-		●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-		●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1302-	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1302-		●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1302-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-		●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-		●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1302-		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-		●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-		●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-		●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-		●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1302-		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	1302-		●

496 307 308 386 66 434 13 265 2 321 265 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1302-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1302-1509	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-		●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-		●
66	SPRING; VLV	8-98238-943-0	01	1	1308-		●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1302-	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-		●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	1302-1307		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	1302-1307		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1302-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1302-		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-		●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-		●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-		●
