Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#113285) — 558 parça

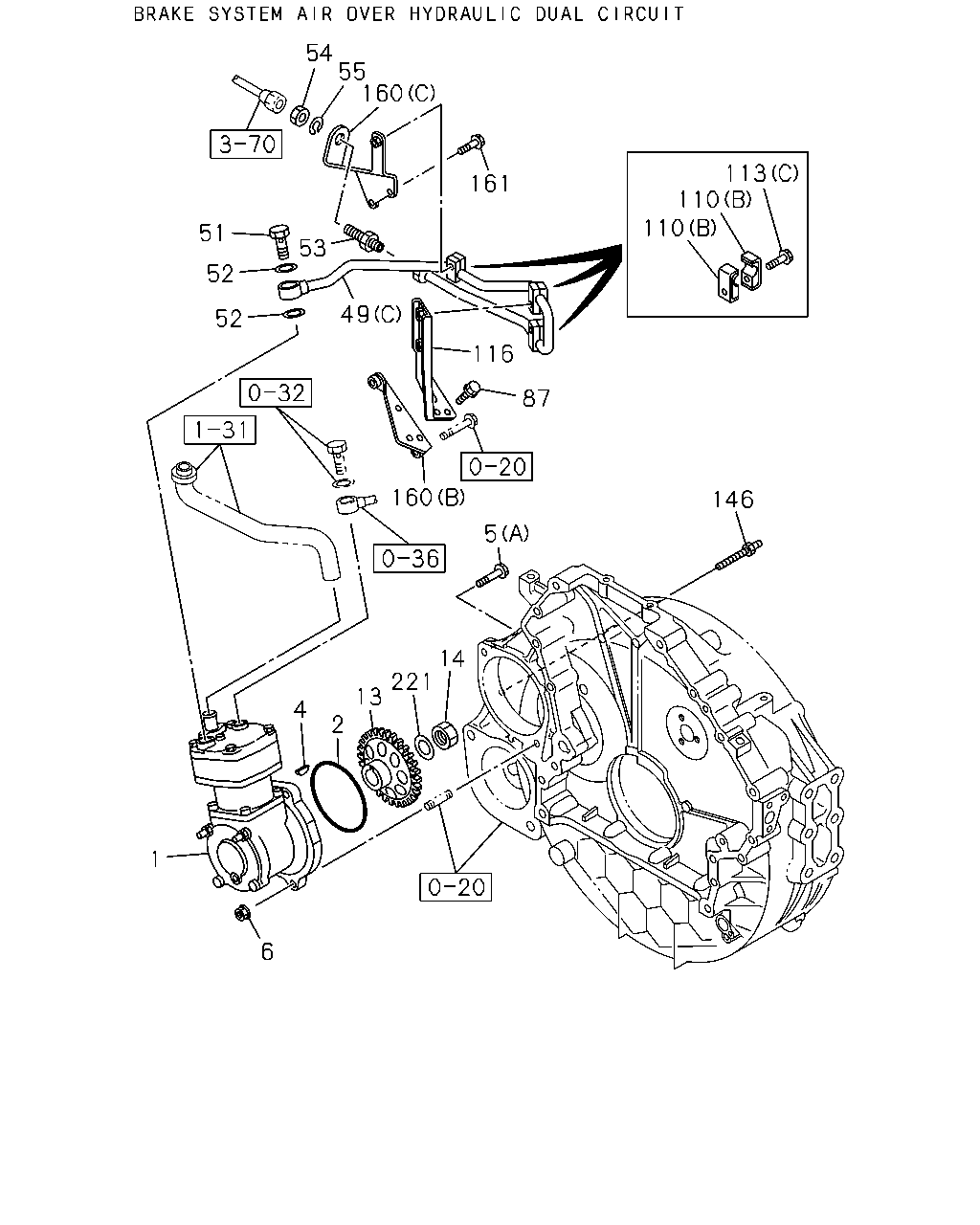

113 110 113 113 79 80 77 80 111 161 111 160 51 52 49 52 5 13 4 2 22 6 1 146 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98187-299-0	01	1	1302-1511	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1512-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-1502	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1503-1511	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1512-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-1505	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1305-1405				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-1505	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1506-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1305-				●
4	KEY; INJ PUMP GEAR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-08055-516-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1302-1505	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1506-	●	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE	8-94396-485-1	01	1	1305-				●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-1505	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1506-	●	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1305-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1302-1505	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1506-	●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-1505	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1506-	●	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1305-				●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97618-722-0	01	1	1302-1511	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1512-	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4> (C)	8-98042-002-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97618-723-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1506-1511	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1512-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> (D)	8-98052-612-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-		●
49	PIPE; AIR,CHARGE EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-			●
49	PIPE; AIR,CHARGE (E)	8-98069-425-0	01	1	1305-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-1505	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1506-	●	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1305-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-1304	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-1505	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1506-	●	●	●	●
77	PIPE; AIR,GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97618-724-0	01	1	1302-1511	●
77	PIPE; AIR,GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-724-0	01	1	1512-	●
77	PIPE; AIR,GOV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97618-725-0	01	1	1302-1505	●	●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-725-0	01	1	1506-1511	●	●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-725-0	01	1	1512-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X23	8-98037-824-0	01	1	1302-1511	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2> M10X23	8-98037-824-0	01	1	1512-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=10.2 OD=15.2	1-09630-083-0	02	1	1302-1511	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ID=10.2 OD=15.2	1-09630-083-0	02	1	1512-	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94393-037-0	01	1	1302-1511	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-94393-037-0	01	1	1512-	●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1302-1505	●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	06	1	1506-	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1506-		●
110	CLIP; AIR PIPE EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	06	1	1506-			●
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=5.5 L=10.5	8-98029-953-1	02	1	1302-1511	●	●
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=5.5 L=10.5	8-98029-953-1	02	1	1512-	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	02	1	1512-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28050-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (C) M8X45 FLANGE	0-28050-845-0	03	1	1302-1505	●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-		●
113	BOLT; CLIP,AIR PIPE EURO5 SPECIFICATION<NT5> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-			●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1302-1505	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1506-	●	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-255-0	01	1	1302-1511	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-255-0	01	1	1512-	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1506-1511	●	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1512-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-			●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1506-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-			●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1305-				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●	●

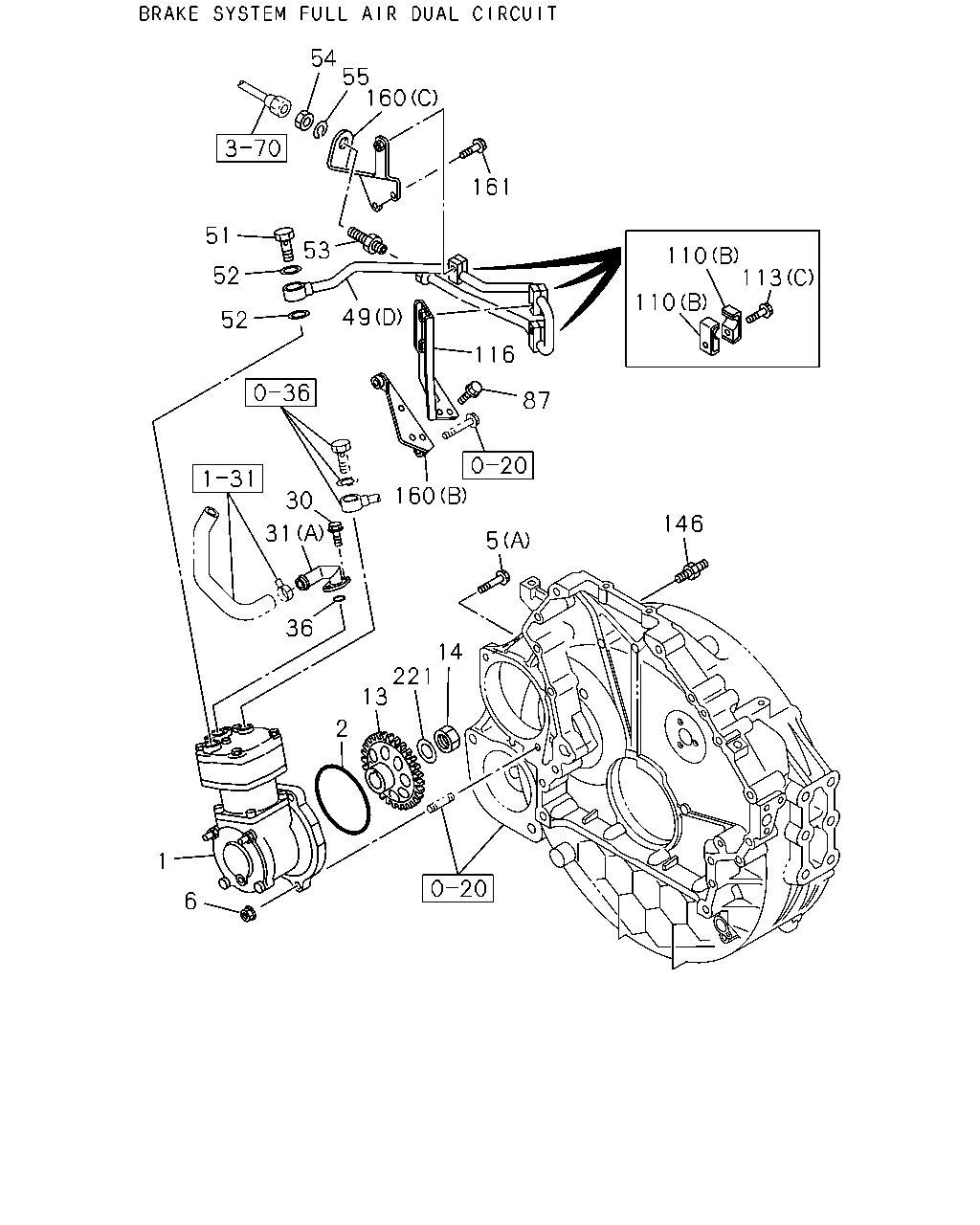

113 111 113 110 111 161 160 51 49 77 79 80 80 52 52 30 31 5 146 13 2 14 221 1 6 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98187-299-0	01	1	1302-1511	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1512-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-1502	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1503-1511	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1512-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-1505	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1305-1405				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-1505	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1506-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1302-1505	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1506-	●	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE	8-94396-485-1	01	1	1305-				●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-1505	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1506-	●	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1305-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1302-1505	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1506-	●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-1505	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1506-	●	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1305-				●
30	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●	●
30	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (D)	8-98023-170-0	01	1	1309-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (C)	8-98076-324-0	01	1	1309-				●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97620-948-0	01	1	1302-1505	●	●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97620-948-0	01	1	1506-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (B)	8-98067-830-1	01	1	1305-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98233-806-1	01	1	1305-1308				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3> (B)	8-98233-806-1	01	1	1309-1511				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	1302-1505	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	1506-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-				●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97618-722-0	01	1	1302-1511	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1512-	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4> (C)	8-98042-002-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97618-723-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1506-1511	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1512-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> (D)	8-98052-612-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-		●
49	PIPE; AIR,CHARGE EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-			●
49	PIPE; AIR,CHARGE (E)	8-98069-425-0	01	1	1305-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-1505	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1506-	●	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1305-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-1304	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-1505	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1506-	●	●	●	●
77	PIPE; AIR,GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97618-724-0	01	1	1302-1511	●
77	PIPE; AIR,GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-724-0	01	1	1512-	●
77	PIPE; AIR,GOV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97618-725-0	01	1	1302-1505	●	●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-725-0	01	1	1506-1511	●	●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-725-0	01	1	1512-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X23	8-98037-824-0	01	1	1302-1511	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2> M10X23	8-98037-824-0	01	1	1512-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=10.2 OD=15.2	1-09630-083-0	02	1	1302-1511	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ID=10.2 OD=15.2	1-09630-083-0	02	1	1512-	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94393-037-0	01	1	1302-1511	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-94393-037-0	01	1	1512-	●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1302-1505	●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	06	1	1506-	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1506-		●
110	CLIP; AIR PIPE EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	06	1	1506-			●
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=5.5 L=10.5	8-98029-953-1	02	1	1302-1511	●	●
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=5.5 L=10.5	8-98029-953-1	02	1	1512-	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	02	1	1512-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28050-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (C) M8X45 FLANGE	0-28050-845-0	03	1	1302-1505	●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-		●
113	BOLT; CLIP,AIR PIPE EURO5 SPECIFICATION<NT5> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-			●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1302-1505	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1506-	●	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-255-0	01	1	1302-1511	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-255-0	01	1	1512-	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1506-1511	●	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1512-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-			●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1506-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-			●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1305-				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1302-1505	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1506-	●	●	●

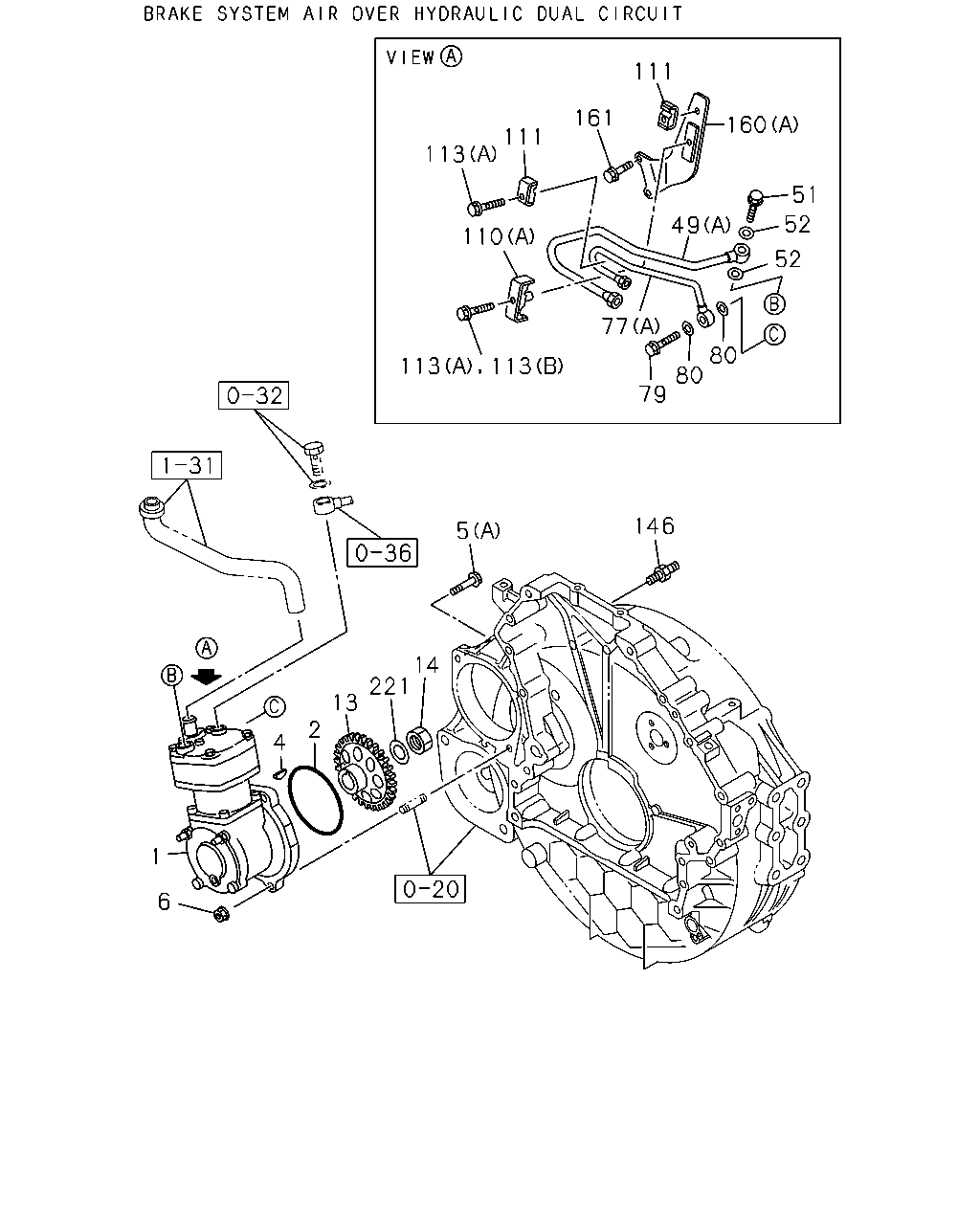

54 51 52 160 160 55 53 49 116 4 2 14 221 13 1 6 146 110 110 113 87 5 161 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98187-299-0	01	1	1302-1511	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1512-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-1502	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1503-1511	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1512-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-1505	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1305-1405				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-1505	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1506-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1305-				●
4	KEY; INJ PUMP GEAR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-08055-516-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1302-1505	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1506-	●	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE	8-94396-485-1	01	1	1305-				●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-1505	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1506-	●	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1305-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1302-1505	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1506-	●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-1505	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1506-	●	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1305-				●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97618-722-0	01	1	1302-1511	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1512-	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4> (C)	8-98042-002-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97618-723-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1506-1511	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1512-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> (D)	8-98052-612-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-		●
49	PIPE; AIR,CHARGE EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-			●
49	PIPE; AIR,CHARGE (E)	8-98069-425-0	01	1	1305-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-1505	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1506-	●	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1305-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-1304	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-1505	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1506-	●	●	●	●
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1302-1505	●	●
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1506-	●
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1506-		●
53	UNION; CHARGE PIPE EURO5 SPECIFICATION<NT5> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1506-			●
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> M22	0-91111-522-0	01	1	1302-1505	●	●
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M22	0-91111-522-0	01	1	1506-	●
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> M22	0-91111-522-0	01	1	1506-		●
54	NUT; PIPE UNION EURO5 SPECIFICATION<NT5> M22	0-91111-522-0	01	1	1506-			●
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> ID=22.5	0-91510-522-0	01	1	1302-1505	●	●
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=22.5	0-91510-522-0	01	1	1506-	●
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> ID=22.5	0-91510-522-0	01	1	1506-		●
55	WASHER; LK,PIPE UNION EURO5 SPECIFICATION<NT5> ID=22.5	0-91510-522-0	01	1	1506-			●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	03	1	1302-1505	●	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28050-820-0	03	1	1506-1511	●	●	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28050-820-0	03	1	1512-	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	03	1	1512-		●
87	BOLT; BRKT FIX EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28050-820-0	03	1	1512-			●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94393-037-0	01	1	1302-1511	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-94393-037-0	01	1	1512-	●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1302-1505	●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	06	1	1506-	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1506-		●
110	CLIP; AIR PIPE EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	06	1	1506-			●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	02	1	1512-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28050-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (C) M8X45 FLANGE	0-28050-845-0	03	1	1302-1505	●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-		●
113	BOLT; CLIP,AIR PIPE EURO5 SPECIFICATION<NT5> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-			●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>	8-97614-183-1	01	1	1302-1505	●	●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97614-183-1	01	1	1506-1511	●	●	●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97614-183-1	01	1	1512-	●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>	8-97614-183-1	01	1	1512-		●
116	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5>	8-97614-183-1	01	1	1512-			●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1302-1505	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1506-	●	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-255-0	01	1	1302-1511	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-255-0	01	1	1512-	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1506-1511	●	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1512-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-			●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1506-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-			●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1305-				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1302-1505	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1506-	●	●	●

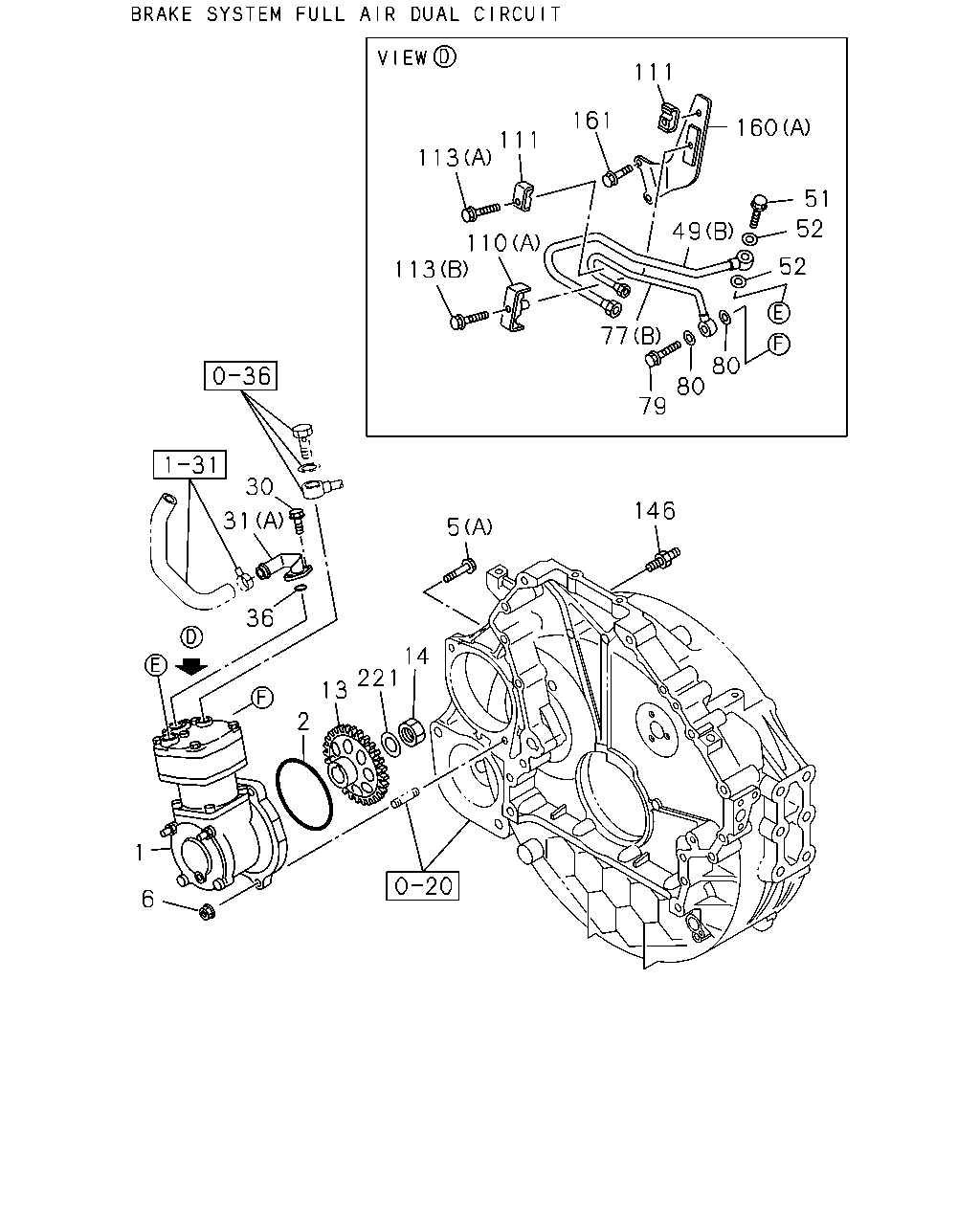

54 51 52 49 53 116 160 30 221 2 6 1 31 55 161 5 13 146 14 87 110 110 113 36 160 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98187-299-0	01	1	1302-1511	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1512-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-1502	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1503-1511	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1512-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-1505	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1305-1405				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-1505	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1506-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1302-1505	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1506-	●	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE	8-94396-485-1	01	1	1305-				●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-1505	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1506-	●	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1305-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1302-1505	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1506-	●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-1505	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1506-	●	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1305-				●
30	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●	●
30	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (D)	8-98023-170-0	01	1	1309-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (C)	8-98076-324-0	01	1	1309-				●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97620-948-0	01	1	1302-1505	●	●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97620-948-0	01	1	1506-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (B)	8-98067-830-1	01	1	1305-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98233-806-1	01	1	1305-1308				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3> (B)	8-98233-806-1	01	1	1309-1511				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	1302-1505	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	1506-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-				●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97618-722-0	01	1	1302-1511	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1512-	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4> (C)	8-98042-002-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97618-723-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1506-1511	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1512-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> (D)	8-98052-612-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-		●
49	PIPE; AIR,CHARGE EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-			●
49	PIPE; AIR,CHARGE (E)	8-98069-425-0	01	1	1305-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-1505	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1506-	●	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1305-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-1304	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-1505	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1506-	●	●	●	●
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1302-1505	●	●
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1506-	●
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1506-		●
53	UNION; CHARGE PIPE EURO5 SPECIFICATION<NT5> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1506-			●
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> M22	0-91111-522-0	01	1	1302-1505	●	●
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M22	0-91111-522-0	01	1	1506-	●
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> M22	0-91111-522-0	01	1	1506-		●
54	NUT; PIPE UNION EURO5 SPECIFICATION<NT5> M22	0-91111-522-0	01	1	1506-			●
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> ID=22.5	0-91510-522-0	01	1	1302-1505	●	●
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=22.5	0-91510-522-0	01	1	1506-	●
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> ID=22.5	0-91510-522-0	01	1	1506-		●
55	WASHER; LK,PIPE UNION EURO5 SPECIFICATION<NT5> ID=22.5	0-91510-522-0	01	1	1506-			●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	03	1	1302-1505	●	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28050-820-0	03	1	1506-1511	●	●	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28050-820-0	03	1	1512-	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	03	1	1512-		●
87	BOLT; BRKT FIX EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28050-820-0	03	1	1512-			●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94393-037-0	01	1	1302-1511	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-94393-037-0	01	1	1512-	●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1302-1505	●	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	06	1	1506-	●
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	06	1	1506-		●
110	CLIP; AIR PIPE EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	06	1	1506-			●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	02	1	1512-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28050-640-0	01	1	1302-1511	●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (C) M8X45 FLANGE	0-28050-845-0	03	1	1302-1505	●	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-	●
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-		●
113	BOLT; CLIP,AIR PIPE EURO5 SPECIFICATION<NT5> (C) M8X45 FLANGE	0-28050-845-0	03	1	1506-			●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>	8-97614-183-1	01	1	1302-1505	●	●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97614-183-1	01	1	1506-1511	●	●	●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97614-183-1	01	1	1512-	●
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>	8-97614-183-1	01	1	1512-		●
116	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5>	8-97614-183-1	01	1	1512-			●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1302-1505	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1506-	●	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-255-0	01	1	1302-1511	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-255-0	01	1	1512-	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1506-1511	●	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1512-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-			●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1506-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-			●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1305-				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1302-1505	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1506-	●	●	●

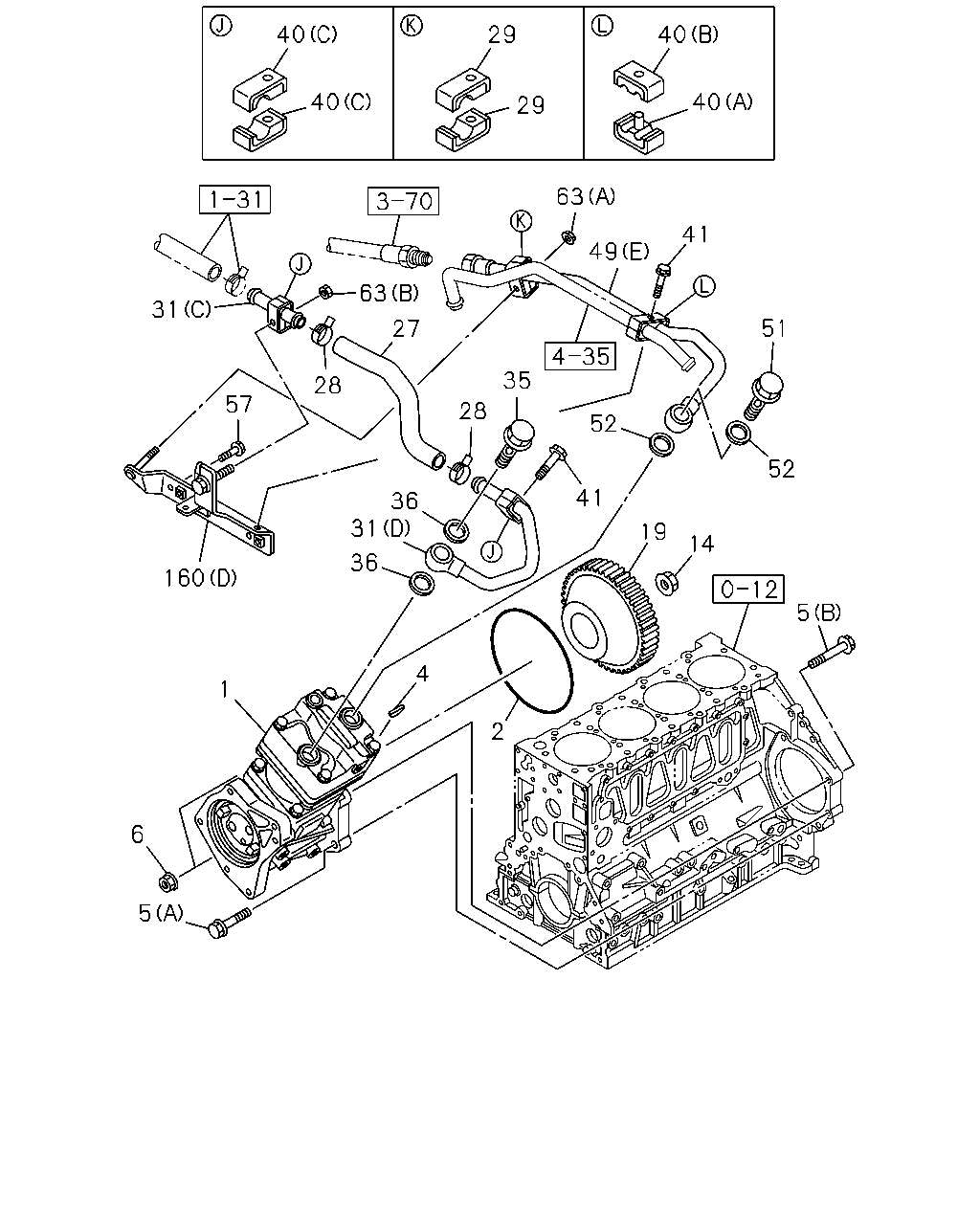

40 40 29 29 40 40 63 63 41 49 51 19 31 160 5 6 36 4 2 35 36 41 57 52 52 14 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98187-299-0	01	1	1302-1511	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1512-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-1502	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1503-1511	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1512-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-1505	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1305-1405				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-1505	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1506-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1305-				●
4	KEY; INJ PUMP GEAR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-08055-516-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1302-1505	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1506-	●	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE	8-94396-485-1	01	1	1305-				●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-1505	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1506-	●	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1305-				●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-1505	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1506-	●	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1305-				●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1305-				●
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	02	1	1305-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (D)	8-98023-170-0	01	1	1309-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (C)	8-98076-324-0	01	1	1309-				●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97620-948-0	01	1	1302-1505	●	●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97620-948-0	01	1	1506-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (B)	8-98067-830-1	01	1	1305-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98233-806-1	01	1	1305-1308				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3> (B)	8-98233-806-1	01	1	1309-1511				●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1305-1404				●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	1302-1505	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	1506-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-				●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1305-				●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1305-				●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1305-				●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1305-				●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97618-722-0	01	1	1302-1511	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1512-	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4> (C)	8-98042-002-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97618-723-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1506-1511	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1512-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> (D)	8-98052-612-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-		●
49	PIPE; AIR,CHARGE EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-			●
49	PIPE; AIR,CHARGE (E)	8-98069-425-0	01	1	1305-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-1505	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1506-	●	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1305-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-1304	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-1505	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1506-	●	●	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1305-				●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	01	1	1305-				●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1305-				●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-255-0	01	1	1302-1511	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-255-0	01	1	1512-	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1506-1511	●	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1512-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-			●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1506-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-			●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1305-				●

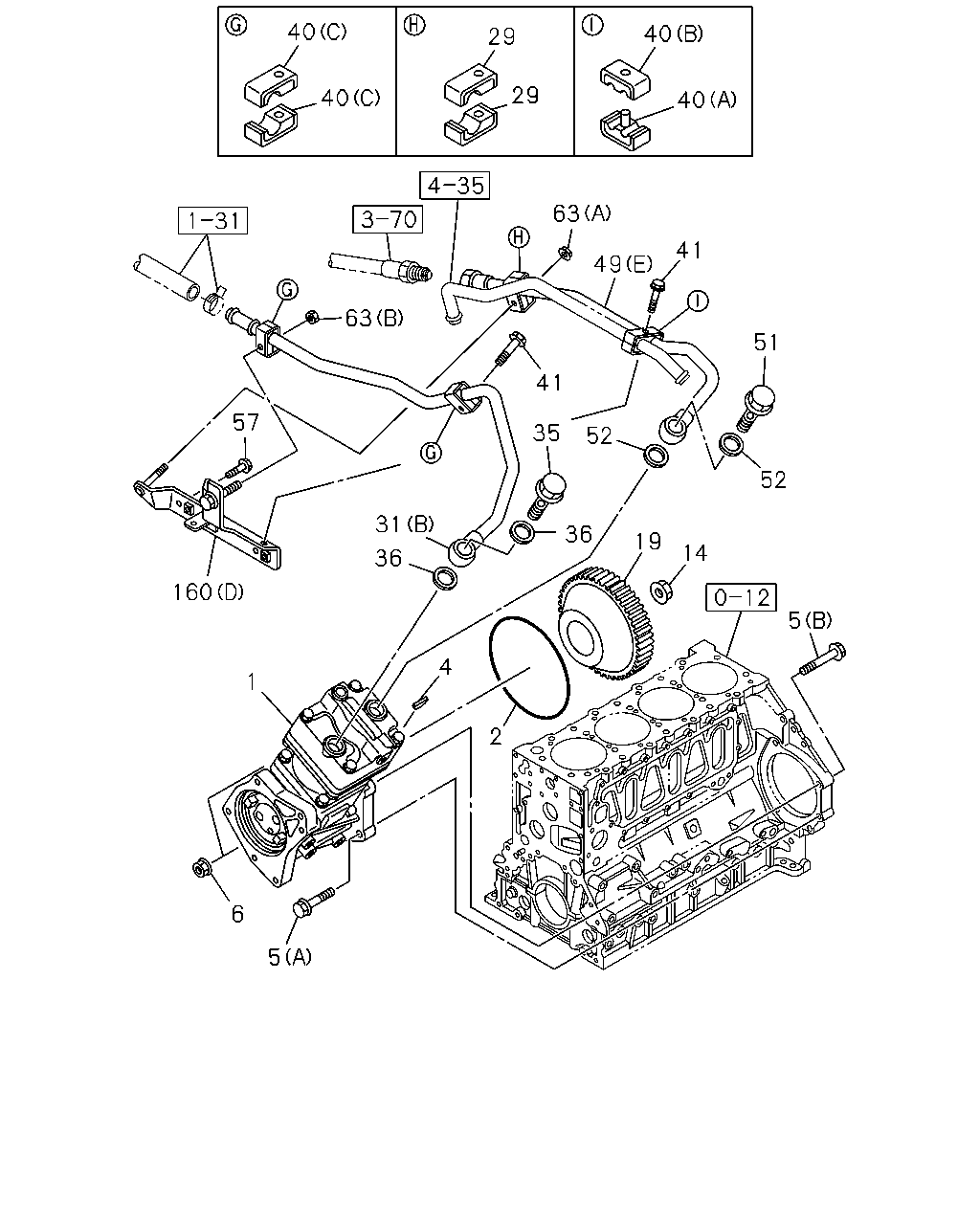

40 40 29 29 40 40 31 63 63 49 41 35 36 28 31 36 160 19 52 5 41 2 4 1 6 5 51 52 14 57 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98187-299-0	01	1	1302-1511	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1512-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1302-1502	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1503-1511	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-301-1	01	1	1512-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>	8-98187-304-1	01	1	1302-1505	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98187-304-1	01	1	1506-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1305-1405				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-1505	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1506-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1305-				●
4	KEY; INJ PUMP GEAR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-08055-516-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1302-1505	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1506-	●	●	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1305-				●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE	8-94396-485-1	01	1	1305-				●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-1505	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1506-	●	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1305-				●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-1505	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1506-	●	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1305-				●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1305-				●
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4>	8-98057-031-1	01	1	1309-				●
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	1309-				●
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	02	1	1305-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (D)	8-98023-170-0	01	1	1309-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (C)	8-98076-324-0	01	1	1309-				●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97620-948-0	01	1	1302-1505	●	●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97620-948-0	01	1	1506-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (B)	8-98067-830-1	01	1	1305-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98233-806-1	01	1	1305-1308				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3> (B)	8-98233-806-1	01	1	1309-1511				●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1305-1404				●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	1302-1505	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	1506-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-				●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1305-				●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1305-				●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1305-				●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1305-				●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97618-722-0	01	1	1302-1511	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1512-	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO4 SPECIFICATION<NT4> (C)	8-98042-002-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97618-723-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1506-1511	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97618-723-0	01	1	1512-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> (D)	8-98052-612-0	01	1	1302-1505	●	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-		●
49	PIPE; AIR,CHARGE EURO5 SPECIFICATION<NT5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98052-612-0	01	1	1506-			●
49	PIPE; AIR,CHARGE (E)	8-98069-425-0	01	1	1305-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-1505	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1506-	●	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1305-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-1304	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-1505	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1506-	●	●	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1305-				●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	01	1	1305-				●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1305-				●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-255-0	01	1	1302-1511	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-255-0	01	1	1512-	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1506-1511	●	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (B)	8-97614-182-2	01	1	1512-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (B)	8-97614-182-2	01	1	1512-			●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1302-1505	●	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> (C)	8-98042-844-1	01	1	1506-		●
160	BRACKET; AIR PIPE EURO5 SPECIFICATION<NT5> (C)	8-98042-844-1	01	1	1506-			●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1305-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
