◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#113282) — 27 parça

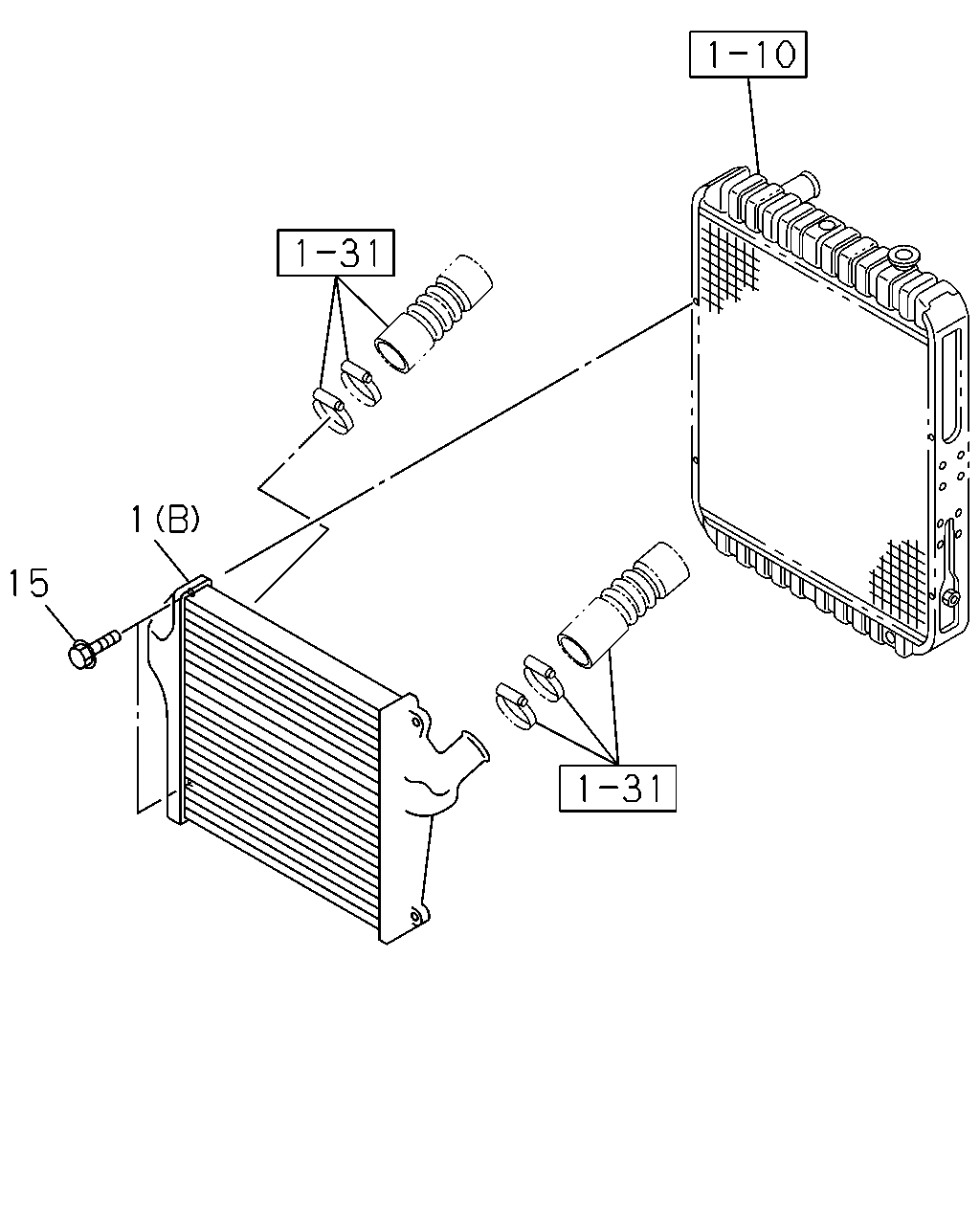

çizim 326975
15 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98006-479-1 01 1 1302-1405 ●
1 COOLER; CHARGE AIR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98006-479-1 01 1 1302-1405 ●
1 COOLER; CHARGE AIR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98006-479-1 01 1 1406- ●
1 COOLER; CHARGE AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) 		8-98006-479-1 01 1 1406- ●
1 COOLER; CHARGE AIR
RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98212-545-1 01 1 1302-1405 ●
1 COOLER; CHARGE AIR
ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) 		8-98212-545-1 01 1 1406- ●
1 COOLER; CHARGE AIR
(B) 		8-98047-633-0 01 1 1302- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		1-21469-151-0 04 1 1302- ●

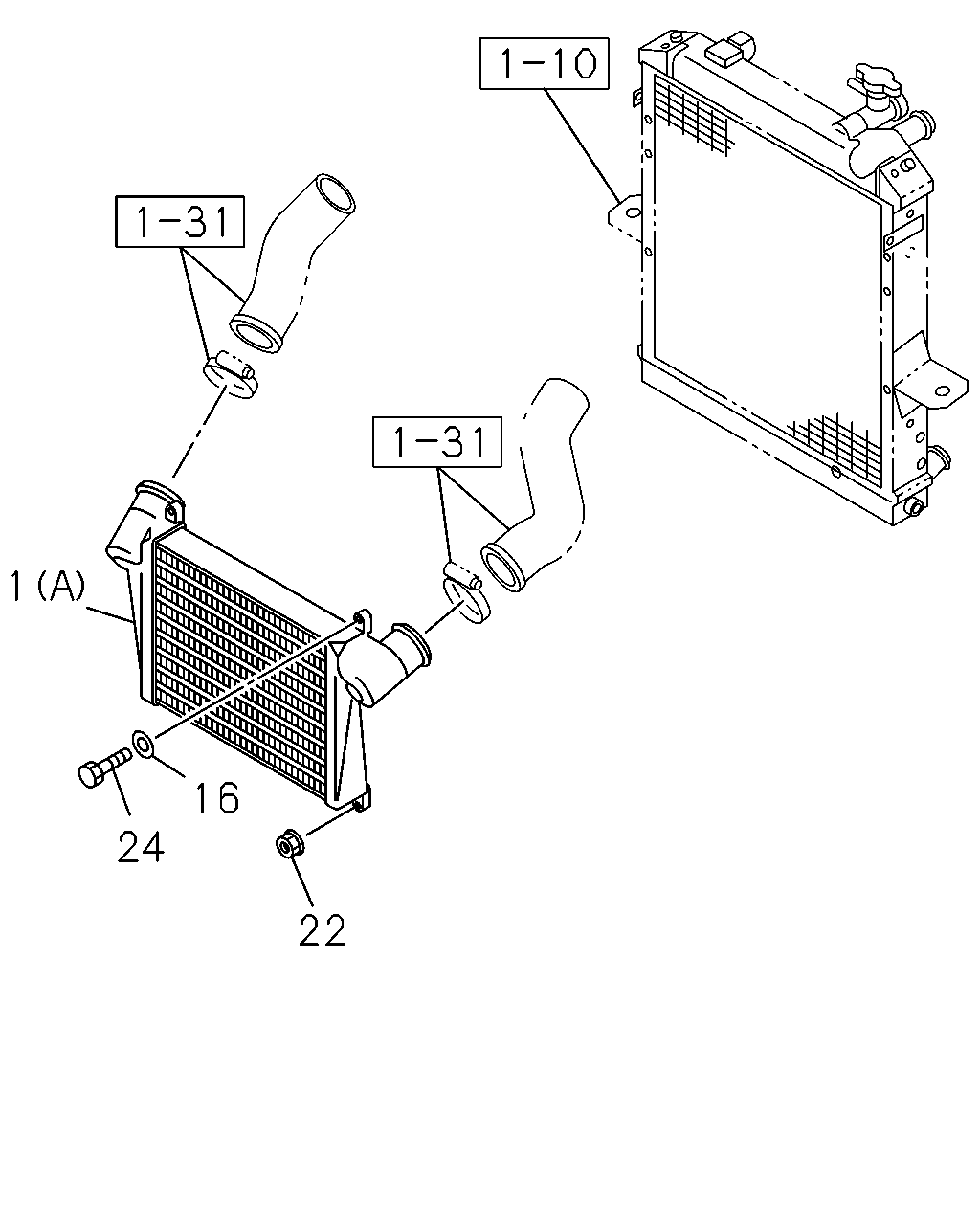

çizim 331390
22 24 1 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98006-479-1 01 1 1302-1405 ●
1 COOLER; CHARGE AIR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98006-479-1 01 1 1302-1405 ●
1 COOLER; CHARGE AIR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98006-479-1 01 1 1406- ●
1 COOLER; CHARGE AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) 		8-98006-479-1 01 1 1406- ●
1 COOLER; CHARGE AIR
RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98212-545-1 01 1 1302-1405 ●
1 COOLER; CHARGE AIR
ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) 		8-98212-545-1 01 1 1406- ●
1 COOLER; CHARGE AIR
(B) 		8-98047-633-0 01 1 1302- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=8.4 OD=16 		0-91610-508-0 02 1 1302-1405 ●
16 WASHER; PL,CHARGE AIR COOLER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=8.4 OD=16 		0-91610-508-0 02 1 1406- ●
16 WASHER; PL,CHARGE AIR COOLER
ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> ID=8.4 OD=16 		0-91610-508-0 02 1 1406- ●
16 WASHER; PL,CHARGE AIR COOLER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> ID=8.4 OD=16 		0-91610-508-0 02 1 1406- ●
22 NUT
M8 FLANGE 		0-91180-108-0 02 1 1302-1405 ●
22 NUT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1406- ●
22 NUT
ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> M8 FLANGE 		0-91180-108-0 02 1 1406- ●
22 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> M8 FLANGE 		0-91180-108-0 02 1 1406- ●
24 BOLT; COOLER TO RAD
M8X25 FLANGE 		0-28050-825-0 02 1 1302-1405 ●
24 BOLT; COOLER TO RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28050-825-0 02 1 1406- ●
24 BOLT; COOLER TO RAD
ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> M8X25 FLANGE 		0-28050-825-0 02 1 1406- ●
24 BOLT; COOLER TO RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> M8X25 FLANGE 		0-28050-825-0 02 1 1406- ●
