Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#113281) — 270 parça

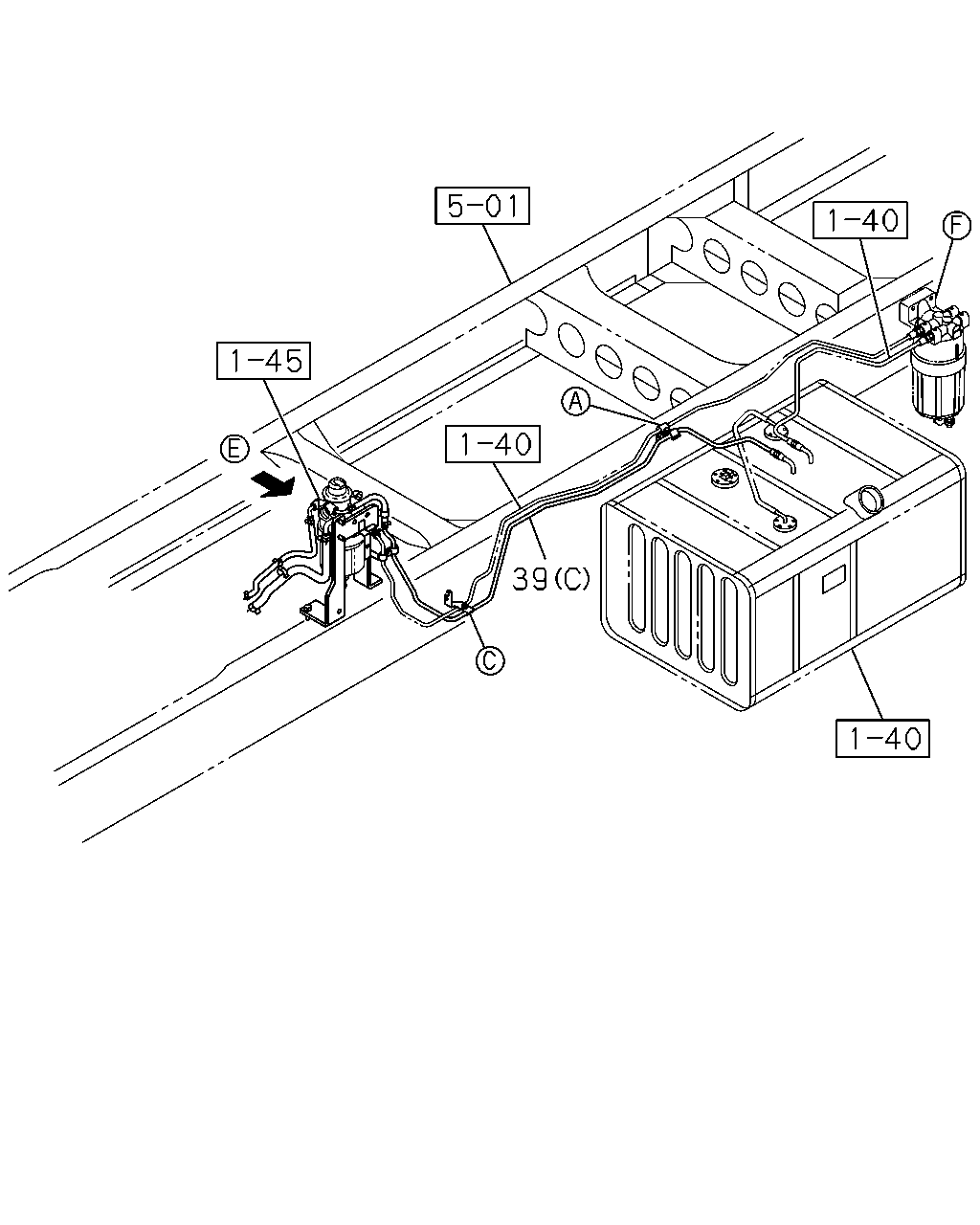

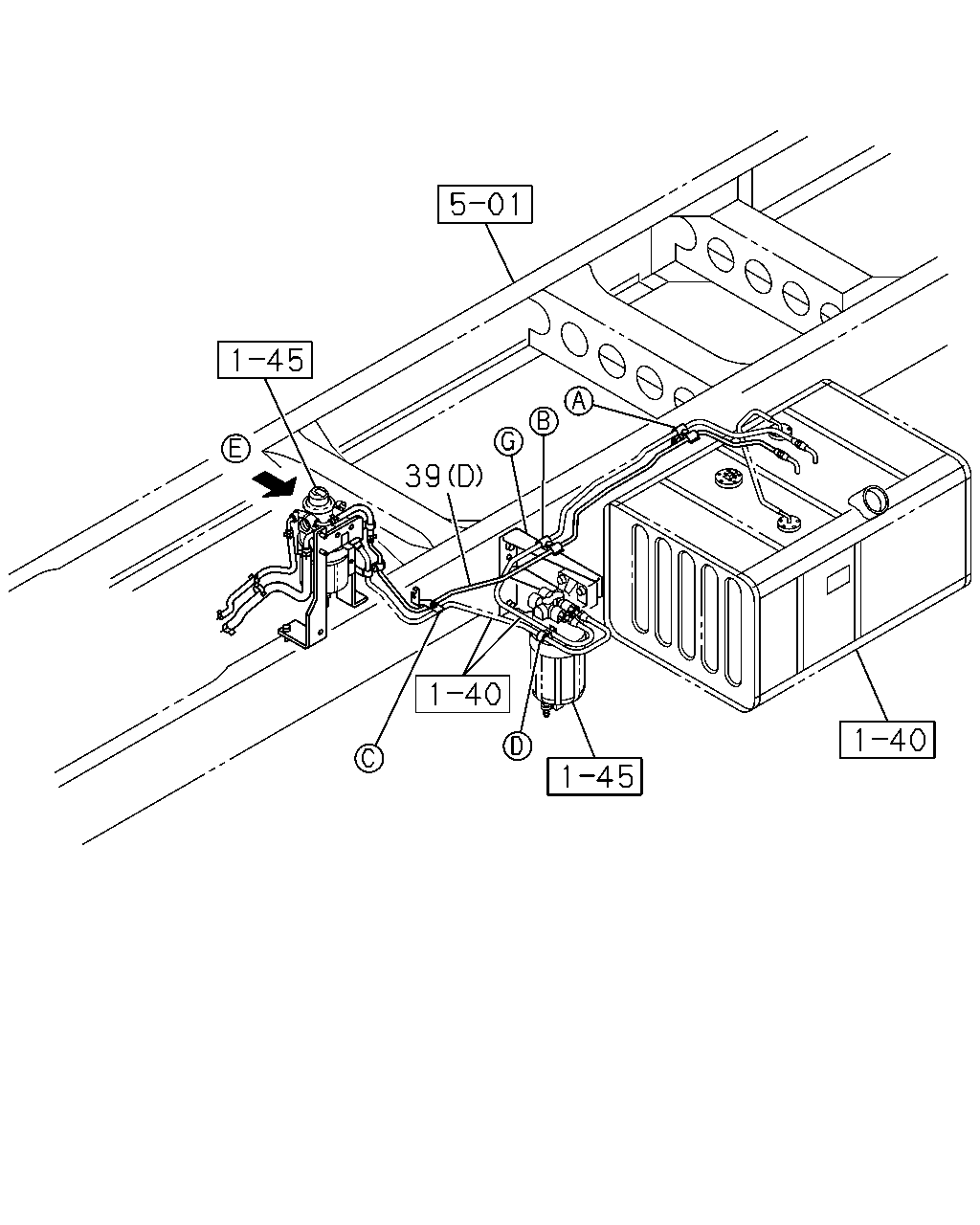

304 171 97 309 303 171 97 309 64 304 97 41 239 80 303 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1302-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-234-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	03	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	1-47478-981-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (G)	8-98115-316-1	01	1	1302-
171	BOLT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
171	BOLT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
171	BOLT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
239	CLIP; FUEL PIPE WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> ID=10 & 10	1-09709-277-1	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-1302
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-1302
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4200MM(42W) (A) M8 FLANGE	0-91180-108-0	03	1	1302-
309	CLIP; PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
309	CLIP; PIPE WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-

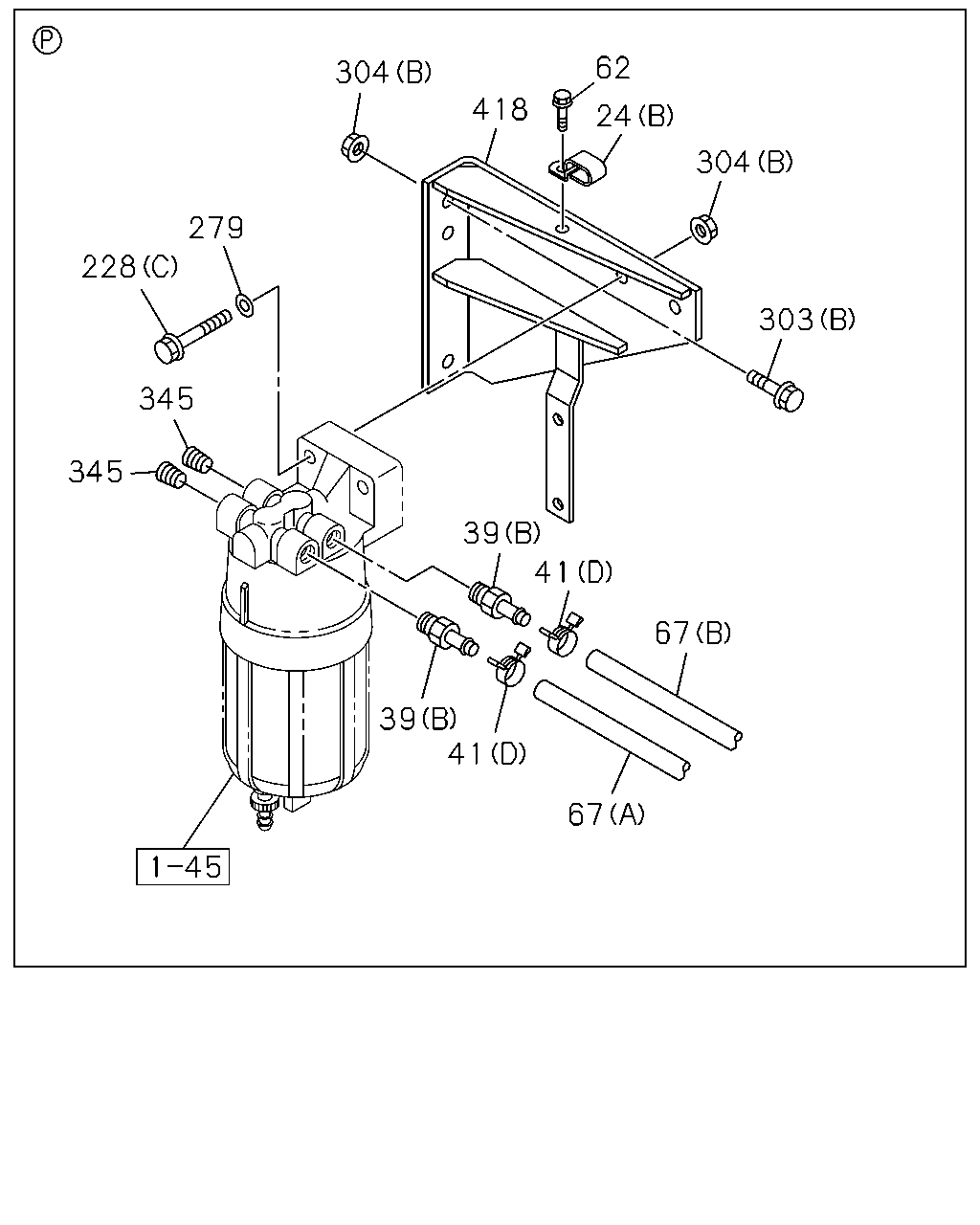

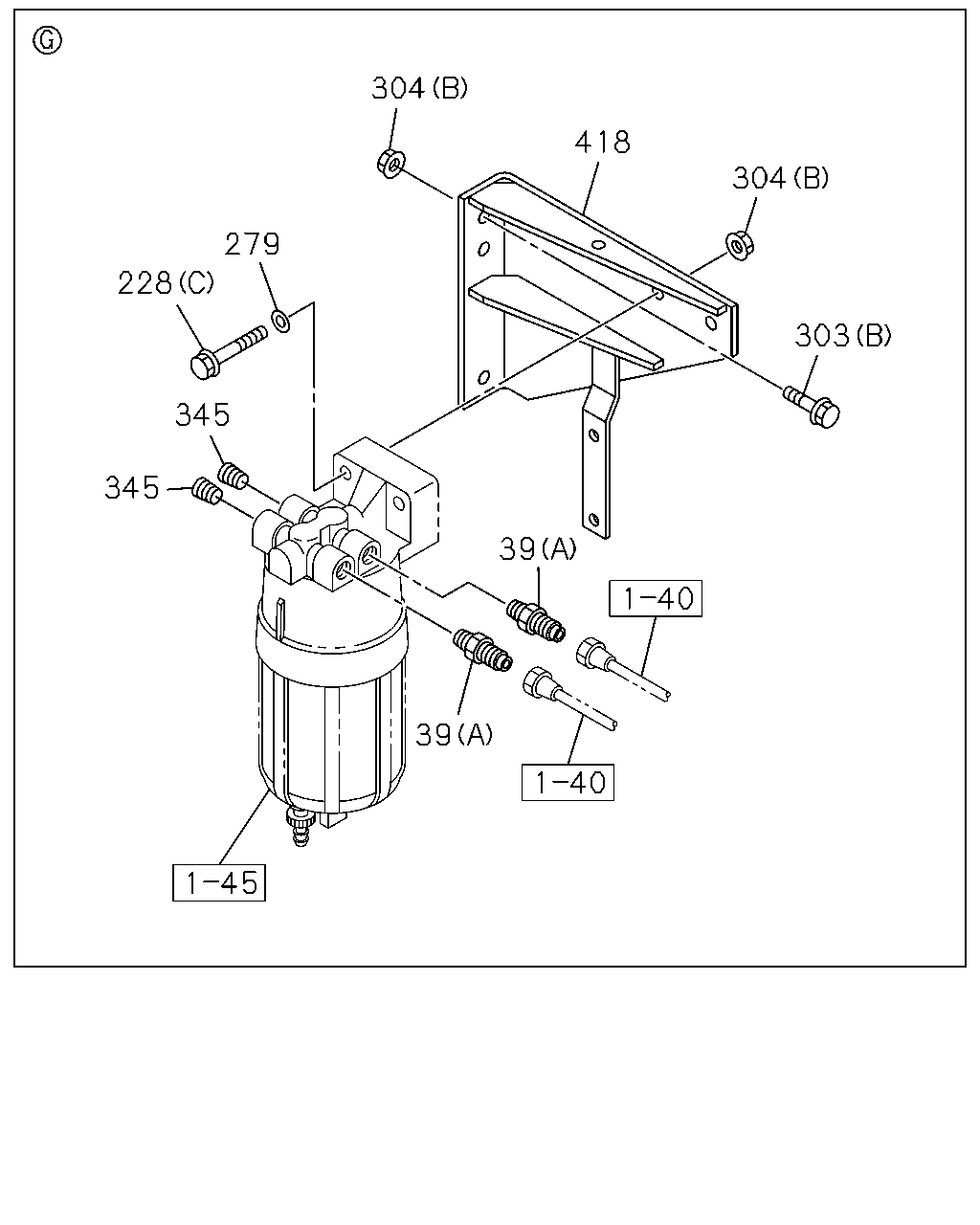

39 39 345 345 228 279 304 418 304 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-1302
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-1302
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4200MM(42W) (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-
418	BRACKET; PRE FUEL FILTER REARWARD INNER SINGLE TIRE<YK3>	8-98136-381-0	01	1	1302-

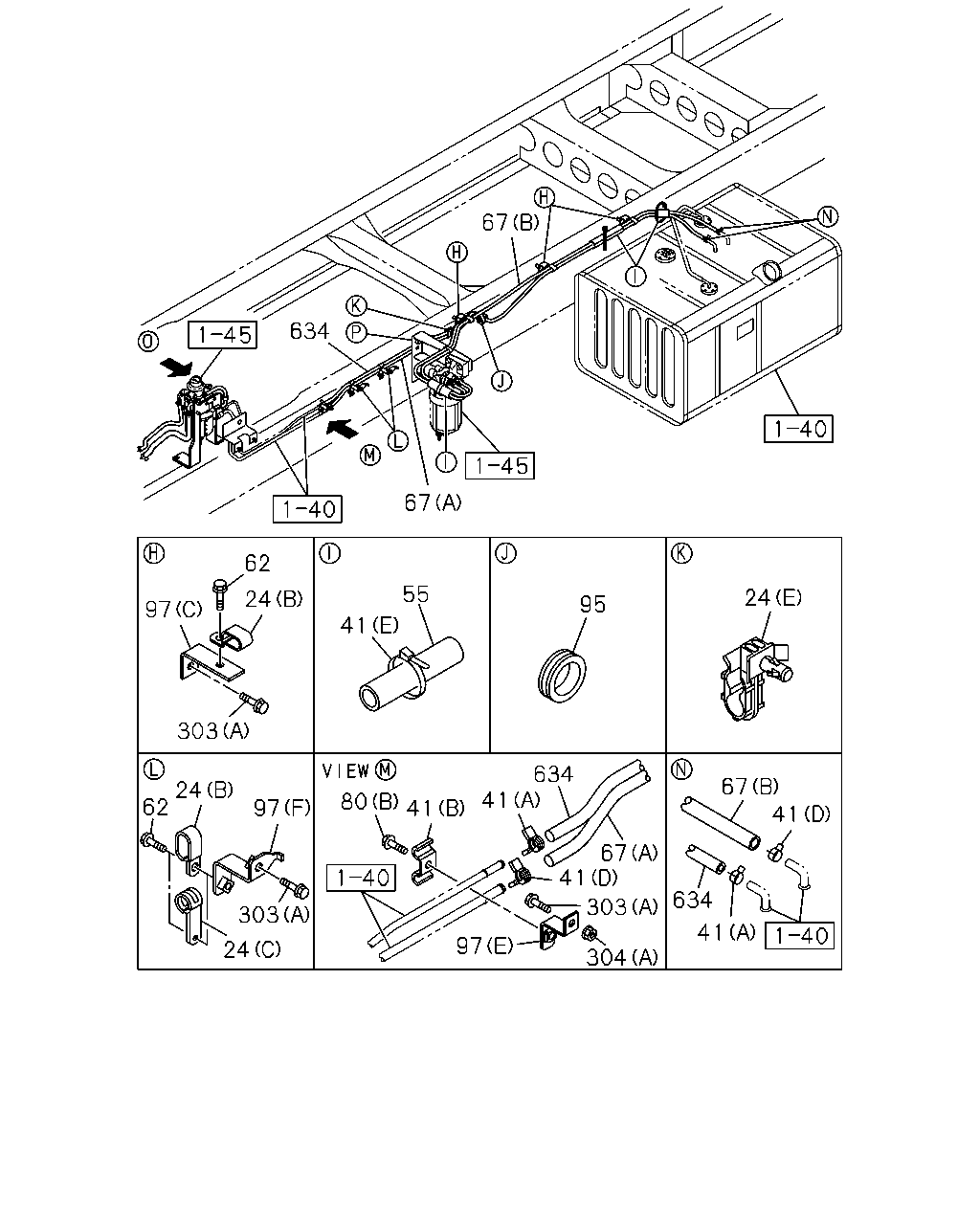

67 634 67 62 97 24 303 24 62 97 303 24 80 41 41 634 97 67 41 303 304 41 634 41 67 24 95 55 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (C) ID=14.5 L=28	1-09701-013-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (C) ID=18 L=28	1-09701-067-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (E) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
55	COVER; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) M8X20 FLANGE	0-28650-820-0	05	1	1302-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) (A) L=320 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-234-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	03	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	1-47478-981-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (G)	8-98115-316-1	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-1302
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-1302
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4200MM(42W) (A) M8 FLANGE	0-91180-108-0	03	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	1302-

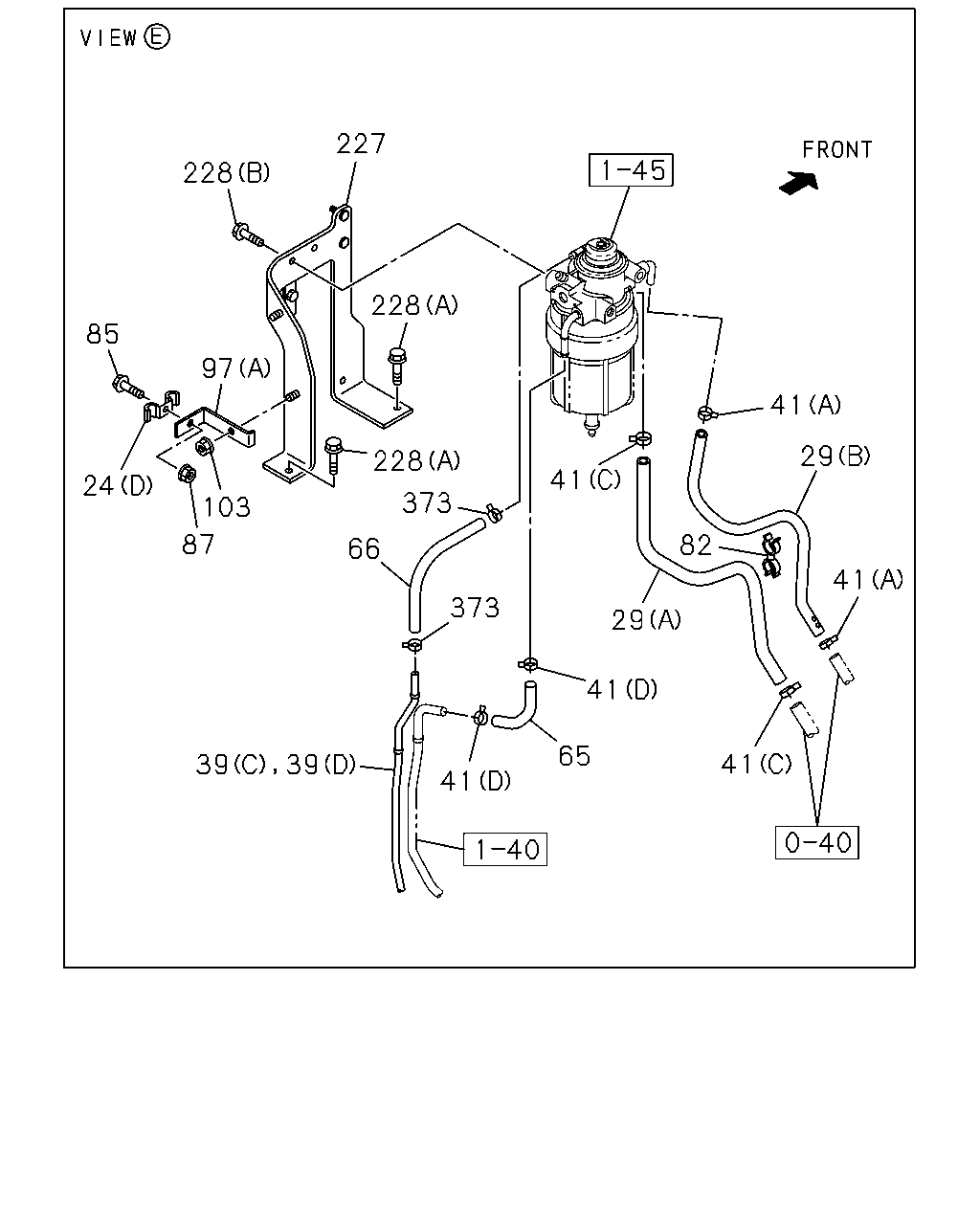

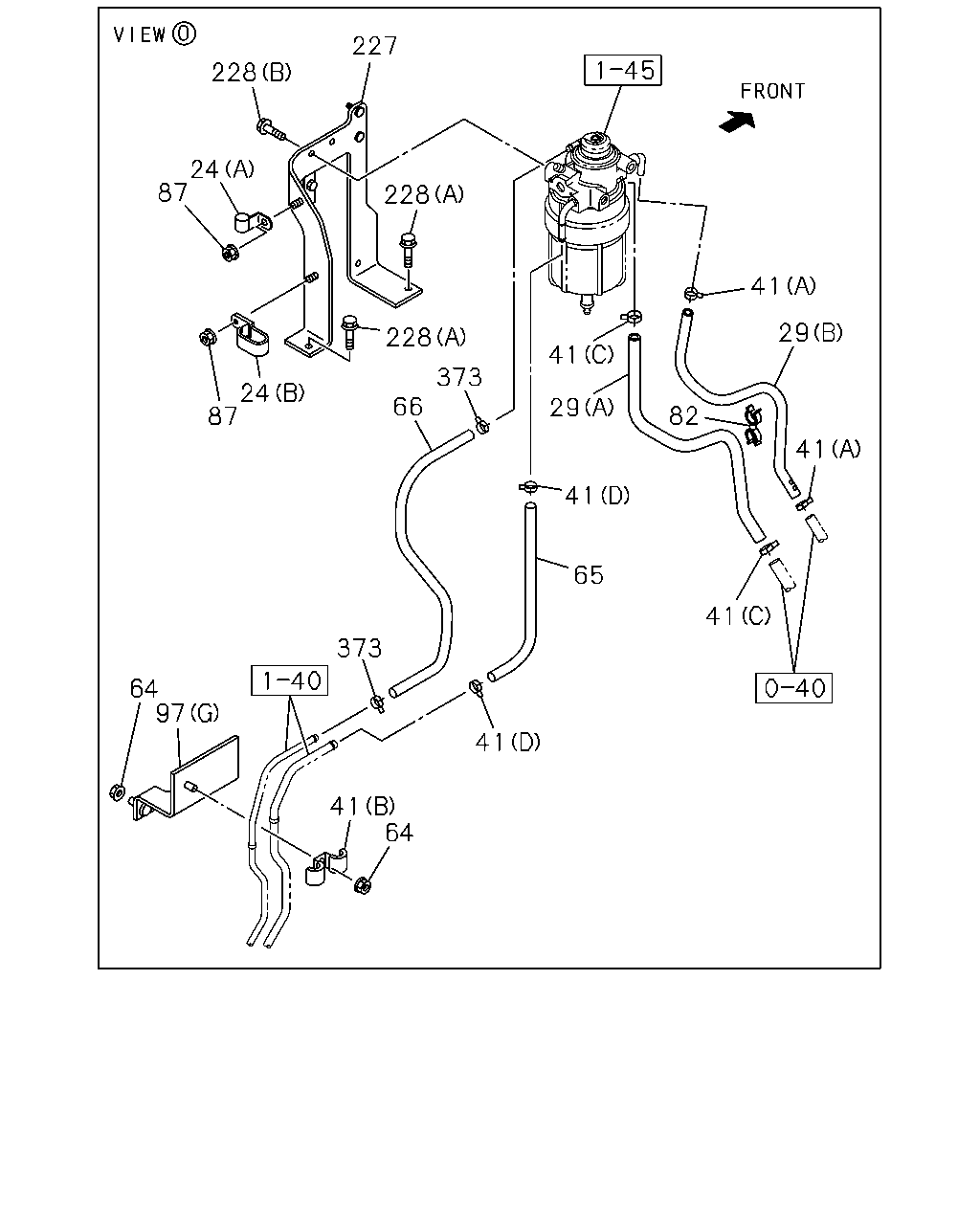

39 39 87 103 97 24 85 228 227 228 228 373 41 66 373 29 41 65 41 41 41 29 41 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (C) ID=14.5 L=28	1-09701-013-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (C) ID=18 L=28	1-09701-067-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (E) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=450 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1302-
85	BOLT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) M8 FLANGE	0-91180-108-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-234-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	03	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	1-47478-981-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (G)	8-98115-316-1	01	1	1302-
103	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	1302-

228 24 87 227 41 41 29 41 373 228 24 87 228 41 29 66 373 64 97 41 41 64 41 82 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (C) ID=14.5 L=28	1-09701-013-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (C) ID=18 L=28	1-09701-067-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (E) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1302-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=450 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) M8 FLANGE	0-91180-108-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-234-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	03	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	1-47478-981-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	8-97623-325-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (G)	8-98115-316-1	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	1302-

304 279 228 345 345 39 41 67 67 41 39 303 304 24 62 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (C) ID=14.5 L=28	1-09701-013-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (C) ID=18 L=28	1-09701-067-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (E) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) M8X20 FLANGE	0-28650-820-0	05	1	1302-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) (A) L=320 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-1302
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-1302
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4200MM(42W) (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-
418	BRACKET; PRE FUEL FILTER REARWARD INNER SINGLE TIRE<YK3>	8-98136-381-0	01	1	1302-

39 304 345 345 279 228 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4200MM(42W) (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
