Sayfa 1-41 - Isuzu EPC

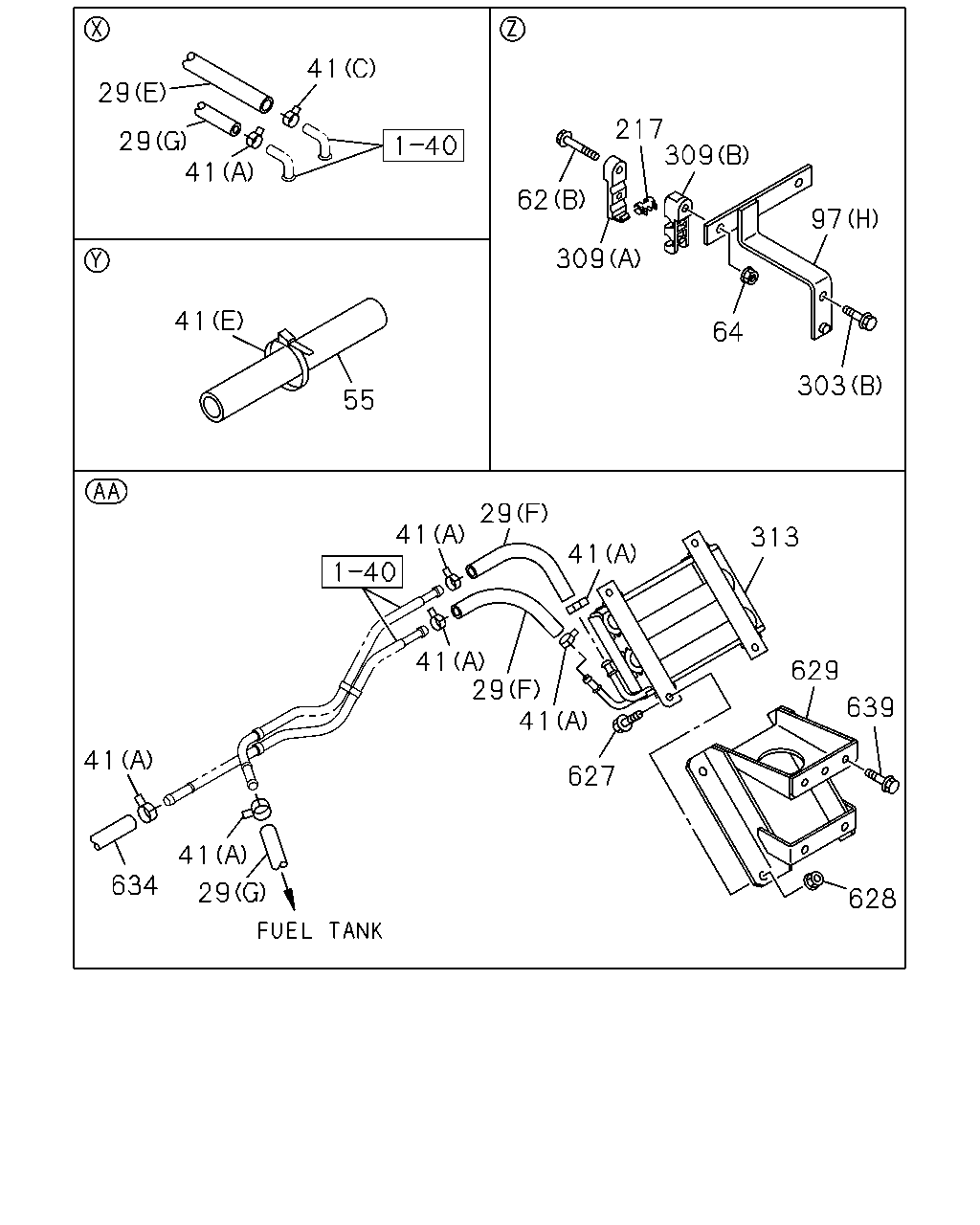

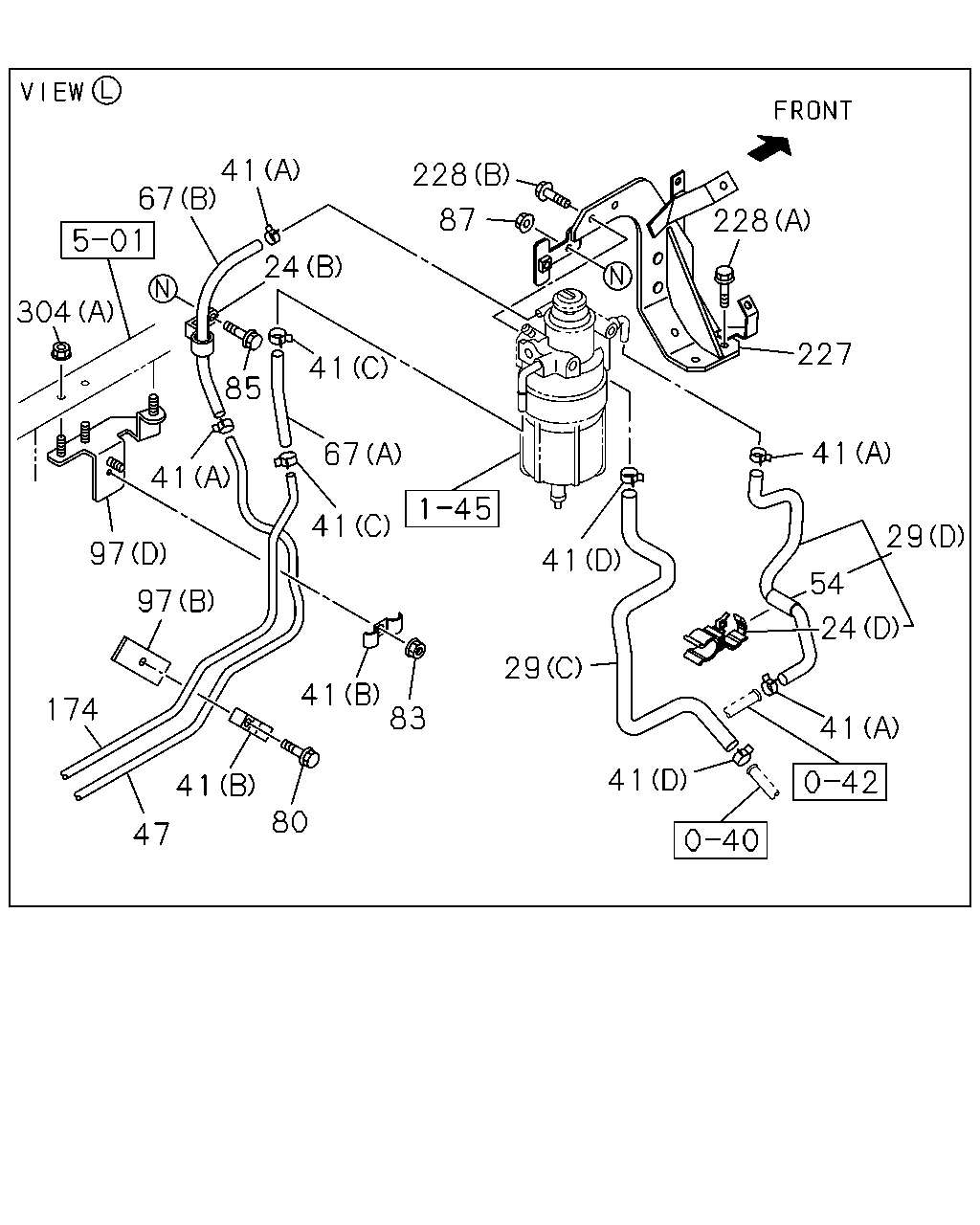

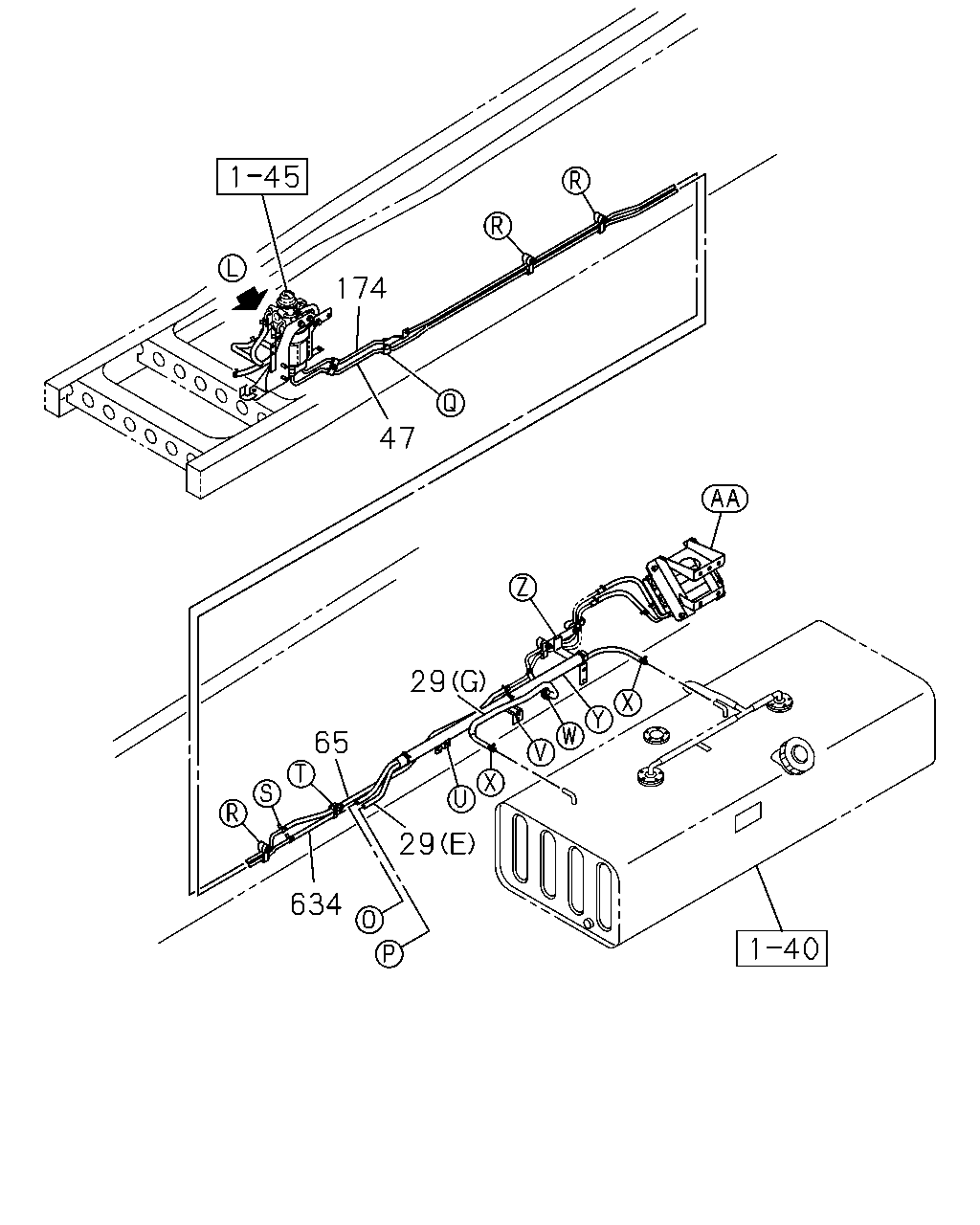

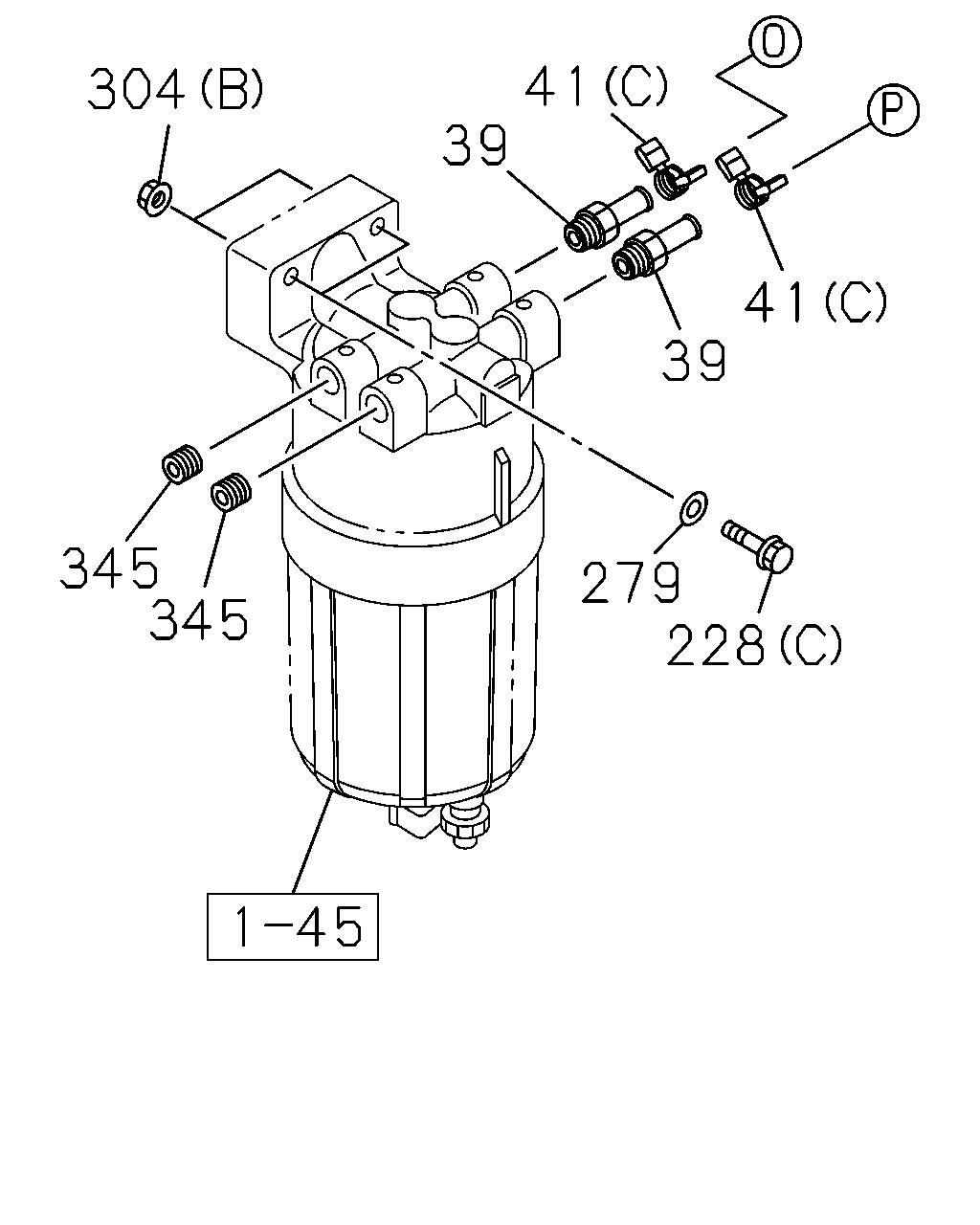

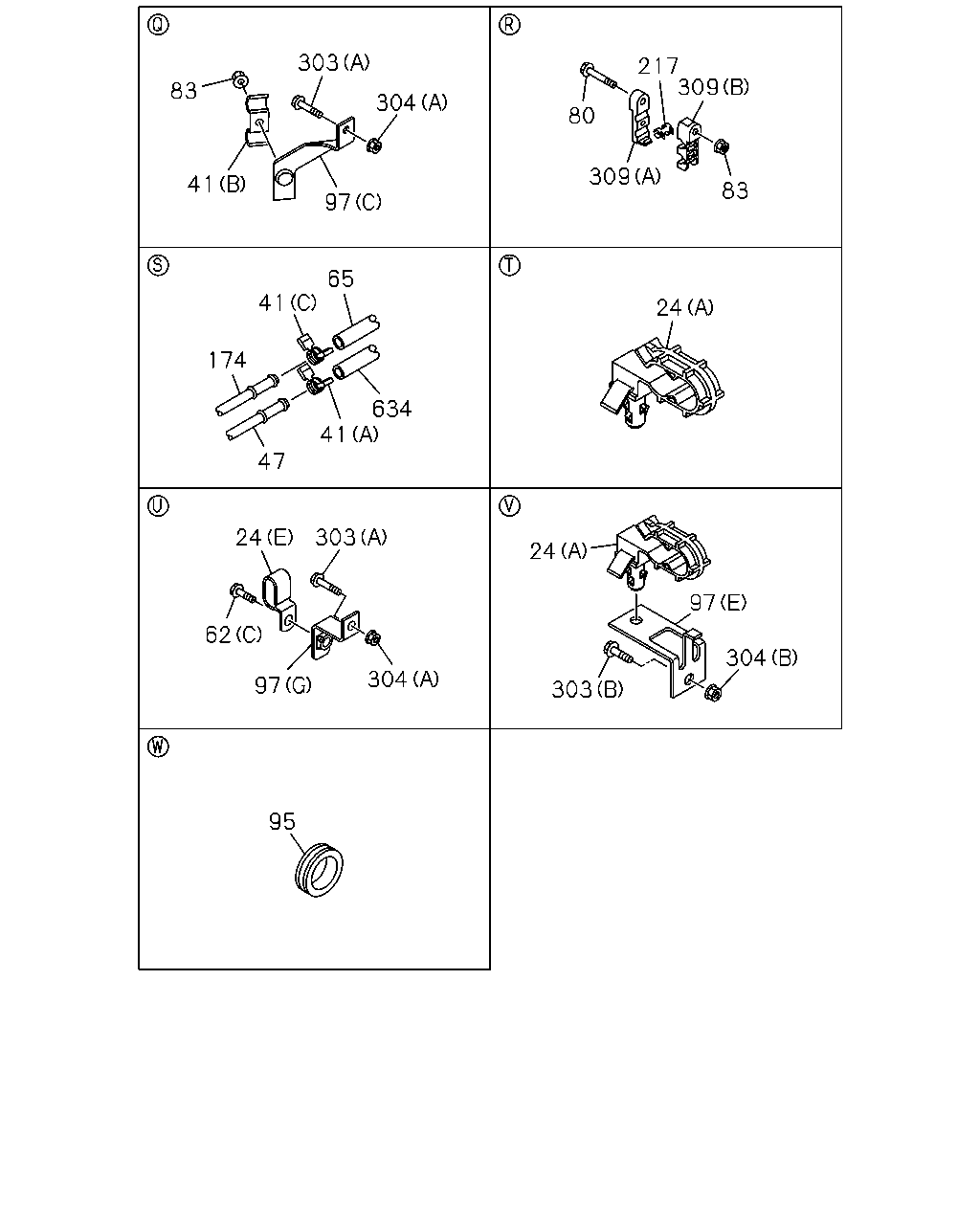

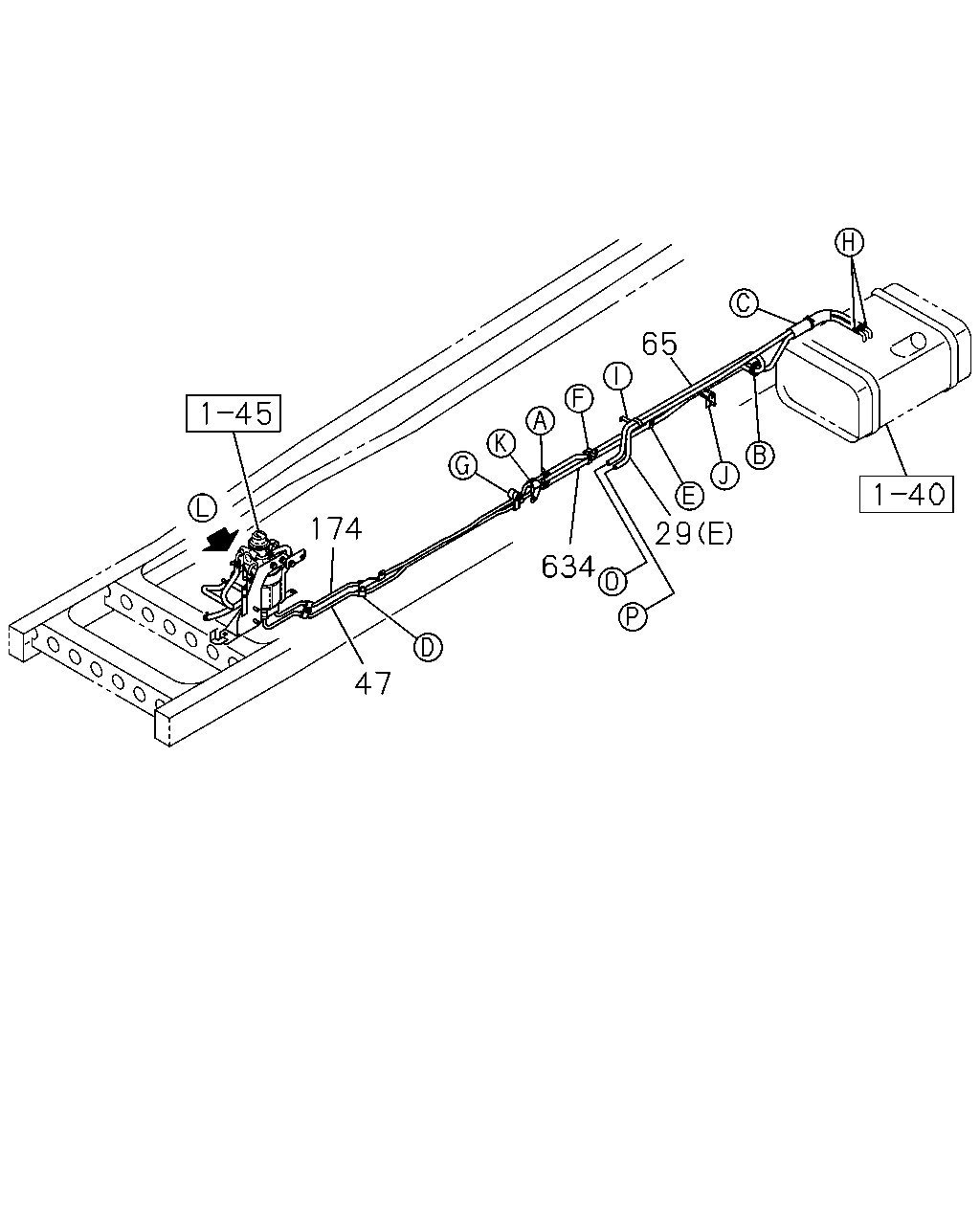

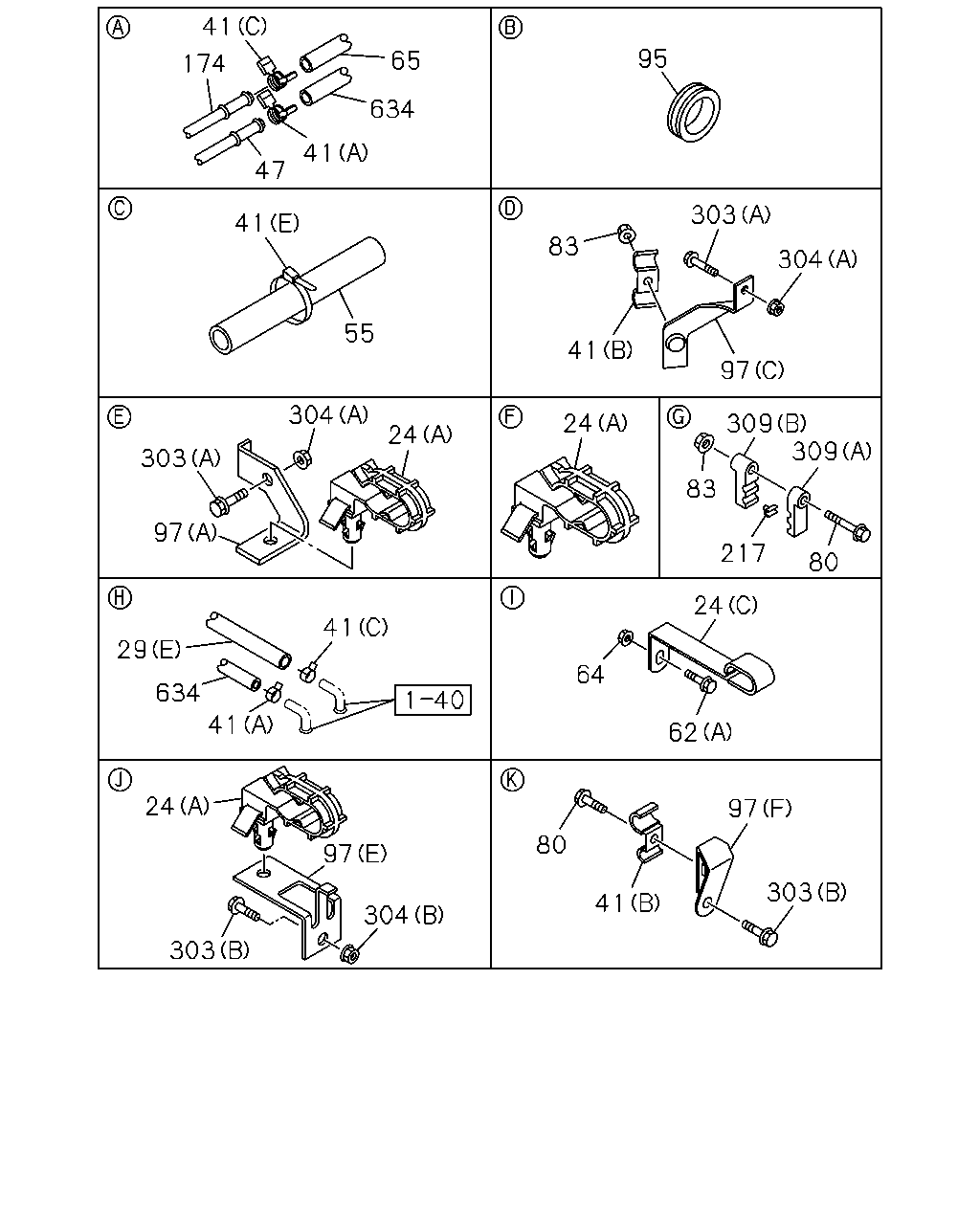

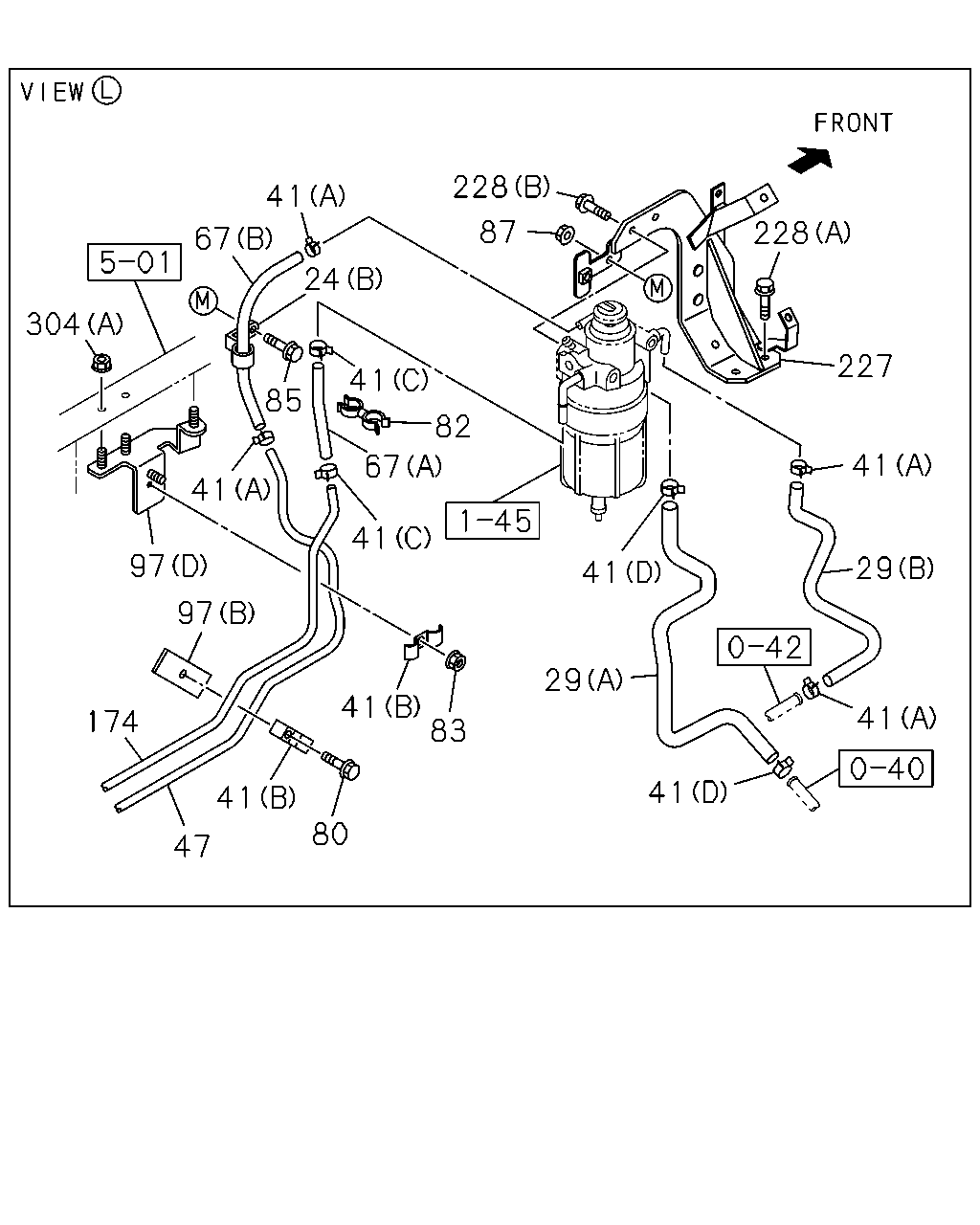

1-41 — FUEL PIPING; CHASSIS (#113280) — 507 parça

303 304 97 83 41 41 65 174 634 41 47 24 303 62 97 304 95 303 24 304 97 24 83 309 217 309 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE EURO5 SPECIFICATION<NT5> (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1506-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1302-1505
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1506-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-1505
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1506-
24	CLIP; FUEL HOSE EURO5 SPECIFICATION<NT5> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1506-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1302-1505
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1506-1511
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1512-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=13	8-94238-571-0	12	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-1505
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1506-1511
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
62	BOLT; CLIP FIX EURO5 SPECIFICATION<NT5> (B) M8X50 FLANGE	0-28050-850-0	02	1	1506-
62	BOLT; CLIP FIX EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1302-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (G)	1-47478-981-0	01	1	1506-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (H)	8-98239-701-0	01	1	1506-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1302-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98117-691-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W) ID=8	1-47459-011-0	04	1	1506-1506
217	COLLAR; FUEL PIPE FIX EURO5 SPECIFICATION<NT5> ID=8	1-47459-011-0	04	1	1506-1506
217	COLLAR; FUEL PIPE FIX EURO5 SPECIFICATION<NT5> ID=8	1-47459-011-0	04	1	1506-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	01	1	1302-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1302-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-1511
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-1511
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1512-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28651-030-0	01	1	1512-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-1505
303	BOLT; BRKT EURO5 SPECIFICATION<NT5> (B) M10X30 FLANGE	0-28651-030-0	02	1	1506-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT EURO5 SPECIFICATION<NT5> (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (A) ID=10 & 10	1-09709-241-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (A) ID=10 & 10	1-09709-241-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (A) ID=10 & 10	1-09709-241-0	02	1	1506-
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (B) ID=10 & 10	1-09709-243-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (B) ID=10 & 10	1-09709-243-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (B) ID=10 & 10	1-09709-243-0	02	1	1506-
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1302-
634	HOSE; RUBBER RETURN EURO5 SPECIFICATION<NT5> L=660 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1505
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1506-1511
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1302-

174 47 29 65 29 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (G)	8-98273-029-0	01	1	1506-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98078-194-3	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1512-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98078-195-1	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1512-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98136-901-0	01	1	1506-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98147-183-0	01	1	1506-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO5 SPECIFICATION<NT5> L=660 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1505
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1506-1511
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1302-

303 97 62 64 80 41 304 97 303 24 41 41 634 29 97 303 304 24 24 309 83 309 80 217 24 97 304 303 83 41 55 41 47 41 634 65 95 41 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE EURO5 SPECIFICATION<NT5> (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1506-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1302-1505
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1506-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-1505
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1506-
24	CLIP; FUEL HOSE EURO5 SPECIFICATION<NT5> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1506-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1302-1505
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1506-1511
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1512-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1302-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (G)	8-98273-029-0	01	1	1506-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98078-194-3	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1512-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98078-195-1	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1512-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98136-901-0	01	1	1506-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98147-183-0	01	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=13	8-94238-571-0	12	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-1505
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1506-1511
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1302-
62	BOLT; CLIP FIX EURO5 SPECIFICATION<NT5> (B) M8X50 FLANGE	0-28050-850-0	02	1	1506-
62	BOLT; CLIP FIX EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
64	NUT; CLIP EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1506-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1302-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (G)	1-47478-981-0	01	1	1506-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (H)	8-98239-701-0	01	1	1506-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1302-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98117-691-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W) ID=8	1-47459-011-0	04	1	1506-1506
217	COLLAR; FUEL PIPE FIX EURO5 SPECIFICATION<NT5> ID=8	1-47459-011-0	04	1	1506-1506
217	COLLAR; FUEL PIPE FIX EURO5 SPECIFICATION<NT5> ID=8	1-47459-011-0	04	1	1506-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	01	1	1302-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1302-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-1511
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-1511
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1512-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28651-030-0	01	1	1512-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-1505
303	BOLT; BRKT EURO5 SPECIFICATION<NT5> (B) M10X30 FLANGE	0-28651-030-0	02	1	1506-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT EURO5 SPECIFICATION<NT5> (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (A) ID=10 & 10	1-09709-241-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (A) ID=10 & 10	1-09709-241-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (A) ID=10 & 10	1-09709-241-0	02	1	1506-
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (B) ID=10 & 10	1-09709-243-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (B) ID=10 & 10	1-09709-243-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (B) ID=10 & 10	1-09709-243-0	02	1	1506-
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1302-
634	HOSE; RUBBER RETURN EURO5 SPECIFICATION<NT5> L=660 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1505
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1506-1511
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1302-

174 47 634 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (G)	8-98273-029-0	01	1	1506-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98078-194-3	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1512-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98078-195-1	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1512-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98136-901-0	01	1	1506-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98147-183-0	01	1	1506-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO5 SPECIFICATION<NT5> L=660 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1505
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1506-1511
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1302-

29 41 29 41 41 55 217 62 97 309 309 64 313 303 41 29 41 41 29 41 627 629 628 639 634 41 41 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (G)	8-98273-029-0	01	1	1506-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98078-194-3	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1512-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98078-195-1	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1512-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98136-901-0	01	1	1506-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98147-183-0	01	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=13	8-94238-571-0	12	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-1505
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1506-1511
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1302-
62	BOLT; CLIP FIX EURO5 SPECIFICATION<NT5> (B) M8X50 FLANGE	0-28050-850-0	02	1	1506-
62	BOLT; CLIP FIX EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
64	NUT; CLIP EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1506-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1302-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (G)	1-47478-981-0	01	1	1506-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (H)	8-98239-701-0	01	1	1506-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1302-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98117-691-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1302-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W) ID=8	1-47459-011-0	04	1	1506-1506
217	COLLAR; FUEL PIPE FIX EURO5 SPECIFICATION<NT5> ID=8	1-47459-011-0	04	1	1506-1506
217	COLLAR; FUEL PIPE FIX EURO5 SPECIFICATION<NT5> ID=8	1-47459-011-0	04	1	1506-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	01	1	1302-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1302-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-1511
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-1511
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1512-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28651-030-0	01	1	1512-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-1505
303	BOLT; BRKT EURO5 SPECIFICATION<NT5> (B) M10X30 FLANGE	0-28651-030-0	02	1	1506-
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (A) ID=10 & 10	1-09709-241-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (A) ID=10 & 10	1-09709-241-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (A) ID=10 & 10	1-09709-241-0	02	1	1506-
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (B) ID=10 & 10	1-09709-243-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (B) ID=10 & 10	1-09709-243-0	02	1	1506-1506
309	CLIP; PIPE EURO5 SPECIFICATION<NT5> (B) ID=10 & 10	1-09709-243-0	02	1	1506-
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1302-
313	COOLER ASM; FUEL EURO5 SPECIFICATION<NT5>	8-98227-679-1	01	1	1506-
627	BOLT; FUEL CLR EURO5 SPECIFICATION<NT5> M6X25 FLANGE	0-28650-625-0	04	1	1506-
628	NUT; FUEL CLR EURO5 SPECIFICATION<NT5> M6 FLANGE	0-91180-106-0	04	1	1506-
629	BRACKET; FUEL CLR EURO5 SPECIFICATION<NT5>	8-98224-320-1	01	1	1506-
634	HOSE; RUBBER RETURN EURO5 SPECIFICATION<NT5> L=660 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1505
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1506-1511
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
639	BOLT; BRKT,FUEL CLR EURO5 SPECIFICATION<NT5> M10X30 FLANGE	0-28651-030-0	04	1	1506-

304 39 41 41 39 279 345 228 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=13	8-94238-571-0	12	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-1505
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1506-1511
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT EURO5 SPECIFICATION<NT5> (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

41 67 85 24 41 67 41 41 80 41 47 174 83 29 41 41 54 41 227 228 87 228 24 41 41 97 304 97 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE EURO5 SPECIFICATION<NT5> (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1506-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1302-1505
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1506-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-1505
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1506-
24	CLIP; FUEL HOSE EURO5 SPECIFICATION<NT5> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1506-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1302-1505
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1506-1511
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1512-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1302-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (G)	8-98273-029-0	01	1	1506-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98078-194-3	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1512-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98078-195-1	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1512-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98136-901-0	01	1	1506-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98147-183-0	01	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=13	8-94238-571-0	12	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-1505
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1506-1511
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
54	SPACER; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4>	8-98148-172-0	01	1	1302-1505
54	SPACER; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98148-172-0	01	1	1506-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1302-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1302-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (G)	1-47478-981-0	01	1	1506-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (H)	8-98239-701-0	01	1	1506-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1302-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98117-691-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT EURO5 SPECIFICATION<NT5> (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-

41 87 228 228 227 41 29 41 41 29 41 83 41 41 41 47 174 97 97 41 85 24 67 304 41 67 82 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE EURO5 SPECIFICATION<NT5> (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1506-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1302-1505
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1506-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-1505
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1506-
24	CLIP; FUEL HOSE EURO5 SPECIFICATION<NT5> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1506-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1302-1505
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1506-1511
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1512-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1302-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (F) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1506-
29	HOSE; FUEL EURO5 SPECIFICATION<NT5> (G)	8-98273-029-0	01	1	1506-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1511
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98078-194-3	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1512-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98078-195-1	01	1	1302-1511
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1512-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98136-901-0	01	1	1506-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-1505
29	HOSE; FUEL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98147-183-0	01	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=13	8-94238-571-0	12	1	1506-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-1505
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1506-1511
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1302-
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=13 & 16.5	8-94169-028-0	01	1	1302-1511
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	1512-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1302-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1302-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (G)	1-47478-981-0	01	1	1506-
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (H)	8-98239-701-0	01	1	1506-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1302-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98117-691-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1505
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT EURO5 SPECIFICATION<NT5> (A) M8 FLANGE	0-91180-108-0	01	1	1506-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
