◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#11328) — 444 parça

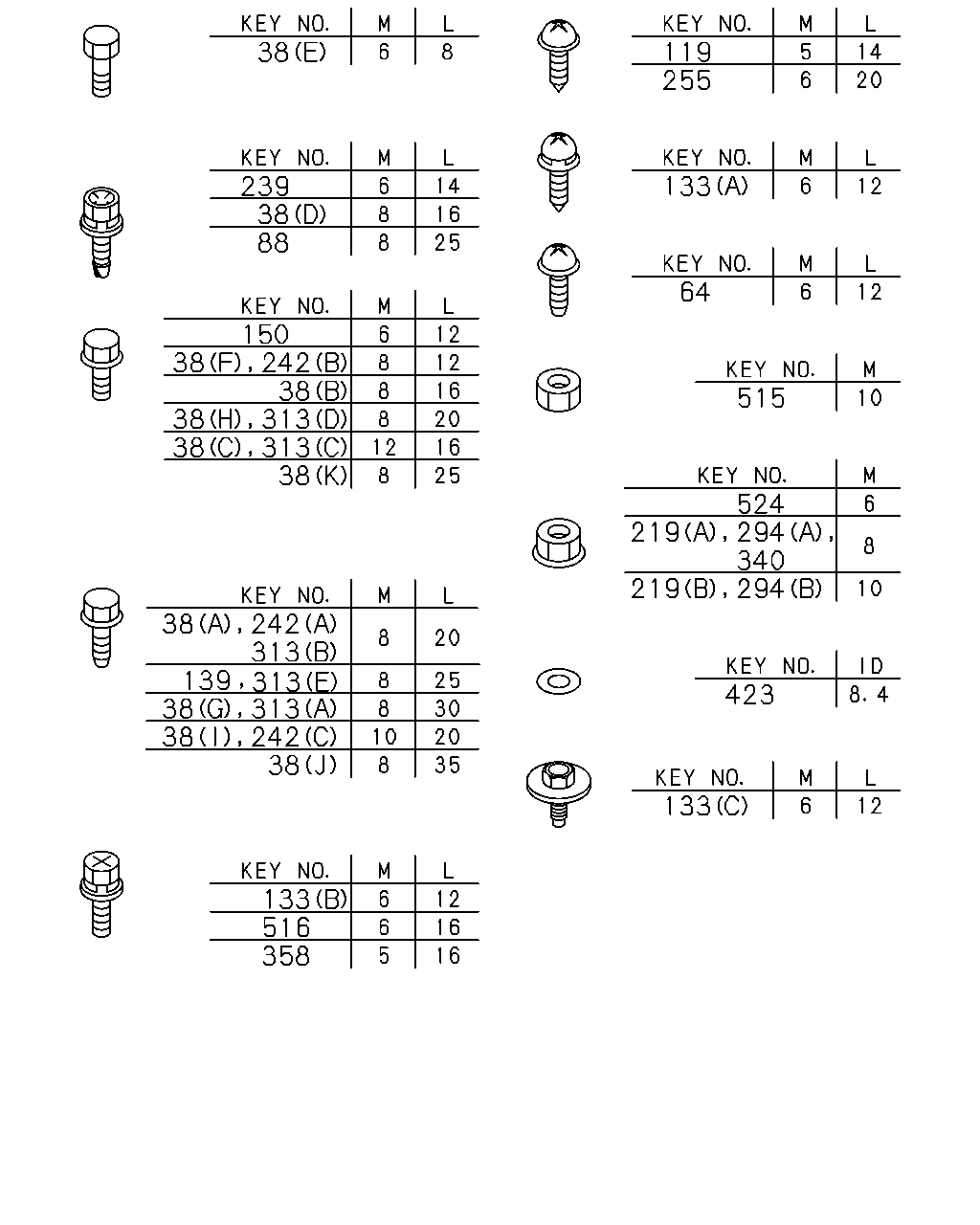

çizim 17422
38 239 88 38 119 255 133 64 515 524 219 294 340 294 219 133 423 358 133 516 38 242 38 313 38 313 139 313 38 242 38 38 38 242 38 313 313 38 150
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0106-0106
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0107
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0107-0112
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0201-0205
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0206-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 04 1 0106-0108
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 03 1 0109-0403
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 08 1 0106-0410
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 09 1 0411-0512
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 09 1 0601-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0106-
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(K) M8X25 FLANGE 		0-28080-825-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(K) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y) (I) M10X20 FLANGE 		0-28781-020-0 01 1 0107-0410
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0205
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0205
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0206-0403
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0206-0512
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0206-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
64 SCREW; CLIP
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0106-
64 SCREW; CLIP
6WA1 TC-C(55L) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0106-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0106-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0106-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0106-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
150 BOLT; CLIP
6WF1 TC-C(1B8) M6X12 FLANGE 		0-28080-612-0 01 1 0106-0512
150 BOLT; CLIP
6WF1 TC-C(1B8) M6X12 FLANGE 		0-28050-612-0 01 1 0601-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0106-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 11 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0111-0410
219 NUT
(A) M8 FLANGE 		0-91150-108-0 13 1 0411-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 13 1 0603-
219 NUT
(B) M10X1.5 FLANGE 		0-91250-210-0 01 1 0106-0110
219 NUT
ISUZU M/T<X9A> (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0106-0106
219 NUT
ISUZU M/T<X9A> (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0106-0106
219 NUT
EXC. ZF M/T<X9E> (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0107-0205
219 NUT
MJA7U M/T(X6G) (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0107-0205
219 NUT
MJA7U M/T(X6G) (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0206-0305
219 NUT
MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0206-0305
219 NUT
MJA7U M/T(X6G),MJD7S M/T(Y2Y) (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0306-0602
219 NUT
MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0306-0602
219 NUT
MJA7U M/T(X6G),MJD7S M/T(Y2Y) (B) M10X1.25 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) M10X1.25 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0106-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0106-0512
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28681-020-0 02 1 0106-0512
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28651-020-0 02 1 0601-0605
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0106-0604
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0602
294 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0602
294 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91180-210-0 01 1 0603-
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28080-820-0 02 1 0212-0410
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28080-820-0 01 1 0411-0512
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28050-820-0 01 1 0601-0605
313 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 01 1 0606-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0211
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0211
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
313 BOLT; BRKT
ISUZU M/T<X9A> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (C) W/FLANGE M12X16 		0-28181-216-0 01 1 0107-0108
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0106-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0106-
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0106-0512
515 NUT; BRKT
M10 		0-91110-510-0 02 1 0601-0605
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0106-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603-

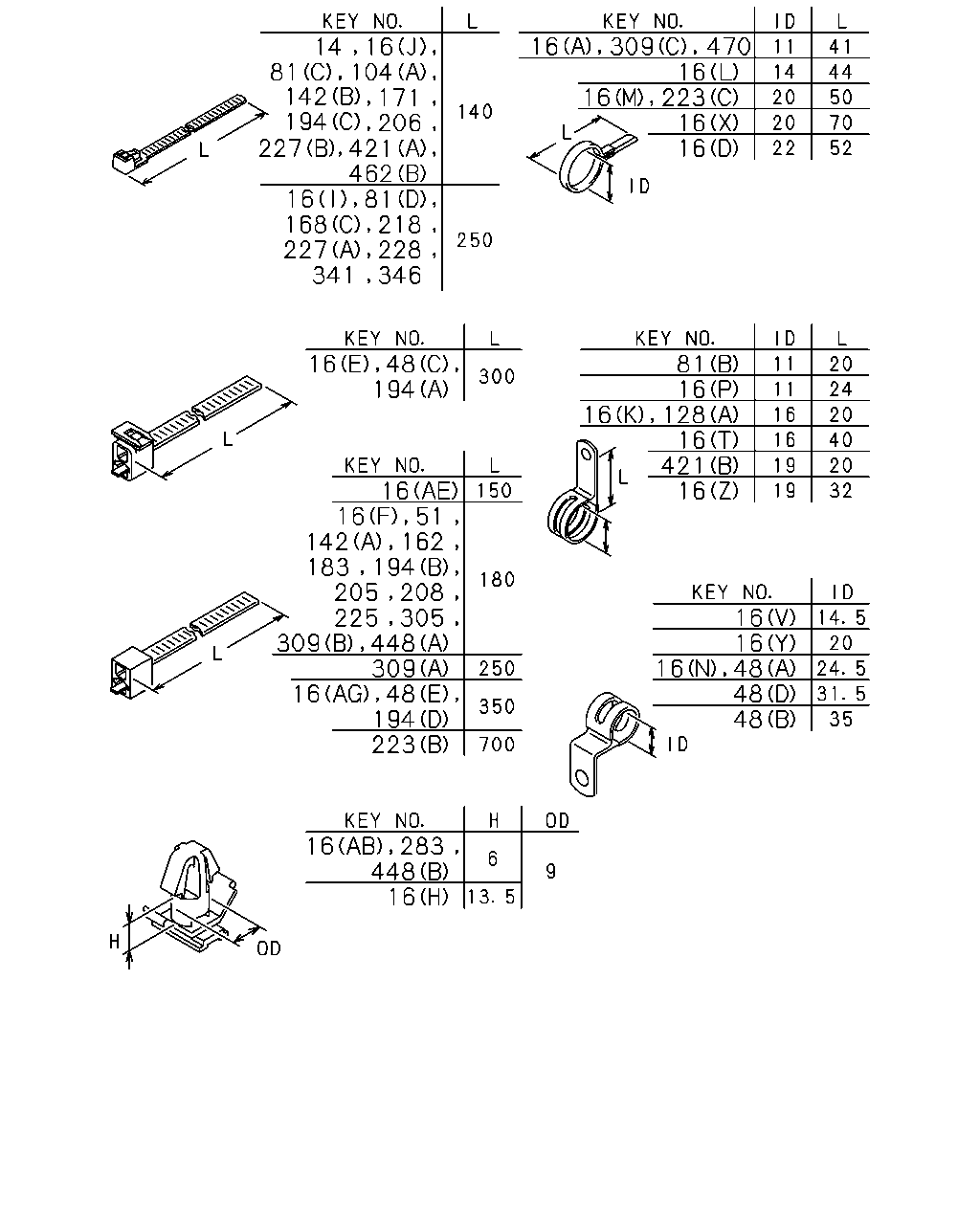

çizim 17423
48 48 48 16 16 16 16 16 81 421 128 16 16 223 16 16 470 309 16 16 14 81 104 142 194 171 206 227 421 462 16 81 168 218 227 228 341 346 16 48 194 16 16 51 142 162 194 309 183 208 225 205 305 448 309 16 48 194 223 16 283 448 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER<RE2> L=140 		5-09707-031-1 01 1 0106-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 09 1 0106-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 06 1 0107-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0106-
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 02 1 0106-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0106-
16 CLIP; HARNESS
(AA) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0106-0402
16 CLIP; HARNESS
(AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-0106
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0109-0606
16 CLIP; HARNESS
(K) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 0106-0106
16 CLIP; HARNESS
(AF) ID=26 L=26 		1-09701-236-0 01 1 0107-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106-0504
16 CLIP; HARNESS
(AG) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 0106-0106
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 0106-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 02 1 0106-0106
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 06 1 0106-0106
16 CLIP; HARNESS
(AF) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0106-
16 CLIP; HARNESS
(O) ID=7-10 		8-94472-578-0 01 1 0106-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0106-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0106-0106
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (M) ID=20 L=50 		9-09917-430-0 06 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0106-0106
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0106-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (AE) L=150 		1-09707-145-1 01 1 0106-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (P) ID=11 L=24 		9-09525-045-0 01 1 0106-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (P) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (Q) ID=6-10 & 6-10 		1-09709-192-1 01 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ISUZU M/T<X9A> (S) L=36 		8-94224-891-1 01 1 0106-0205
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (S) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
ISUZU M/T<X9A> (T) ID=16 L=40 		9-09525-576-0 01 1 0106-0205
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (T) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (T) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0106-0106
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AC) L=20 		1-09987-246-2 04 1 0106-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (R) ID=15 H=30 L=30 		1-09700-832-0 01 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (W) ID=19 L=28 		9-09525-856-0 01 1 0106-0606
16 CLIP; HARNESS
ZF M/T<X9E> (W) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (M) ID=20 L=50 		9-09917-430-0 06 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 02 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0107-0109
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 02 1 0110-
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0106-0106
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q> (AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (AB) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (J) L=140 		5-09707-031-1 01 1 0106-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (W) ID=11 L=20 		9-09525-032-0 01 1 0106-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (W) ID=11 L=20 		0-95235-032-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0106-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0106-
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0106-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 08 1 0106-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 08 1 0505-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0106-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0106-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0106-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		9-09525-035-0 01 1 0106-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		0-95235-035-0 01 1 0607-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0106-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 01 1 0106-0410
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 01 1 0106-0410
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 02 1 0411-
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 02 1 0411-
142 CLIP; HARNESS,ENG
6WG1 TC-C(72L) (A) L=180 		1-09707-162-1 02 1 0106-0410
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 02 1 0106-0410
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 01 1 0411-
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 01 1 0411-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0106-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0106-
183 CLIP; CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 0106-0106
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0106-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 0106-0106
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5) (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
6WA1 TC-C(55L) EXC. RLD GOVERNOR(SD7),EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0106-0112
194 CLIP; BAND
ELECTRONIC GOV RED4(Q4F) (C) L=140 		5-09707-031-1 01 1 0201-0305
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0201-0305
194 CLIP; BAND
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0106-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0106-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112-
218 CLIP; BAND,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=250 		5-09707-030-1 02 1 0208-
223 CLIP; AIR TANK HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 02 1 0106-0111
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 02 1 0112-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) L=700 		1-09707-190-0 02 1 0106-0111
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (B) L=700 		1-09707-190-0 02 1 0112-
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 04 1 0106-
227 CLIP; FOG LAMP HARNESS
FOG LAMP REAR<NHD> (A) L=250 		5-09707-030-1 01 1 0210-
227 CLIP; FOG LAMP HARNESS
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (B) L=140 		5-09707-031-1 02 1 0106-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0106-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0106-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0106-0410
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=250 		1-09707-126-0 01 1 0106-0106
309 CLIP; HARNESS,HAND BRAKE CABLE
(C) ID=11 L=41 		1-09700-403-0 01 1 0107-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) L=180 		1-09707-162-1 01 1 0106-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0106-
346 CLIP; BAND FRAME HARNESS
L=250 		5-09707-030-1 01 1 0212-
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0106-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0106-0106
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0106-

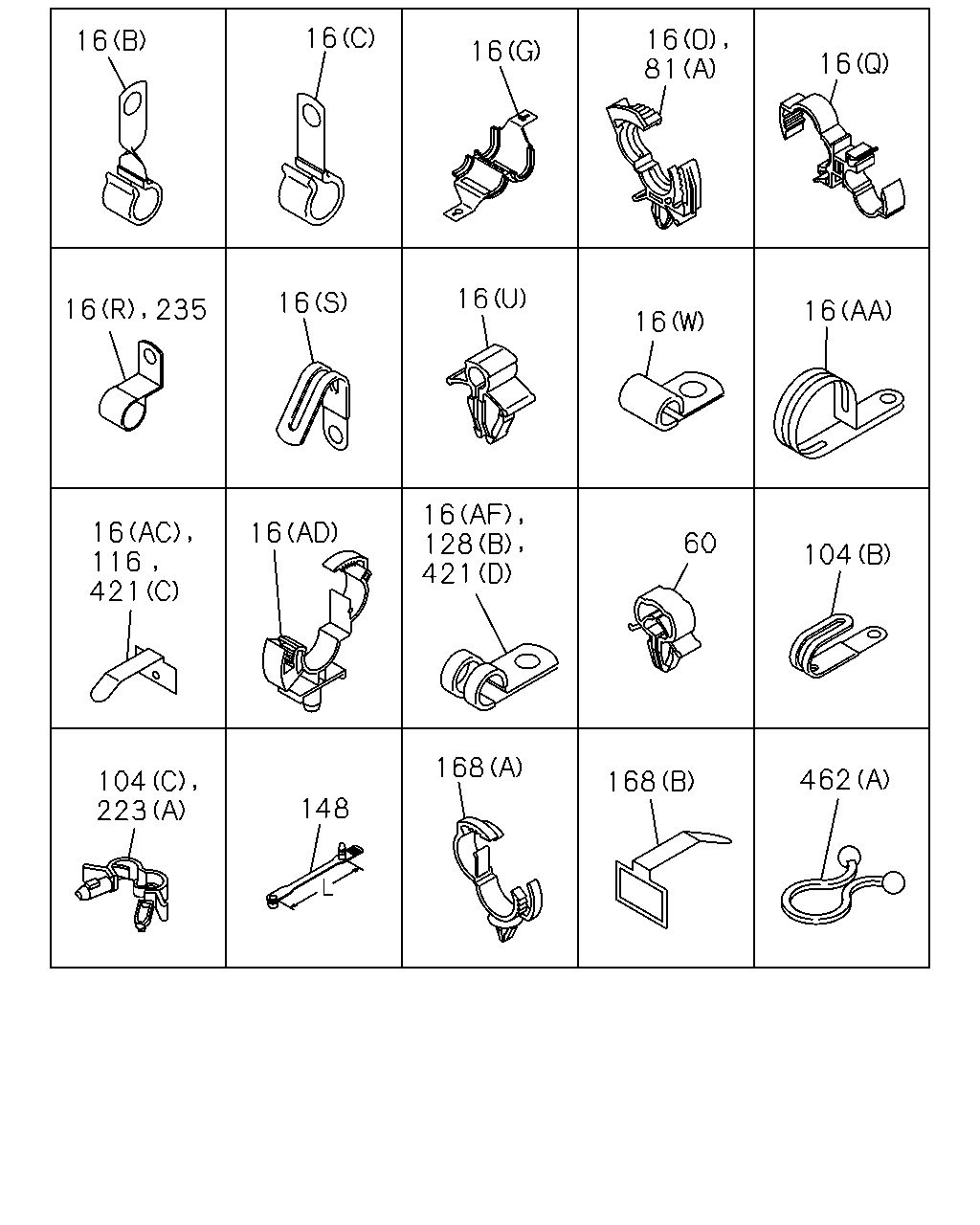

çizim 73457
16 16 16 16 16 16 16 16 16 16 168 168 16 116 81 60 104 462 148 223 104 421 235 16 16 421 128
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 09 1 0106-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 06 1 0107-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0106-
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 02 1 0106-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0106-
16 CLIP; HARNESS
(AA) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0106-0402
16 CLIP; HARNESS
(AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-0106
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0109-0606
16 CLIP; HARNESS
(K) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 0106-0106
16 CLIP; HARNESS
(AF) ID=26 L=26 		1-09701-236-0 01 1 0107-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106-0504
16 CLIP; HARNESS
(AG) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 0106-0106
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 0106-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 02 1 0106-0106
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 06 1 0106-0106
16 CLIP; HARNESS
(AF) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0106-
16 CLIP; HARNESS
(O) ID=7-10 		8-94472-578-0 01 1 0106-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0106-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0106-0106
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (M) ID=20 L=50 		9-09917-430-0 06 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0106-0106
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0106-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (AE) L=150 		1-09707-145-1 01 1 0106-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (P) ID=11 L=24 		9-09525-045-0 01 1 0106-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (P) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (Q) ID=6-10 & 6-10 		1-09709-192-1 01 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ISUZU M/T<X9A> (S) L=36 		8-94224-891-1 01 1 0106-0205
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (S) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
ISUZU M/T<X9A> (T) ID=16 L=40 		9-09525-576-0 01 1 0106-0205
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (T) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (T) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0106-0106
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AC) L=20 		1-09987-246-2 04 1 0106-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (R) ID=15 H=30 L=30 		1-09700-832-0 01 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (W) ID=19 L=28 		9-09525-856-0 01 1 0106-0606
16 CLIP; HARNESS
ZF M/T<X9E> (W) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (M) ID=20 L=50 		9-09917-430-0 06 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 02 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0107-0109
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 02 1 0110-
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0106-0106
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q> (AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (AB) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (J) L=140 		5-09707-031-1 01 1 0106-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (W) ID=11 L=20 		9-09525-032-0 01 1 0106-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (W) ID=11 L=20 		0-95235-032-0 01 1 0607-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0306-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0106-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0106-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		9-09525-035-0 01 1 0106-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		0-95235-035-0 01 1 0607-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0106-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0106-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 		1-09987-246-2 06 1 0201-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0201-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> L=20 		1-09987-246-2 06 1 0106-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> L=20 		1-09987-246-2 03 1 0201-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0201-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0106-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
223 CLIP; AIR TANK HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 02 1 0106-0111
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 02 1 0112-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) L=700 		1-09707-190-0 02 1 0106-0111
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (B) L=700 		1-09707-190-0 02 1 0112-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> ID=13 H=29 L=30 		1-09700-001-0 01 1 0106-0106
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0106-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0106-0106
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0106-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-

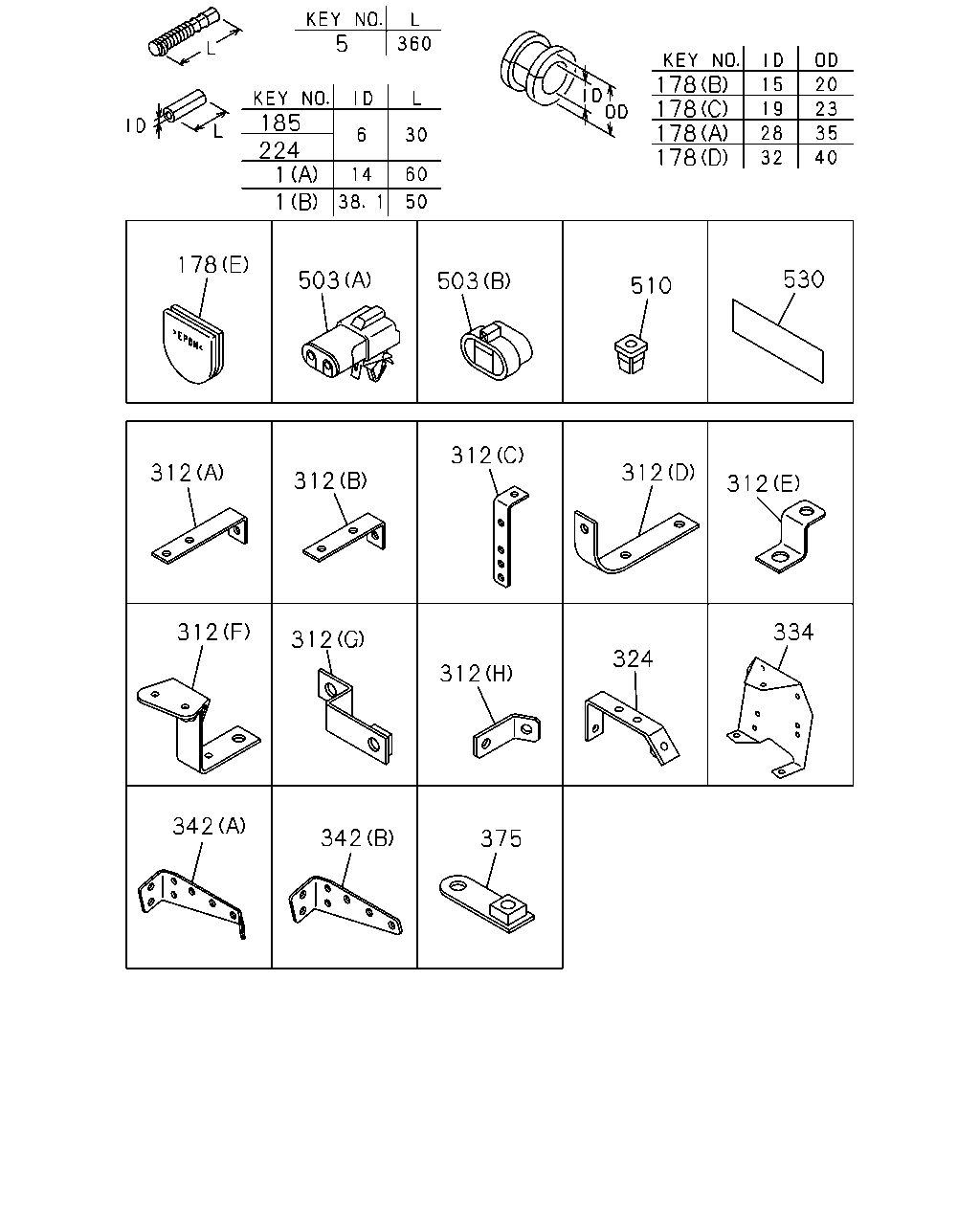

çizim 77012
178 503 503 510 530 312 312 312 312 312 312 312 312 324 5 185 1 1 224 178 178 178 178 375 342 342 334
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50 		5-09360-835-0 01 1 0212-
1 SLEEVE; RUBBER
ELECTRONIC GOV RED4(Q4F) (A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0201-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0106-0403
5 GUIDE; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> L=360 		1-82699-476-1 01 1 0404-
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=360 		1-82699-476-1 01 1 0404-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0106-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0106-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0106-
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0106-0106
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-
178 GROMMET; HARNESS
AIR DRYER<PS7> (B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0106-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0106-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0107-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0106-0410
312 BRACKET; CLIP HARNESS
(H) 		1-82699-199-0 01 1 0212-0410
312 BRACKET; CLIP HARNESS
(B) L=60 H=30 		1-47477-716-1 01 1 0106-
312 BRACKET; CLIP HARNESS
(D) 		1-47478-769-0 01 1 0106-
312 BRACKET; CLIP HARNESS
(A) L=120 		1-82699-465-0 01 1 0106-0106
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 02 1 0106-
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (C) 		1-82698-358-0 01 1 0106-0106
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (G) 		1-82699-304-0 01 1 0106-
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (E) 		1-82699-425-0 01 1 0107-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) 		1-47477-902-0 01 1 0107-0108
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> 		1-82698-258-0 01 1 0106-
334 BRACKET 1-53458-709-1 01 1 0106-
342 BRACKET; HARNESS CAB MTG
ISUZU M/T<X9A> (B) 		1-82699-625-0 01 1 0106-
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> (A) 		1-82698-224-0 01 1 0106-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0106-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> (A) 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0106-
503 CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82690-666-0 01 1 0106-
510 GROMMET; SCREW
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0106-
510 GROMMET; SCREW
6WA1 TC-C(55L) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0106-
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0106-
530 SEAL; HARNESS
180X40 		1-72498-019-0 11 1 0106-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 12 1 0208-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
