Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#113279) — 204 parça

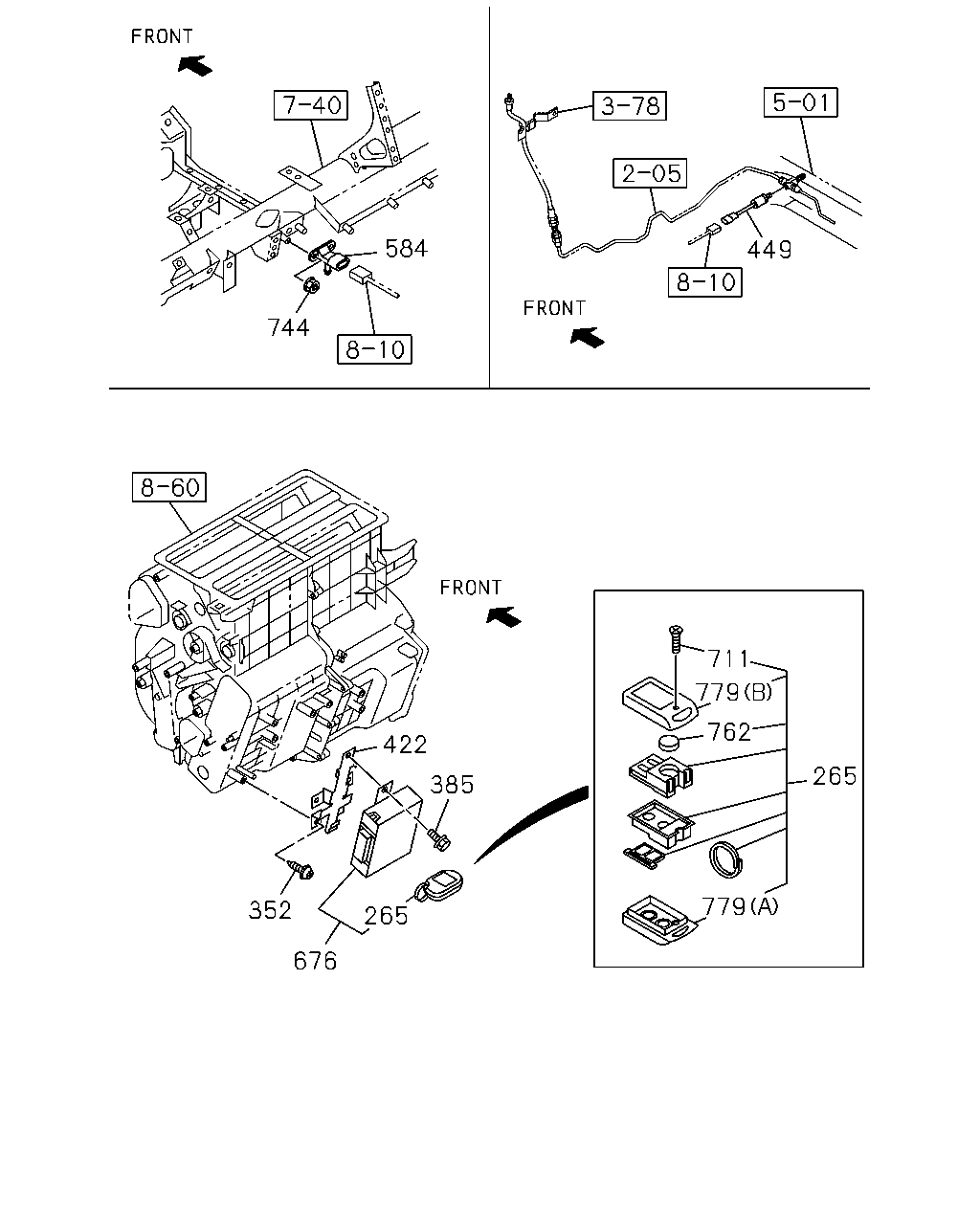

584 744 449 422 385 265 676 352 711 779 762 265 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1302-	●
352	SCREW; BRKT REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-	●
385	BOLT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1302-	●
422	BRACKET; CONT UNIT REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	1302-	●
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	1302-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1302-	●	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98218-231-0	01	1	1302-	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1302-	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1302-	●	●
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	1302-	●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1302-	●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-243-0	02	1	1302-	●

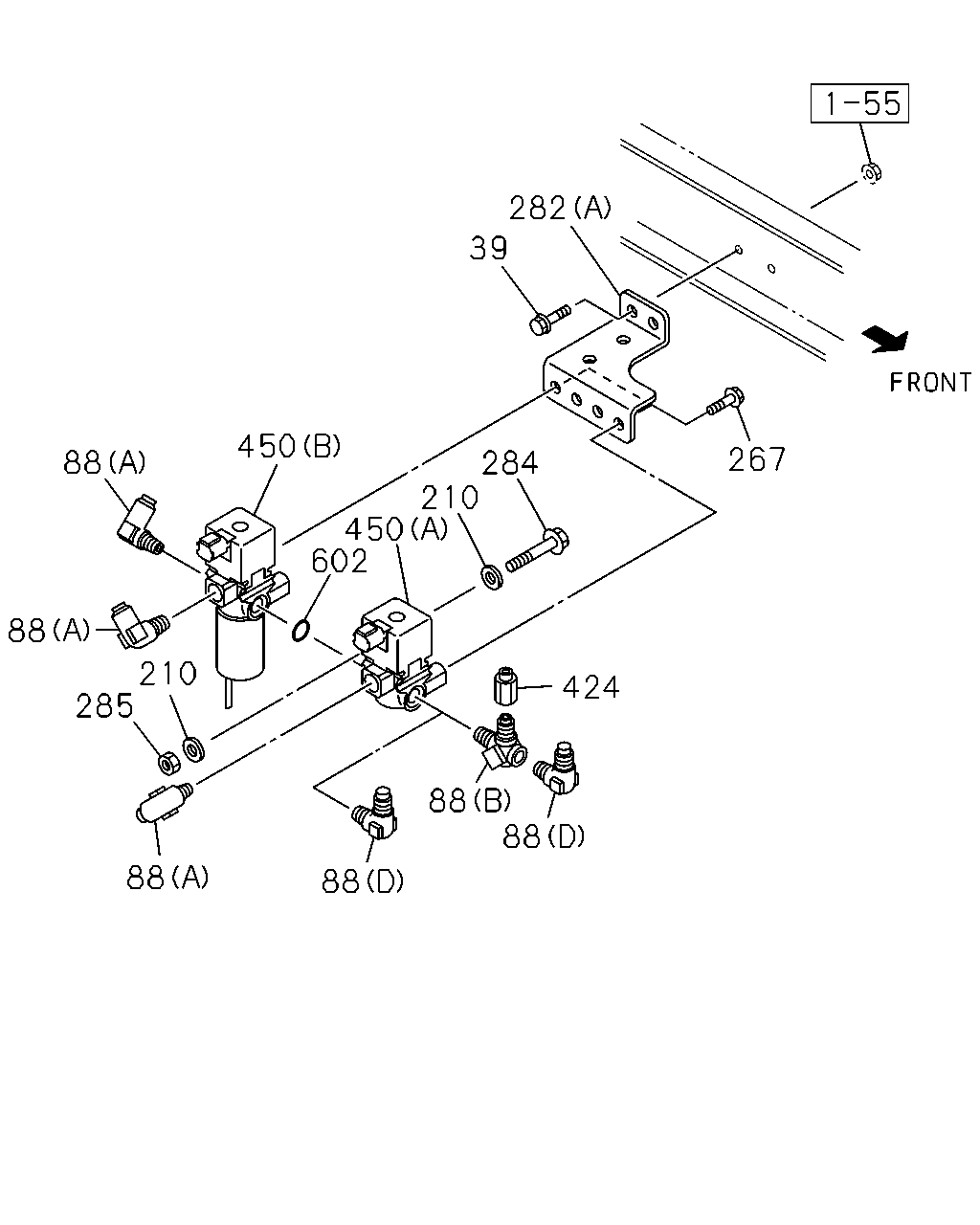

282 39 450 88 88 210 285 88 602 450 210 284 267 424 88 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
39	BOLT; BRKT,MAG VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1302-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM),RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1302-1511	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1512-	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	1512-	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98101-296-0	01	1	1512-	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (B)	8-98154-633-0	01	1	1512-	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> M6X50 FLANGE	0-28050-650-0	01	1	1512-	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	1512-	●
424	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-1505	●
424	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-1505	●
424	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1506-	●
424	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1506-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (B)	8-97633-075-0	01	1	1512-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-82563-871-2	01	1	1302-1511	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) (A)	1-82563-871-2	01	1	1512-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A)	1-82563-871-2	01	1	1512-	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	1512-	●

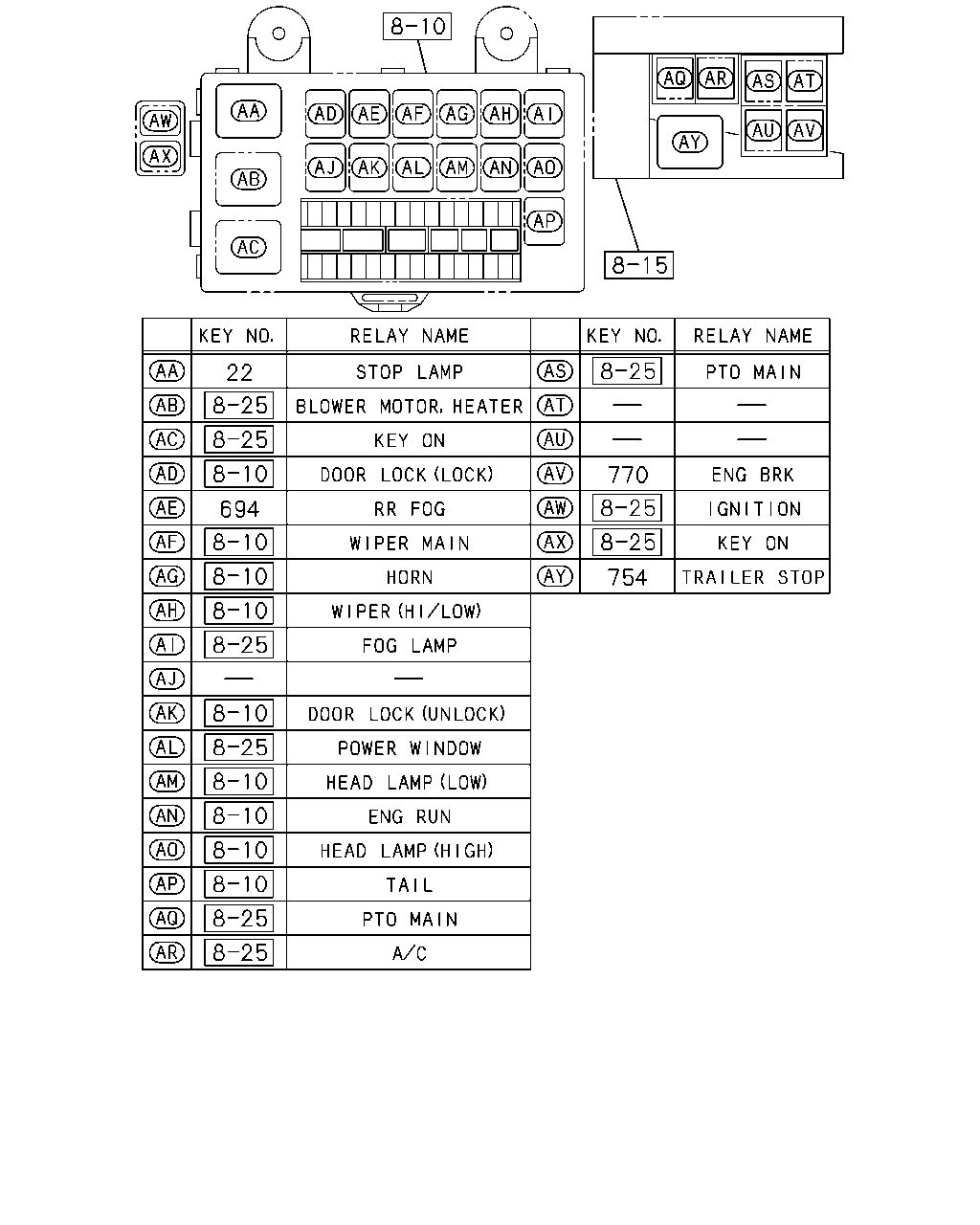

22 694 770 754

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-	●	●
694	RELAY; RR FOG LAMP RR FOG LAMP<T79> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-	●
754	RELAY; TRAILER STOP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-		●
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-	●
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-		●

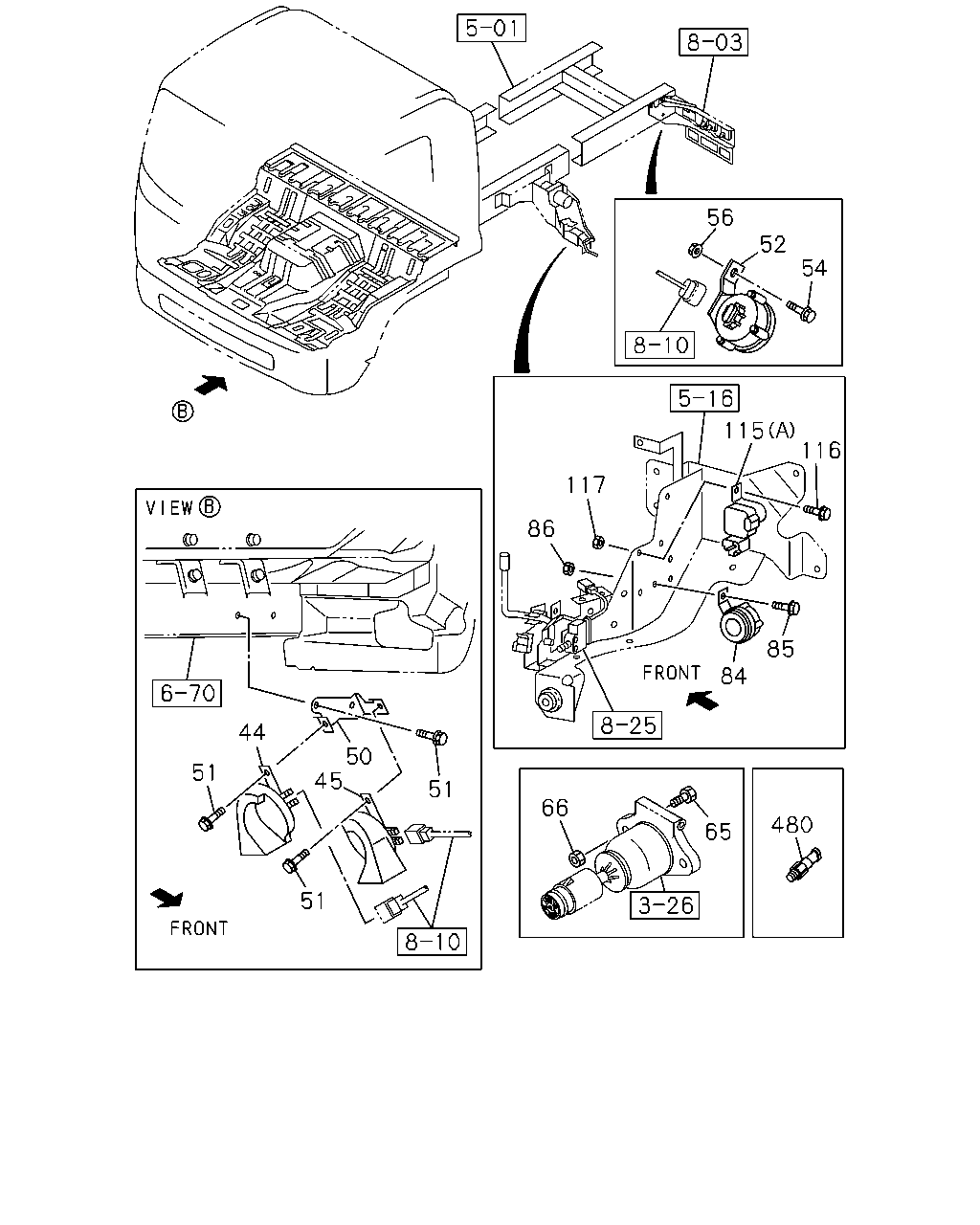

56 52 54 115 116 85 84 117 86 50 51 45 44 51 51 480 65 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7>	8-97611-677-2	01	1	1302-	●
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98022-022-0	01	1	1302-	●	●
45	HORN; LOW NOTE ELECTRICAL HORN<WB7>	8-97611-676-2	01	1	1302-	●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-023-0	01	1	1302-	●
45	HORN; LOW NOTE	8-98022-023-0	01	1	1302-		●
50	BRACKET; HORN	8-97616-529-2	01	1	1302-	●	●
51	BOLT; HORN TO BRKT EXC. ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1302-	●
51	BOLT; HORN TO BRKT EXC. DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1302-		●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-	●	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-	●
51	BOLT; HORN TO BRKT DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-		●
52	BUZZER; BACK RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	1302-1405	●
52	BUZZER; BACK RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) VIN MODEL YEAR 2014<VZE> REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	1406-	●
52	BUZZER; BACK RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) REVERSING WARNING BUZZER<YM9> EXC. VIN MODEL YEAR 2014<VZE>	8-97617-027-0	01	1	1406-	●
54	BOLT; BACK BUZZER RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	1302-1405	●
54	BOLT; BACK BUZZER RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) VIN MODEL YEAR 2014<VZE> REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	1406-	●
54	BOLT; BACK BUZZER RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) REVERSING WARNING BUZZER<YM9> EXC. VIN MODEL YEAR 2014<VZE> M10X30 FLANGE	0-28651-030-0	01	1	1406-	●
56	NUT; BACK BUZZER RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91180-210-0	01	1	1302-1405	●
56	NUT; BACK BUZZER RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) VIN MODEL YEAR 2014<VZE> REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91180-210-0	01	1	1406-	●
56	NUT; BACK BUZZER RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) REVERSING WARNING BUZZER<YM9> EXC. VIN MODEL YEAR 2014<VZE> M10 FLANGE	0-91180-210-0	01	1	1406-	●
65	BOLT; SOCKET FIX 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	1302-		●
65	BOLT; SOCKET FIX 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1302-		●
66	NUT; SOCKET FIX 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1302-		●
66	NUT; SOCKET FIX 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1302-		●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2> METRO DENSO	8-98069-860-0	01	1	1302-	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
86	NUT; BUZZER AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	01	1	1302-	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1302-	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	1302-	●
480	SWITCH; TRAILER COCK STAMP 2.2	8-98010-858-0	01	1	1302-		●

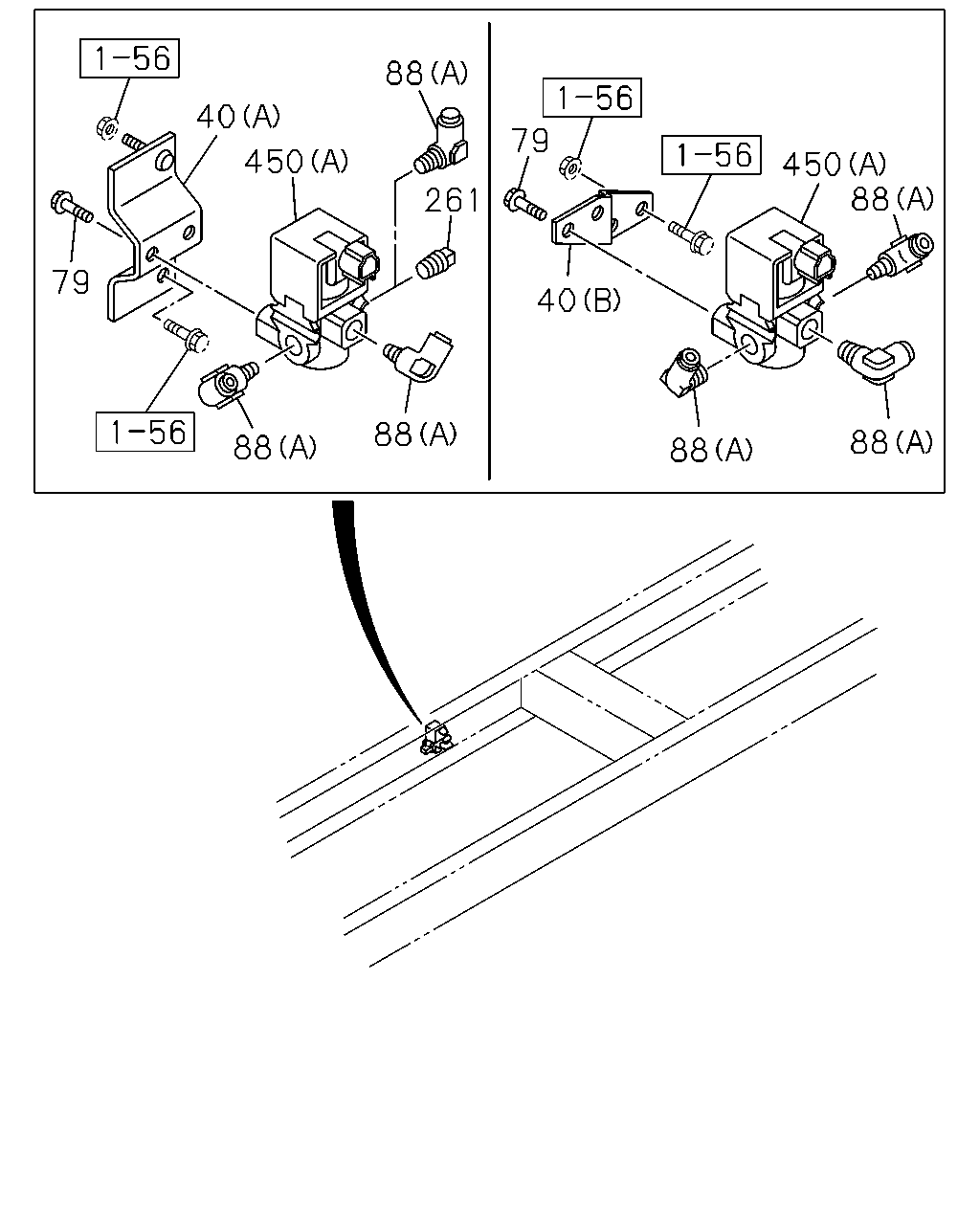

79 40 450 88 261 88 88 79 40 88 88 450 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
40	BRACKET; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98057-863-0	01	1	1512-	●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98174-365-0	01	1	1302-1511	●
40	BRACKET; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (A)	8-98174-365-0	01	1	1512-	●
40	BRACKET; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. IRAN EQUIPMENT(D8T) (A)	8-98174-365-0	01	1	1512-	●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM),RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1302-1511	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1512-	●
261	PLUG; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-1304	●
261	PLUG; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1305-1505	●
261	PLUG; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1305-1505	●
261	PLUG; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1506-	●
261	PLUG; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1506-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (B)	8-97633-075-0	01	1	1512-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-82563-871-2	01	1	1302-1511	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) (A)	1-82563-871-2	01	1	1512-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A)	1-82563-871-2	01	1	1512-	●

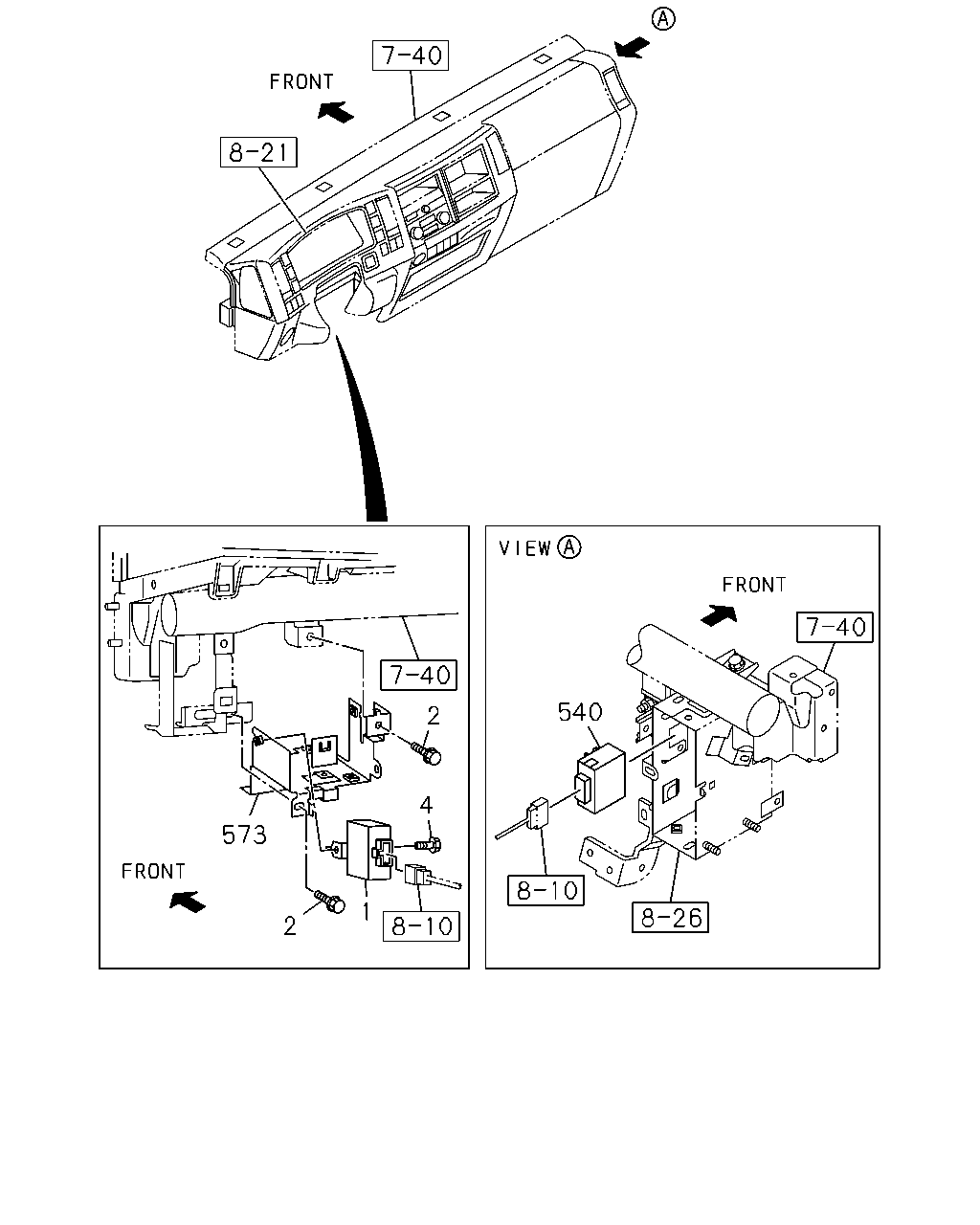

2 4 2 573 540 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1302-	●
1	UNIT; FLASHER	8-97613-970-1	01	1	1302-		●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1302-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-	●	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1302-1308	●	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	1302-	●	●

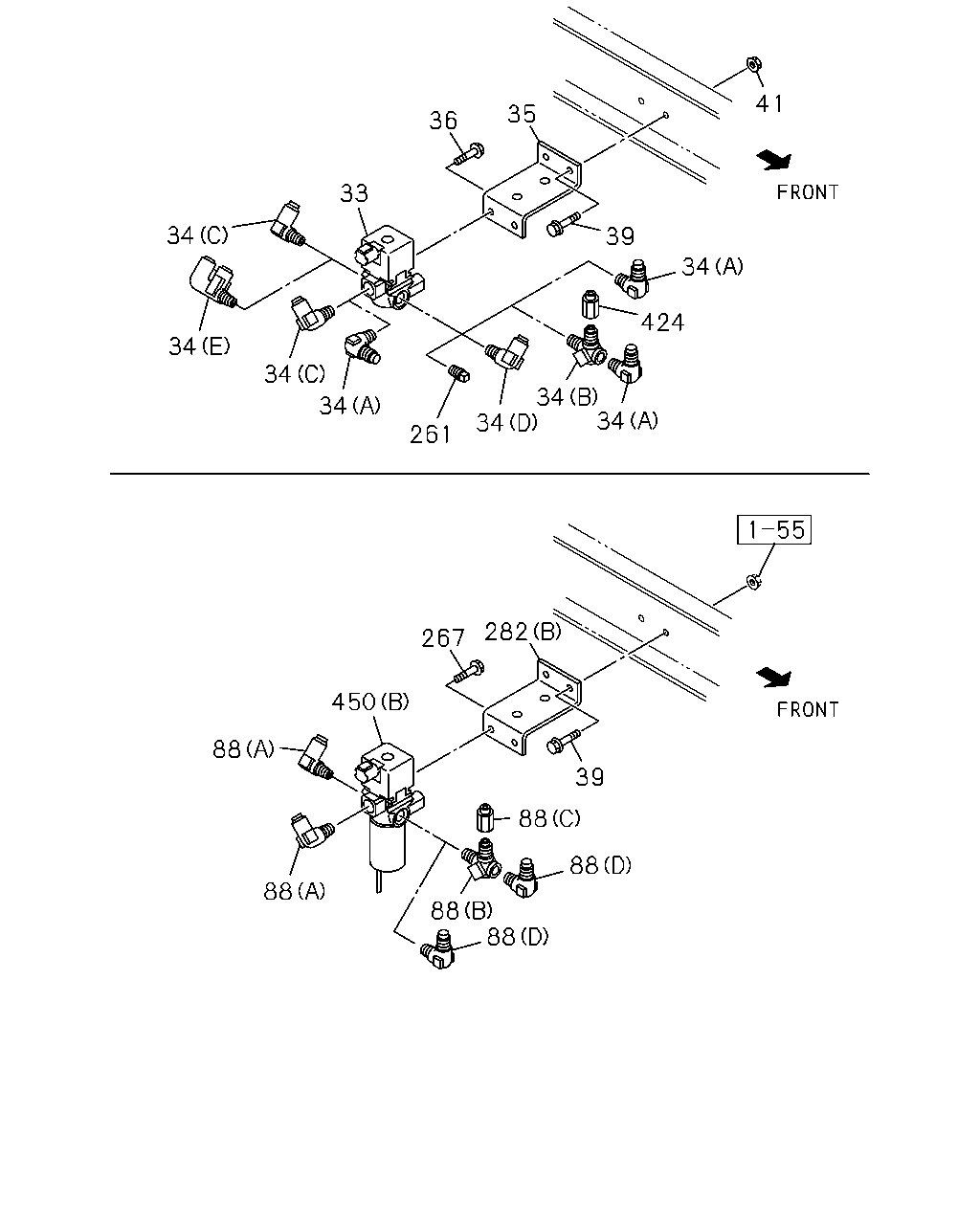

34 33 36 35 34 34 34 261 34 34 34 424 39 34 41 267 282 39 450 88 88 88 88 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
33	VALVE; MAG,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	1302-1304	●
33	VALVE; MAG,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1302-1304	●
33	VALVE; MAG,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	1-82563-871-2	01	1	1305-1505	●
33	VALVE; MAG,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	1305-1505	●
33	VALVE; MAG,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1305-1505	●
33	VALVE; MAG,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	1-82563-871-2	01	1	1506-1511	●
33	VALVE; MAG,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	1506-1511	●
33	VALVE; MAG,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1506-1511	●
33	VALVE; MAG,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	1-82563-871-2	01	1	1512-	●
33	VALVE; MAG,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1512-	●
33	VALVE; MAG,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. CATALYSIS CONTROL WITH DPD<8JM>	1-82563-871-2	01	1	1512-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-1304	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-1304	●
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-1505	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-1505	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-1505	●
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1506-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1506-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1506-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-1304	●
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1305-1505	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1305-1505	●
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1506-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1506-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1505	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1505	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1506-1511	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1506-1511	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1512-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> ,CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1512-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1304	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1304	●
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1305-1505	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1305-1505	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1305-1505	●
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1302-1505	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1506-1511	●
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1512-	●
35	BRACKET; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	8-98154-633-0	01	1	1302-1304	●
35	BRACKET; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1302-1304	●
35	BRACKET; MAG VLV,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	8-98154-633-0	01	1	1305-1505	●
35	BRACKET; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	8-98154-633-0	01	1	1305-1505	●
35	BRACKET; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1305-1505	●
35	BRACKET; MAG VLV,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	8-98154-633-0	01	1	1506-1511	●
35	BRACKET; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	8-98154-633-0	01	1	1506-1511	●
35	BRACKET; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1506-1511	●
35	BRACKET; MAG VLV,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	8-98154-633-0	01	1	1512-	●
35	BRACKET; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1512-	●
35	BRACKET; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. CATALYSIS CONTROL WITH DPD<8JM>	8-98154-633-0	01	1	1512-	●
36	BOLT; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28650-820-0	02	1	1302-1304	●
36	BOLT; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1302-1304	●
36	BOLT; MAG VLV,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1305-1505	●
36	BOLT; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28650-820-0	02	1	1305-1505	●
36	BOLT; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1305-1505	●
36	BOLT; MAG VLV,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1506-1511	●
36	BOLT; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28650-820-0	02	1	1506-1511	●
36	BOLT; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1506-1511	●
36	BOLT; MAG VLV,PTO CONT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
36	BOLT; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
36	BOLT; MAG VLV,PTO CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
39	BOLT; BRKT,MAG VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1302-	●
41	NUT; BRKT,MAG VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	01	1	1512-	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1302-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM),RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1302-1511	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1512-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1512-	●
261	PLUG; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-1304	●
261	PLUG; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1305-1505	●
261	PLUG; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1305-1505	●
261	PLUG; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1506-	●
261	PLUG; MAG VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSIONSIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1506-	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98101-296-0	01	1	1512-	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (B)	8-98154-633-0	01	1	1512-	●
424	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-1505	●
424	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-1505	●
424	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1506-	●
424	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1506-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (B)	8-97633-075-0	01	1	1512-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-82563-871-2	01	1	1302-1511	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) (A)	1-82563-871-2	01	1	1512-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A)	1-82563-871-2	01	1	1512-	●

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1302-	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1302-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
