Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#113274) — 656 parça

305 16 16 483 305 305 305 306 16 483 48 16 16 16 483 49 305 305 49 483 16 483 305 305 483 16 48 213 581 213 48 48 48 16 483

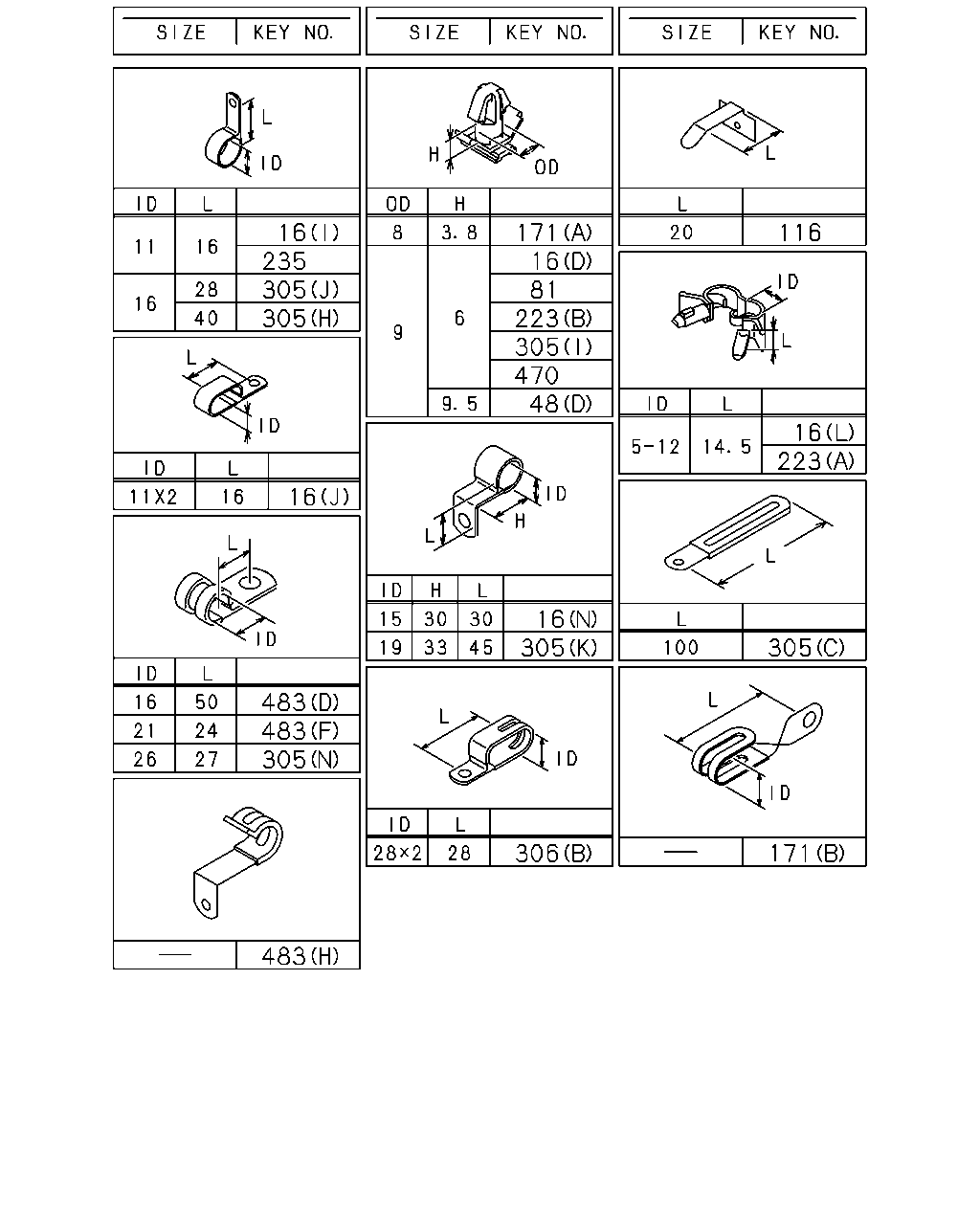

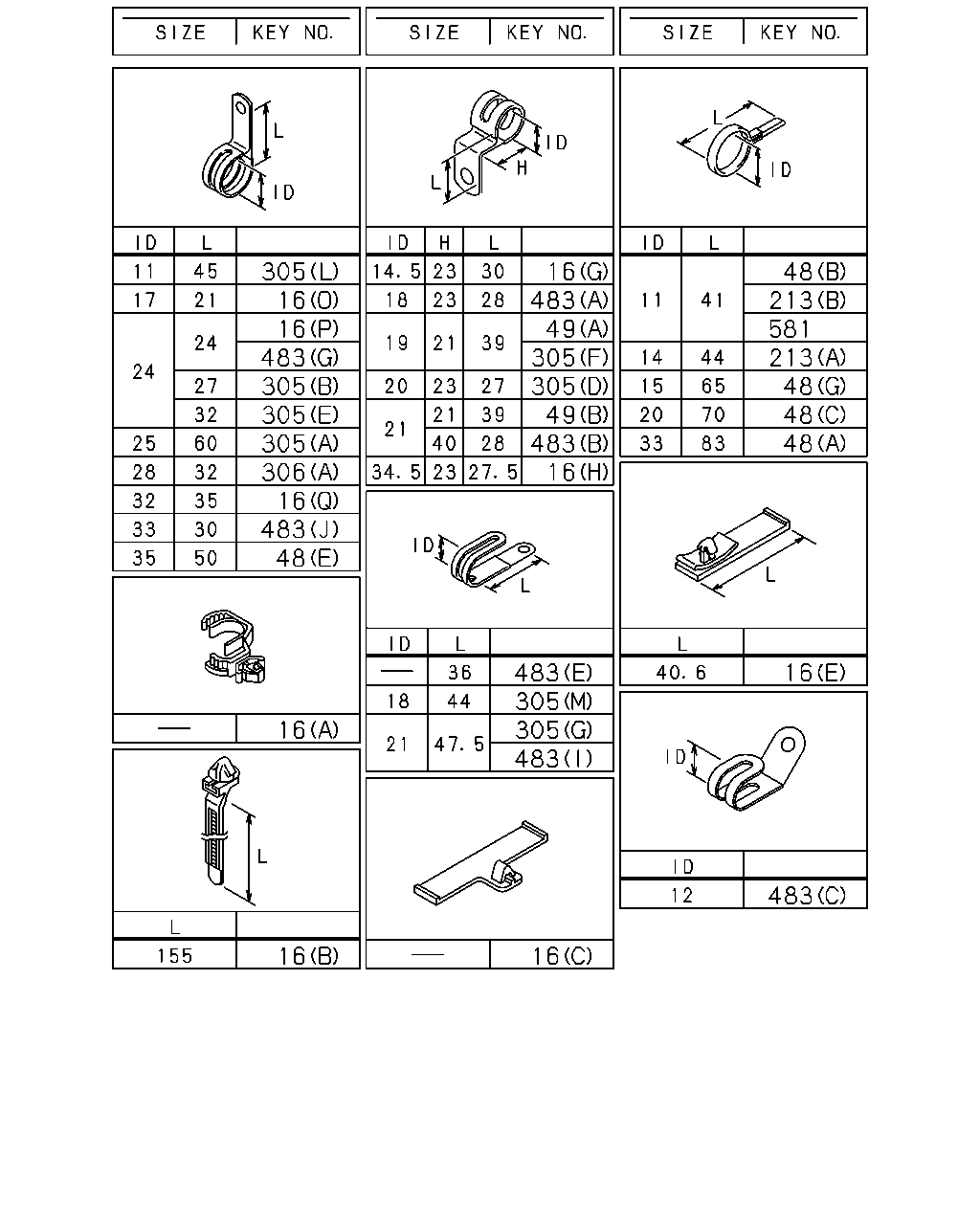

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (I) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11X2 L=16	0-95325-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140	5-09707-031-1	01	1	1302-
16	CLIP; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (K) L=600	1-09707-107-1	01	1	1302-1401
16	CLIP; HARNESS FUEL TANK 400L<SDH> (K) L=600	1-09707-107-1	01	1	1302-1401
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (K) L=600	1-09707-107-1	01	1	1402-
16	CLIP; HARNESS FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (K) L=600	1-09707-107-1	01	1	1402-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=17 L=21	8-98082-035-0	01	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (P) ID=24 L=24	1-09701-001-1	01	1	1305-1511
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (P) ID=24 L=24	1-09701-001-1	01	1	1512-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (Q) ID=32 L=35	1-09701-244-0	01	1	1305-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	10	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	10	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (C) ID=20 L=70	1-09700-485-0	10	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	07	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	07	1	1406-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1302-1405
48	CLIP; FRAME HARNESS MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	02	1	1406-
48	CLIP; FRAME HARNESS EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	02	1	1406-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (G) ID=15 L=65	1-09700-466-0	05	1	1302-1405
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (C) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (G) ID=15 L=65	1-09700-466-0	06	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	03	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (C) ID=20 L=70	1-09700-485-0	08	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	09	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) EXC. MOROCCO EQUIPMENT(CGA) (C) ID=20 L=70	1-09700-485-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (G) ID=15 L=65	1-09700-466-0	07	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1305-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (H) L=250	5-09707-030-1	02	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (A) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1302-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) ID=19 L=39 H=21	1-09700-972-1	01	1	1305-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION<NT4> (B) ID=21 H=21 L=39	8-98230-579-0	01	1	1305-
213	CLIP; END CROSS HARNESS MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) ID=11 L=41	1-09700-403-0	02	1	1406-
213	CLIP; END CROSS HARNESS MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A) ID=14 L=44	9-09917-427-0	03	1	1406-
213	CLIP; END CROSS HARNESS EXC. MOROCCO EQUIPMENT(CGA) (A) ID=14 L=44	9-09917-427-0	03	1	1406-
213	CLIP; END CROSS HARNESS (A) ID=14 L=44	9-09917-427-0	03	1	1302-1405
213	CLIP; END CROSS HARNESS MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A) ID=14 L=44	9-09917-427-0	07	1	1406-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1305-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=40	0-95235-576-0	01	1	1305-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1305-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-1405
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1406-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1305-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1305-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1305-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (G) ID=21 L=47.5	8-94178-108-0	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1512-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1512-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1305-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1512-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) L=100	8-94443-021-1	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1512-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (N) ID=26 L=27	1-09701-006-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (N) ID=26 L=27	1-09701-006-0	01	1	1305-1511
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (M) ID=18 L=44	8-97367-985-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (M) ID=18 L=44	8-97367-985-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (M) ID=18 L=44	8-97367-985-1	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (M) ID=18 L=44	8-97367-985-1	01	1	1512-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1506-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (L) ID=11 L=45	8-94296-897-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (L) ID=11 L=45	8-94296-897-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (L) ID=11 L=45	8-94296-897-1	01	1	1506-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (O) L=140	8-97122-360-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (O) L=140	8-97122-360-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (O) L=140	8-97122-360-0	01	1	1506-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=300	1-09707-001-1	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=140	5-09707-031-1	02	1	1305-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2	1-09707-188-0	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) L=250	5-09707-030-1	01	1	1305-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) ID=16 L=50	1-09701-158-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) ID=21 L=24	8-98019-191-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G) ID=24 L=24	1-09701-001-1	01	1	1305-1511
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) ID=24 L=24	1-09701-001-1	01	1	1512-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (H)	1-09987-281-0	01	1	1305-1511
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (H)	1-09987-281-0	01	1	1512-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) L=36	8-94224-891-1	01	1	1305-1511
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=36	8-94224-891-1	01	1	1512-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=21 L=47.5	8-94178-108-0	01	1	1305-1312
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (I) ID=21 L=47.5	8-94178-108-0	01	1	1401-1511
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=21 L=47.5	8-94178-108-0	01	1	1512-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=33 L=30	8-97619-250-0	01	1	1305-

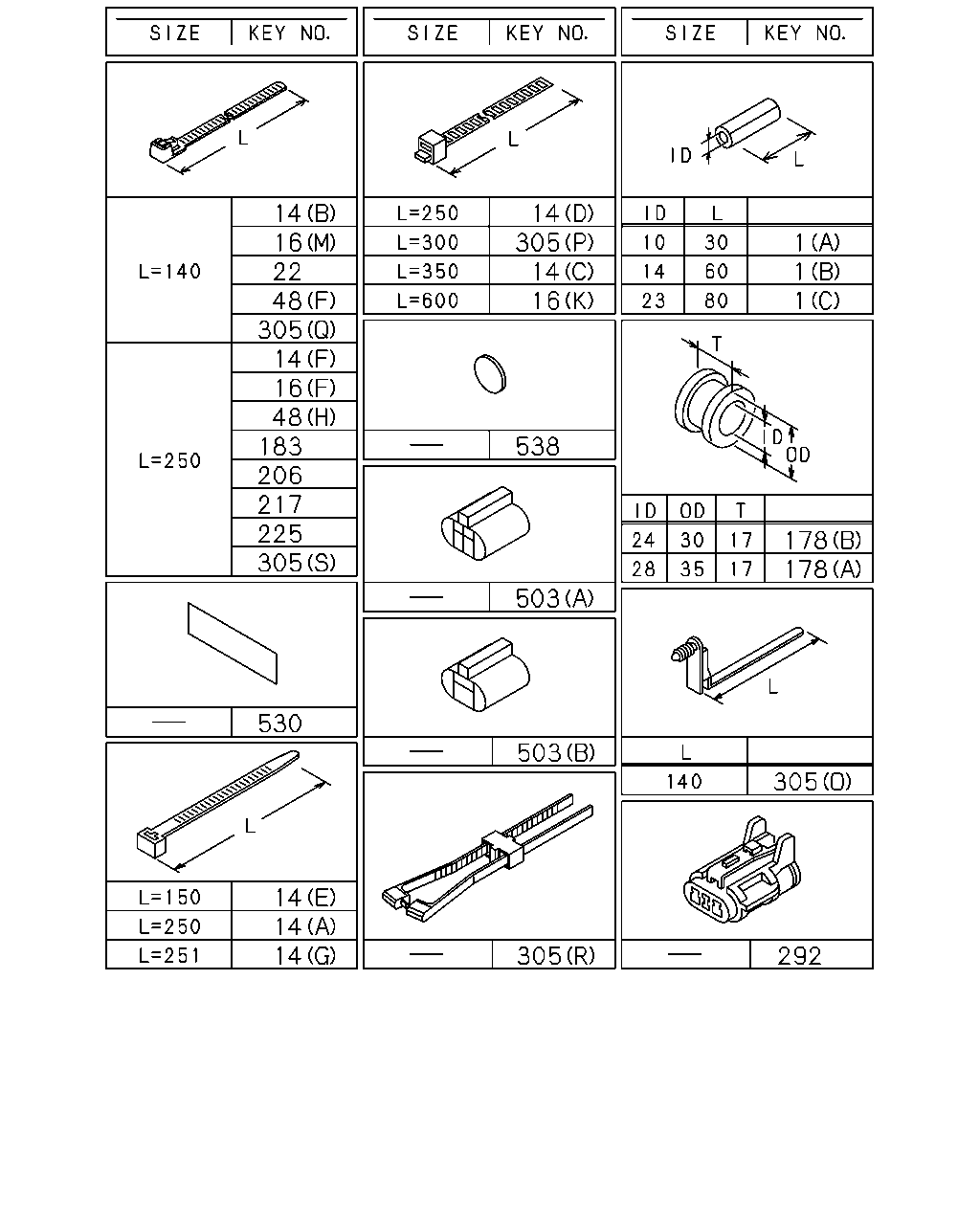

530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
581	CLIP; HARNESS,REAR SUSP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 L=41	1-09700-403-0	01	1	1302-

137 137 137 137 308 308 308 137 308 308 308 312 335 324 312 312 428 428

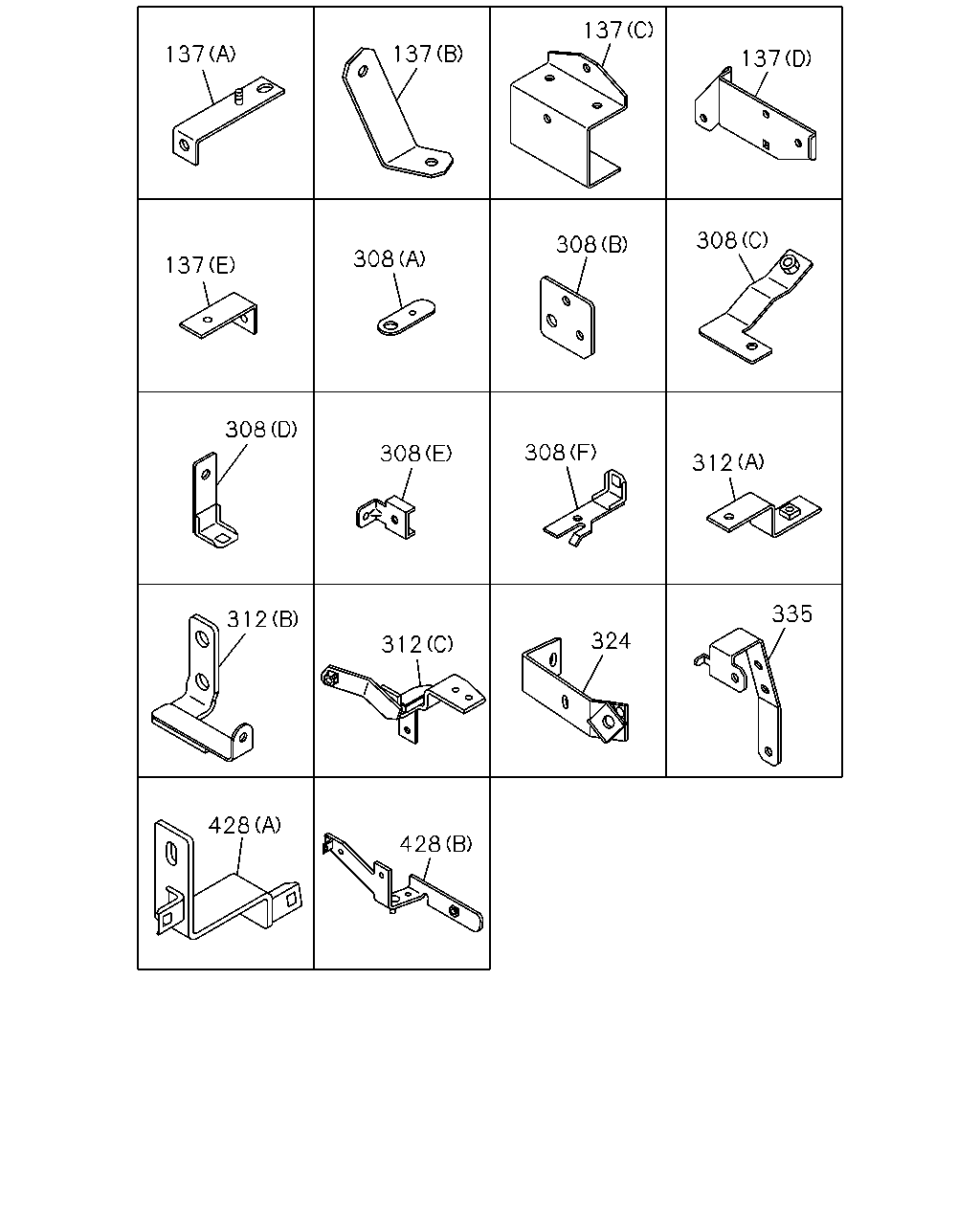

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (E) L=75	1-47478-328-0	01	1	1406-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (D)	8-98193-417-0	01	1	1305-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (B)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (A)	8-97624-013-0	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (C)	8-97609-797-1	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-98021-692-1	01	1	1305-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	1305-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (D)	8-98075-824-0	01	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D)	8-98075-824-0	01	1	1305-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97601-310-0	02	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97601-310-0	02	1	1305-1505
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	8-97601-310-0	02	1	1506-1511
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1512-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (A)	8-97601-310-0	03	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (A)	8-97601-310-0	03	1	1305-1511
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E)	8-97614-078-0	01	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E)	8-97614-078-0	01	1	1305-1505
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (E)	8-97614-078-0	01	1	1506-1511
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-97614-078-0	01	1	1512-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (F)	8-98021-291-2	01	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (F)	8-98021-291-2	01	1	1305-1505
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (F)	8-98021-291-2	01	1	1506-1511
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F)	8-98021-291-2	01	1	1512-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) (A)	8-97609-110-1	01	1	1305-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98094-804-0	01	1	1305-1511
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B)	8-98094-804-0	01	1	1512-
312	BRACKET; CLIP HARNESS 6HK1-TCN ENG(82L) (C)	8-98230-458-1	01	1	1302-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-921-1	01	1	1302-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-922-1	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET 4HK1-TCS ENG(RJS) (A)	8-98203-354-2	01	1	1305-
428	BRACKET 6HK1-TCN ENG(82L) (B)	8-98212-082-1	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-

14 22 16 305 16 183 217 305 206 225 48 14 48 14 14 14 305 503 503 538 16 14 305 14 1 1 1 178 178 305 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-1304
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1305-
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-1304
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1305-
1	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1302-1304
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1305-1505
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1506-1511
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1512-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (A) L=250	8-98216-430-0	01	1	1312-1401
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) L=250	8-98216-430-0	01	1	1402-
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=250	1-09707-126-0	02	1	1302-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (A) L=250	8-98216-430-0	08	1	1302-1401
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) L=250	8-98216-430-0	08	1	1402-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) L=250	8-98216-430-0	14	1	1302-1401
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) L=250	8-98216-430-0	14	1	1402-1505
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) L=250	8-98216-430-0	14	1	1506-1511
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) L=250	8-98216-430-0	14	1	1512-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	02	1	1305-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (G) L=251	8-97619-917-0	01	1	1305-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=150	8-97355-273-0	01	1	1305-1511
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=150	8-97355-273-0	01	1	1512-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (F) L=250	5-09707-030-1	01	1	1305-1511
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) L=140	5-09707-031-1	01	1	1305-1311
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=150	8-97355-273-0	03	1	1305-1407
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=150	8-97355-273-0	02	1	1408-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION<NT4> (G) L=251	8-97619-917-0	02	1	1305-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=350	1-09707-183-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (I) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11X2 L=16	0-95325-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140	5-09707-031-1	01	1	1302-
16	CLIP; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (K) L=600	1-09707-107-1	01	1	1302-1401
16	CLIP; HARNESS FUEL TANK 400L<SDH> (K) L=600	1-09707-107-1	01	1	1302-1401
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (K) L=600	1-09707-107-1	01	1	1402-
16	CLIP; HARNESS FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (K) L=600	1-09707-107-1	01	1	1402-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=17 L=21	8-98082-035-0	01	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (P) ID=24 L=24	1-09701-001-1	01	1	1305-1511
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (P) ID=24 L=24	1-09701-001-1	01	1	1512-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (Q) ID=32 L=35	1-09701-244-0	01	1	1305-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1305-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	10	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	10	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (C) ID=20 L=70	1-09700-485-0	10	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	07	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	07	1	1406-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1302-1405
48	CLIP; FRAME HARNESS MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	02	1	1406-
48	CLIP; FRAME HARNESS EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	02	1	1406-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (G) ID=15 L=65	1-09700-466-0	05	1	1302-1405
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (C) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (G) ID=15 L=65	1-09700-466-0	06	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	03	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (C) ID=20 L=70	1-09700-485-0	08	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	09	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) EXC. MOROCCO EQUIPMENT(CGA) (C) ID=20 L=70	1-09700-485-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (G) ID=15 L=65	1-09700-466-0	07	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1305-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (H) L=250	5-09707-030-1	02	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (A) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-1405
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-1405
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1406-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1406-
178	GROMMET; HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1406-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1305-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
217	CLIP; RR BODY HARNESS MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	1406-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	08	1	1302-
292	CAP; RUBBER 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	1-82691-249-0	01	1	1402-1405
292	CAP; RUBBER 6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	1-82691-249-0	01	1	1406-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1305-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=40	0-95235-576-0	01	1	1305-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1305-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-1405
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1406-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1305-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1305-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1305-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (G) ID=21 L=47.5	8-94178-108-0	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1512-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1512-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1305-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1512-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) L=100	8-94443-021-1	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1512-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (N) ID=26 L=27	1-09701-006-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (N) ID=26 L=27	1-09701-006-0	01	1	1305-1511
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (M) ID=18 L=44	8-97367-985-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (M) ID=18 L=44	8-97367-985-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (M) ID=18 L=44	8-97367-985-1	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (M) ID=18 L=44	8-97367-985-1	01	1	1512-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1506-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (L) ID=11 L=45	8-94296-897-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (L) ID=11 L=45	8-94296-897-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (L) ID=11 L=45	8-94296-897-1	01	1	1506-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (O) L=140	8-97122-360-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (O) L=140	8-97122-360-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (O) L=140	8-97122-360-0	01	1	1506-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=300	1-09707-001-1	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=140	5-09707-031-1	02	1	1305-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2	1-09707-188-0	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) L=250	5-09707-030-1	01	1	1305-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1302-1304
503	CONNECTOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	1-82690-668-0	01	1	1302-1304
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1305-1505
503	CONNECTOR 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	1-82690-668-0	01	1	1305-1505
503	CONNECTOR 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B)	1-82690-668-0	01	1	1506-1511
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1506-1511
503	CONNECTOR 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	1-82690-668-0	01	1	1512-
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1512-
503	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-82690-666-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

139 127 524 219 294 525 294 524 184 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	04	1	1302-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (H) M8X20 FLANGE	0-28650-820-0	01	1	1305-1405
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (H) M8X20 FLANGE	0-28650-820-0	01	1	1406-
139	BOLT; BRKT 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (H) M8X20 FLANGE	0-28650-820-0	01	1	1406-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (I) M8X65 FLANGE	1-09044-072-1	01	1	1305-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
184	WASHER; PL,STARTER EARTH EURO4 SPECIFICATION<NT4> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-1505
184	WASHER; PL,STARTER EARTH 4HK1-TCS ENG(RJS) ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1506-
184	WASHER; PL,STARTER EARTH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1506-
184	WASHER; PL,STARTER EARTH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1302-1511
184	WASHER; PL,STARTER EARTH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1512-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1302-
219	NUT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1302-
219	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	04	1	1302-
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1304
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1305-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1302-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	1305-
525	NUT; CLIP EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1302-1304
525	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1305-1505
525	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	5-09440-010-0	01	1	1506-
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.0 M8 FLANGE	0-91180-108-0	02	1	1302-
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.0 M8 FLANGE	0-91180-108-0	01	1	1302-1304
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1305-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-

150 150 304 139 304 304 150 304 150 304 38 38 150 139 139 313 139 313 139 242 139 38 139 139 38 386 516 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

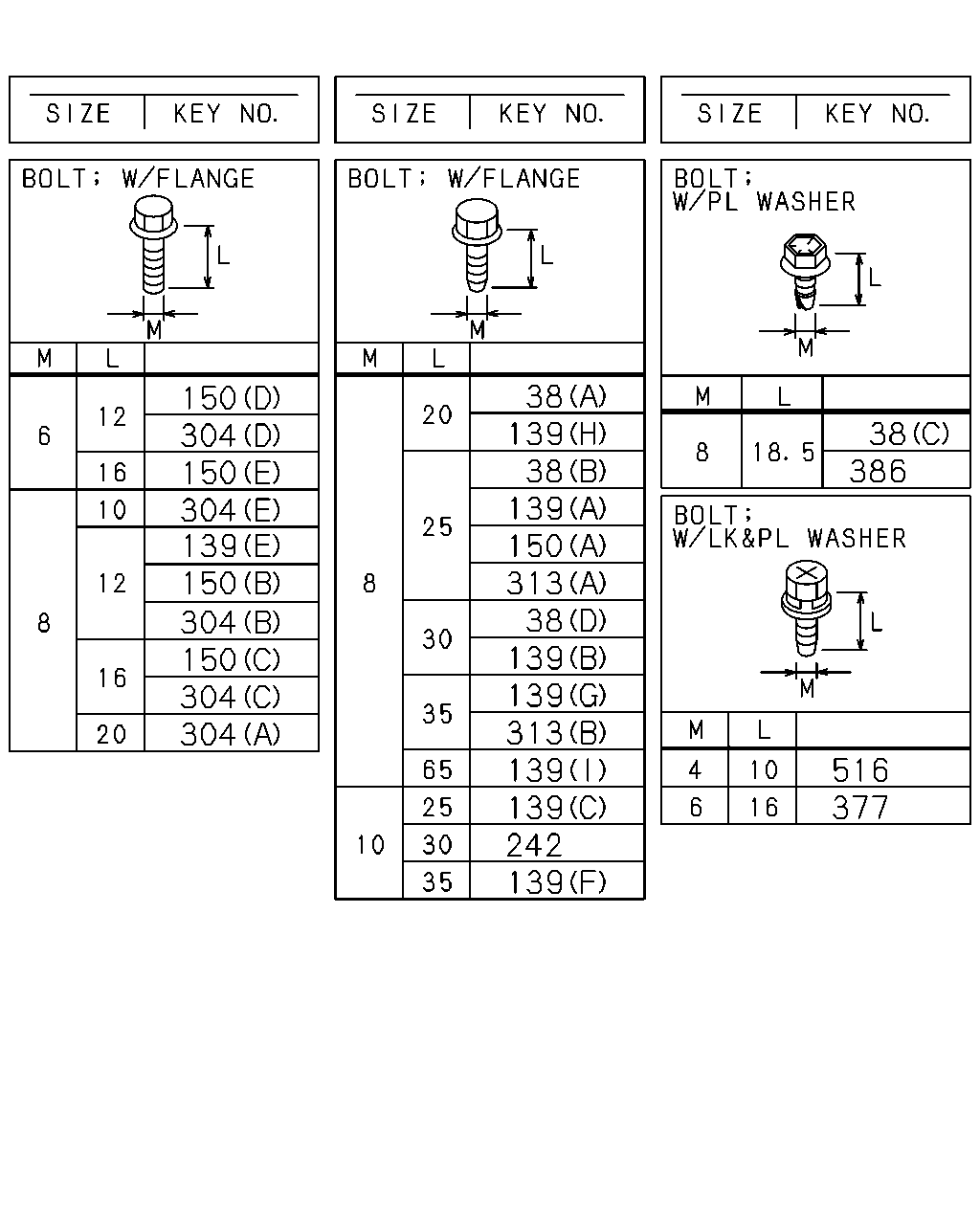

38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-1304
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1305-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	04	1	1302-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (H) M8X20 FLANGE	0-28650-820-0	01	1	1305-1405
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (H) M8X20 FLANGE	0-28650-820-0	01	1	1406-
139	BOLT; BRKT 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (H) M8X20 FLANGE	0-28650-820-0	01	1	1406-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (I) M8X65 FLANGE	1-09044-072-1	01	1	1305-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (E) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP EXC. BUMPER W/HEADLAMPS<SLB> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
150	BOLT; CLIP EXC. BUMPER W/HEADLAMPS<SLB> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	1305-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	1305-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE	0-28650-825-0	01	1	1305-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	02	1	1305-1312
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	02	1	1401-1511
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	02	1	1512-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (D) M6X12 FLANGE	0-28050-612-0	01	1	1305-1312
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) M6X12 FLANGE	0-28050-612-0	03	1	1401-
242	BOLT; BRKT,HARNESS 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	01	1	1305-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> (C) M8X16 FLANGE	0-28050-816-0	02	1	1506-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1305-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	09	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	09	1	1305-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1305-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (E) M8X10 FLANGE	0-28050-810-0	01	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (E) M8X10 FLANGE	0-28050-810-0	01	1	1305-1511
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1305-1511
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	01	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	01	1	1305-1505
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (D) M6X12 FLANGE	0-28050-612-0	01	1	1506-1511
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M6X12 FLANGE	0-28050-612-0	01	1	1512-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	03	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	03	1	1305-1511
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	03	1	1512-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	1302-1304
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	1305-1505
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	1305-1505
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28050-820-0	01	1	1506-1511
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1506-1511
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28050-820-0	01	1	1512-
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	02	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	02	1	1305-1505
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X12 FLANGE	0-28050-812-0	02	1	1506-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1305-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M8X35 FLANGE	0-28650-835-0	01	1	1305-
313	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
313	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1304
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1305-1405
516	BOLT; HARNESS 6HK1-TCN ENG(82L) EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1406-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-

16 235 305 305 16 483 483 305 483 306 305 48 16 470 305 223 81 16 171 116 16 223 305 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (I) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11X2 L=16	0-95325-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140	5-09707-031-1	01	1	1302-
16	CLIP; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (K) L=600	1-09707-107-1	01	1	1302-1401
16	CLIP; HARNESS FUEL TANK 400L<SDH> (K) L=600	1-09707-107-1	01	1	1302-1401
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (K) L=600	1-09707-107-1	01	1	1402-
16	CLIP; HARNESS FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (K) L=600	1-09707-107-1	01	1	1402-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=17 L=21	8-98082-035-0	01	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (P) ID=24 L=24	1-09701-001-1	01	1	1305-1511
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (P) ID=24 L=24	1-09701-001-1	01	1	1512-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (Q) ID=32 L=35	1-09701-244-0	01	1	1305-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	10	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	10	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (C) ID=20 L=70	1-09700-485-0	10	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	07	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	07	1	1406-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> (G) ID=15 L=65	1-09700-466-0	06	1	1406-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1302-1405
48	CLIP; FRAME HARNESS MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	02	1	1406-
48	CLIP; FRAME HARNESS EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	02	1	1406-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (G) ID=15 L=65	1-09700-466-0	05	1	1302-1405
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (C) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (G) ID=15 L=65	1-09700-466-0	06	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	03	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (C) ID=20 L=70	1-09700-485-0	08	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (C) ID=20 L=70	1-09700-485-0	09	1	1406-1505
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) (C) ID=20 L=70	1-09700-485-0	09	1	1506-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	09	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C) ID=20 L=70	1-09700-485-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) EXC. MOROCCO EQUIPMENT(CGA) (C) ID=20 L=70	1-09700-485-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (G) ID=15 L=65	1-09700-466-0	07	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA) (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (G) ID=15 L=65	1-09700-466-0	05	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1305-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (H) L=250	5-09707-030-1	02	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (A) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=9 H=6	1-09709-178-0	01	1	1302-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	1402-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-1401
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	1402-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A) OD=8 H=3.8	1-09709-309-0	01	1	1305-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (B)	8-97101-436-0	01	1	1305-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1302-1304
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1302-1304
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1305-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1305-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> ID=11 L=16	0-95235-025-0	02	1	1302-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1305-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=40	0-95235-576-0	01	1	1305-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1305-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-1405
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1406-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1305-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1305-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1305-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (G) ID=21 L=47.5	8-94178-108-0	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1512-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1512-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1305-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1512-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) L=100	8-94443-021-1	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1512-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (N) ID=26 L=27	1-09701-006-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (N) ID=26 L=27	1-09701-006-0	01	1	1305-1511
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (M) ID=18 L=44	8-97367-985-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (M) ID=18 L=44	8-97367-985-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (M) ID=18 L=44	8-97367-985-1	01	1	1506-1511
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (M) ID=18 L=44	8-97367-985-1	01	1	1512-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1506-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (L) ID=11 L=45	8-94296-897-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (L) ID=11 L=45	8-94296-897-1	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (L) ID=11 L=45	8-94296-897-1	01	1	1506-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (O) L=140	8-97122-360-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (O) L=140	8-97122-360-0	01	1	1305-1505
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (O) L=140	8-97122-360-0	01	1	1506-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=300	1-09707-001-1	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=140	5-09707-031-1	02	1	1305-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2	1-09707-188-0	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) L=250	5-09707-030-1	01	1	1305-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-1405
470	CLIP; HARNESS,LICENSE LAMP MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> OD=9 H=6	1-09709-178-0	01	1	1406-
470	CLIP; HARNESS,LICENSE LAMP EXC. MOROCCO EQUIPMENT(CGA) OD=9 H=6	1-09709-178-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) ID=16 L=50	1-09701-158-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) ID=21 L=24	8-98019-191-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G) ID=24 L=24	1-09701-001-1	01	1	1305-1511
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) ID=24 L=24	1-09701-001-1	01	1	1512-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (H)	1-09987-281-0	01	1	1305-1511
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (H)	1-09987-281-0	01	1	1512-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) L=36	8-94224-891-1	01	1	1305-1511
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=36	8-94224-891-1	01	1	1512-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=21 L=47.5	8-94178-108-0	01	1	1305-1312
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (I) ID=21 L=47.5	8-94178-108-0	01	1	1401-1511
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=21 L=47.5	8-94178-108-0	01	1	1512-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=33 L=30	8-97619-250-0	01	1	1305-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-

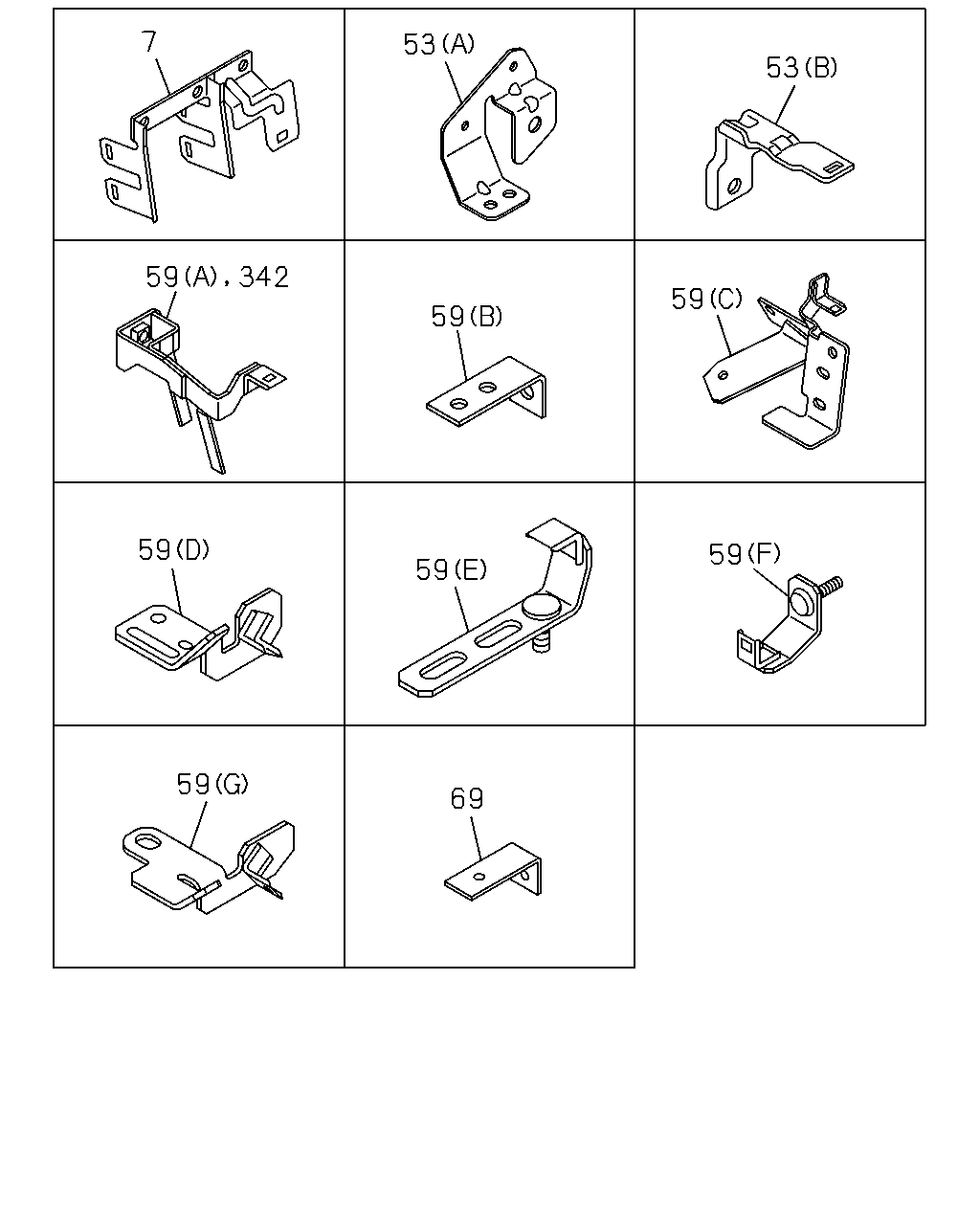

69 59 59 59 59 59 59 342 59 7 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=62	1-21464-170-2	01	1	1302-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (F)	8-97612-957-1	02	1	1305-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (A)	8-98099-963-0	01	1	1305-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (D)	8-98211-162-0	01	1	1305-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (A)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (E)	8-98047-730-0	02	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-98107-611-0	01	1	1302-
69	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=55	1-47475-304-0	01	1	1302-
342	BRACKET; HARNESS CAB MTG 4HK1-TCS ENG(RJS)	8-98099-963-0	01	1	1305-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
