3-70 — BRAKE PIPING; AIR,AIR MASTER (#113273) — 105 parça

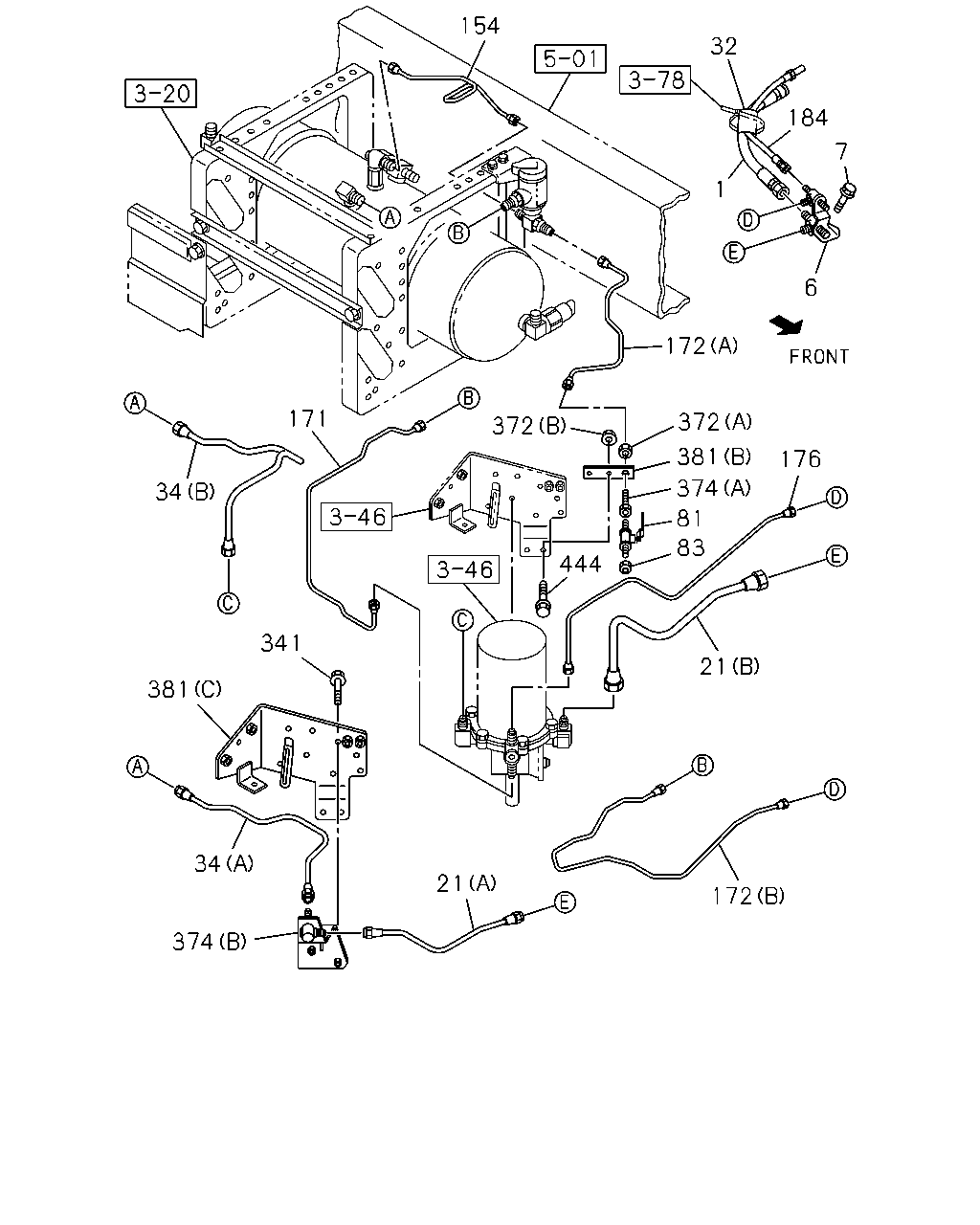

154 32 184 7 1 6 172 171 34 381 341 34 374 21 444 21 172 372 372 381 374 176 81 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK	8-98133-392-0	01	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516	8-98133-370-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (A) L=496	8-98133-372-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> (B) L=503	8-98133-371-0	01	1	1302-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	1302-
34	PIPE; AIR AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1302-
34	PIPE; AIR EXC. AIR DRYER<PS7> (A) L=412	8-98190-599-0	01	1	1302-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1302-
81	COCK; AIR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-
83	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98167-336-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98213-138-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> L=811 SERVICED BY L=900	1-47428-813-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7> (B)	8-98213-140-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) L=425	8-98167-526-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=449	8-98213-139-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> L=708 SERVICED BY L=800	1-47428-812-0	01	1	1302-
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	1302-
341	BOLT; BRKT EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	1302-
372	NUT TIRE INFLATOR DEVICE<SG4> (B) M8 FLANGE	0-91180-108-0	02	1	1302-
372	NUT TIRE INFLATOR DEVICE<SG4> (A) M12	9-09840-280-0	01	1	1302-
374	CONNECTOR EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	1302-
374	CONNECTOR TIRE INFLATOR DEVICE<SG4> (A)	1-09654-280-1	01	1	1302-
381	BRACKET (D)	8-98212-374-0	01	1	1302-
381	BRACKET EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1302-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98119-700-0	01	1	1302-
381	BRACKET TIRE INFLATOR DEVICE<SG4> (B)	8-98135-449-0	01	1	1302-
444	BOLT; UNION M10X30 FLANGE	0-28651-030-0	01	1	1302-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	02	1	1302-
444	BOLT; UNION TIRE INFLATOR DEVICE<SG4> M8X20 FLANGE	0-28650-820-0	02	1	1302-

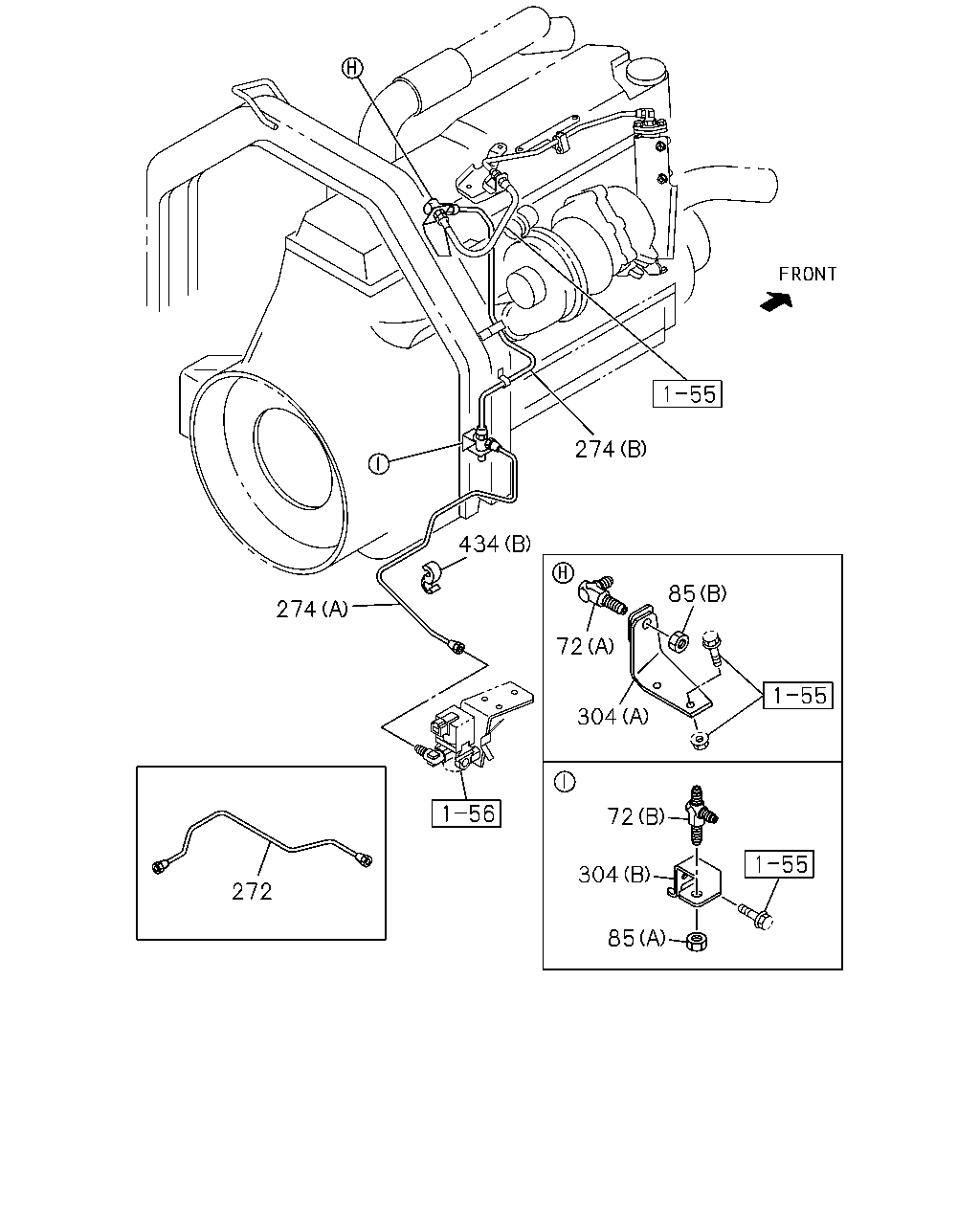

274 434 274 272 72 304 85 72 304 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	UNION; AIR PIPE (A) M12 ELBOW	0-92125-006-0	01	1	1302-
72	UNION; AIR PIPE (B) M12 2WAY	1-09654-059-2	01	1	1302-
85	NUT; UNION (A) M12	0-91111-512-0	01	1	1302-
85	NUT; UNION (B) M12	9-09840-280-0	01	1	1302-
272	PIPE; AIR,MAG VLV TO UNION L=393	8-98213-179-0	01	1	1302-
274	PIPE; AIR UNION TO UNION (B) L=622 SERVICED BY L=650	1-47428-810-0	01	1	1302-
274	PIPE; AIR UNION TO UNION AIR DRYER<PS7> (A) L=1592 SERVICED BY L=1620	1-47428-820-0	01	1	1302-
274	PIPE; AIR UNION TO UNION EXC. AIR DRYER<PS7> (A) L=1389 SERVICED BY L=1500	1-47428-819-0	01	1	1302-
304	BRACKET; UNION (B)	8-98211-164-1	01	1	1302-
304	BRACKET; UNION (A)	8-98229-691-0	01	1	1302-
434	CLIP (B) ID=6.35 & 15	1-09709-276-1	01	1	1302-
434	CLIP AIR DRYER<PS7> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1302-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1302-

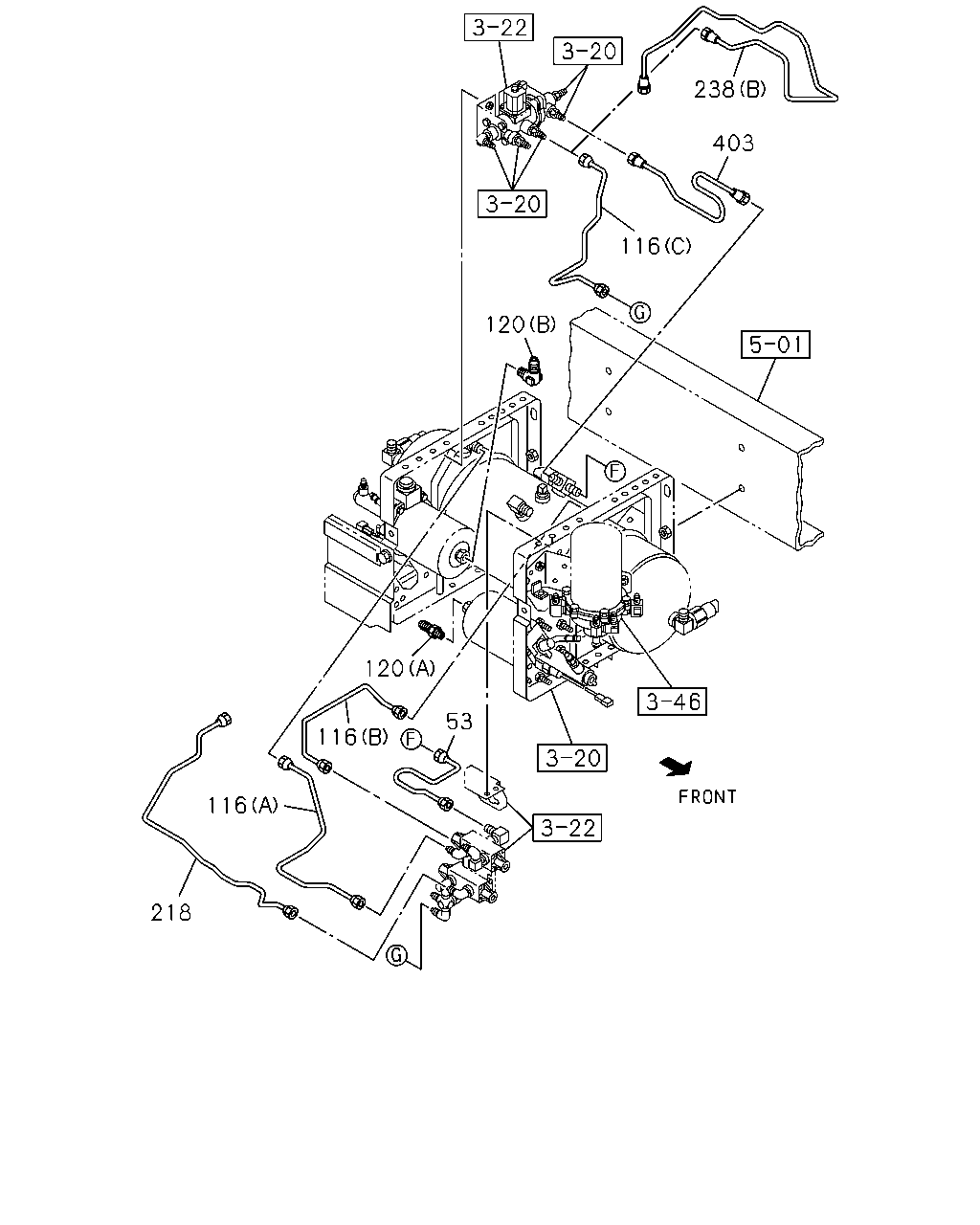

238 403 116 120 120 53 116 116 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	PIPE; AIR,AIR TANK TO VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98213-331-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=480	8-98213-332-0	01	1	1302-
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-
120	CONNECTOR; AIR PIPE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
218	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648 SERVICED BY L=650	1-47428-810-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION (A) L=324	8-98212-367-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=922 SERVICED BY L=1000	1-47428-814-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=263	8-98213-297-0	01	1	1302-

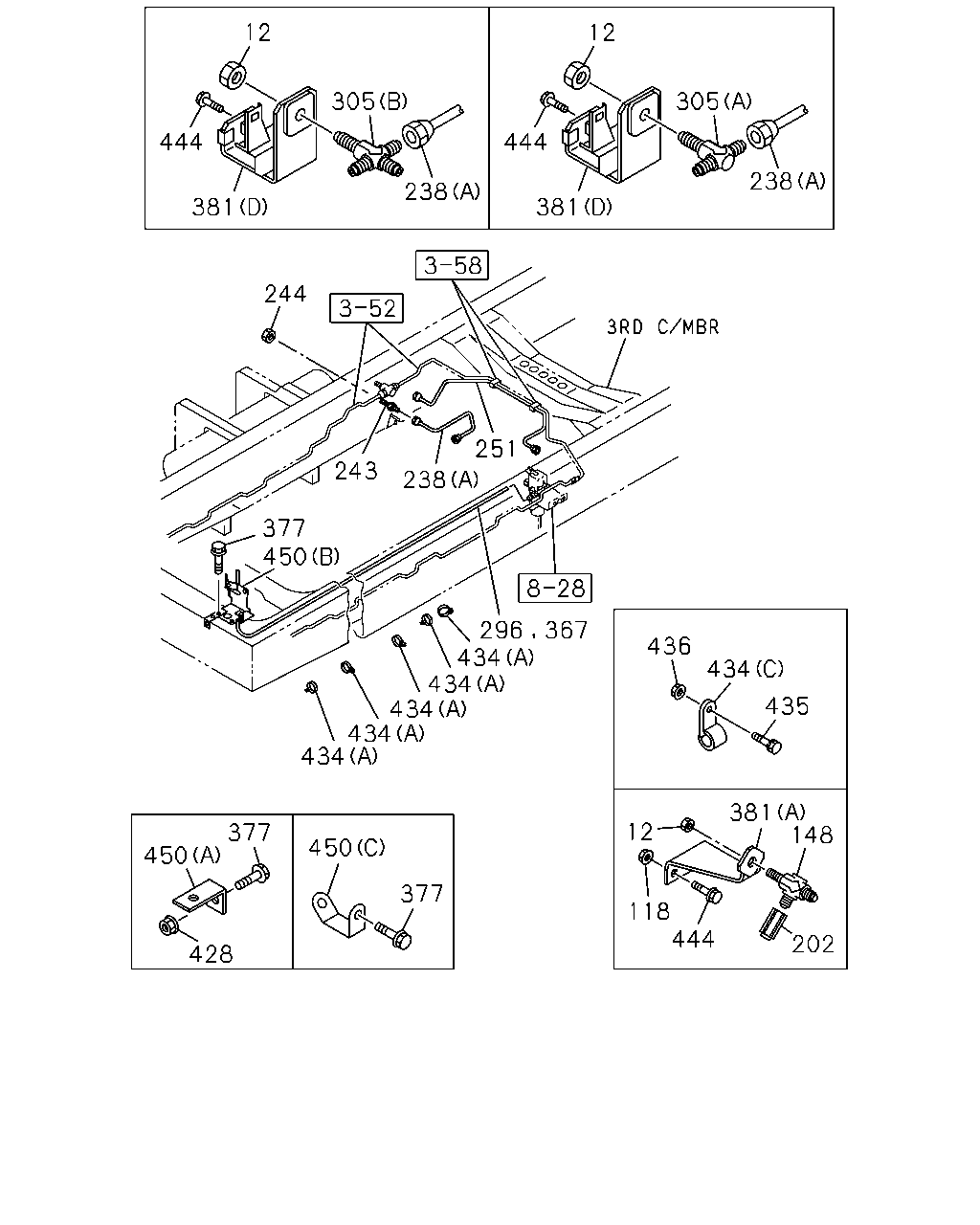

12 305 238 381 444 444 12 305 381 238 244 251 238 243 377 450 296 367 434 434 434 434 434 436 434 435 381 148 12 118 444 202 450 377 377 450 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	1302-
12	NUT; UNION M12	0-91111-512-0	01	1	1302-
118	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE	0-91180-210-0	02	1	1302-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY	1-09654-059-2	01	1	1302-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION (A) L=324	8-98212-367-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=922 SERVICED BY L=1000	1-47428-814-0	01	1	1302-
243	UNION; AIR PIPE M12 L=66.5	0-92113-306-0	01	1	1302-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> L=889 SERVICED BY L=900	1-47428-813-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=889 SERVICED BY L=900	1-47428-813-0	01	1	1302-
296	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1302-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12	0-92138-306-0	01	1	1302-
305	UNION ASM; NYLON TUBE PTO CONTROL<SV6> (A) M12	0-92138-306-0	01	1	1302-
305	UNION ASM; NYLON TUBE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (B) M12 3WAY	1-09654-137-2	01	1	1302-
367	TUBE; CORRUGATE EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	03	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	1302-
381	BRACKET (D)	8-98212-374-0	01	1	1302-
381	BRACKET EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1302-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98119-700-0	01	1	1302-
381	BRACKET TIRE INFLATOR DEVICE<SG4> (B)	8-98135-449-0	01	1	1302-
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	1302-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	03	1	1302-
434	CLIP (B) ID=6.35 & 15	1-09709-276-1	01	1	1302-
434	CLIP AIR DRYER<PS7> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1302-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
444	BOLT; UNION M10X30 FLANGE	0-28651-030-0	01	1	1302-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	02	1	1302-
444	BOLT; UNION TIRE INFLATOR DEVICE<SG4> M8X20 FLANGE	0-28650-820-0	02	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98254-305-0	01	1	1310-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A)	1-47477-694-0	01	1	1302-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1302-1309
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	1302-1309
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1310-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	1302-
