Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#11327) — 201 parça

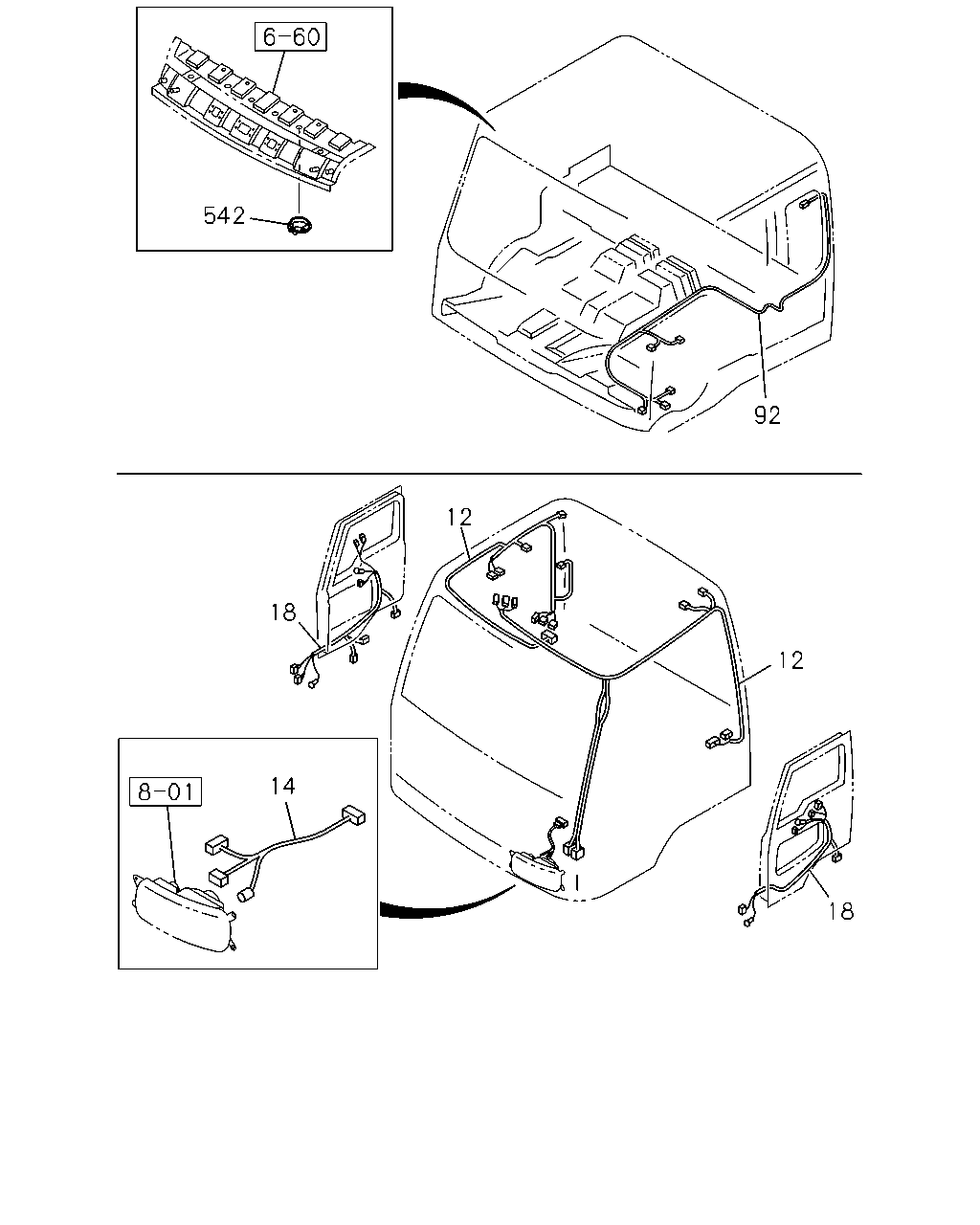

542 92 12 18 12 14 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE	1-82629-925-2	01	1	0106-
12	HARNESS; ROOF HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE	1-82629-924-2	01	1	0106-
12	HARNESS; ROOF EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE	1-82629-920-2	01	1	0106-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> PASSENGER SIDE	1-82629-921-2	01	1	0106-
12	HARNESS; ROOF SPEAKER SYSTEM 4 SPEAKER<NBV> DRIVER SIDE	1-82628-107-0	01	1	0106-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	1-82671-664-2	02	1	0106-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	1-82670-022-2	02	1	0106-
14	HARNESS; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82625-150-2	02	1	0106-
18	HARNESS; DOOR POWER WINDOW<A30> PASSENGER SIDE	1-82628-582-0	01	1	0106-
18	HARNESS; DOOR POWER WINDOW<A30> DEIVER SIDE	1-82628-584-0	01	1	0106-
18	HARNESS; DOOR EXC. POWER WINDOW<A30>	1-82628-581-0	02	1	0106-
92	HARNESS; FLOOR ELECTRONIC GOV RED4(Q4F)	1-82660-397-3	01	1	0106-
92	HARNESS; FLOOR EXC. ELECTRONIC GOV RED4(Q4F)	1-82660-394-3	01	1	0106-
542	GROMMET; HARNESS HIGH ROOF<S2F> ID=36	8-94178-685-0	03	1	0106-

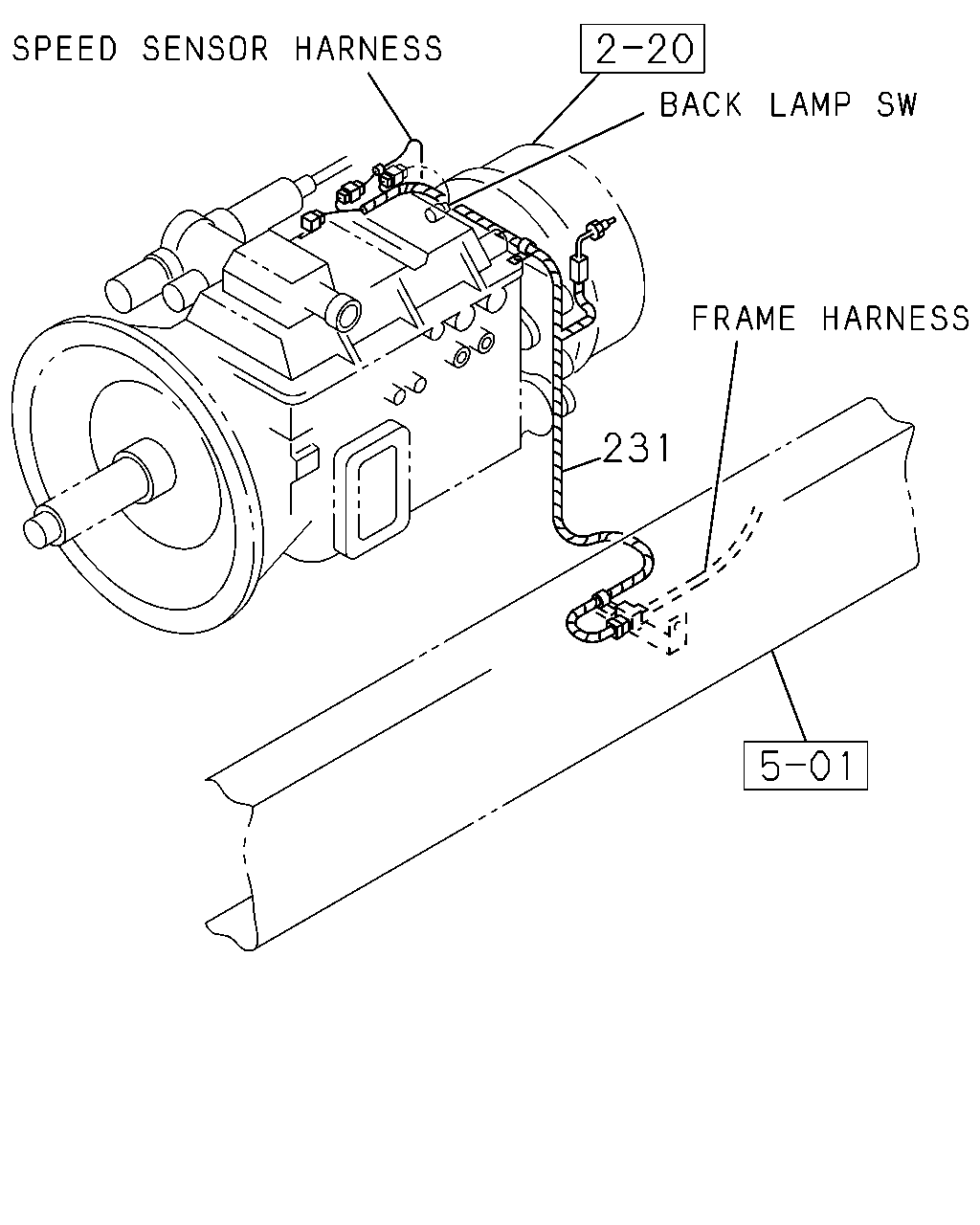

231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
231	HARNESS; TRANS ISUZU M/T<X9A>	1-82674-849-1	01	1	0106-
231	HARNESS; TRANS ZF M/T<X9E>	1-82674-852-0	01	1	0106-0107
231	HARNESS; TRANS ZF M/T<X9E>	1-82675-056-0	01	1	0108-

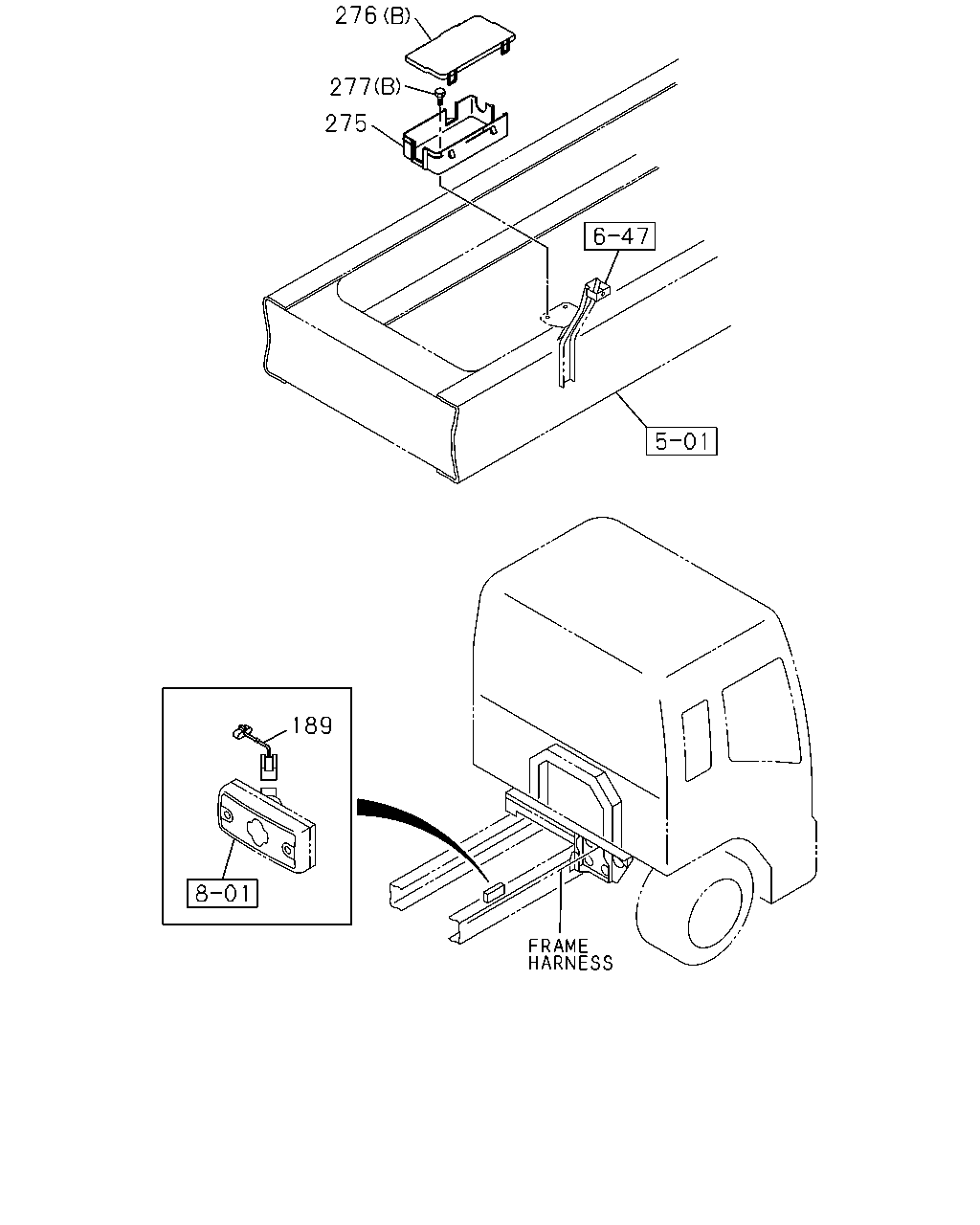

189 275 277 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
189	HARNESS; EXT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82673-735-0	06	1	0106-
275	BOX ASM; FRAME HARNESS	1-82699-474-1	01	1	0106-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0106-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0106-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0106-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0106-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0106-

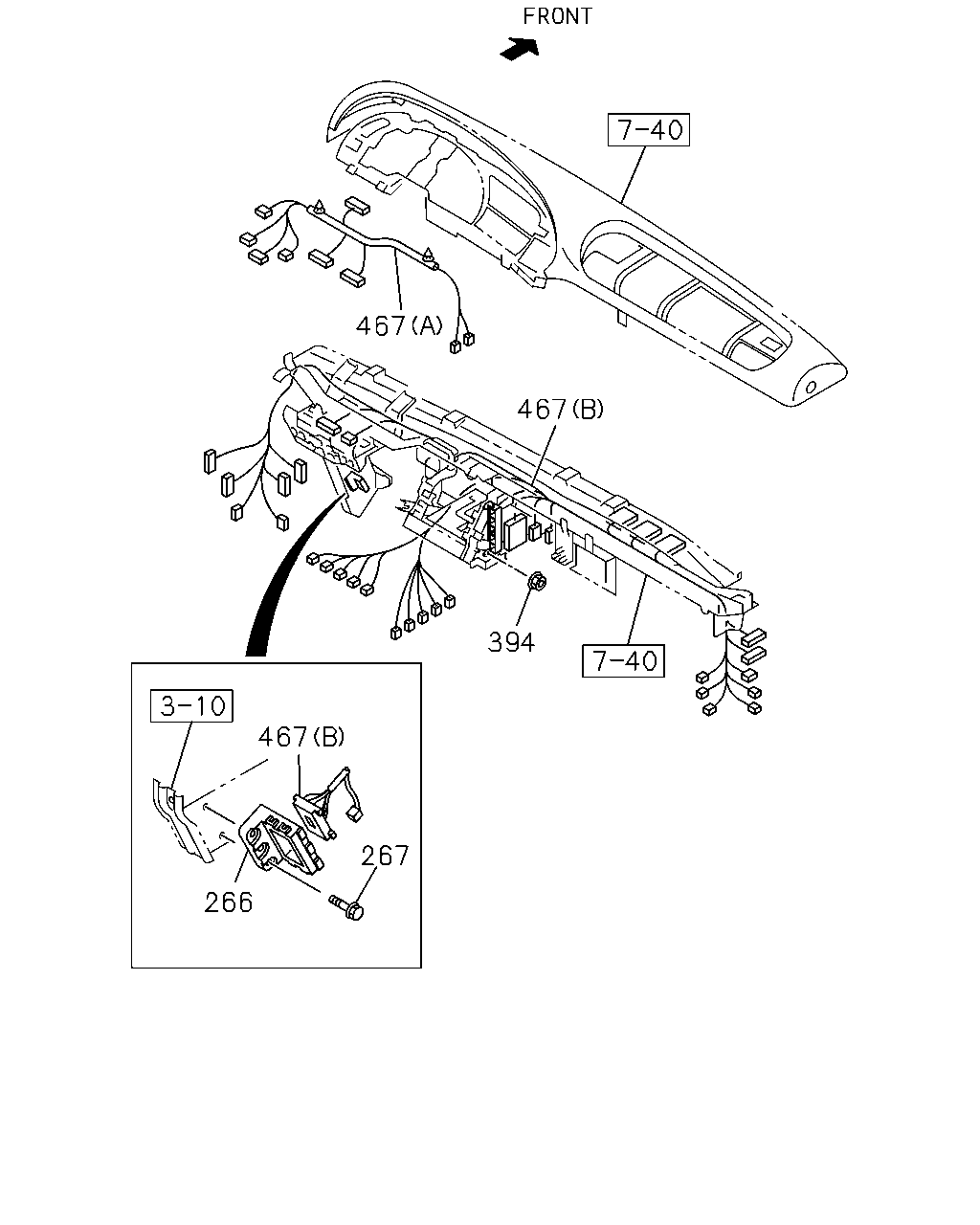

467 467 394 467 266 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0106-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0106-
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91150-106-0	01	1	0401-0602
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91180-106-0	01	1	0603-
467	HARNESS; FACIA (A) UPPER	1-82629-927-1	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER	1-82660-436-3	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS> (B) LOWER	1-82660-437-3	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER	1-82660-433-3	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-435-4	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-434-3	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-438-4	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER	1-82660-472-6	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS> (B) LOWER	1-82660-473-6	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED4(Q4F) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-474-7	01	1	0106-
467	HARNESS; FACIA GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER	1-82660-469-6	01	1	0106-
467	HARNESS; FACIA GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-471-7	01	1	0106-
467	HARNESS; FACIA GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-470-6	01	1	0106-

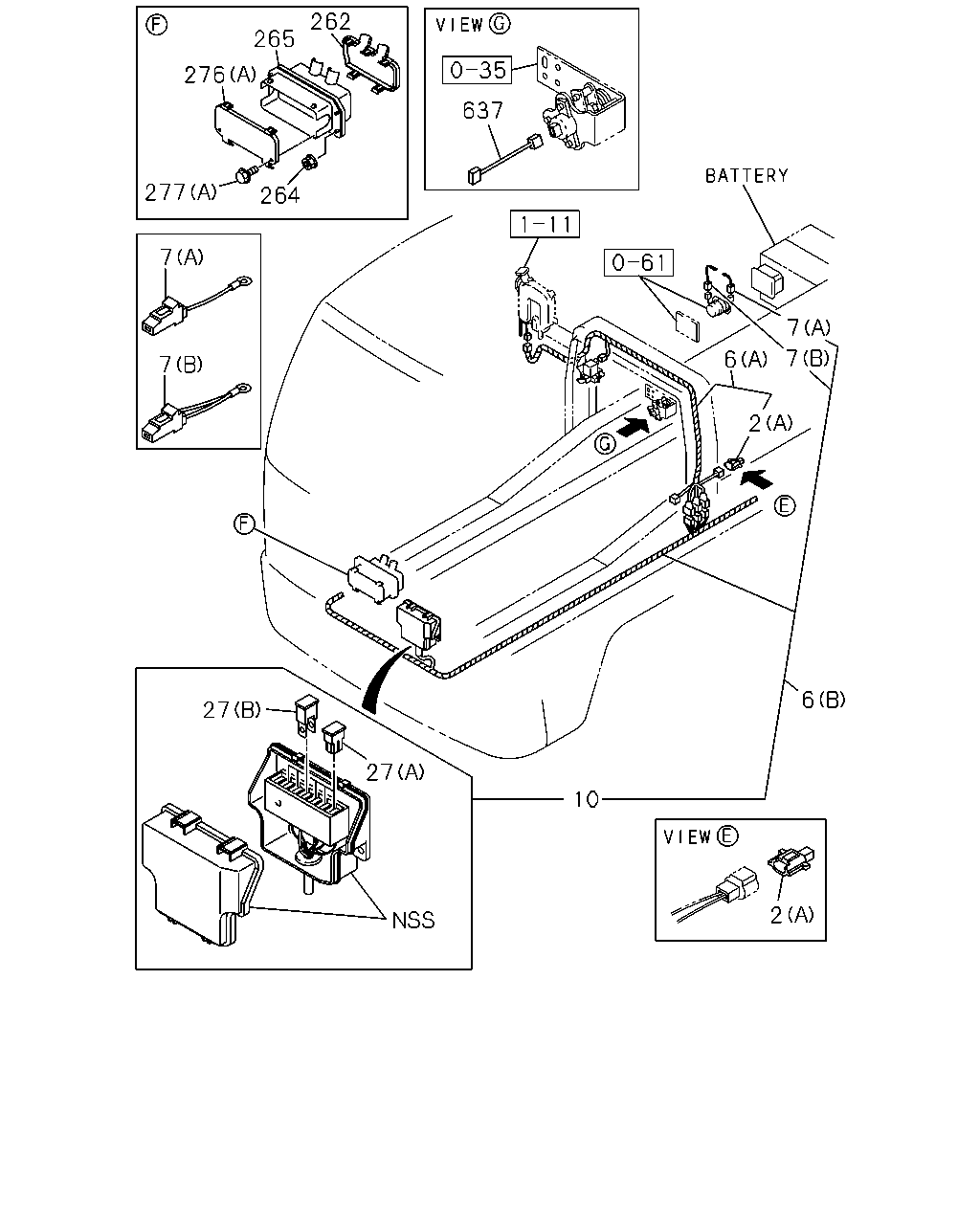

262 265 276 264 277 7 7 6 7 2 7 6 10 27 27 2 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A	1-81514-015-0	01	1	0106-
2	DIODE; CABLE HARNESS EXC. FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A	1-81514-015-0	01	1	0106-
2	DIODE; CABLE HARNESS BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A)	1-82674-842-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A)	1-82674-841-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A)	1-82674-840-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-752-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-505-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-753-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-506-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82674-754-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82675-507-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82674-751-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82675-504-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A)	1-82674-848-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A)	1-82674-847-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A)	1-82674-846-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-756-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-509-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-757-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-510-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82674-758-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82675-511-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82674-755-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82675-508-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-760-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-513-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-761-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-514-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (A)	1-82674-762-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (A)	1-82675-515-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (A)	1-82674-759-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (A)	1-82675-512-2	01	1	0110-
7	LINK ASM; FUSIBLE (B)	1-82659-085-0	01	1	0106-
7	LINK ASM; FUSIBLE (A) 60A BLUE	1-82659-119-0	01	1	0106-
10	BOX; FUSE,HARNESS	1-82510-466-0	01	1	0106-0210
10	BOX; FUSE,HARNESS	1-82510-467-0	01	1	0211-
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	05	1	0106-
27	FUSE UNIT (B) 80A BLACK	8-94468-671-0	01	1	0106-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0106-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0106-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0106-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0106-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0106-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0106-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0106-
637	HARNESS; EXT,S/SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-82675-934-0	01	1	0207-

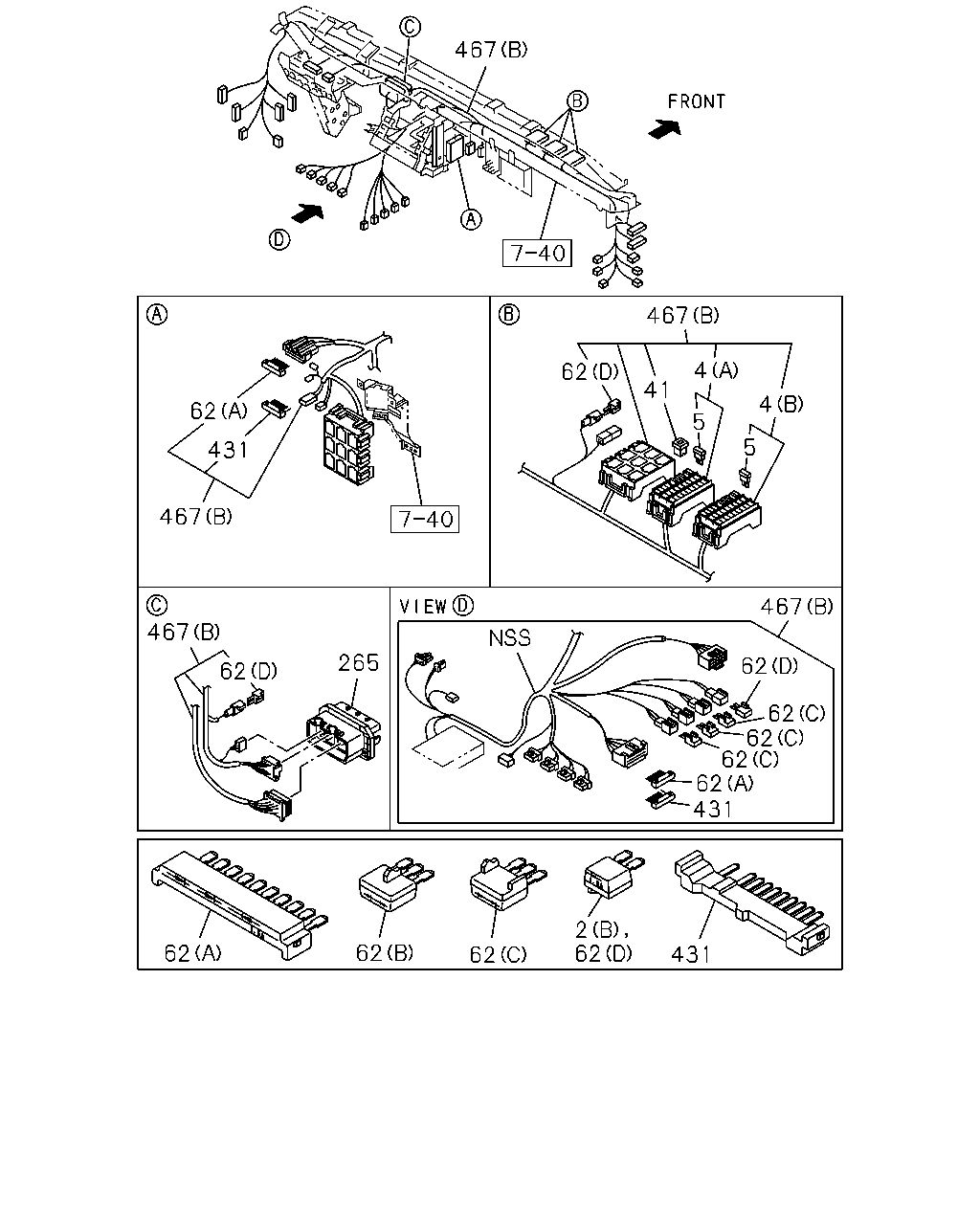

467 467 62 4 41 5 5 4 467 62 62 62 62 62 431 2 62 431 62 62 62 467 265 62 467 431 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A	1-81514-015-0	01	1	0106-
2	DIODE; CABLE HARNESS EXC. FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A	1-81514-015-0	01	1	0106-
2	DIODE; CABLE HARNESS BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	0106-
4	BOX ASM; FUSE,HARNESS ELECTRONIC GOV RED4(Q4F) (B) 15AX21 25AX2	1-82510-513-0	01	1	0106-
4	BOX ASM; FUSE,HARNESS ELECTRONIC GOV RED3(KG5) (A) 7.5AX24 10AX2	1-82510-473-0	01	1	0106-
4	BOX ASM; FUSE,HARNESS ELECTRONIC GOV RED3(KG5) (B) 15AX20 25AX2	1-82510-520-0	01	1	0106-
4	BOX ASM; FUSE,HARNESS ELECTRONIC GOV RED4(Q4F) (A) 7.5AX25	1-82510-418-0	01	1	0106-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	AR	1	0106-
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	AR	1	0106-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	AR	1	0106-
41	PULLER; FUSE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=25.3 B=11.5	8-94121-482-0	01	1	0106-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	0106-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0106-
62	DIODE; HARNESS (D) BLACK 2P-1.5A	8-94422-639-1	AR	1	0106-
62	DIODE; HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0106-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0106-
431	CONNECTOR; JOINT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 10P BROWN	1-82699-601-0	02	1	0106-
467	HARNESS; FACIA (A) UPPER	1-82629-927-1	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER	1-82660-436-3	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS> (B) LOWER	1-82660-437-3	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER	1-82660-433-3	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-435-4	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-434-3	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-438-4	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER	1-82660-472-6	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS> (B) LOWER	1-82660-473-6	01	1	0106-
467	HARNESS; FACIA ELECTRONIC GOV RED4(Q4F) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-474-7	01	1	0106-
467	HARNESS; FACIA GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER	1-82660-469-6	01	1	0106-
467	HARNESS; FACIA GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-471-7	01	1	0106-
467	HARNESS; FACIA GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-470-6	01	1	0106-

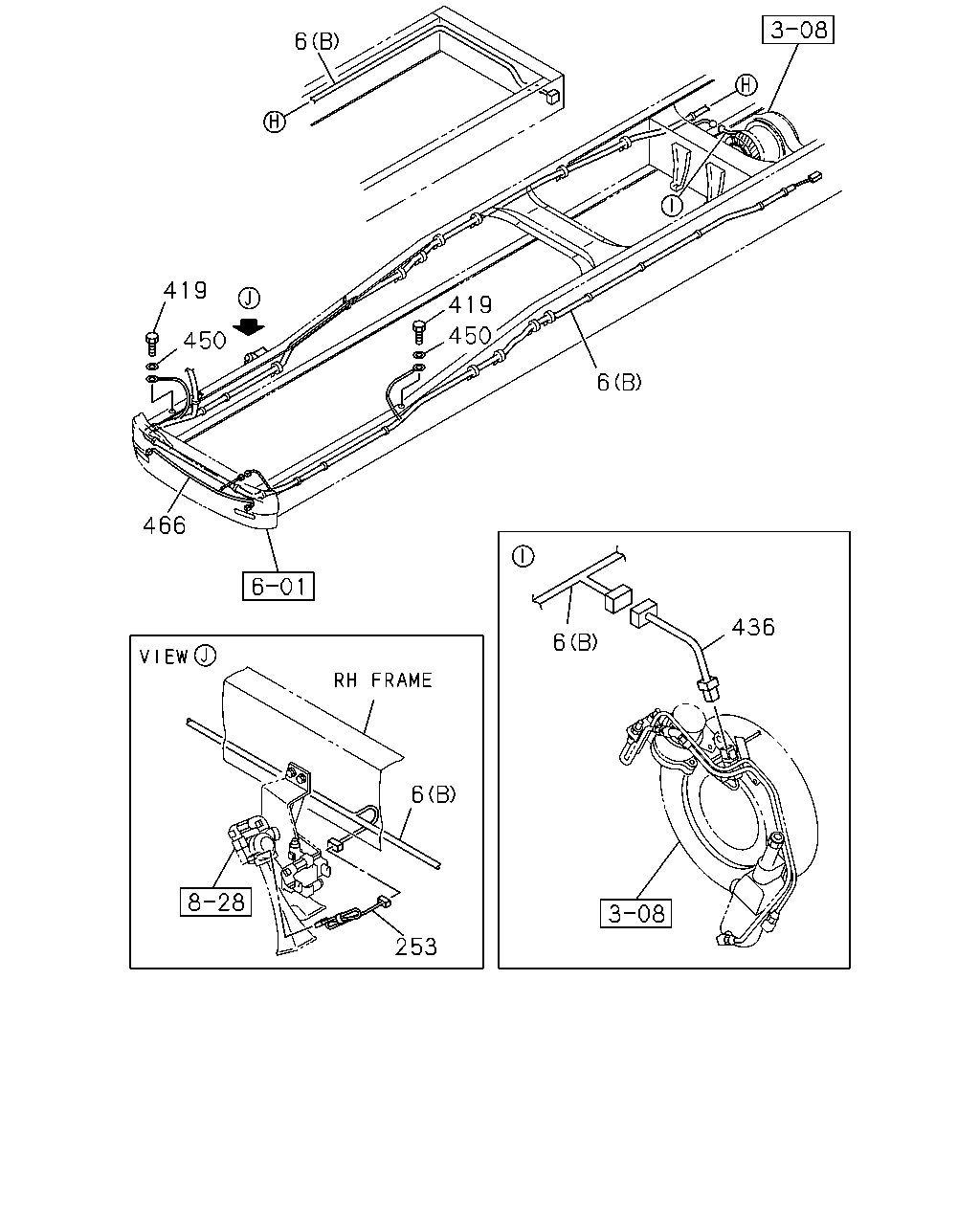

6 419 6 436 6 6 253 466 450 419 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A)	1-82674-842-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A)	1-82674-841-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A)	1-82674-840-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-752-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-505-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-753-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-506-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82674-754-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82675-507-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82674-751-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82675-504-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A)	1-82674-848-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A)	1-82674-847-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A)	1-82674-846-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-756-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-509-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-757-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-510-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82674-758-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82675-511-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82674-755-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82675-508-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-760-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-513-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-761-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-514-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (A)	1-82674-762-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (A)	1-82675-515-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (A)	1-82674-759-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (A)	1-82675-512-2	01	1	0110-
253	HARNESS; EXT,HORN 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN>	1-82677-941-0	01	1	0405-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	0106-
436	HARNESS; RETARDER BRAKE SYSTEM RETARDER<RE2>	1-82671-549-2	01	1	0106-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	0106-
466	HARNESS; BUMPER	1-82639-281-0	01	1	0106-

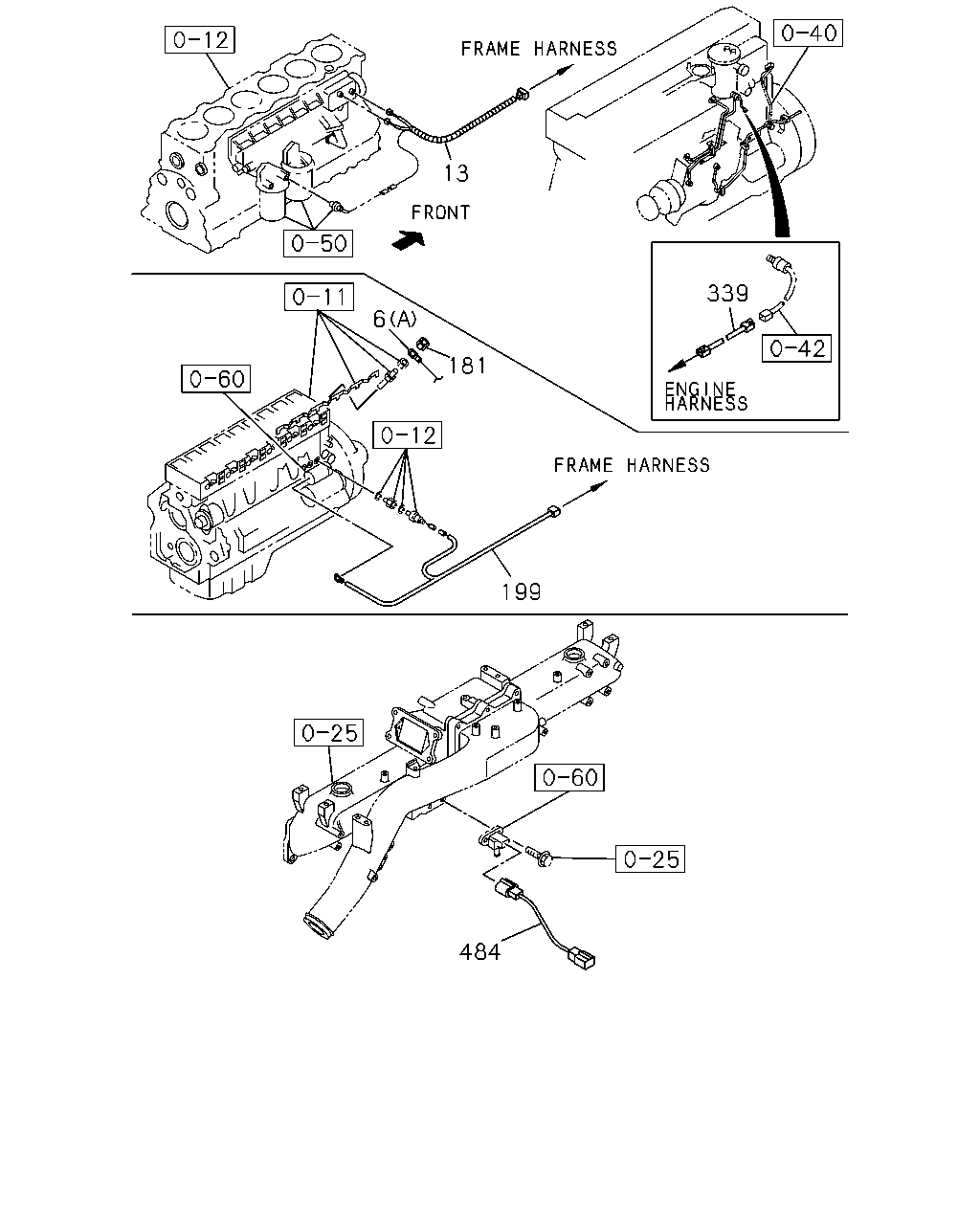

484 199 181 6 13 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A)	1-82674-842-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A)	1-82674-841-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A)	1-82674-840-2	01	1	0106-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-752-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-505-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-753-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-506-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82674-754-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82675-507-2	01	1	0110-
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82674-751-3	01	1	0106-0109
6	HARNESS; FRAME 6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82675-504-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A)	1-82674-848-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A)	1-82674-847-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A)	1-82674-846-2	01	1	0106-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-756-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-509-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-757-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-510-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82674-758-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B)	1-82675-511-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82674-755-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3500MM(35W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B)	1-82675-508-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82674-760-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-82675-513-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82674-761-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B)	1-82675-514-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (A)	1-82674-762-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (A)	1-82675-515-2	01	1	0110-
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (A)	1-82674-759-3	01	1	0106-0109
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 3800MM(38W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (A)	1-82675-512-2	01	1	0110-
13	HARNESS; ENG	1-82640-553-4	01	1	0106-
181	NUT; GLOW PLUG HARNESS GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M4 FLANGE	5-09440-007-0	01	1	0106-
199	HARNESS; STARTER	1-82640-734-1	01	1	0106-
339	HARNESS; EXT,FUEL 6WF1 TC-C(1B8)	1-82641-316-0	01	1	0311-
484	HARNESS; BOOST SENSOR 6WF1 TC-C(1B8)	1-82641-149-0	01	1	0106-

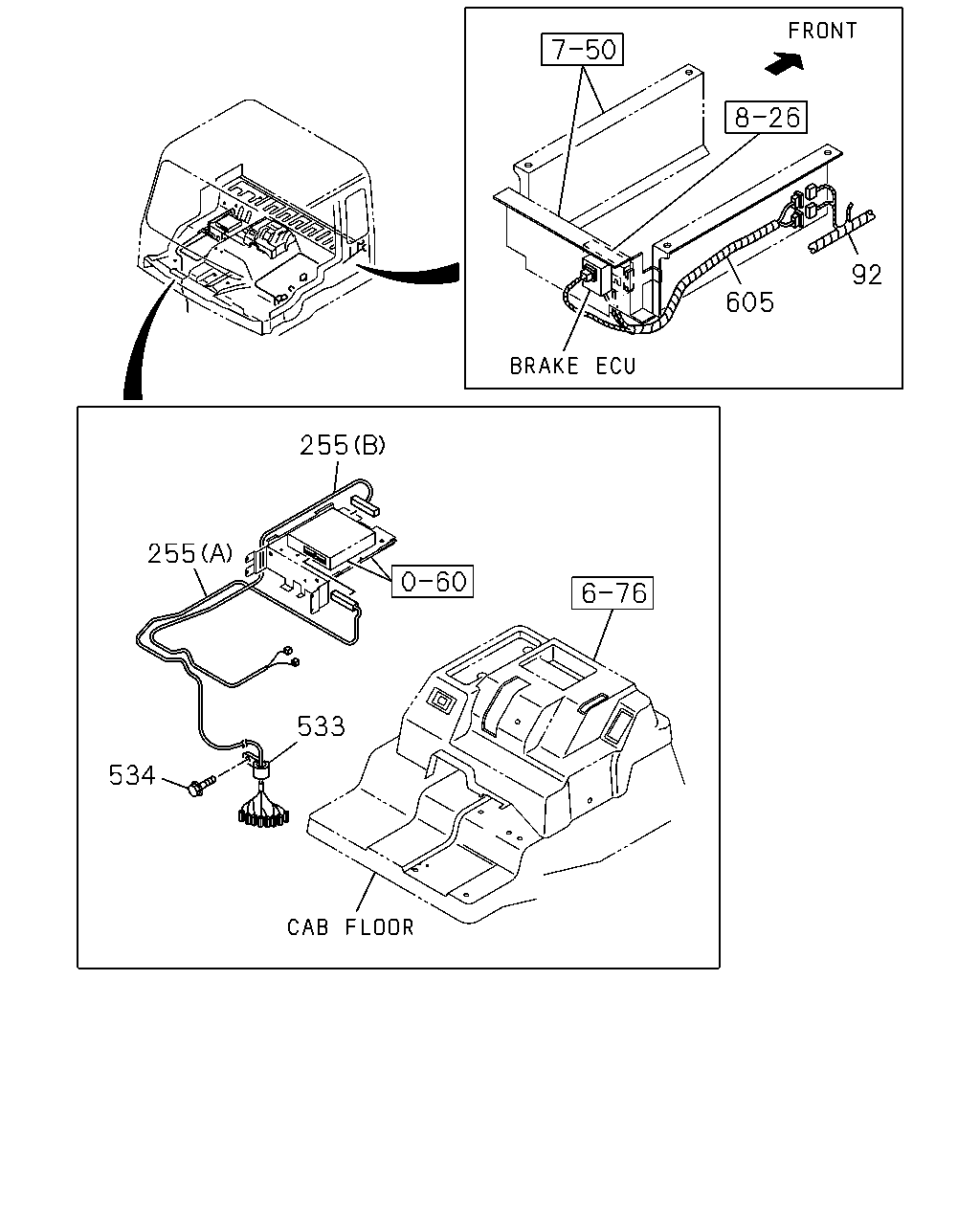

605 92 255 255 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HARNESS; FLOOR ELECTRONIC GOV RED4(Q4F)	1-82660-397-3	01	1	0106-
92	HARNESS; FLOOR EXC. ELECTRONIC GOV RED4(Q4F)	1-82660-394-3	01	1	0106-
255	HARNESS; ELEC GOV ELECTRONIC GOV RED3(KG5) (A)	1-82660-375-2	01	1	0106-
255	HARNESS; ELEC GOV ELECTRONIC GOV RED3(KG5) (B)	1-82660-381-2	01	1	0106-
255	HARNESS; ELEC GOV ELECTRONIC GOV RED4(Q4F) (A)	1-82660-378-2	01	1	0106-
255	HARNESS; ELEC GOV ELECTRONIC GOV RED4(Q4F) (B)	1-82660-385-2	01	1	0106-
533	CLIP ID=19 L=32	1-09701-235-0	02	1	0106-0109
533	CLIP ID=21 L=24	8-94176-807-1	02	1	0110-
534	BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0106-
605	HARNESS; SEAT ELECTRONIC GOV RED4(Q4F)	1-82660-400-1	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
