◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#113263) — 80 parça
çizim 329259
6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS RUSSIAN<SL6> 		8-98138-684-0 01 1 1302- ●

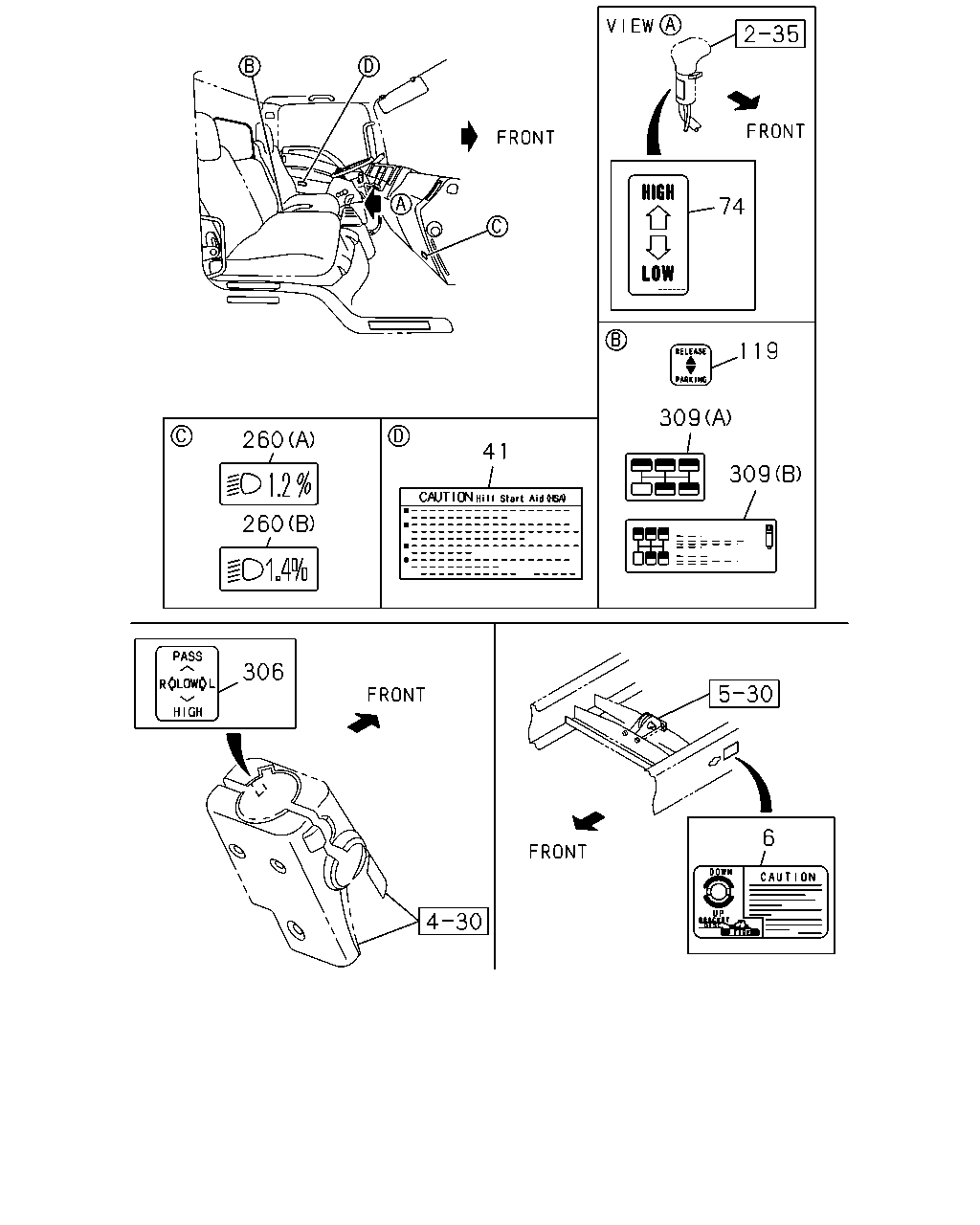

çizim 329599
260 260 306 41 74 119 309 309 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1302- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS RUSSIAN<SL6> 		8-98138-684-0 01 1 1302- ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		8-98141-836-0 01 1 1302-1511 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98141-836-0 01 1 1302-1511 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		8-98141-836-0 01 1 1512- ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98141-836-0 01 1 1512- ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> CAUTIONS FRENCH<WJ8> 		8-98141-839-0 01 1 1302-1511 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> CAUTIONS FRENCH<WJ8> 		8-98141-839-0 01 1 1302-1511 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> CAUTIONS FRENCH<WJ8> 		8-98141-839-0 01 1 1512- ● ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> CAUTIONS SPANISH<YN1> 		8-98141-840-0 01 1 1302-1511 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> CAUTIONS SPANISH<YN1> 		8-98141-840-0 01 1 1302-1511 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> CAUTIONS SPANISH<YN1> 		8-98141-840-0 01 1 1512- ● ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> CAUTIONS ARABIAN<WJ7> 		8-98141-841-0 01 1 1302-1511 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> CAUTIONS ARABIAN<WJ7> 		8-98141-841-0 01 1 1302-1511 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> CAUTIONS ARABIAN<WJ7> 		8-98141-841-0 01 1 1512- ● ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 1302- ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAUTIONS RUSSIAN<SL6> 		8-98212-434-0 01 1 1302- ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CAUTIONS RUSSIAN<SL6> 		1-85881-759-0 01 1 1302- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1302- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
RUSSIA EQUIPMENT(B12) (A) 		1-85878-416-1 01 1 1302-1405 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
RUSSIA EQUIPMENT(B12) (A) 		1-85878-416-1 01 1 1406- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A) 		1-85878-416-1 01 1 1406- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98008-779-0 01 1 1302-1405 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
(B) 		8-98008-779-0 01 1 1302-1405 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98008-779-0 01 1 1406- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) 		8-98008-779-0 01 1 1406- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
(B) 		8-98008-779-0 01 1 1406- ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1302- ● ●
309 LABEL; M/T SHIFT
FULLER ES11109 DD M/T(Y5N) (A) 		1-85881-598-0 01 1 1302- ●
309 LABEL; M/T SHIFT
FULLER FS8209HD DD M/T(Y3A) (A) 		1-85881-598-0 01 1 1302- ●
309 LABEL; M/T SHIFT
FULLER ES11109 DD M/T(Y5N) (B) 		8-98098-606-0 01 1 1302- ●
309 LABEL; M/T SHIFT
FULLER FS8209HD DD M/T(Y3A) (B) 		8-98098-606-0 01 1 1302- ●
çizim 329697
35 35 9 160 140 140 49
BalonParca AdiParca NoAdetTipApplied Date A B
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) TIRE 295/80R22.5-152/148M RIB EEC(55P) SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> KD PREPARATORY PACK<6HF> CATALYSIS CONTROL<6MZ> 		8-98337-049-0 01 1 1601- ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) TIRE 295/80R22.5-152/148M RIB EEC(55P) SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> KD PREPARATORY PACK<6HF> CATALYSIS CONTROL WITH DPD<8JM> 		8-98337-050-0 01 1 1601- ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98285-784-0 01 1 1410-1512 ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL<6MZ> 		8-98285-784-0 01 1 1601- ●
9 PLATE; NAME,SPD RANGE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TIRE 12R22.5-16 RIB(75N) SPEED LIMITER 85KM(EDX) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98281-541-0 01 1 1406-1409 ●
9 PLATE; NAME,SPD RANGE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TIRE 12R22.5-16 RIB(75N) SPEED LIMITER 85KM(EDX) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> KD PREPARATORY PACK<6HF> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98281-541-0 01 1 1410-1512 ●
9 PLATE; NAME,SPD RANGE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TIRE 12R22.5-16 RIB(75N) SPEED LIMITER 85KM(EDX) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> KD PREPARATORY PACK<6HF> CATALYSIS CONTROL<6MZ> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98281-541-0 01 1 1601- ●
35 PLATE; CAUTION,CAB
AUTO CAB TILT<WV2> (B) 		8-98017-667-1 01 1 1302- ●
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> EXC. AUTO CAB TILT<WV2> (A) 		8-98070-107-0 01 1 1302- ●
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> (A) 		8-98070-107-0 01 1 1302- ●
35 PLATE; CAUTION,CAB
CAUTIONS FRENCH<WJ8> EXC. AUTO CAB TILT<WV2> (A) 		8-98070-108-0 01 1 1302- ●
35 PLATE; CAUTION,CAB
CAUTIONS FRENCH<WJ8> (A) 		8-98070-108-0 01 1 1302- ●
35 PLATE; CAUTION,CAB
CAUTIONS RUSSIAN<SL6> EXC. AUTO CAB TILT<WV2> (A) 		8-98212-191-0 01 1 1302- ●
35 PLATE; CAUTION,CAB
EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,AUTO CAB TILT<WV2>,CAUTIONS SPANISH<YN1> (A) 		8-98065-363-0 01 1 1302- ●
35 PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A) 		8-98065-363-0 01 1 1302- ●
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> EXC. AUTO CAB TILT<WV2> (A) 		8-98070-109-0 01 1 1302- ●
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> (A) 		8-98070-109-0 01 1 1302- ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS RUSSIAN<SL6> 		8-98212-301-0 01 1 1302- ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 1302- ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 1302- ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-98127-559-0 01 1 1302- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		8-98127-560-0 01 1 1302- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98069-841-0 01 1 1302- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 02 1 1302- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98139-964-0 01 1 1302- ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) CAUTIONS FRENCH<WJ8> 		8-98292-865-0 01 1 1410- ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) CAUTIONS ARABIAN<WJ7> 		8-98252-676-0 01 1 1309- ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) CAUTIONS RUSSIAN<SL6> 		8-98224-246-0 01 1 1302- ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS SPANISH<YN1> 		1-85888-737-1 01 1 1302-1308 ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> 		1-85888-737-1 01 1 1309-1409 ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) EXC. CAUTIONS RUSSIAN<SL6>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-85888-737-1 01 1 1410- ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) CAUTIONS SPANISH<YN1> 		8-98190-143-0 01 1 1302- ●
