Sayfa 7-10 - Isuzu EPC

7-10 — CAUTION PLATE AND LABEL (#113261) — 9 parça

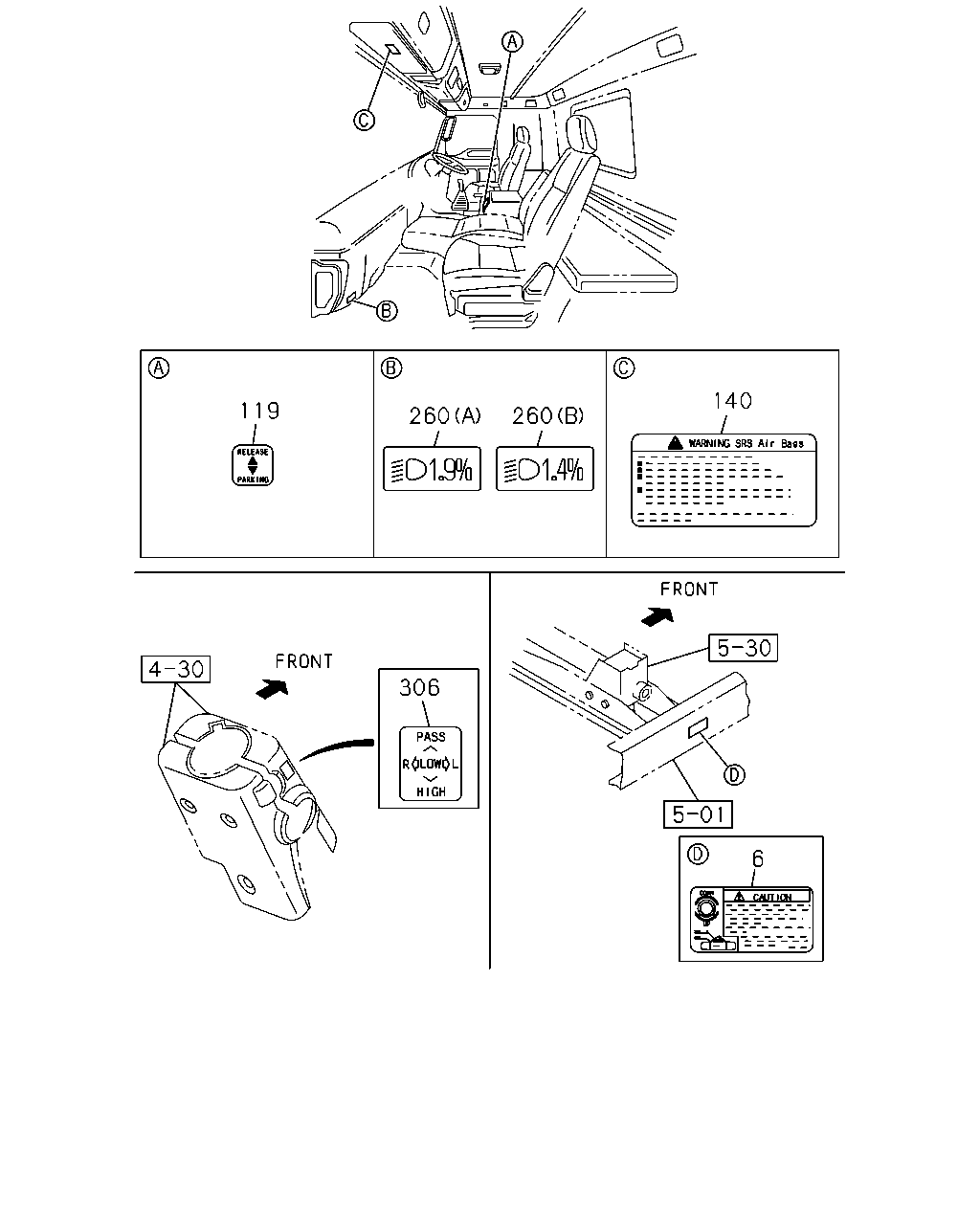

119 260 260 140 306 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE	8-98082-437-0	01	1	1302-
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	1302-
140	PLATE; CAUTION,SRS AIR BAG DRIVER(AJ3)	8-98139-964-0	01	1	1302-
260	PLATE; CAUTION,HEAD LAMP LEVELING 4HK1-TCS ENG(RJS) (B)	8-98008-779-0	01	1	1302-
260	PLATE; CAUTION,HEAD LAMP LEVELING 6HK1-TCN ENG(82L) (A)	1-85878-501-1	01	1	1302-
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1302-

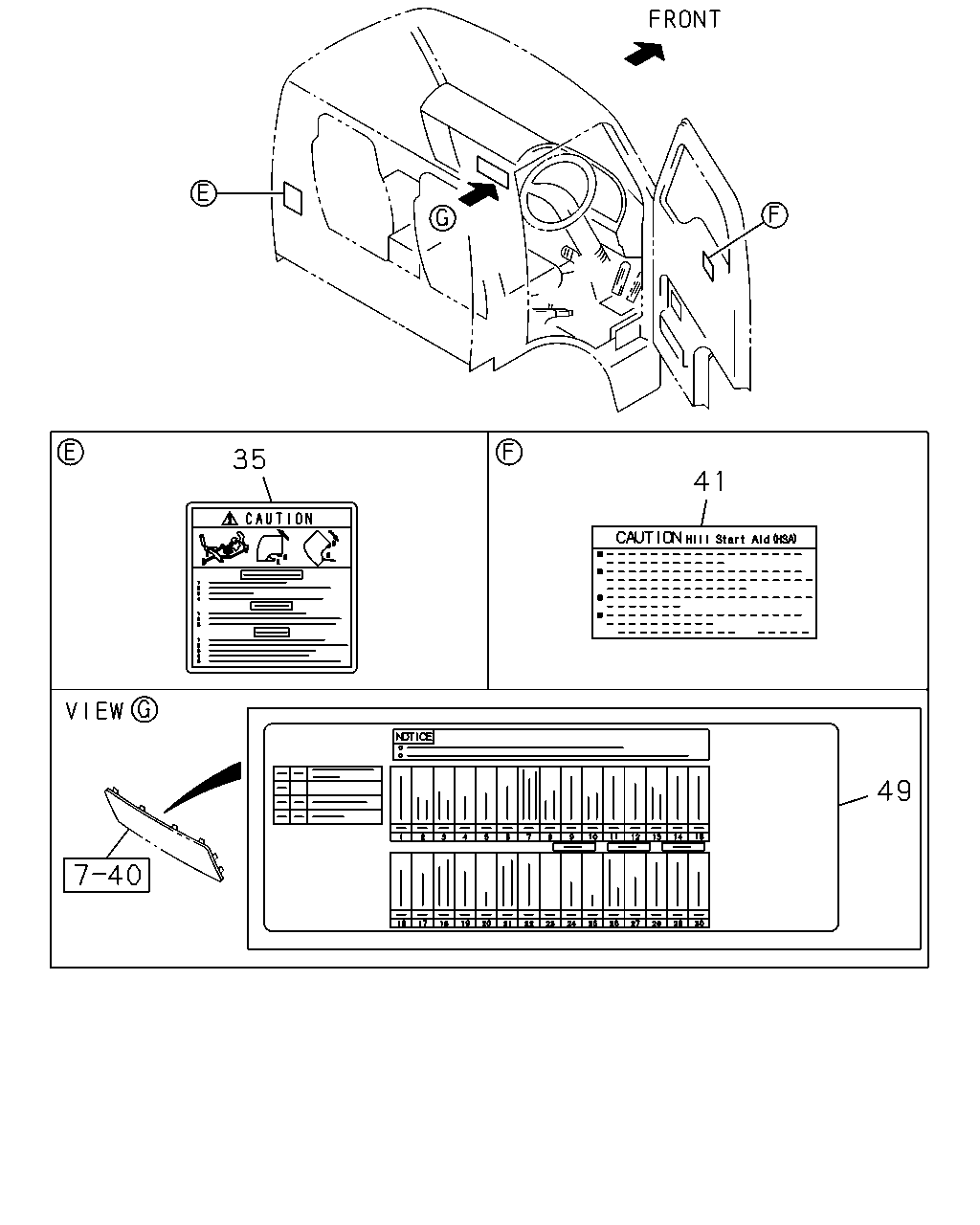

35 41 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	PLATE; CAUTION,CAB	8-98065-363-0	01	1	1302-
41	PLATE; CAUTION,HSA H.S.A SYSTEM<6EP>	8-98141-836-0	01	1	1302-
49	PLATE; CAUTION,FUSE BOX	8-98122-353-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
