◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11512 - FTR(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#113254) — 65 parça

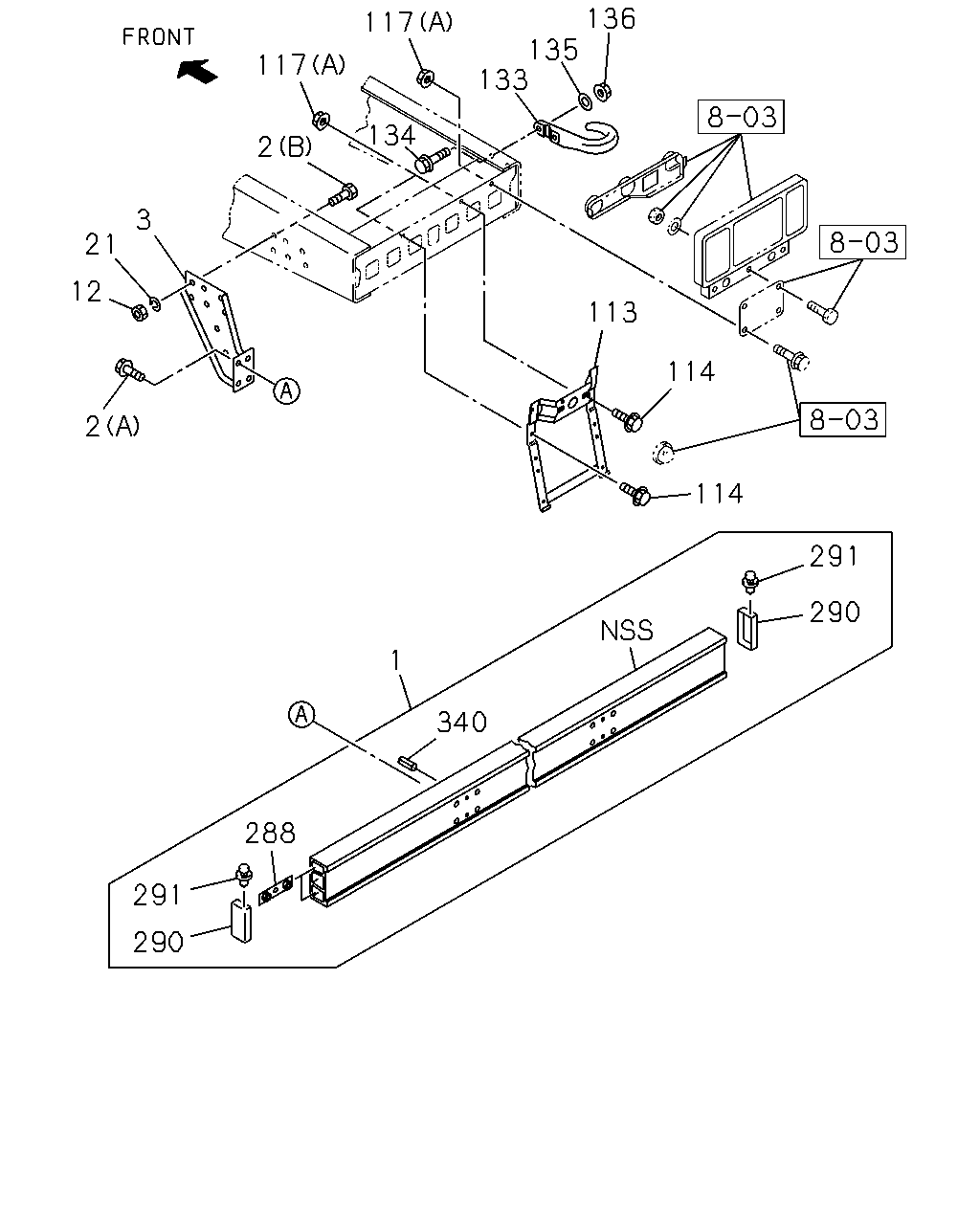

çizim 329292
3 21 12 2 1 340 288 291 290 290 291 114 114 113 136 135 133 134 2 117 117
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER; RR
MOROCCO EQUIPMENT(CGA) REAR UNDERRUN PROTECTOR<6DY> STAMP E4W 		8-98194-029-0 01 1 1406-
1 BUMPER; RR
REAR UNDERRUN PROTECTOR<6DY> STAMP E3W 		8-98098-060-0 01 1 1402-1405
1 BUMPER; RR
REAR UNDERRUN PROTECTOR<6DY> EXC. MOROCCO EQUIPMENT(CGA) STAMP E3W 		8-98098-060-0 01 1 1406-
2 BOLT; BACK BAR
REAR UNDERRUN PROTECTOR<6DY> (B) M16X50 		0-20851-650-0 04 1 1402-
2 BOLT; BACK BAR
REAR UNDERRUN PROTECTOR<6DY> (A) M12X30 FLANGE 		0-28651-230-0 08 1 1402-
3 BRACKET; BUMPER
REAR UNDERRUN PROTECTOR<6DY> STAMP BL1 		1-71230-587-0 01 1 1402-
3 BRACKET; BUMPER
REAR UNDERRUN PROTECTOR<6DY> STAMP BL1 		1-71230-594-0 01 1 1402-
12 NUT; BRKT
REAR UNDERRUN PROTECTOR<6DY> M16 		0-91110-516-0 04 1 1402-
21 WASHER; LK,BUMPER
REAR UNDERRUN PROTECTOR<6DY> ID=16.2 		0-91510-816-0 04 1 1402-
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 1302-1511
113 BRACKET; LICENSE PLATE
EXC. MOROCCO EQUIPMENT(CGA) 		1-53485-074-0 01 1 1512-
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 1302-1511
114 BOLT; BRKT,LICENSE PLATE
EXC. MOROCCO EQUIPMENT(CGA) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
117 NUT; BRKT
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) M10 FLANGE 		0-91180-210-0 06 1 1406-
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-1405
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-1405
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1406-1408
117 NUT; BRKT
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A) M8 FLANGE 		0-91180-108-0 02 1 1406-1408
117 NUT; BRKT
EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1406-1408
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1409-1409
117 NUT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1409-1409
117 NUT; BRKT
EXC. VIN MODEL YEAR 2014<VZE> (A) M8 FLANGE 		0-91180-108-0 02 1 1409-1409
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1410-1505
117 NUT; BRKT
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1410-1505
117 NUT; BRKT
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) M8 FLANGE 		0-91180-108-0 02 1 1410-1505
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1506-1511
117 NUT; BRKT
EXC. VIN MODEL YEAR 2014<VZE> (A) M8 FLANGE 		0-91180-108-0 02 1 1506-1511
117 NUT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1506-1511
117 NUT; BRKT
EXC. VIN MODEL YEAR 2014<VZE> (A) M8 FLANGE 		0-91180-108-0 02 1 1512-
117 NUT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1512-
117 NUT; BRKT
EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1512-
133 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 1302-
134 BOLT; HOOK
TOW HOOK<V76> M16X50 		0-20851-650-0 01 1 1302-
134 BOLT; HOOK
TOW HOOK<V76> M16X60 		0-20851-660-0 01 1 1302-
135 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		0-91510-816-0 02 1 1302-
136 NUT; HOOK
TOW HOOK<V76> M16 		0-91110-516-0 02 1 1302-
288 PLATE; RR BUMPER,REFLECTOR
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-066-0 04 1 1402-
290 COVER; RR
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-067-0 02 1 1402-
291 RIVET; REFLECTOR
MOROCCO EQUIPMENT(CGA) REAR UNDERRUN PROTECTOR<6DY> 		1-71290-062-0 04 1 1406-
291 RIVET; REFLECTOR
REAR UNDERRUN PROTECTOR<6DY> 		8-98099-978-0 04 1 1402-1405
291 RIVET; REFLECTOR
REAR UNDERRUN PROTECTOR<6DY> EXC. MOROCCO EQUIPMENT(CGA) 		8-98099-978-0 04 1 1406-
340 RIVET
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-065-0 04 1 1402-1405
340 RIVET
REAR UNDERRUN PROTECTOR<6DY> EXC. MOROCCO EQUIPMENT(CGA) 		1-71290-065-0 04 1 1406-
çizim 426496
283 117
BalonParca AdiParca NoAdetTipApplied Date
117 NUT; BRKT
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) M10 FLANGE 		0-91180-210-0 06 1 1406-
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-1405
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-1405
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1406-1408
117 NUT; BRKT
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A) M8 FLANGE 		0-91180-108-0 02 1 1406-1408
117 NUT; BRKT
EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1406-1408
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1409-1409
117 NUT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1409-1409
117 NUT; BRKT
EXC. VIN MODEL YEAR 2014<VZE> (A) M8 FLANGE 		0-91180-108-0 02 1 1409-1409
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1410-1505
117 NUT; BRKT
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1410-1505
117 NUT; BRKT
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) M8 FLANGE 		0-91180-108-0 02 1 1410-1505
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1506-1511
117 NUT; BRKT
EXC. VIN MODEL YEAR 2014<VZE> (A) M8 FLANGE 		0-91180-108-0 02 1 1506-1511
117 NUT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1506-1511
117 NUT; BRKT
EXC. VIN MODEL YEAR 2014<VZE> (A) M8 FLANGE 		0-91180-108-0 02 1 1512-
117 NUT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1512-
117 NUT; BRKT
EXC. MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1512-
283 REFLECTOR; REFLEX,RR
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		1-82290-011-1 04 1 1406-1409
283 REFLECTOR; REFLEX,RR
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-82290-011-1 04 1 1410-
283 REFLECTOR; REFLEX,RR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		1-82290-011-1 08 1 1406-1409
283 REFLECTOR; REFLEX,RR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-82290-011-1 08 1 1410-
