Isuzu WW
▶
TRUCKS
▶
FRR
▶
11507 - FRR RHD EURO2/4 SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

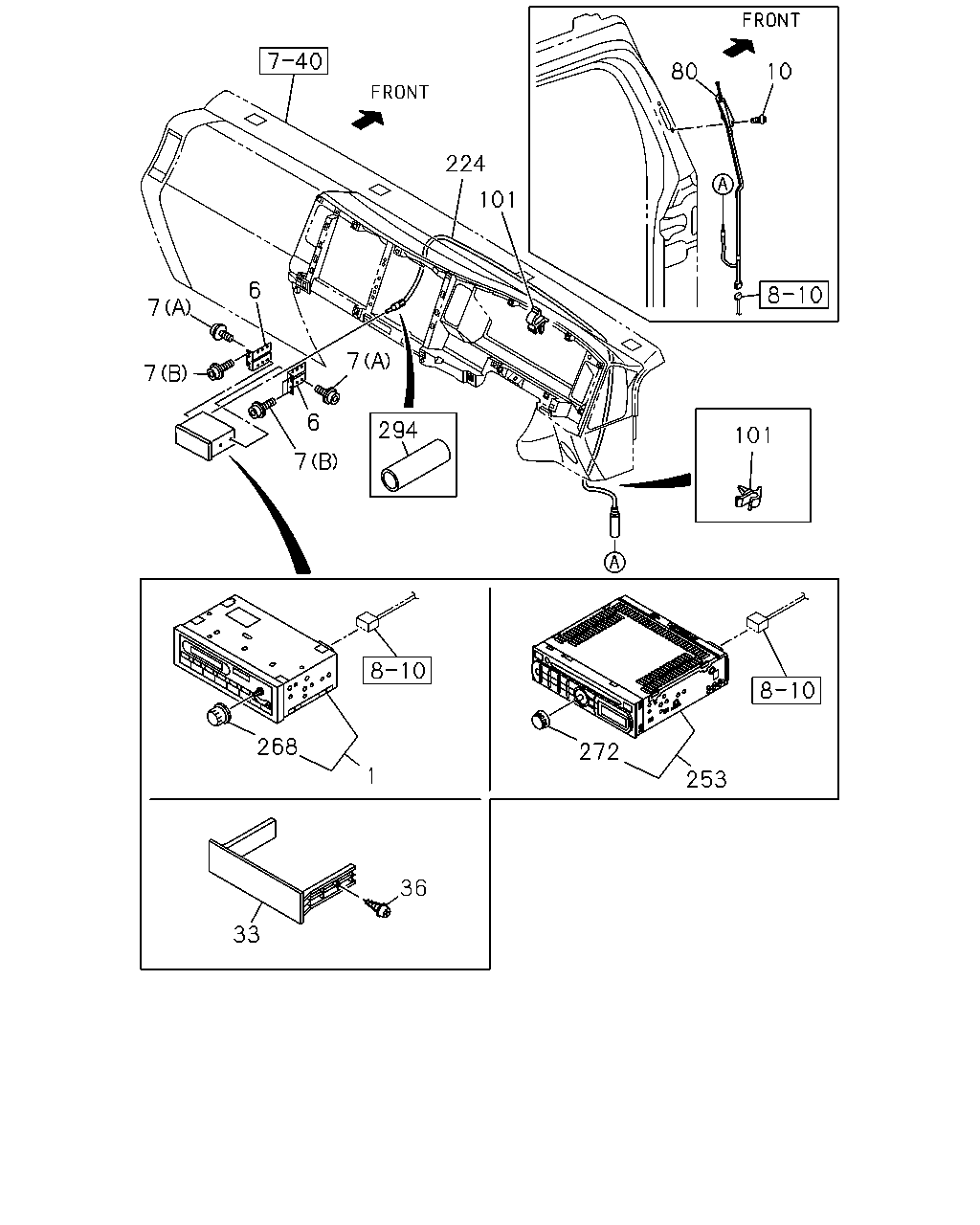

8-90 — RADIO AND TV
(#113249) — 23 parça
◀
[890A] NO.1 (20 parça)
[890A] NO.2 (3 parça)
▶
80
10
7
224
101
6
7
7
6
7
294
101
272
253
268
1
36
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIO
RADIO AM/FM(U69)
8-98032-643-0
01
1
1302-1511
1
RADIO
RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN>
8-98032-643-0
01
1
1512-
6
BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
1302-
7
SCREW; RADIO
(B) M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1302-
7
SCREW; RADIO
RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) (A) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1302-1511
7
SCREW; RADIO
TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1512-
10
SCREW; ANTENNA CABLE
M5X11
1-09981-536-1
02
1
1302-
33
COVER; RADIO
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) BLACK
8-97407-896-2
01
1
1302-
36
SCREW; COVER
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1302-
80
ANTENNA
8-98139-014-0
01
1
1302-
101
CLIP; FEEDER TO BRKT
ID=4.8
8-94128-483-0
03
1
1302-
224
CABLE; EXT,FEEDER
8-98063-002-1
01
1
1302-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND LATIN AMERICA<7DM>
8-98112-329-0
01
1
1302-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM>
8-98017-752-0
01
1
1302-1511
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND ASIA<7DN>
8-98017-752-0
01
1
1512-
268
KNOB; VOL
RADIO AM/FM(U69) CLARION
8-97375-820-0
01
1
1302-1511
268
KNOB; VOL
RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION
8-97375-820-0
01
1
1512-
272
KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) CLARION
8-98048-329-0
01
1
1302-1511
272
KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION
8-98048-329-0
01
1
1512-
294
CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69)
8-98095-617-1
01
1
1302-
49
48
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

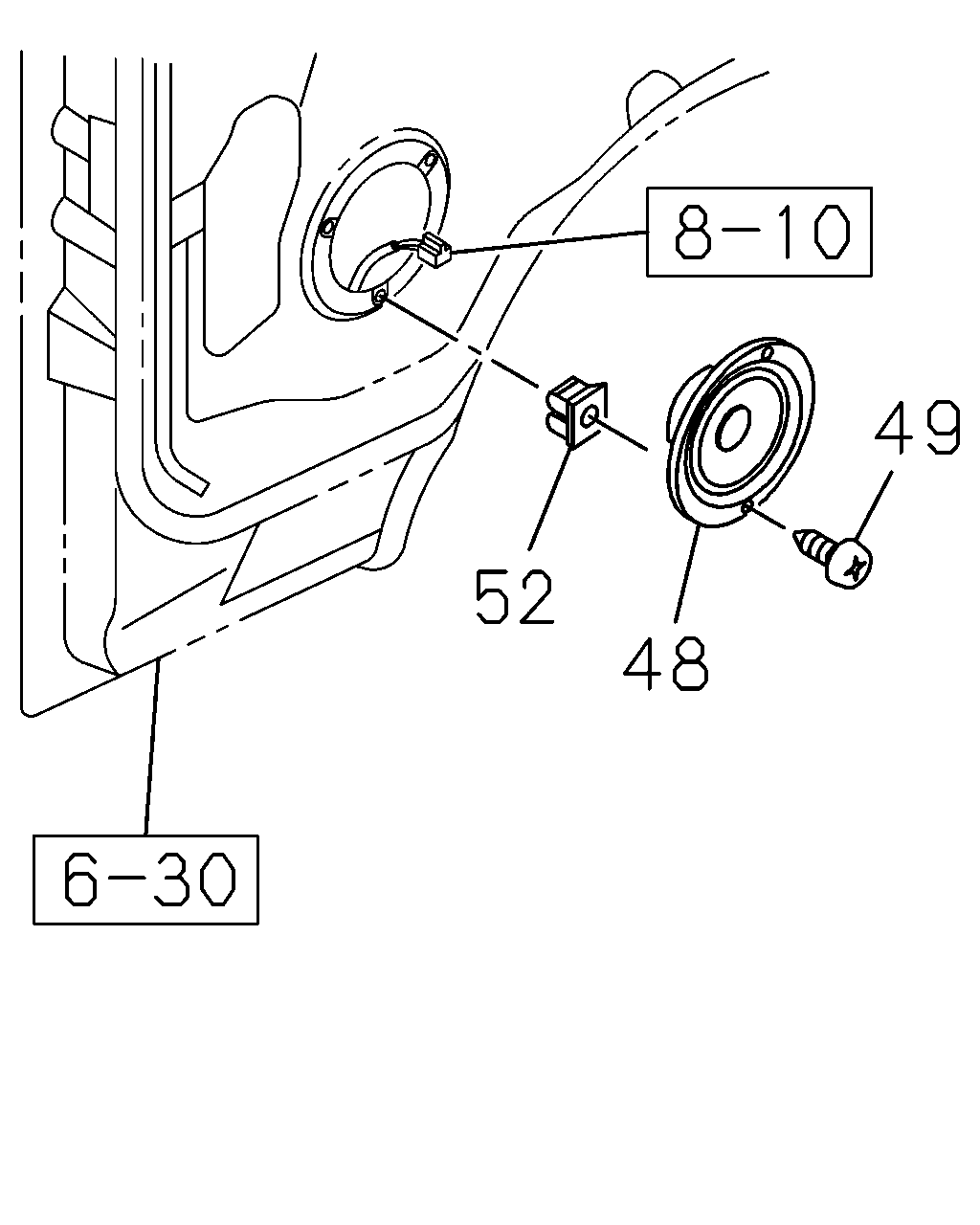

48
SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95>
8-97317-001-1
02
1
1302-
49
SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
1302-
52
GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1302-
