8-80 — WINDSHIELD WIPER AND WASHER (#113242) — 134 parça

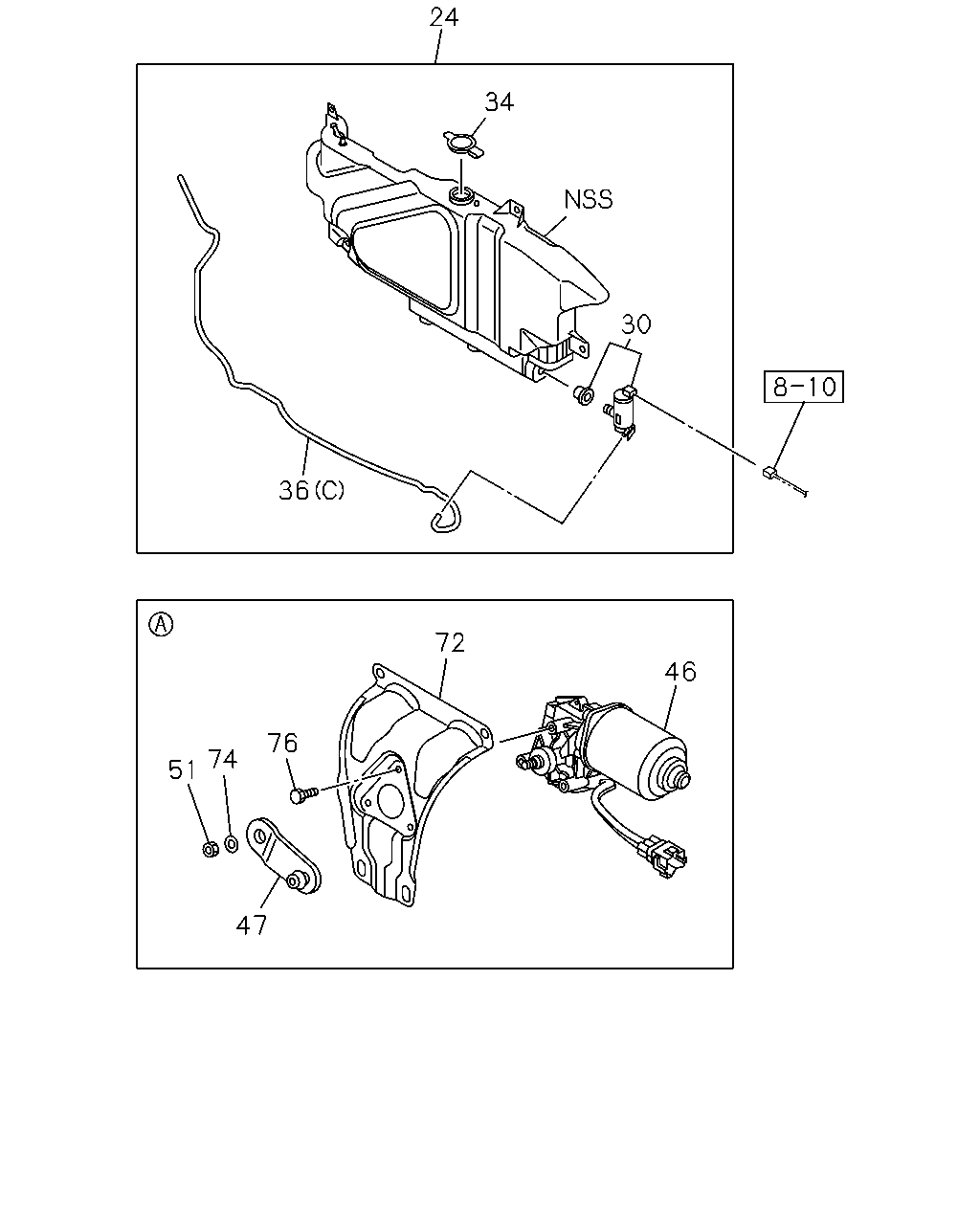

çizim 330420
24 34 36 51 72 76 74 46 47 30
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER 8-98039-661-4 01 1 1302- ● ●
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 1302- ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 1302- ● ●
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1302- ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1302- ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1302- ● ●
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 1302- ●
36 HOSE; WASHER
(E) 		8-98078-826-0 01 1 1302- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-806-1 01 1 1302- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-808-1 01 1 1302- ●
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 1302- ● ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 1302- ● ●
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 1302- ● ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 1302- ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 1302- ●
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 1302- ●

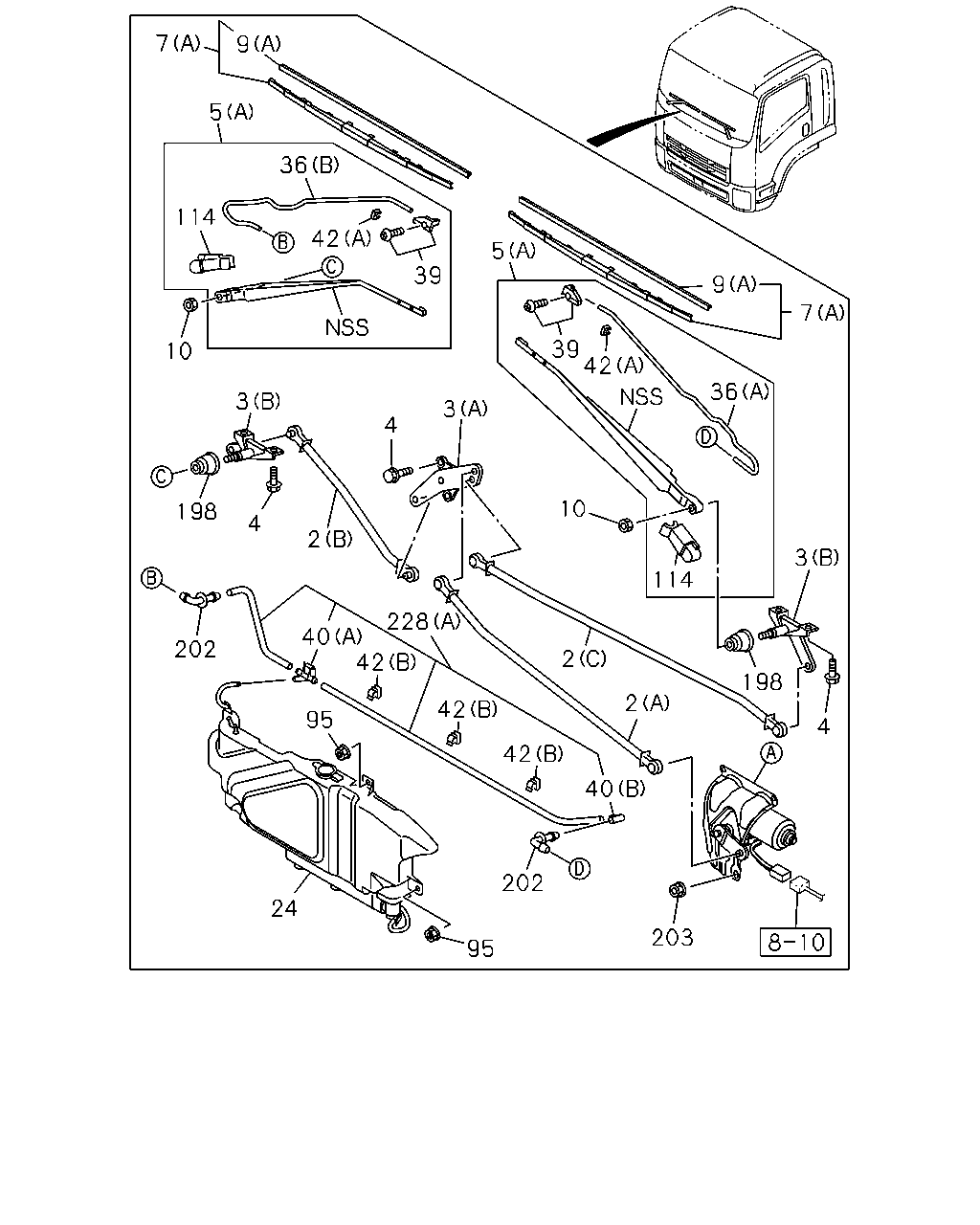

çizim 330560
7 9 5 36 114 42 39 10 5 9 7 39 42 36 3 198 4 2 2 10 3 4 3 198 4 2 228 42 42 40 203 202 95 24 95 202 42 40 114
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
(C) 		8-98078-809-0 01 1 1302- ●
2 LINK; FRT WIPER
(B) 		8-98078-810-1 01 1 1302- ●
2 LINK; FRT WIPER
(A) 		8-98078-811-0 01 1 1302- ●
2 LINK; FRT WIPER
(D) 		8-98078-812-0 01 1 1302- ●
2 LINK; FRT WIPER
(E) 		8-98078-813-0 01 1 1302- ●
2 LINK; FRT WIPER
(F) 		8-98078-814-1 01 1 1302- ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-815-0 01 1 1302- ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-816-1 02 1 1302- ●
3 PIVOT ASM; FRT WIPER
(E) 		8-98068-140-1 01 1 1302- ●
3 PIVOT ASM; FRT WIPER
(C) 		8-98078-817-1 01 1 1302- ●
3 PIVOT ASM; FRT WIPER
(D) 		8-98078-818-1 01 1 1302- ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 07 1 1302- ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 06 1 1302- ●
5 ARM; WIPER
(A) 		8-98078-820-1 01 1 1302- ●
5 ARM; WIPER
(A) 		8-98078-819-1 01 1 1302- ●
5 ARM; WIPER
(C) 		8-98078-821-1 01 1 1302- ●
5 ARM; WIPER
(D) 		8-98078-822-1 01 1 1302- ●
5 ARM; WIPER
(B) 		8-98078-823-1 01 1 1302- ●
7 BLADE; WIPER
(A) 		1-83315-046-2 01 1 1302- ●
7 BLADE; WIPER
(A) 		1-83315-045-2 01 1 1302- ●
7 BLADE; WIPER
(C) 		1-83315-047-2 02 1 1302- ●
7 BLADE; WIPER
(B) 		1-83315-048-2 01 1 1302- ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-035-0 02 1 1302- ●
7 BLADE; WIPER
(C) BEST VALUE PARTS 		5-87610-034-0 02 1 1302- ●
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-83355-014-0 02 1 1302- ●
9 RUBBER; FRT WIPER BLADE
(C) L=500 		1-83355-015-0 02 1 1302- ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-83355-016-0 01 1 1302- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 1302- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 1302- ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 1302- ● ●
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1302- ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1302- ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1302- ● ●
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 1302- ●
36 HOSE; WASHER
(E) 		8-98078-826-0 01 1 1302- ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 01 1 1302- ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 01 1 1302- ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 03 1 1302- ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 01 1 1302- ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1302- ● ●
40 JOINT; WASHER HOSE
(C) 		8-97167-258-0 01 1 1302- ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 1302- ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 02 1 1512- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 1302- ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1302-1511 ● ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1512- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 1302- ●
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 1302- ● ●
114 COVER; FRT WIPER ARM 1-83318-127-0 01 1 1302- ●
114 COVER; FRT WIPER ARM 1-83318-126-0 01 1 1302- ●
114 COVER; FRT WIPER ARM 1-83318-126-0 03 1 1302- ●
198 COVER; PIVOT,WIPER 8-98038-892-1 02 1 1302- ●
198 COVER; PIVOT,WIPER 8-98038-892-1 03 1 1302- ●
202 GROMMET; WIPER 1-86815-003-2 02 1 1302- ●
202 GROMMET; WIPER 1-86815-003-2 03 1 1302- ●
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 1302- ● ●
228 HOSE ASM; WASHER
(A) 		8-98039-704-0 01 1 1302- ●
228 HOSE ASM; WASHER
(B) 		8-98039-703-2 01 1 1302- ●

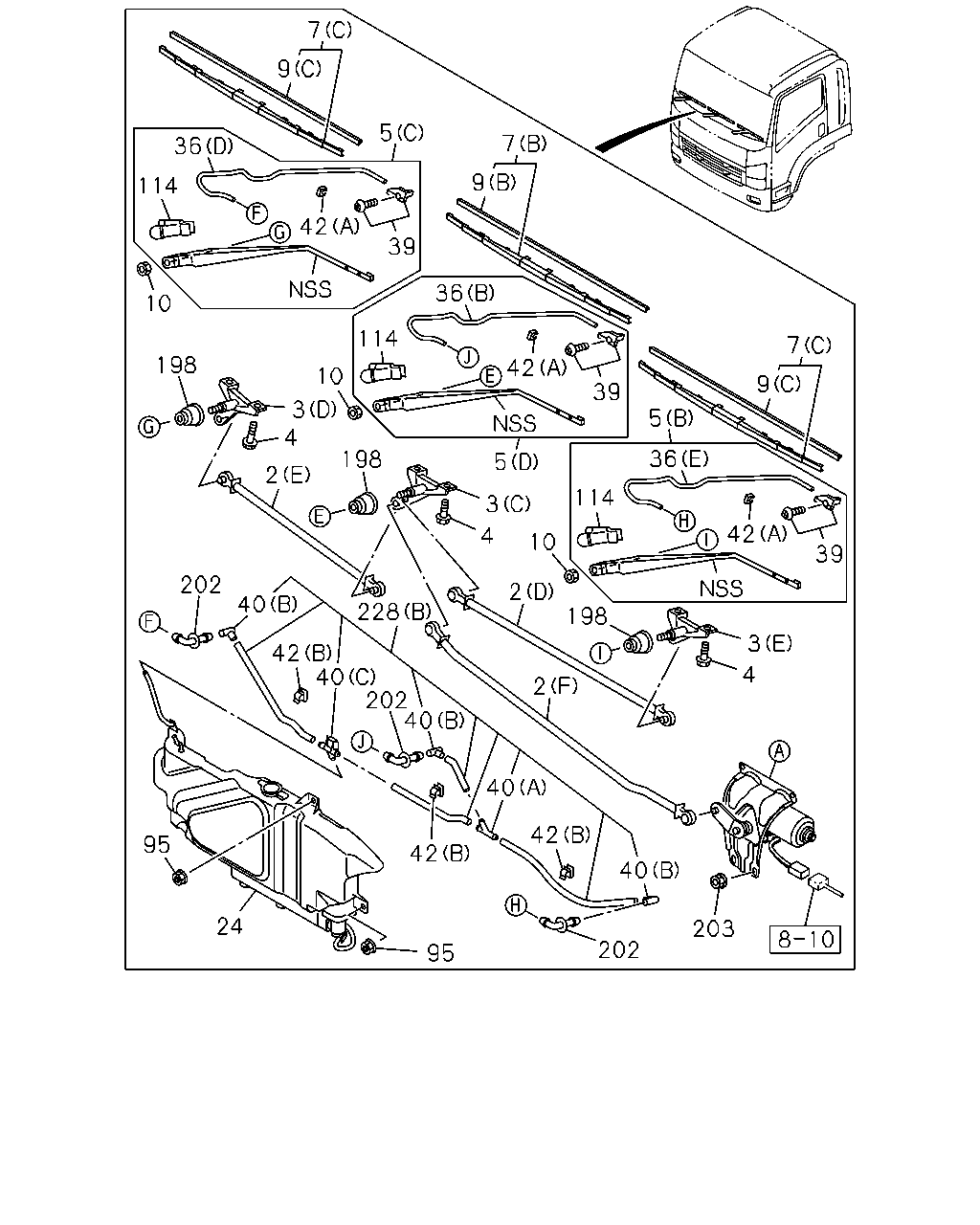

çizim 332636
7 9 5 7 36 114 9 7 10 42 39 114 36 42 39 9 10 198 4 3 2 198 5 3 4 5 36 114 39 42 10 228 2 198 3 4 2 202 40 42 40 202 0 40 42 40 203 202 42 95 24 95
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
(C) 		8-98078-809-0 01 1 1302- ●
2 LINK; FRT WIPER
(B) 		8-98078-810-1 01 1 1302- ●
2 LINK; FRT WIPER
(A) 		8-98078-811-0 01 1 1302- ●
2 LINK; FRT WIPER
(D) 		8-98078-812-0 01 1 1302- ●
2 LINK; FRT WIPER
(E) 		8-98078-813-0 01 1 1302- ●
2 LINK; FRT WIPER
(F) 		8-98078-814-1 01 1 1302- ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-815-0 01 1 1302- ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-816-1 02 1 1302- ●
3 PIVOT ASM; FRT WIPER
(E) 		8-98068-140-1 01 1 1302- ●
3 PIVOT ASM; FRT WIPER
(C) 		8-98078-817-1 01 1 1302- ●
3 PIVOT ASM; FRT WIPER
(D) 		8-98078-818-1 01 1 1302- ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 07 1 1302- ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 06 1 1302- ●
5 ARM; WIPER
(A) 		8-98078-820-1 01 1 1302- ●
5 ARM; WIPER
(A) 		8-98078-819-1 01 1 1302- ●
5 ARM; WIPER
(C) 		8-98078-821-1 01 1 1302- ●
5 ARM; WIPER
(D) 		8-98078-822-1 01 1 1302- ●
5 ARM; WIPER
(B) 		8-98078-823-1 01 1 1302- ●
7 BLADE; WIPER
(A) 		1-83315-046-2 01 1 1302- ●
7 BLADE; WIPER
(A) 		1-83315-045-2 01 1 1302- ●
7 BLADE; WIPER
(C) 		1-83315-047-2 02 1 1302- ●
7 BLADE; WIPER
(B) 		1-83315-048-2 01 1 1302- ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-035-0 02 1 1302- ●
7 BLADE; WIPER
(C) BEST VALUE PARTS 		5-87610-034-0 02 1 1302- ●
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-83355-014-0 02 1 1302- ●
9 RUBBER; FRT WIPER BLADE
(C) L=500 		1-83355-015-0 02 1 1302- ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-83355-016-0 01 1 1302- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 1302- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 1302- ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 1302- ● ●
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1302- ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1302- ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1302- ● ●
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 1302- ●
36 HOSE; WASHER
(E) 		8-98078-826-0 01 1 1302- ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 01 1 1302- ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 01 1 1302- ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 03 1 1302- ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 01 1 1302- ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1302- ● ●
40 JOINT; WASHER HOSE
(C) 		8-97167-258-0 01 1 1302- ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 1302- ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 02 1 1512- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 1302- ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1302-1511 ● ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1512- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 1302- ●
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 1302- ● ●
114 COVER; FRT WIPER ARM 1-83318-127-0 01 1 1302- ●
114 COVER; FRT WIPER ARM 1-83318-126-0 01 1 1302- ●
114 COVER; FRT WIPER ARM 1-83318-126-0 03 1 1302- ●
198 COVER; PIVOT,WIPER 8-98038-892-1 02 1 1302- ●
198 COVER; PIVOT,WIPER 8-98038-892-1 03 1 1302- ●
202 GROMMET; WIPER 1-86815-003-2 02 1 1302- ●
202 GROMMET; WIPER 1-86815-003-2 03 1 1302- ●
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 1302- ● ●
228 HOSE ASM; WASHER
(A) 		8-98039-704-0 01 1 1302- ●
228 HOSE ASM; WASHER
(B) 		8-98039-703-2 01 1 1302- ●

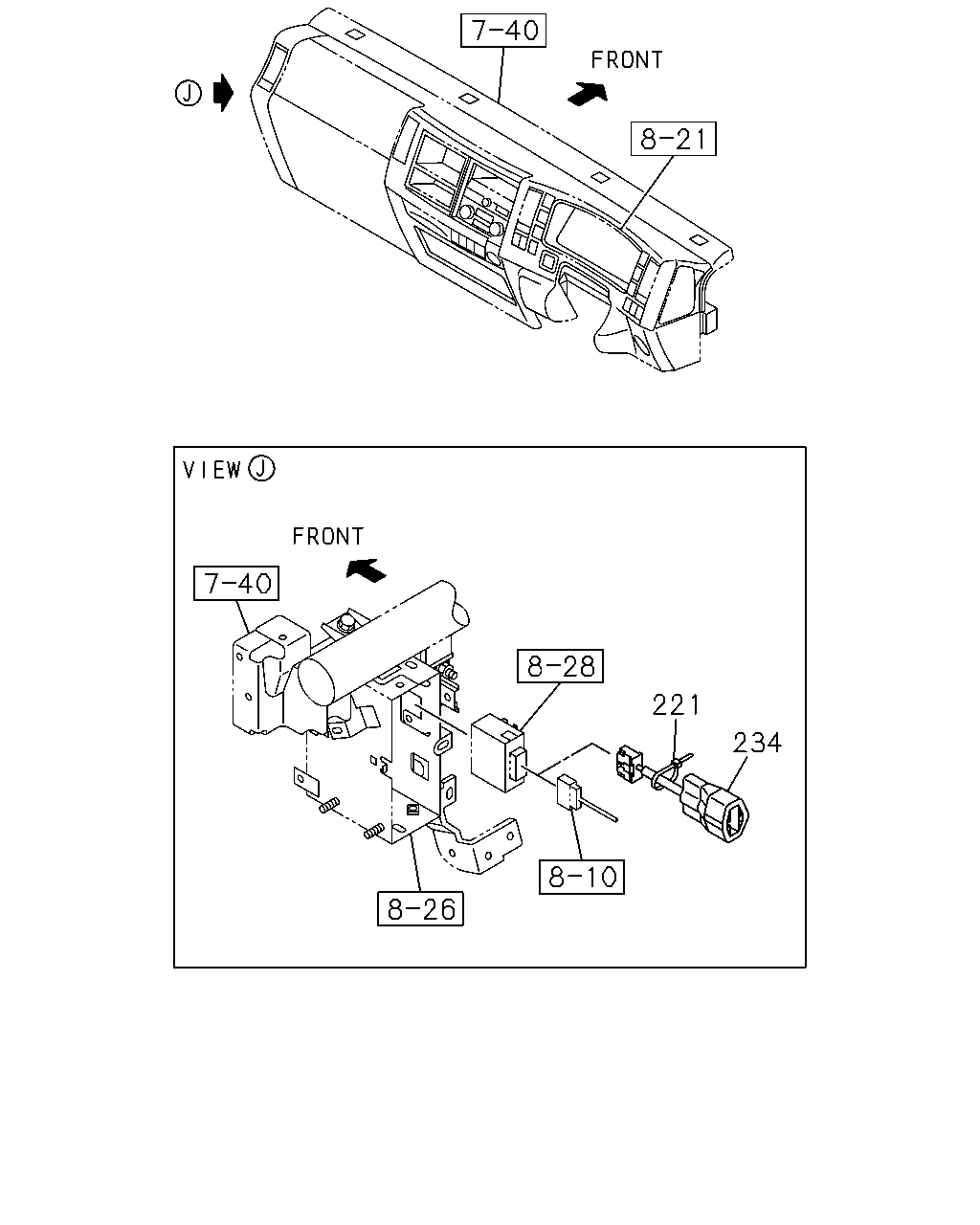

çizim 345947
221 234
BalonParca AdiParca NoAdetTipApplied Date A B
221 CLIP
INTERMITTENT WIPER<C13> L=140 		5-09707-031-1 01 1 1302-1308 ● ●
234 HARNESS; EXT,WIPER
INTERMITTENT WIPER<C13> 		8-98236-609-0 01 1 1302-1308 ● ●
