11507 - FRR RHD EURO2/4 SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#113233) — 27 parça
◀

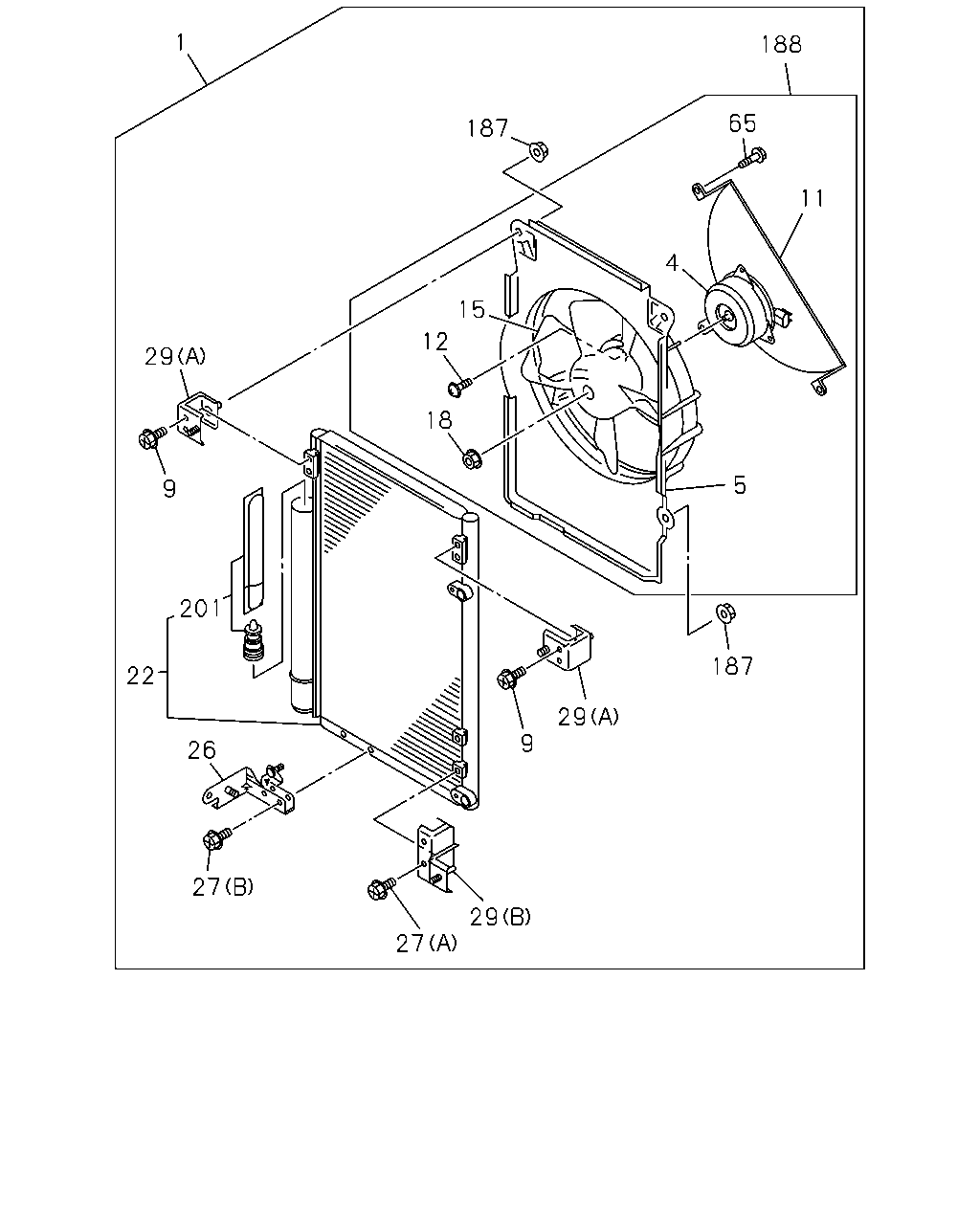

[875A] COMPONENT (20 parça)

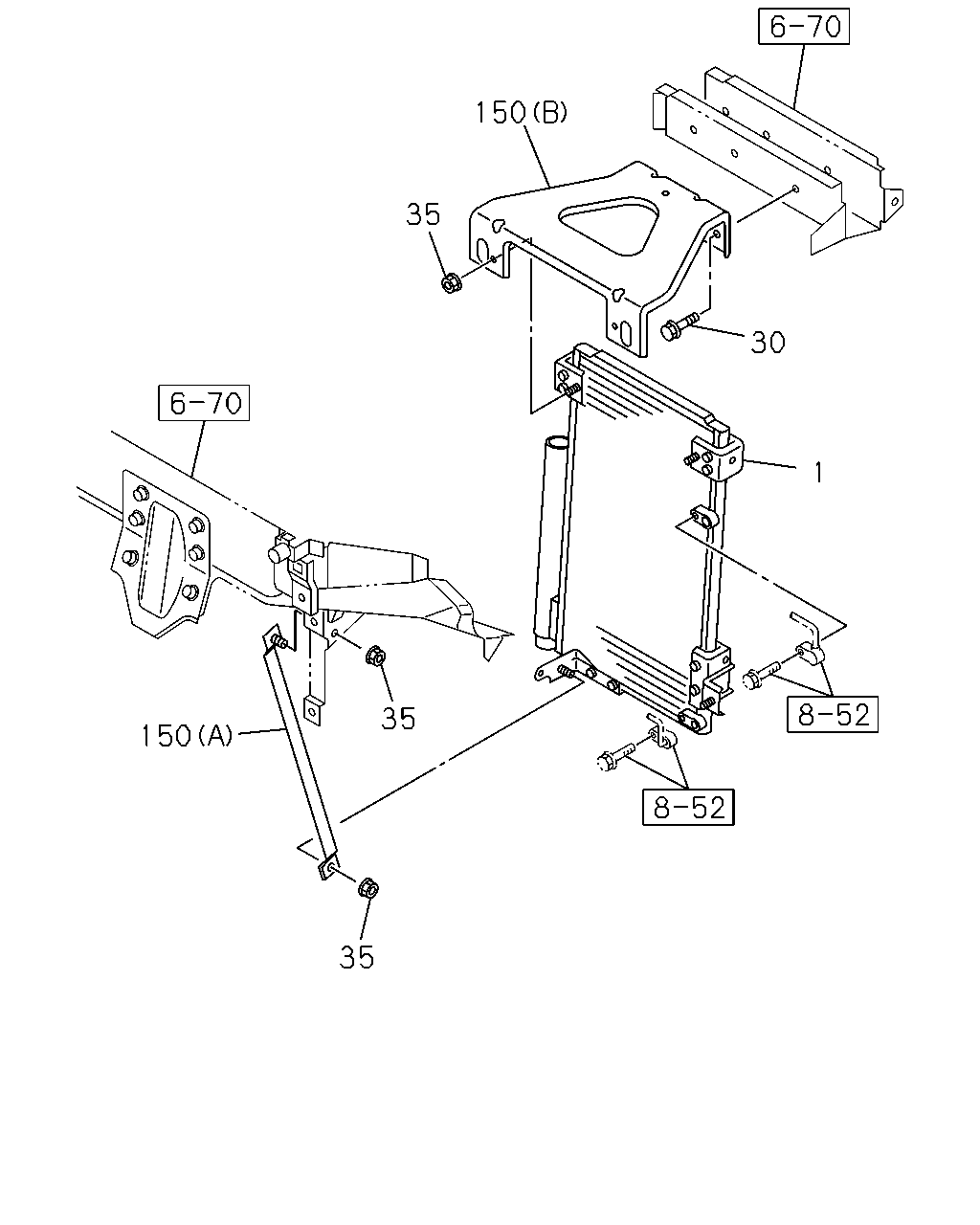

[875A] FIXING (7 parça)
▶
1
29
9
201
22
26
27
27
29
9
29
187
5
18
12
15
187
188
65
4
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98235-911-2
01
1
1302-
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
8-98076-091-0
01
1
1302-
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98076-093-0
01
1
1302-
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14
1-83539-382-0
04
1
1302-
11
COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
8-98068-234-0
01
1
1302-1308
12
BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-97180-269-0
03
1
1302-
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98152-860-0
01
1
1302-
18
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE
8-94157-075-0
01
1
1302-
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-261-0
01
1
1302-1409
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98275-189-0
01
1
1410-
26
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-281-0
01
1
1302-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14
1-83539-382-0
02
1
1302-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25
8-97178-770-0
02
1
1302-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98065-914-0
02
1
1302-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98065-915-0
01
1
1302-
65
BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16
8-97096-525-0
03
1
1302-1308
187
NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6
1-83539-354-0
04
1
1302-
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
8-98235-916-1
01
1
1302-
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83535-097-0
01
1
1302-1409
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98282-482-0
01
1
1410-
150
30
35
1
35
150
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98235-911-2
01
1
1302-
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
02
1
1302-
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
05
1
1302-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98041-321-0
01
1
1302-1405
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98270-947-0
01
1
1406-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98041-322-0
01
1
1302-1409
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98242-412-0
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
