◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#11322) — 19 parça

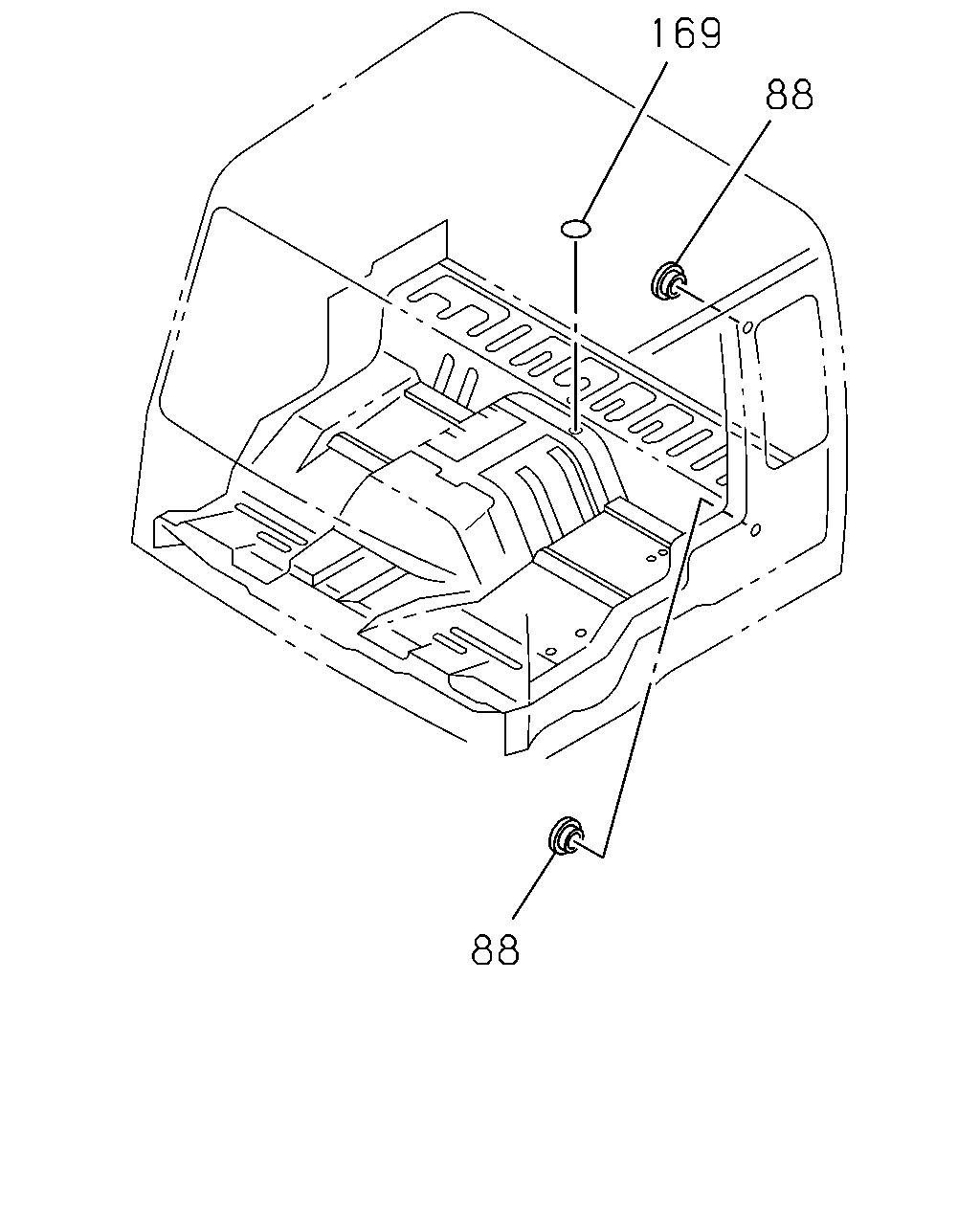

çizim 18755
88 88 169
BalonParca AdiParca NoAdetTipApplied Date
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 0106-
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=25 BLACK 		1-76798-019-0 05 1 0106-
çizim 73491
5 6 171 55 170 3 2 55
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC> 		1-75616-089-1 01 1 0303-0406
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC> 		8-97382-647-1 01 1 0407-
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-909-3 01 1 0106-0302
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CHINA GB VAR1<JAC> 		1-75618-909-5 01 1 0303-
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) SAUDI ARABIA EQUIPMENT(WH1) 		1-75617-545-0 01 1 0106-
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-914-0 01 1 0106-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-553-1 01 1 0106-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC> 		1-75616-092-0 01 1 0303-0406
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC> 		8-97382-652-0 01 1 0407-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-915-3 01 1 0106-0302
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CHINA GB VAR1<JAC> 		1-75618-915-3 01 1 0303-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-556-0 02 1 0106-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC> 		1-75616-091-1 01 1 0303-0406
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC> 		8-97382-650-1 01 1 0407-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-912-3 01 1 0106-0302
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CHINA GB VAR1<JAC> 		1-75618-912-5 01 1 0303-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0106-
