8-71 — COMPRESSOR; AIR CONDITIONING (#113208) — 15 parça

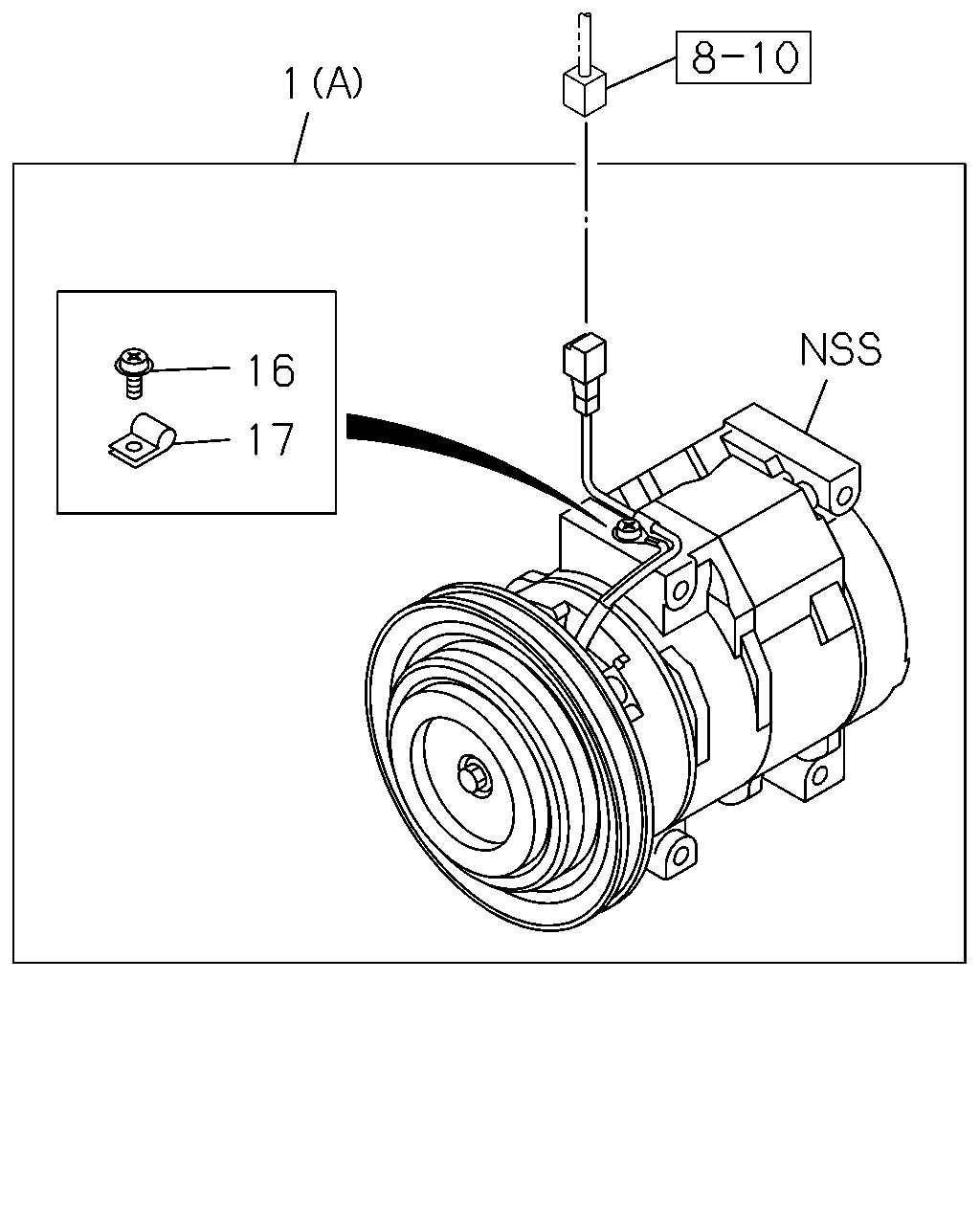

çizim 330595
1 16 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-326-1 01 1 1305- ●
1 COMPRESSOR ASM; A/C
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83532-328-0 01 1 1302-1505 ● ●
1 COMPRESSOR ASM; A/C
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83532-328-0 01 1 1506- ● ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1302- ● ●
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1305- ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1302-1505 ● ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1506- ● ●

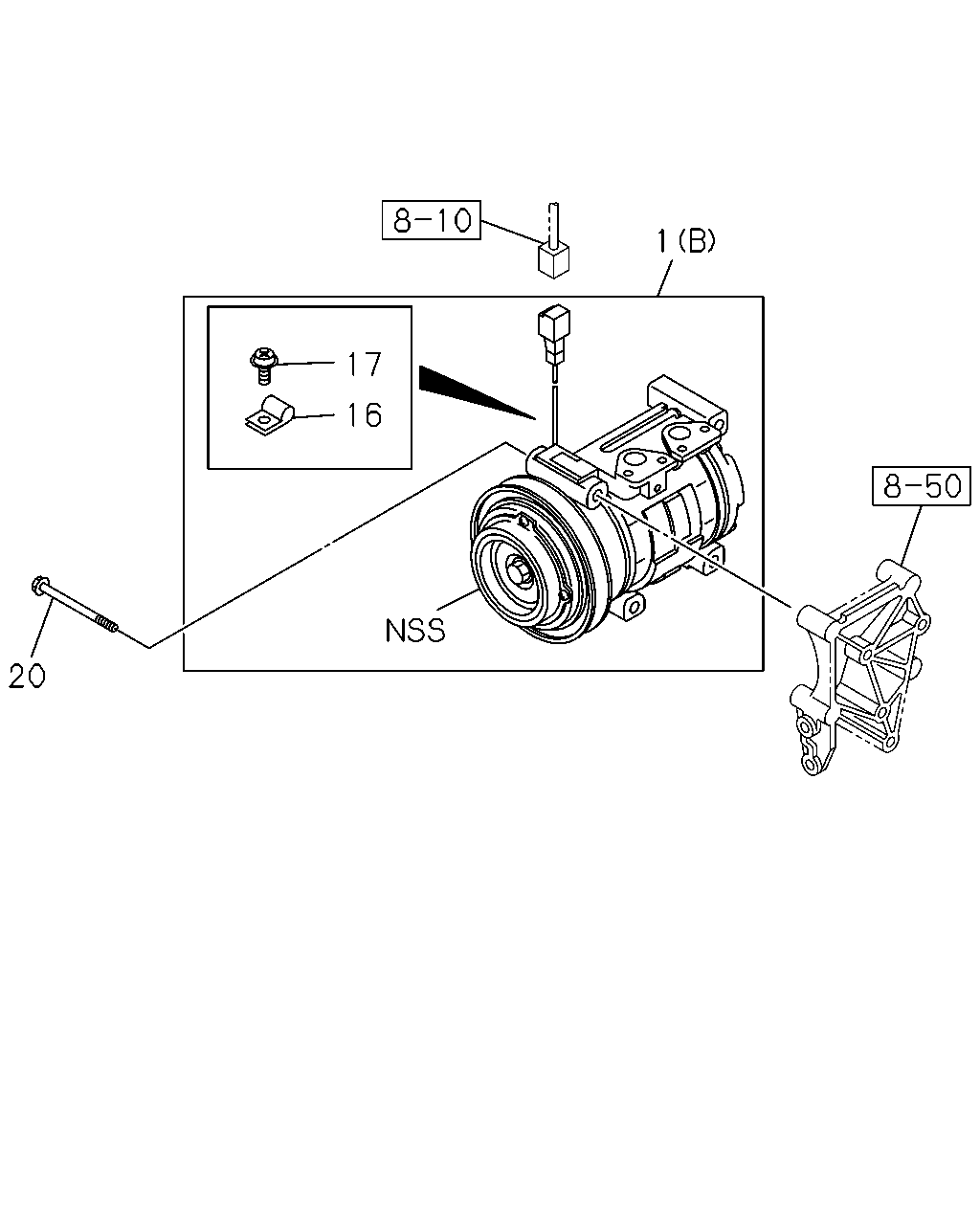

çizim 352513
1 17 16 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-326-1 01 1 1305- ●
1 COMPRESSOR ASM; A/C
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83532-328-0 01 1 1302-1505 ● ●
1 COMPRESSOR ASM; A/C
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83532-328-0 01 1 1506- ● ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1302- ● ●
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1305- ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1302-1505 ● ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1506- ● ●
20 BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE 		1-09044-073-0 04 1 1305- ●
