7-45 — CONSOLE BOX (#11320) — 12 parça

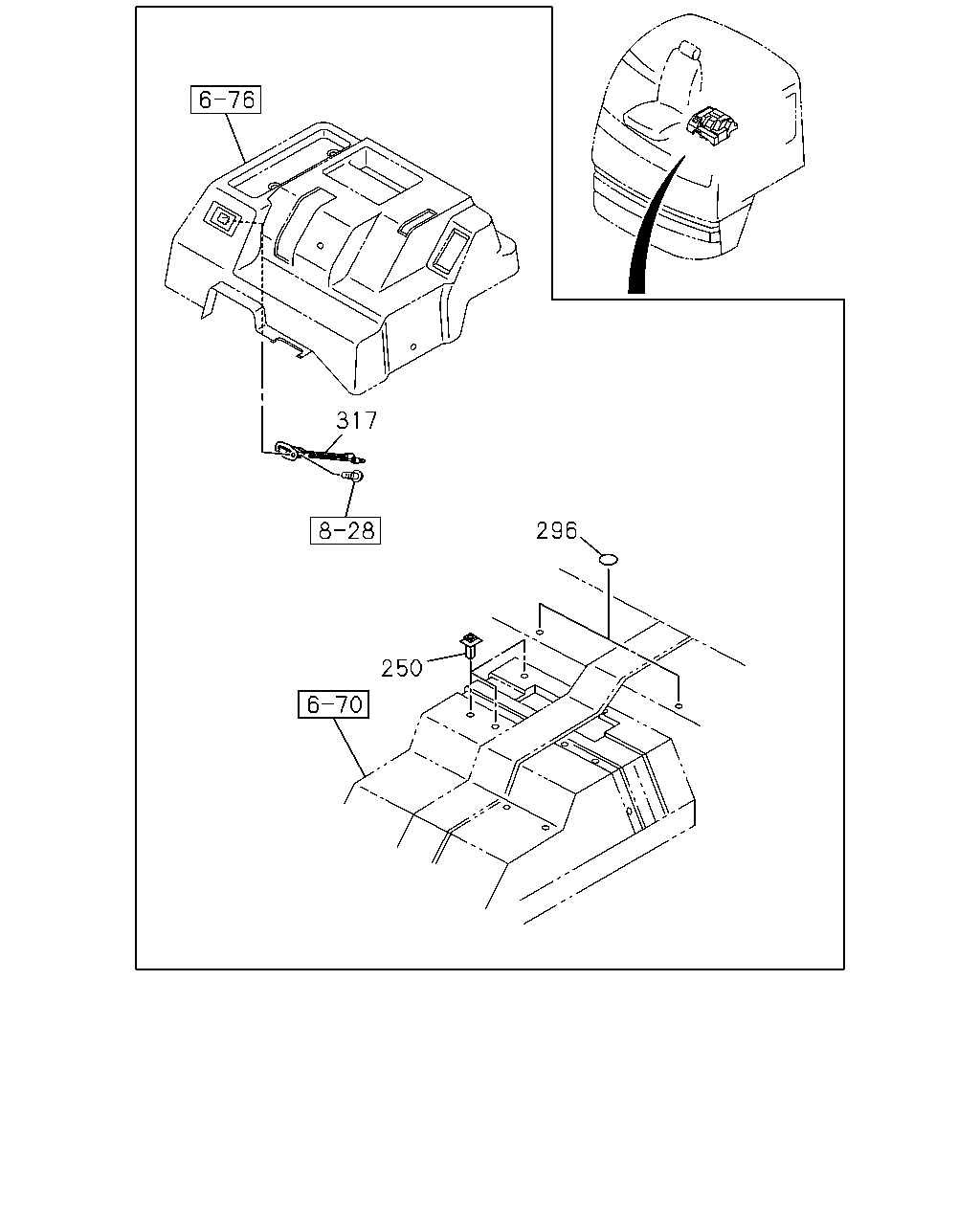

çizim 18508
296 250 317
BalonParca AdiParca NoAdetTipApplied Date
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0106-0312
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0401-
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0106-0303
296 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0304-
317 CONSENT 1-82523-020-2 01 1 0106-

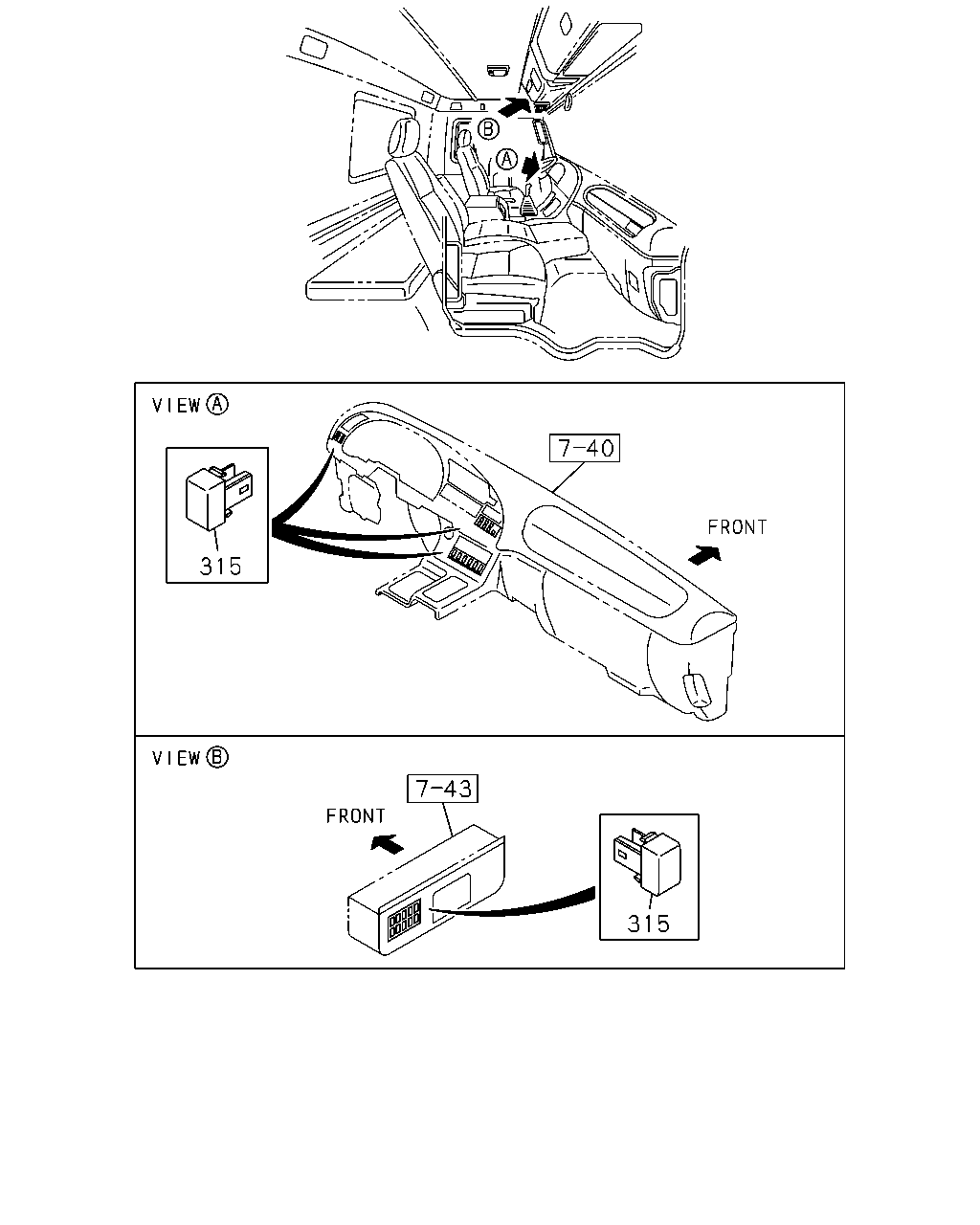

çizim 18509
315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
EXC. CHINA GB VAR1<JAC> 		1-82359-069-2 21 1 0212-
315 COVER; HOLE,SW 1-82359-069-2 21 1 0106-0211
315 COVER; HOLE,SW
CHINA GB VAR1<JAC> 		1-82359-069-2 11 1 0212-
315 COVER; HOLE,SW
EXC. MARKER LAMP THREE AMBER<WD9> 		1-82359-069-2 01 1 0106-
315 COVER; HOLE,SW
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-82359-069-2 01 1 0106-
315 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82359-069-2 01 1 0106-
315 COVER; HOLE,SW
EXC. FOG LAMP REAR<NHD> 		1-82359-069-2 01 1 0106-
