7-43 — SUN VISOR AND ASSIST GRIP (#11319) — 158 parça

48 48 59 59 48 103 66 69 48 48 59 59 48 103 66 69 346 62 48 48 346 48 48 48 48 62 64 64 64 64 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0106-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0106-0411
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0106-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0106-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0106-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0106-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0106-
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	0106-
62	GRIP; ASSIST,ROOF PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0106-
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0106-
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0106-
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0106-
64	SHEET; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0106-
64	SHEET; ASSIST GRIP EXC. HIGH ROOF<S2F>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0106-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0106-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0106-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0106-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0106-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0106-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0106-0411
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0412-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0106-0411
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0412-
346	WASHER; WATER SEAL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-09985-344-0	02	1	0106-

142 142 142 48 72 48 106 55 142 154 154 154 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0106-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0106-0411
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0106-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0106-
55	GRIP; ASSIST,CAB SIDE UPR CHINA GB VAR1<JAC> EXC. GRIP OUT SIDE<W52>	1-73618-169-1	01	1	0302-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0106-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	0106-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	0106-
106	SCREW; ASSIST GRIP CHINA GB VAR1<JAC> EXC. GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	0302-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-
142	SEAL; ASSIST GRIP CHINA GB VAR1<JAC> EXC. GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0302-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	0106-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	01	1	0106-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	06	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-0301
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0302-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0106-

48 56 54 71 71 150 54 150 76 87 71 87 76 71 59 69 48 54 49

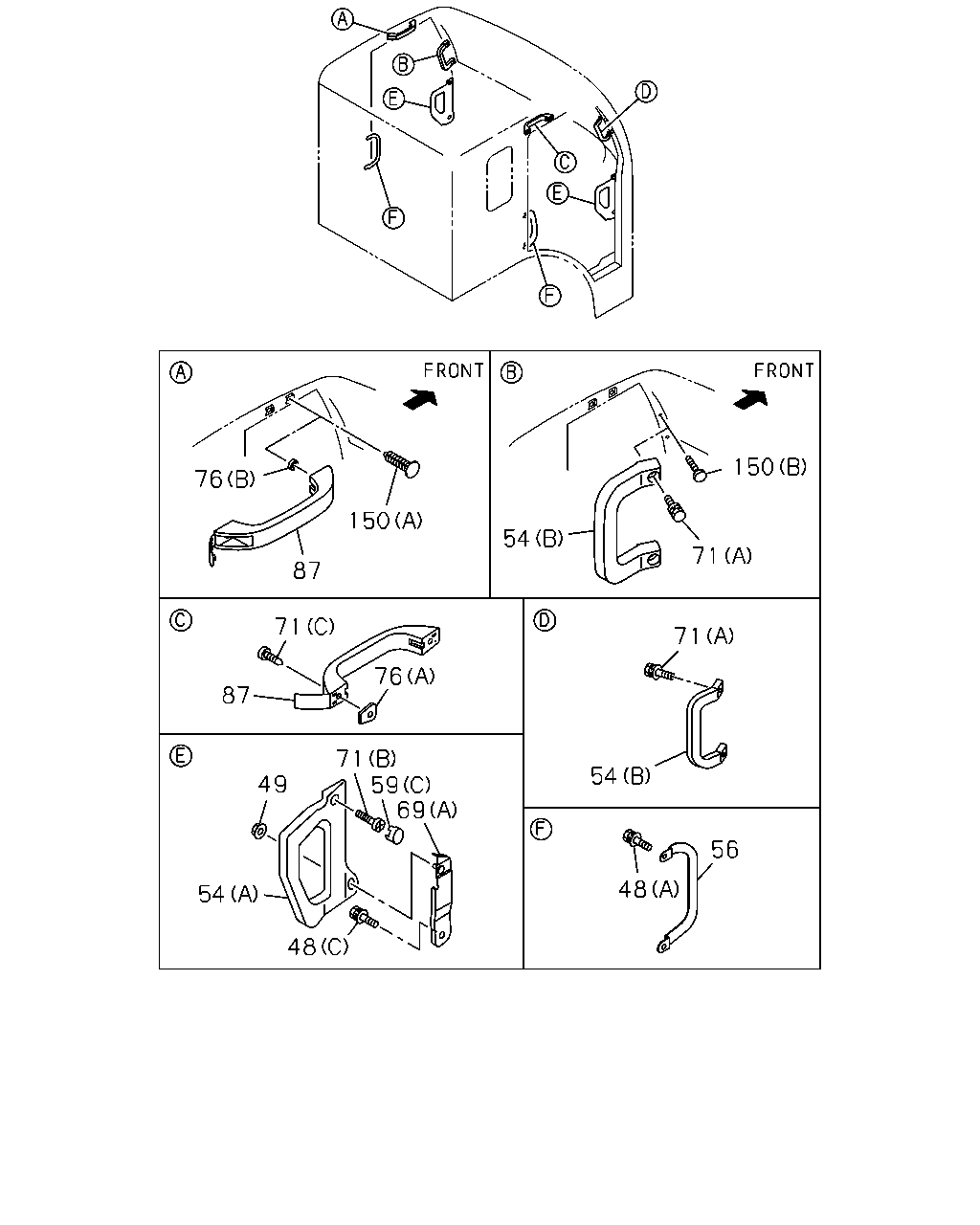

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0106-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0106-0411
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0106-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0106-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	0106-0602
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	02	1	0603-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0106-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0106-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0106-0207
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-73618-185-0	02	1	0208-0208
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0208-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	01	1	0106-0207
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-73618-185-0	01	1	0208-0208
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0208-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0106-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0106-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0106-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0106-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0106-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0106-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0106-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0106-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0106-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0106-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0106-0207
71	SCREW ASSIST GRIP A POST<NBK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0208-0208
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0209-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0106-0310
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0106-0207
71	SCREW EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0208-0208
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0209-
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC> EXC. ASSIST GRIP A POST<NBK>,HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	02	1	0302-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	02	1	0302-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	02	1	0106-0301
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC> ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	04	1	0302-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F> (A)	1-73618-180-0	02	1	0106-0301
76	SPACER; ASSIST GRIP EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F> (A)	1-73618-180-0	02	1	0302-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0106-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0106-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0208-0208
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0106-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0106-0207
150	CLIP; ASSIST GRIP HOLE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0208-0208
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0209-

34 23 23 34 12 5 33 26 154 33 26 154 154 18 143 19 154 19 137 19 154 19 137 5 12

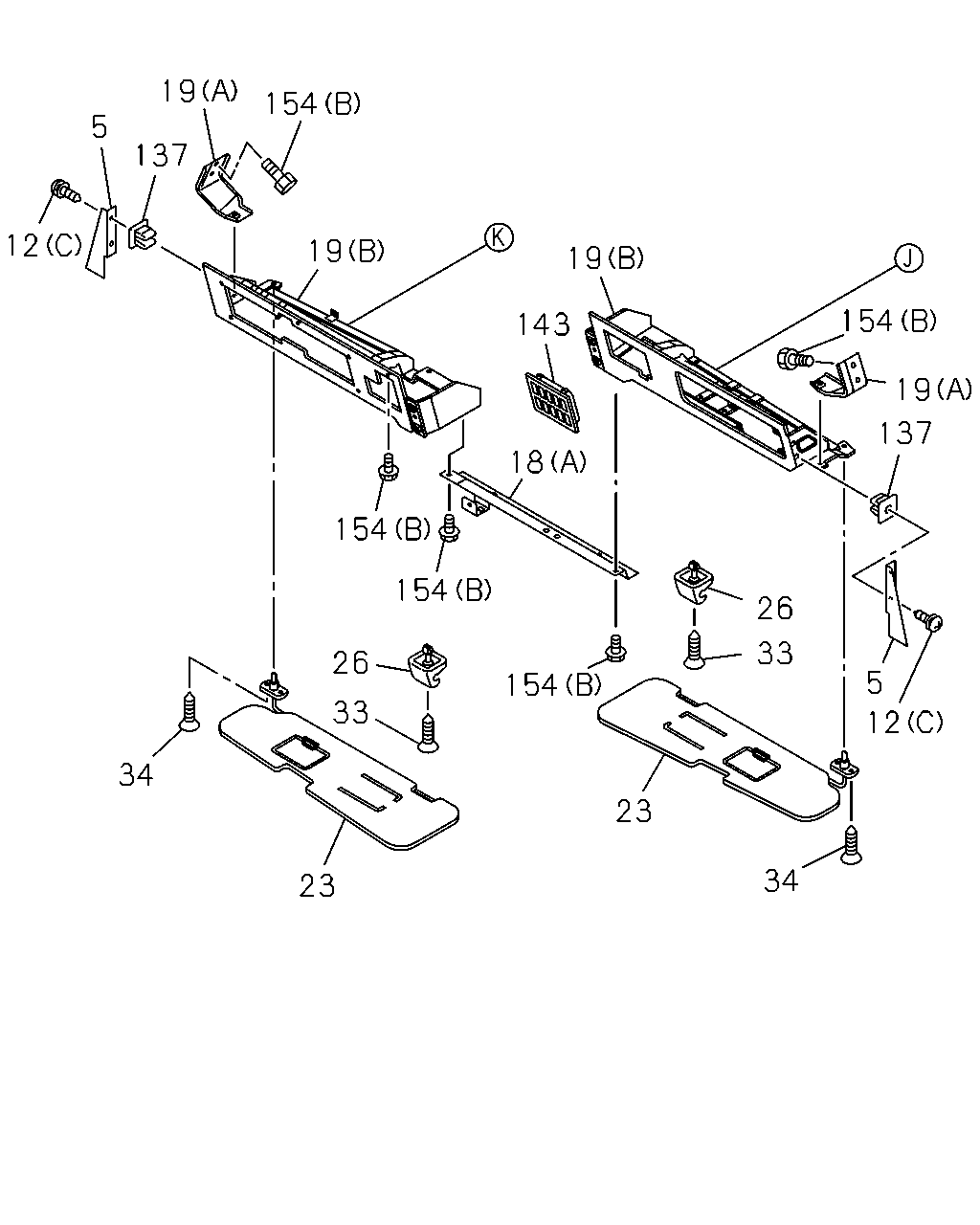

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0106-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0106-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0106-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0106-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	0106-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0106-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0106-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0106-
23	SUN VISOR	1-73138-157-1	01	1	0106-
23	SUN VISOR	1-73138-156-1	01	1	0106-
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0106-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0106-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0106-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0106-
143	BEZEL	1-72447-768-2	01	1	0106-0211
143	BEZEL EXC. CHINA GB VAR1<JAC>	1-72447-768-2	01	1	0212-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-0301
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0302-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0106-

135 156 1 154 1 158 12 18 12 135 135 83 132

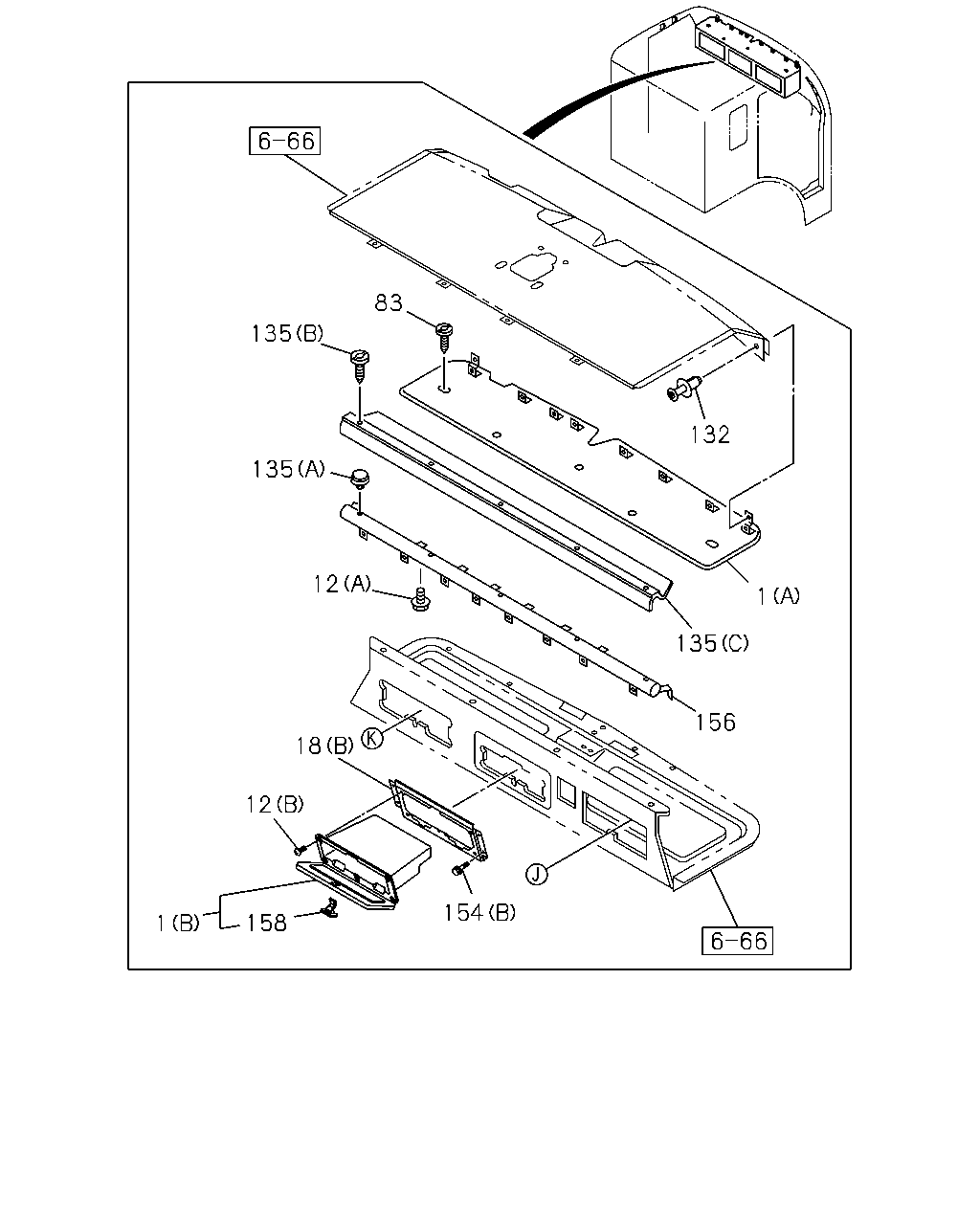

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0106-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72447-886-7	01	1	0106-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0106-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0106-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0106-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0106-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0106-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-885-4	01	1	0106-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-0301
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0302-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0106-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0106-
158	LOCK; HEADER SHELF	1-72538-180-0	01	1	0106-
