◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#113182) — 154 parça

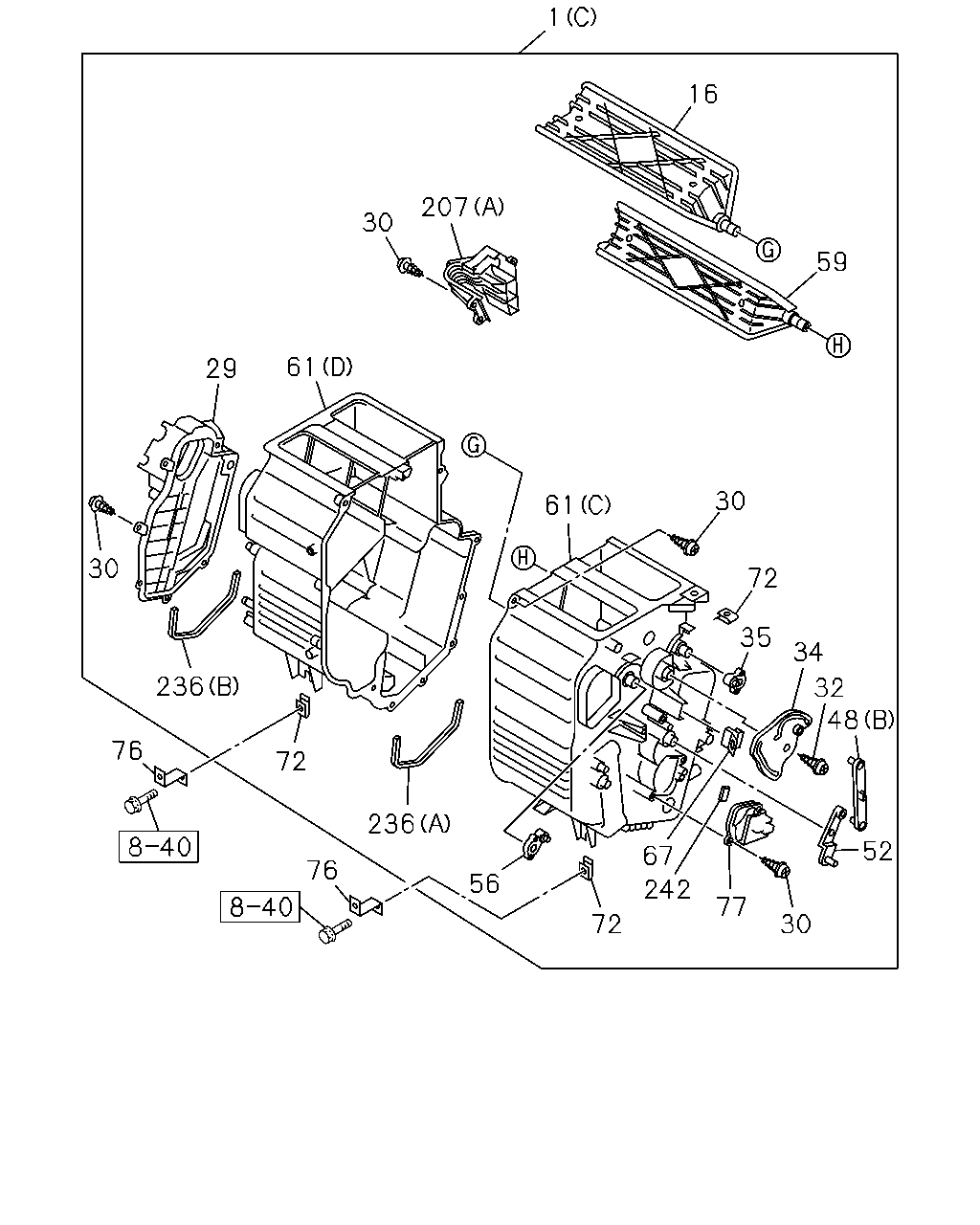

çizim 330573
207 30 1 16 59 61 61 29 236 30 76 72 76 56 72 77 242 236 35 72 30 34 32 48 52 30 67
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1302- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 1302- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98031-740-3 01 1 1302- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1302- ●
1 HEATER UNIT
RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98174-913-0 01 1 1302- ●
1 HEATER UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) (A) 		8-98175-726-0 01 1 1302- ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1302- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1302- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1302- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1302- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1302- ● ●
34 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98196-569-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1302- ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 1302- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1302- ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 1302- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 1302- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 1302- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1302- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 1302- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 1302- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 1302- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 1302- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1302- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1302- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1302- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1302- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 1302- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 1302- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1302- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1302- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1302-1411 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412- ● ●

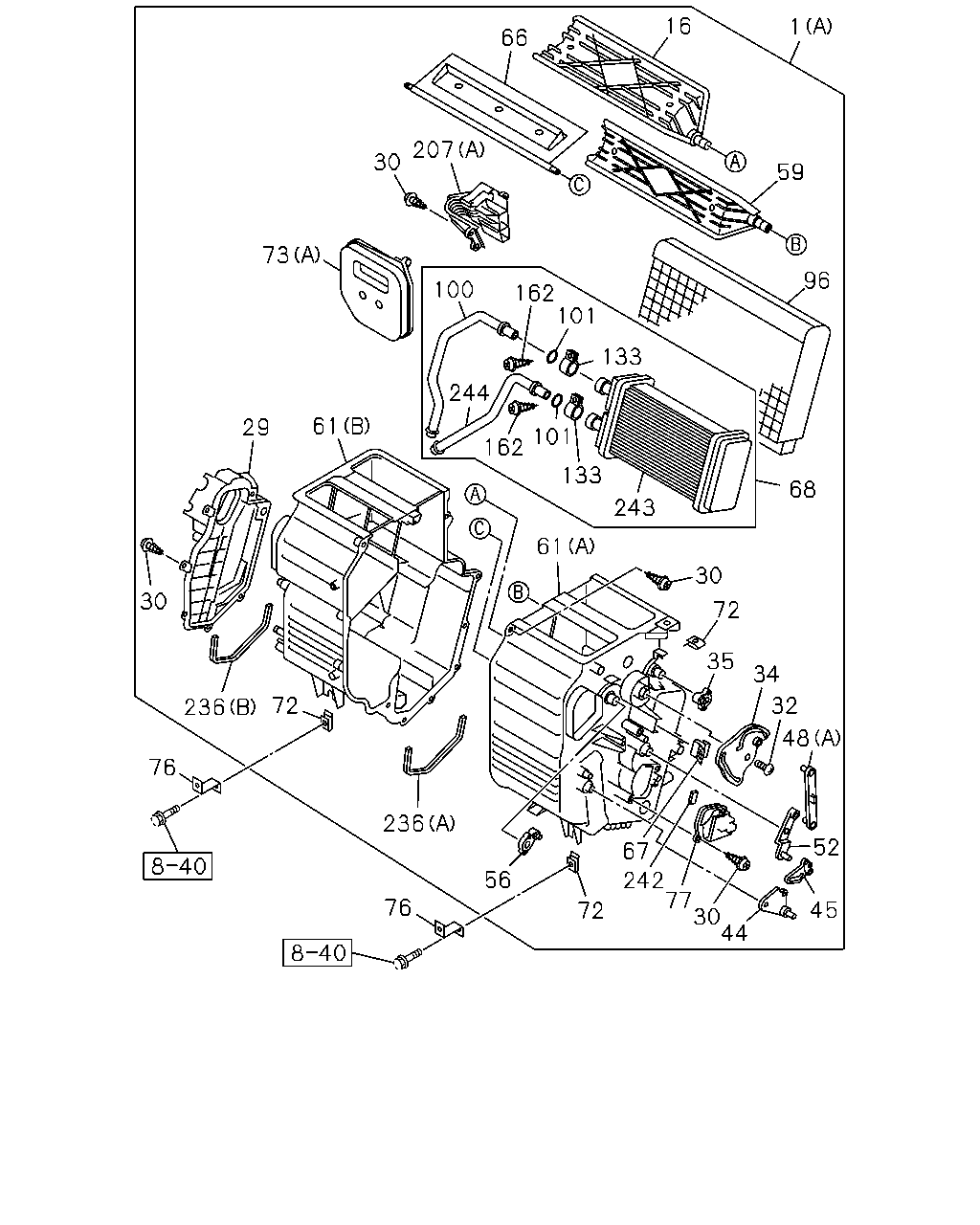

çizim 332606
66 16 207 73 100 162 59 1 96 101 244 61 29 162 101 133 243 68 30 72 35 34 32 78 52 45 44 30 77 242 72 67 56 236 76 76 72 236 30 61 30 133
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1302- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 1302- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98031-740-3 01 1 1302- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1302- ●
1 HEATER UNIT
RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98174-913-0 01 1 1302- ●
1 HEATER UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) (A) 		8-98175-726-0 01 1 1302- ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1302- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1302- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1302- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1302- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1302- ● ●
34 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98196-569-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1302- ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 1302- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-502-0 01 1 1302- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-503-0 01 1 1302- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 1302- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 1302- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1302- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 1302- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 1302- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 1302- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 1302- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 1302- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1302- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1302- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-122-0 01 1 1302- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1302- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 1302- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1302- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1302- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 1302- ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-532-0 01 1 1302- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 1302- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 1302- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 1302- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 1302- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1302- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1302- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1302-1411 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 1302- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-511-0 01 1 1302- ● ●

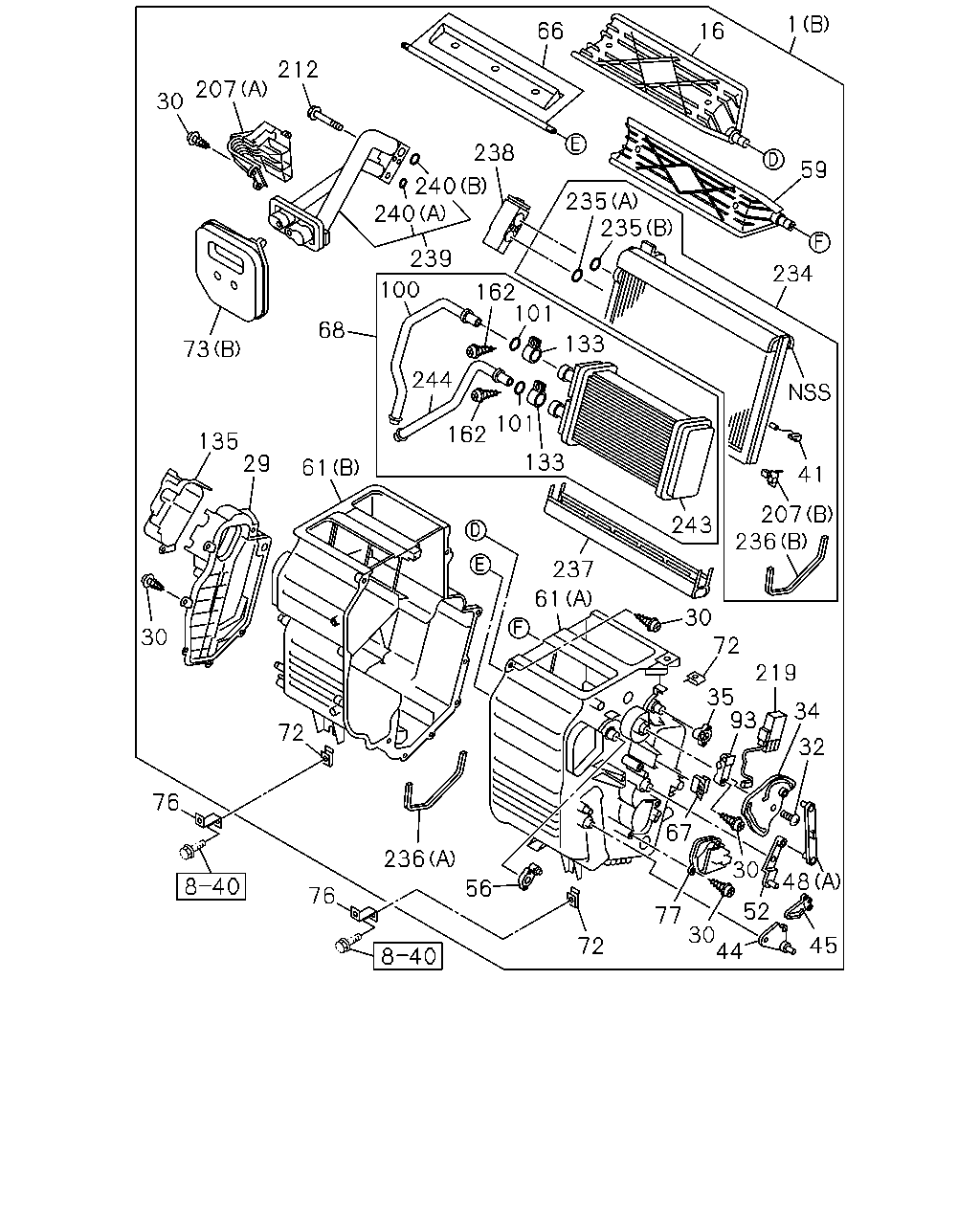

çizim 332617
207 212 30 73 135 29 61 30 72 76 76 56 236 72 77 30 44 67 30 52 45 48 93 32 34 219 35 72 30 61 237 243 236 207 41 234 133 162 101 244 68 100 239 162 240 240 238 66 16 235 235 101 133 59 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1302- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 1302- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98031-740-3 01 1 1302- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1302- ●
1 HEATER UNIT
RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98174-913-0 01 1 1302- ●
1 HEATER UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) (A) 		8-98175-726-0 01 1 1302- ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1302- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1302- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1302- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1302- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1302- ● ●
34 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98196-569-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1302- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1302- ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 1302- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-412-0 01 1 1302- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-502-0 01 1 1302- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-503-0 01 1 1302- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1302- ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 1302- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 1302- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 1302- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1302- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 1302- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 1302- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 1302- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 1302- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 1302- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1302- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1302- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-122-0 01 1 1302- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1302- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 1302- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1302- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1302- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 1302- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 1302- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-532-0 01 1 1302- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 1302- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 1302- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-481-0 01 1 1302- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 1302- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 1302- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61 		8-98047-415-0 02 1 1302- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 1302- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-120-1 01 1 1302- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 01 1 1302- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1302- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1302- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1302- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-382-0 01 1 1302- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-383-0 01 1 1302- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-504-0 01 1 1302- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 01 1 1302- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1302- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 1302- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-511-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
