◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#11318) — 106 parça

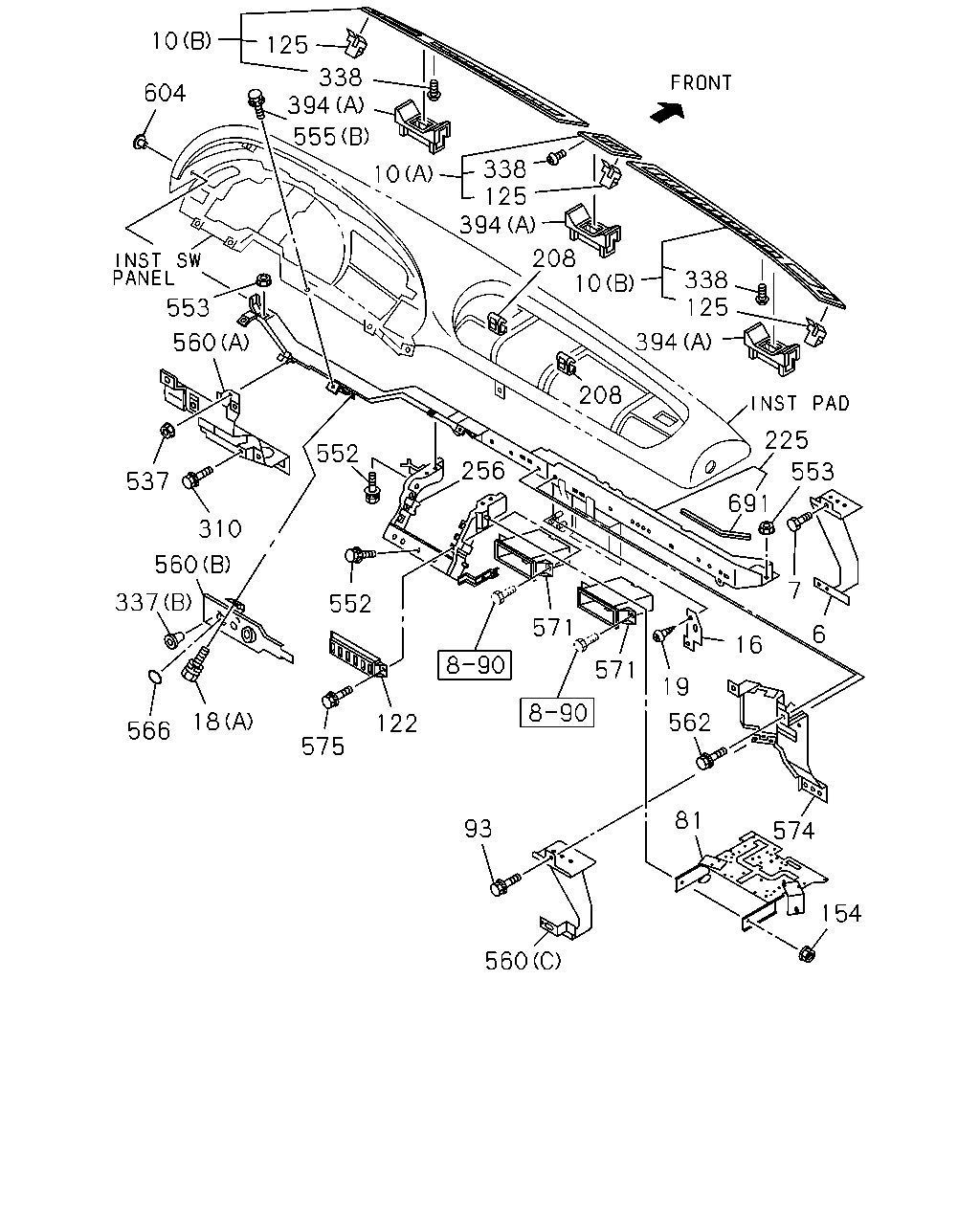

çizim 20348
574 154 81 562 19 16 6 7 553 691 225 394 125 338 10 208 571 93 560 122 571 256 552 575 18 566 337 560 310 552 537 560 553 604 10 125 338 394 555 338 125 394 10 208
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 0106-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 0106-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-592-1 01 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-540-6 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-6 01 1 0106-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0106-
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 0106-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0106-
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 01 1 0106-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0106-0309
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0106-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0106-
225 FRAME; FACIA 1-65671-727-5 01 1 0106-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0106-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0106-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0106-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0106-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0106-0208
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0406-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0106-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0106-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0106-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0106-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0106-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
560 BRACKET
(A) 		1-65681-045-6 01 1 0106-
560 BRACKET
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-65681-160-0 01 1 0106-
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-65681-043-2 01 1 0106-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 0106-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0106-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0106-
571 BEZEL; POCKET 1-72438-151-3 01 1 0106-
574 PANEL; RELAY BOX 1-73907-407-3 01 1 0106-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
604 CLIP; INST PAD 1-09983-123-0 01 1 0106-
691 FINISHER; HARNESS PROTECTOR
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0106-

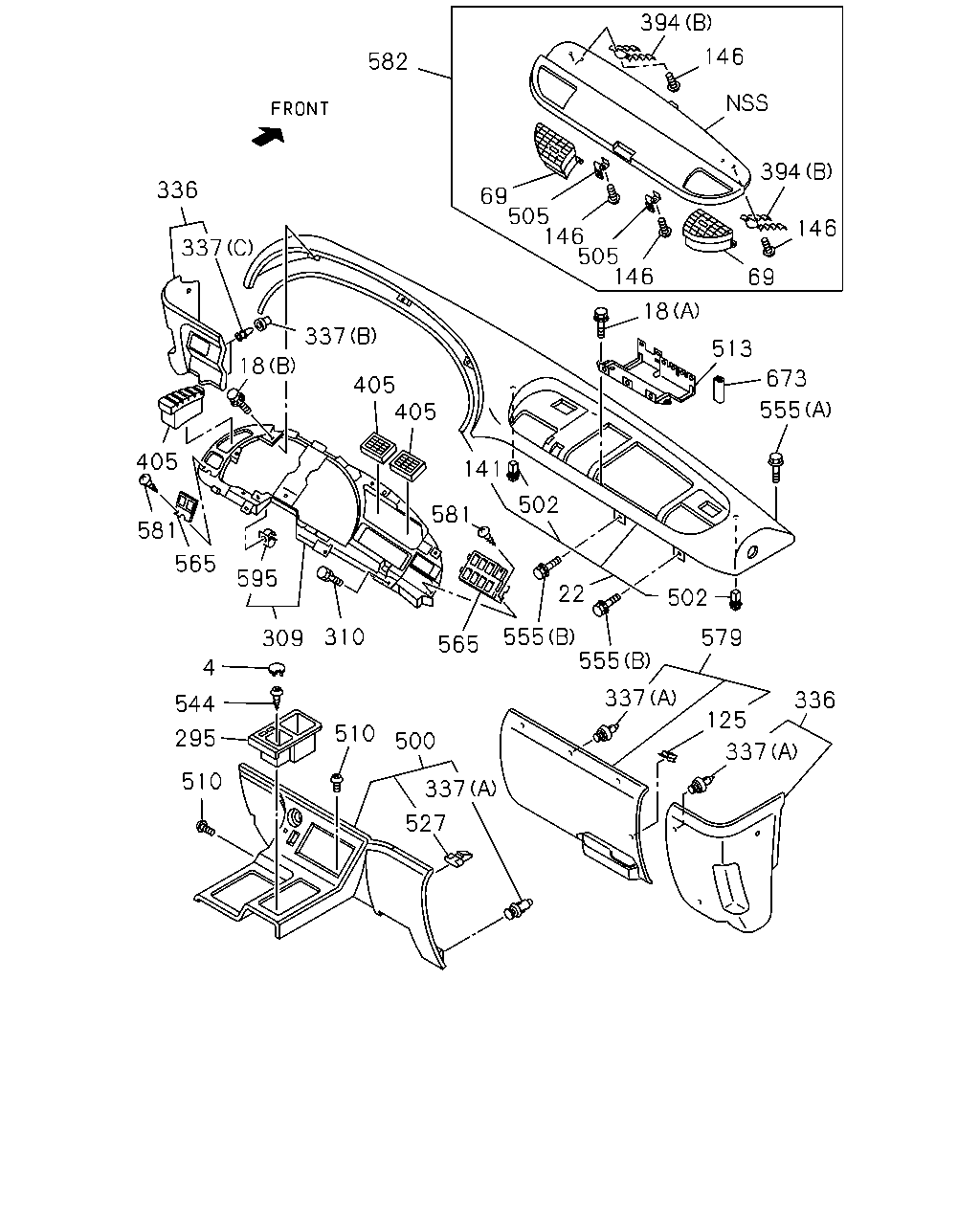

çizim 20524
565 555 555 337 337 125 336 579 502 22 502 581 141 405 405 337 18 405 581 565 595 309 310 4 544 295 510 510 500 337 527 555 673 513 18 146 505 146 505 69 582 336 337 394 146 394 146 69
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
22 PAD; INST 1-72317-351-2 01 1 0106-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0106-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0106-
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 01 1 0106-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0106-0309
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0106-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0106-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0106-
309 PANEL; SW,INST 1-72418-018-3 01 1 0106-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0106-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0106-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0106-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0106-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0106-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0106-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0106-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 0106-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 0106-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 0106-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0106-
505 LOCK; LID 1-72558-024-2 02 1 0106-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0106-
513 BRACKET; RELAY 8-97865-168-3 01 1 0106-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0106-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0106-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0106-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
565 BEZEL; SW PANEL 1-72418-021-1 01 1 0106-
565 BEZEL; SW PANEL 1-72418-020-1 01 1 0106-
579 COVER; INST PNL 1-72438-195-1 01 1 0106-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0106-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0106-
595 NUT; HOOK 1-72418-013-0 10 1 0106-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0106-
çizim 74496
554 18
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0106-
