Isuzu WW
▶
TRUCKS
▶
FVR
▶
11519 - FVR/GVR-RHD EURO2/4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#113170) — 56 parça
◀

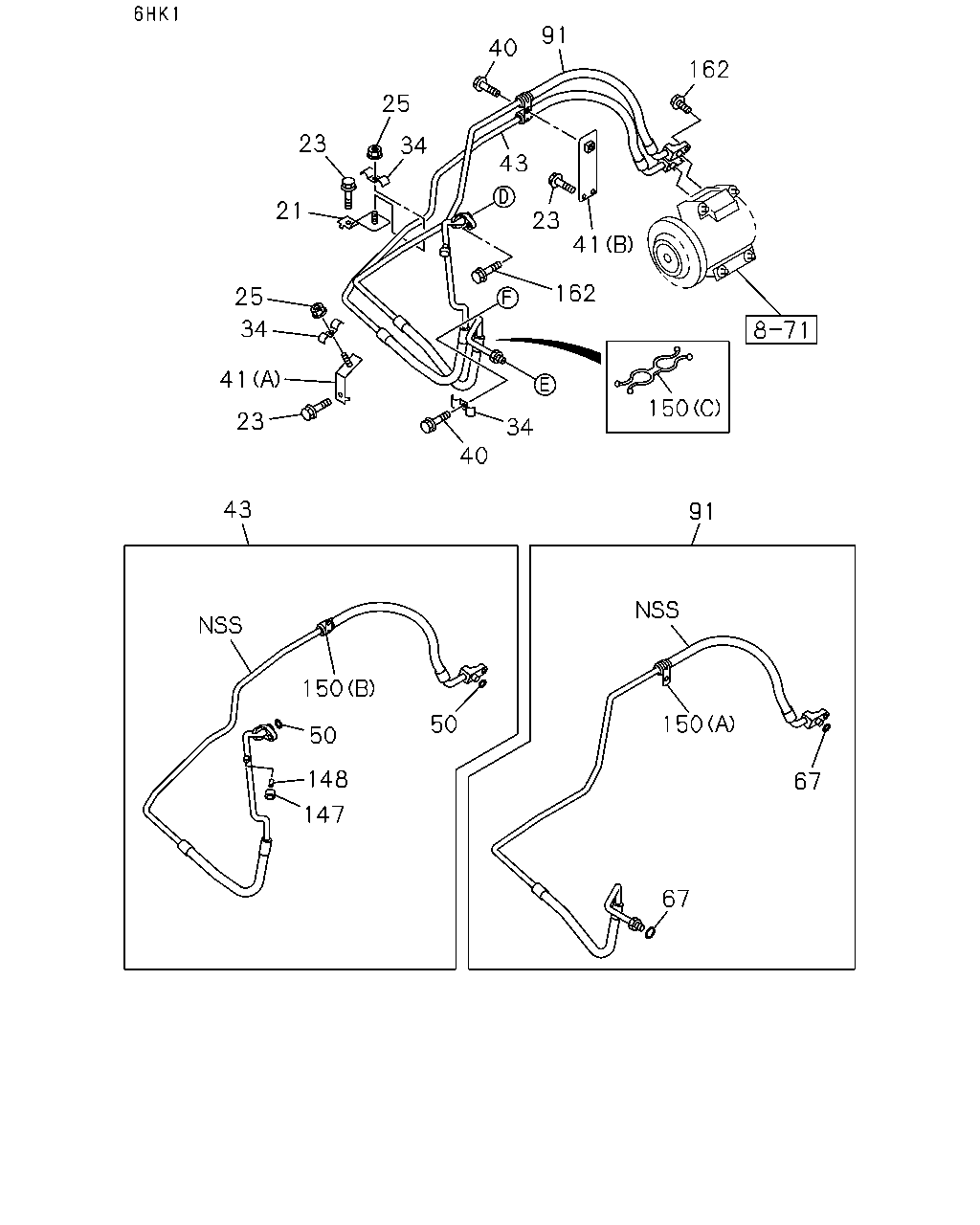

[852A] NO.2 (22 parça)
[852A] NO.1 (12 parça)

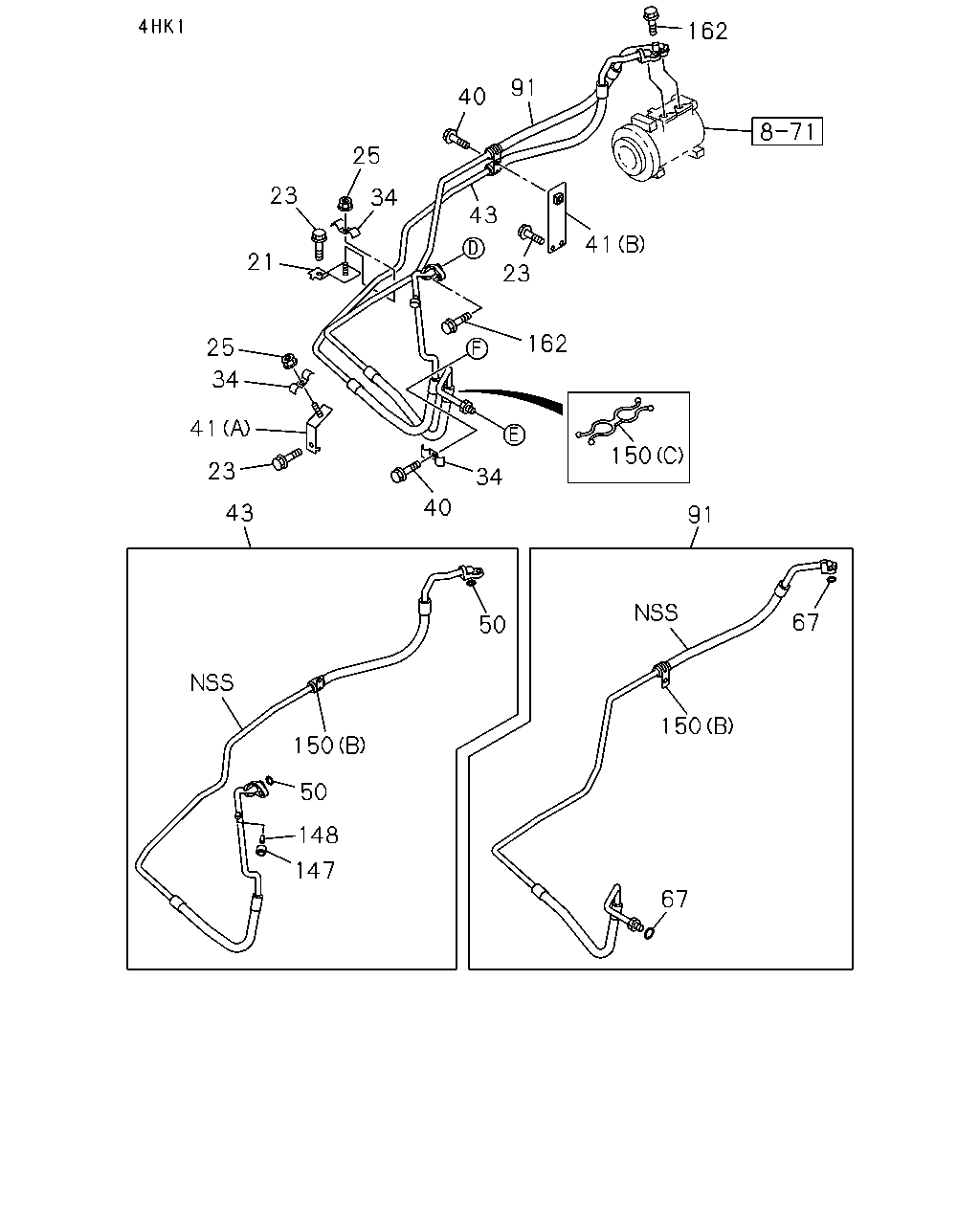

[852A] NO.3 (22 parça)
▶
67
150
67
91
34
40
43
23
41
34
25
21
23
25
40
91
23
41
43
34
162
162
50
150
50
148
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
03
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
03
1
1302-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98010-188-1
01
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98032-049-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)
8-98203-012-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-98052-989-2
01
1
1302-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1302-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1302-
91
HOSE; FLEX,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)
8-98203-013-0
01
1
1302-
91
HOSE; FLEX,CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-98052-990-2
01
1
1302-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1302-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-94423-042-0
01
1
1302-
150
CLIP; HOSE
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-264-0
02
1
1302-
150
CLIP; HOSE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-249-0
01
1
1302-
150
CLIP; HOSE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-264-0
01
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
27
33
174
116
27
158
27
33
202
156
171
116
158
12
158
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98041-329-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1302-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE
0-28650-616-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
1302-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
1302-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1302-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98041-331-0
01
1
1302-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
1302-
67
67
150
91
150
34
40
43
150
50
50
148
147
23
41
34
25
21
23
25
40
91
34
162
41
162
23
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
03
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
03
1
1302-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98010-188-1
01
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98032-049-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)
8-98203-012-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-98052-989-2
01
1
1302-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1302-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1302-
91
HOSE; FLEX,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)
8-98203-013-0
01
1
1302-
91
HOSE; FLEX,CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-98052-990-2
01
1
1302-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1302-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-94423-042-0
01
1
1302-
150
CLIP; HOSE
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-264-0
02
1
1302-
150
CLIP; HOSE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-249-0
01
1
1302-
150
CLIP; HOSE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-264-0
01
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
