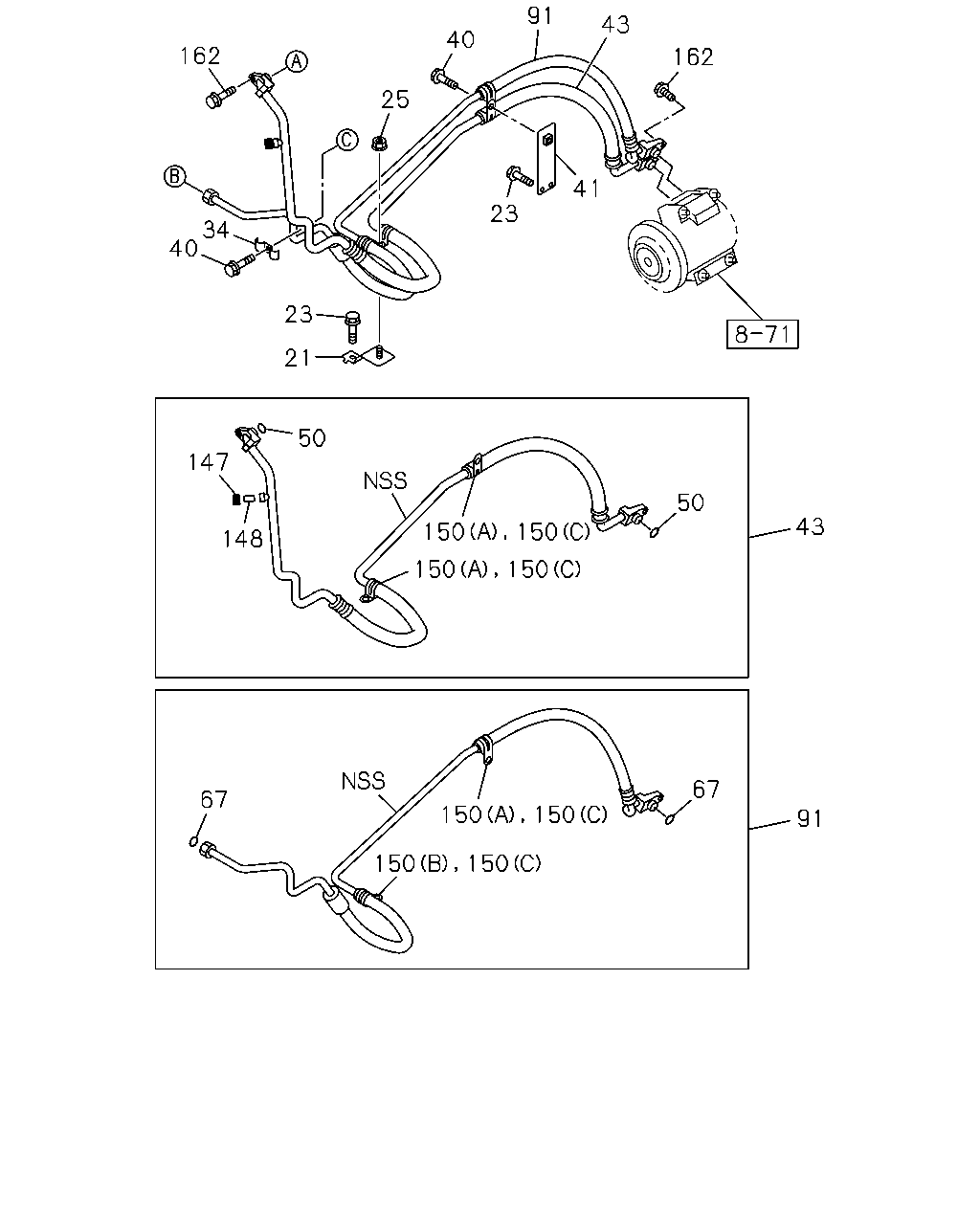

8-52 — PIPING; AIR CONDITIONING (#113168) — 50 parça

174 116 158 27 27 33 27 33 116 158 12 202 156 171 116 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98062-773-0	01	1	1302-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1302-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1302-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1302-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28650-616-0	02	1	1302-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1302-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7	8-97095-907-0	01	1	1302-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-702-0	01	1	1302-	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1302-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1302-	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98062-775-0	01	1	1302-	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-391-0	01	1	1302-	●	●

162 34 40 23 21 25 40 91 23 41 43 162 50 147 148 43 91 67 150 150 150 150 67 150 150 150 150 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	1302-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	03	1	1302-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1302-	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	01	1	1302-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60)	8-98032-049-0	01	1	1302-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-98203-014-0	01	1	1305-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) SUCTION	8-98070-112-0	01	1	1302-1505	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) SUCTION	8-98070-112-0	01	1	1302-1505		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) SUCTION	8-98070-112-0	01	1	1506-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) SUCTION	8-98070-112-0	01	1	1506-		●
50	GASKET; FLEX HOSE,A/C 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1302-1304	●
50	GASKET; FLEX HOSE,A/C 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1302-1304		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1305-	●	●
67	GASKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1302-1304	●
67	GASKET; FLEX HOSE 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1302-1304		●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1305-	●	●
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-98203-015-0	01	1	1305-	●
91	HOSE; FLEX,CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) DISCHARGE	8-98070-111-2	01	1	1302-1505	●
91	HOSE; FLEX,CMPR 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) DISCHARGE	8-98070-111-2	01	1	1302-1505		●
91	HOSE; FLEX,CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) DISCHARGE	8-98070-111-2	01	1	1506-	●
91	HOSE; FLEX,CMPR 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) DISCHARGE	8-98070-111-2	01	1	1506-		●
147	CAP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1302-1304	●
147	CAP; FLEX HOSE 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1302-1304		●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1305-	●	●
148	VALVE; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1302-1304	●
148	VALVE; FLEX HOSE 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1302-1304		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1305-	●	●
150	CLIP; HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-264-0	04	1	1305-	●
150	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1302-1505	●
150	CLIP; HOSE 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1302-1505		●
150	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1506-	●
150	CLIP; HOSE 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1506-		●
150	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-264-0	03	1	1302-1505	●
150	CLIP; HOSE 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-264-0	03	1	1302-1505		●
150	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-264-0	03	1	1506-	●
150	CLIP; HOSE 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-264-0	03	1	1506-		●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1302-	●	●
