8-52 — PIPING; AIR CONDITIONING
(#113165) — 32 parça
◀

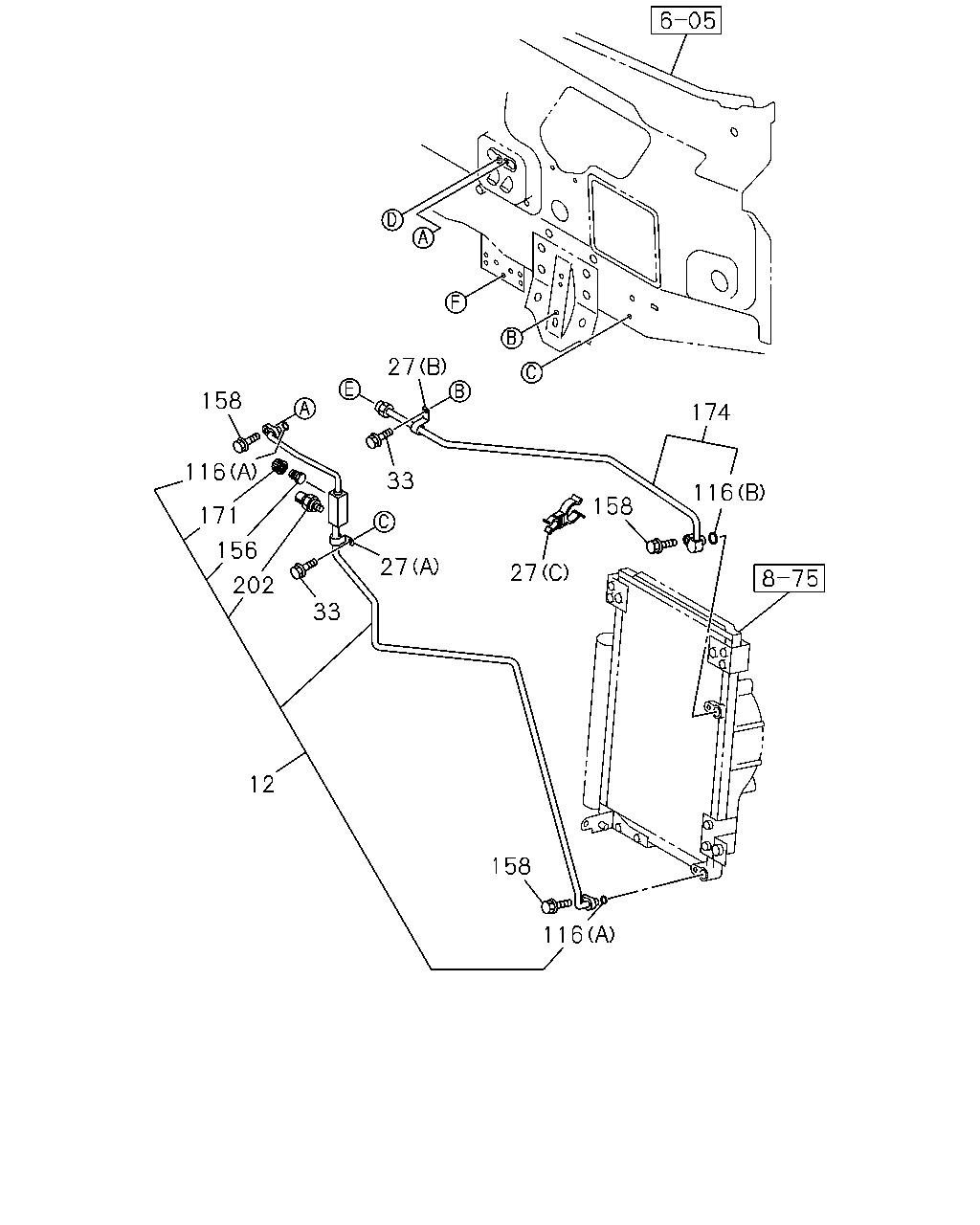

[852A] CAB SIDE (12 parça)
[852A] FRAME SIDE (20 parça)
▶
12
202
156
171
116
158
33
27
27
158
116
158
116
174
33
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98041-328-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1302-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE
0-28650-616-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
1302-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
1302-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1302-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98041-330-0
01
1
1302-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
1302-
162
91
40
25
23
21
25
34
41
23
43
34
43
41
23
162
34
40
150
91
50
150
50
148
147
67
150
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
03
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
03
1
1302-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98010-188-1
01
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98032-049-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-677-2
01
1
1302-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1302-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1302-
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-678-2
01
1
1302-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1302-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-249-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-264-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-94423-042-0
01
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X25 FLANGE
0-28050-625-0
01
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X25 FLANGE
0-28050-625-0
02
1
1302-
