Isuzu WW
▶
TRUCKS
▶
FRR
▶
11505 - FRR(LHD) SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#113164) — 28 parça
◀

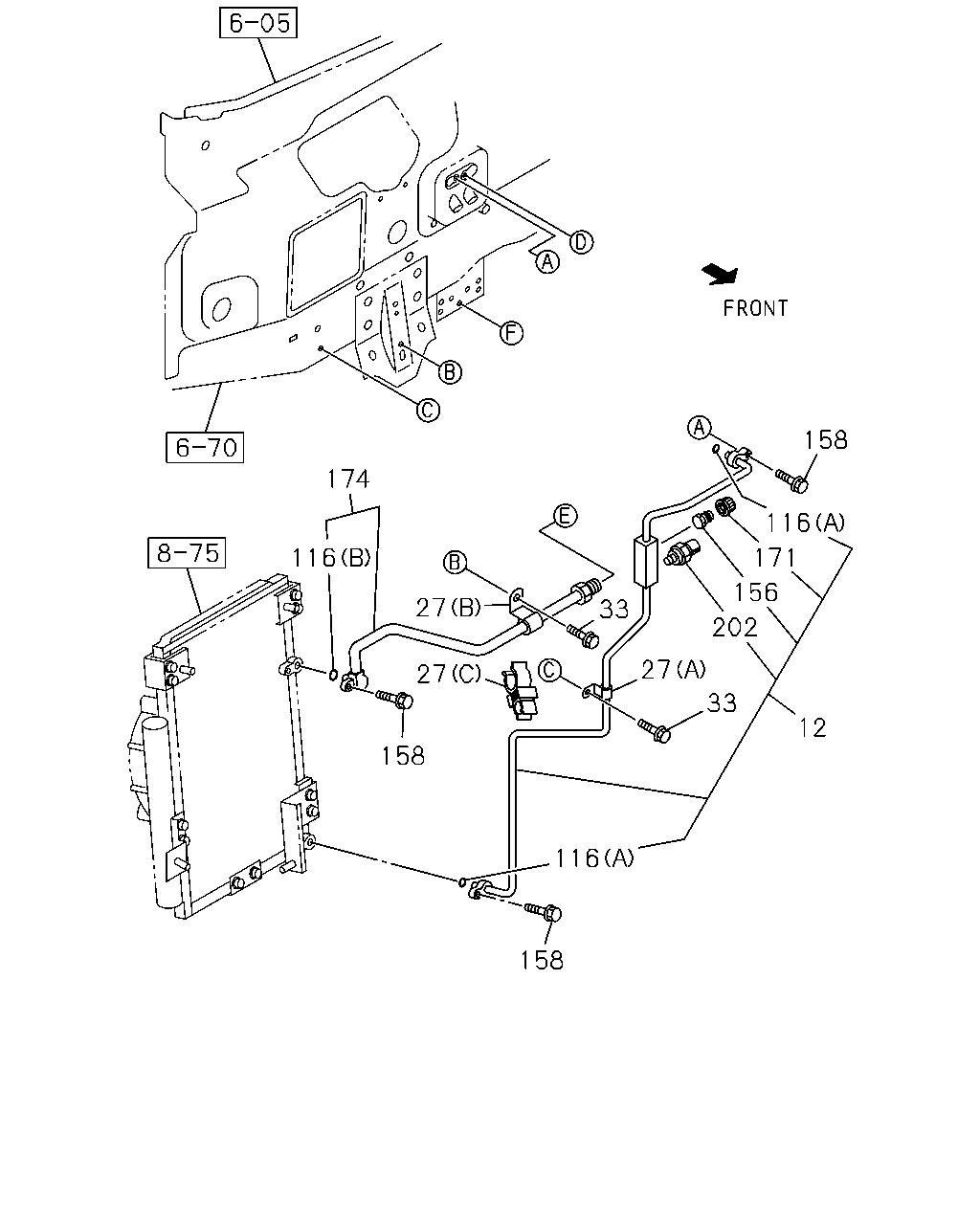

[852A] CAB SIDE (12 parça)
[852A] FRAME SIDE (16 parça)
▶
174
27
27
27
116
33
156
116
171
158
202
12
33
116
158
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-772-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1302-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE
0-28650-616-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
1302-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
1302-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1302-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-774-0
01
1
1302-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
1302-
43
50
43
162
91
40
41
23
25
162
34
23
40
21
50
150
150
67
91
150
67
150
148
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
03
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
01
1
1302-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60)
8-98032-049-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98065-052-1
01
1
1302-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1302-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1302-
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98065-051-2
01
1
1302-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1302-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-249-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-264-0
03
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
01
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
02
1
1302-
