Isuzu WW
▶
TRUCKS
▶
FSR
▶
11508 - FSR(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#113160) — 56 parça
◀

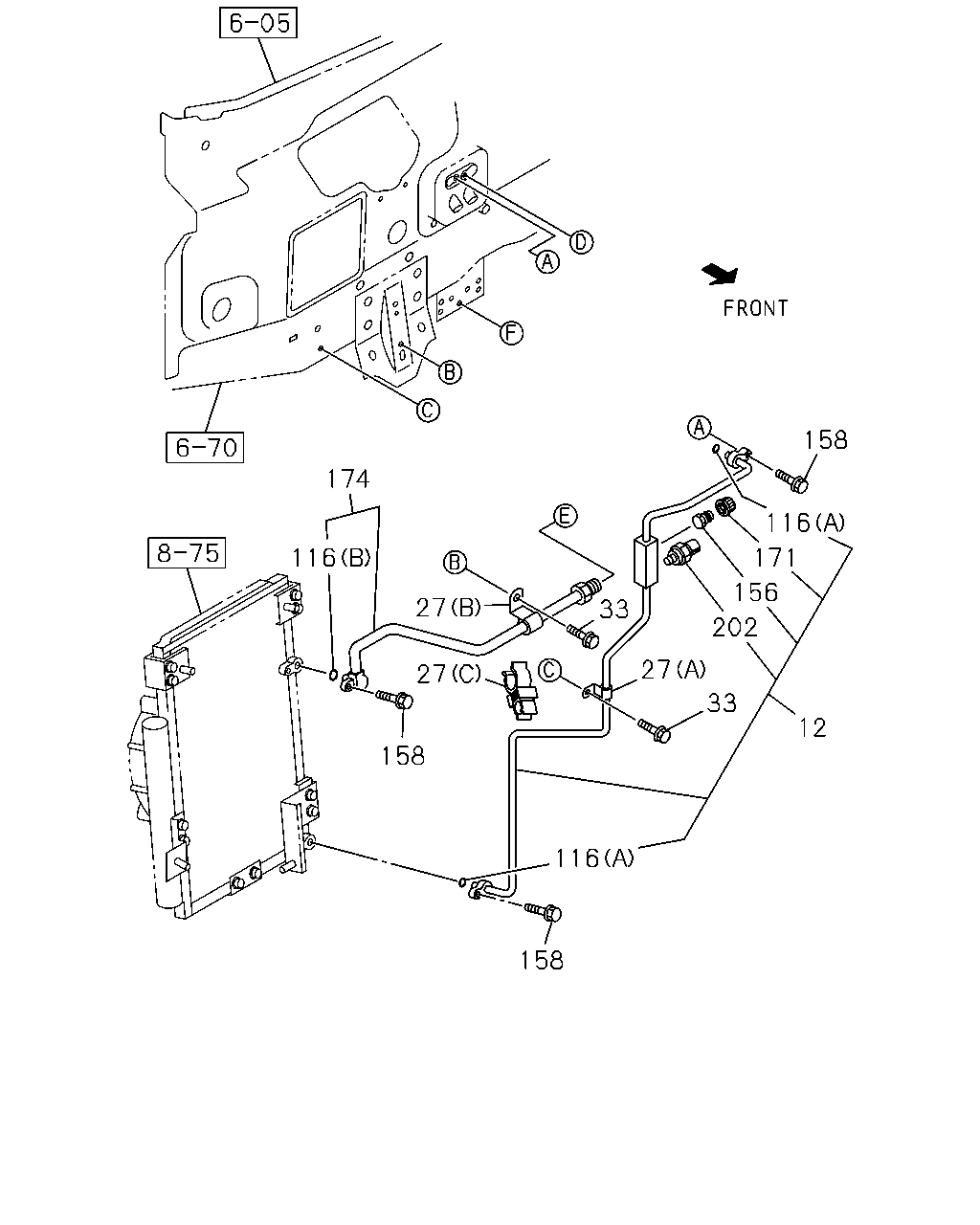

[852A] CAB SIDE (12 parça)

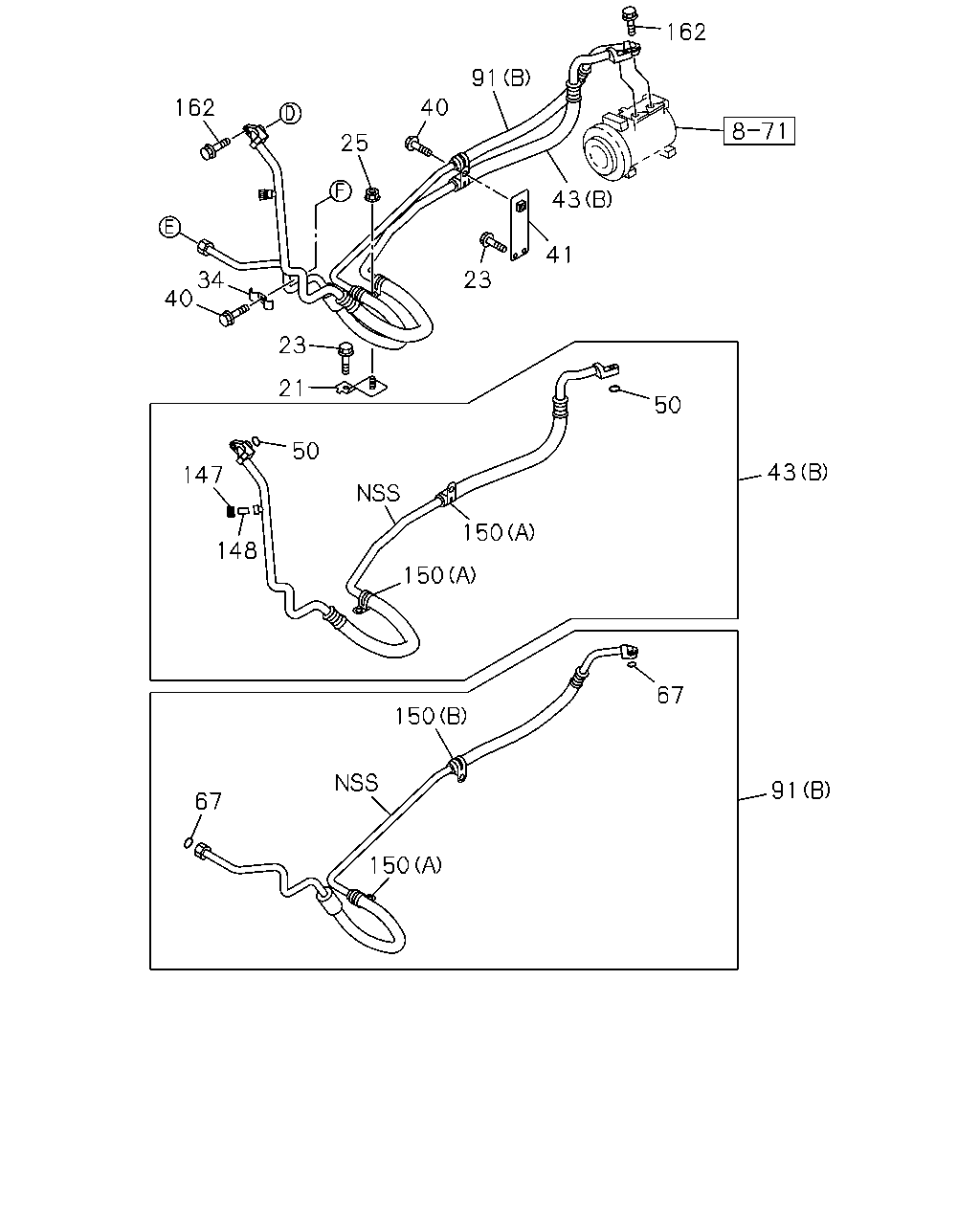

[852A] FRAME SIDE;4HK1 (22 parça)

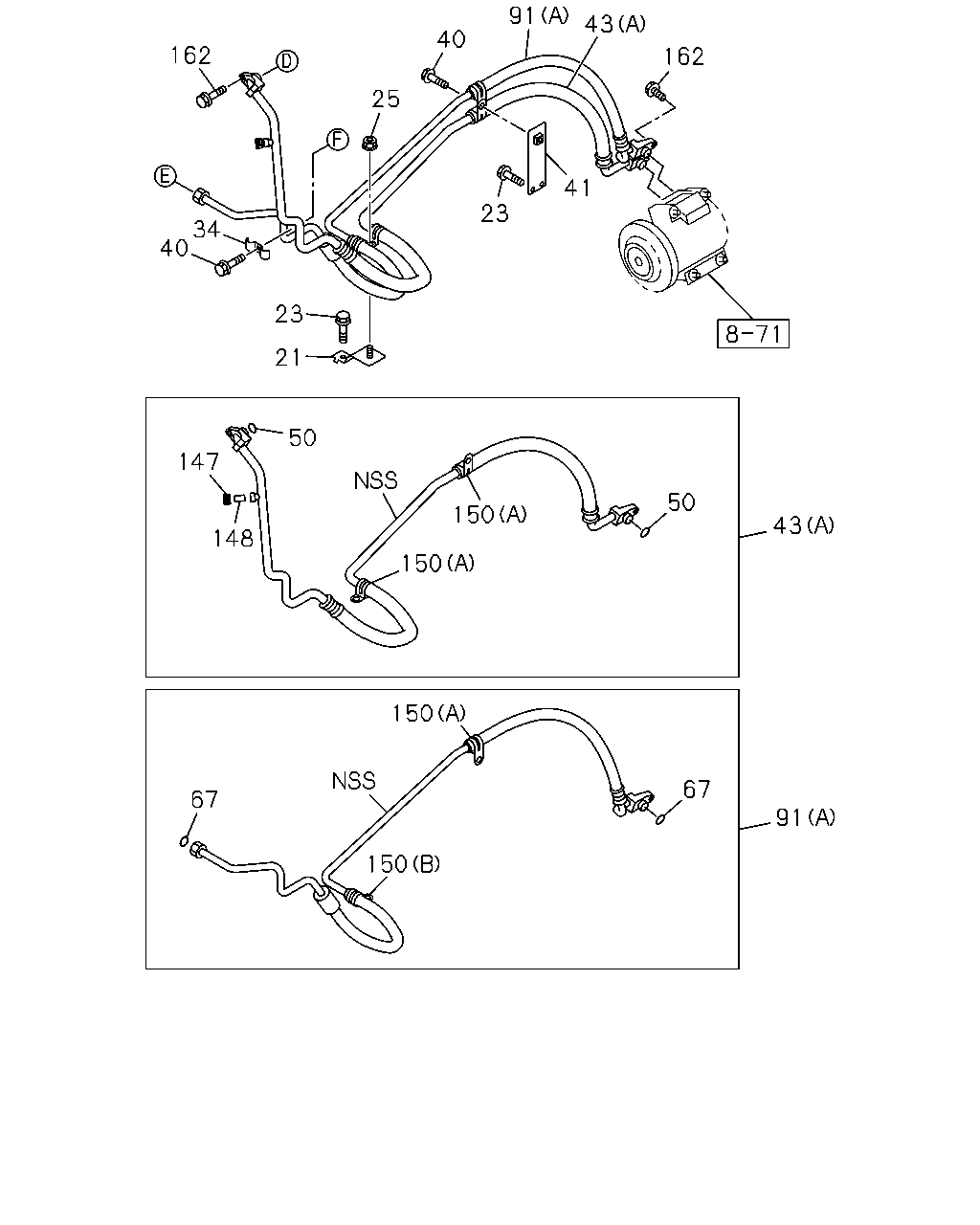

[852A] FRAME SIDE;6HK1 (22 parça)
▶
174
116
27
27
158
33
158
116
27
33
12
202
156
171
116
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-772-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1302-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE
0-28650-616-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
1302-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
1302-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1302-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-774-0
01
1
1302-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
1302-
162
91
4
25
162
34
40
23
21
23
41
43
50
147
148
150
150
50
43
67
150
67
150
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
01
1
1302-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
41
BRACKET; PIPE CLIP
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98032-049-0
01
1
1302-
41
BRACKET; PIPE CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-98032-049-0
01
1
1302-
41
BRACKET; PIPE CLIP
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98209-849-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98065-052-1
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98207-250-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98065-050-0
01
1
1302-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1302-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1302-
91
HOSE; FLEX,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98065-051-2
01
1
1302-
91
HOSE; FLEX,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98207-249-0
01
1
1302-
91
HOSE; FLEX,CMPR
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98065-049-2
01
1
1302-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1302-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-249-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-264-0
03
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
162
34
40
23
21
50
147
148
150
150
150
150
67
91
43
50
7
40
91
43
162
41
23
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
01
1
1302-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
41
BRACKET; PIPE CLIP
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98032-049-0
01
1
1302-
41
BRACKET; PIPE CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-98032-049-0
01
1
1302-
41
BRACKET; PIPE CLIP
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98209-849-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98065-052-1
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98207-250-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98065-050-0
01
1
1302-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1302-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1302-
91
HOSE; FLEX,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98065-051-2
01
1
1302-
91
HOSE; FLEX,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98207-249-0
01
1
1302-
91
HOSE; FLEX,CMPR
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98065-049-2
01
1
1302-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1302-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-249-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-264-0
03
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
