8-50 — AIR CONDITIONING SYSTEM; FRONT (#113157) — 91 parça

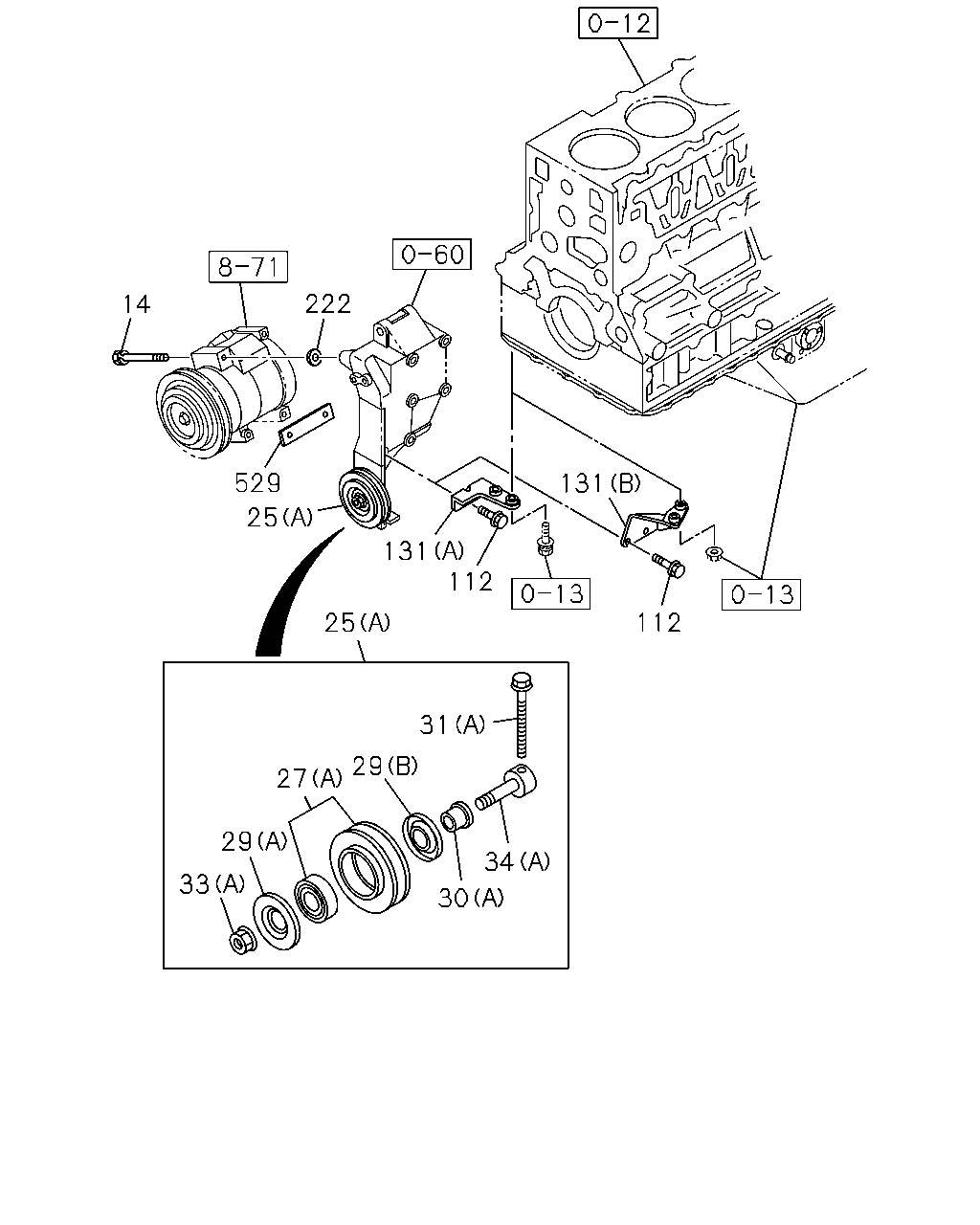

14 222 529 25 25 131 112 131 112 31 34 30 29 27 29 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER	5-09000-228-1	04	1	1302-1505	●	●
14	BOLT; CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER	5-09000-228-1	04	1	1506-	●	●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 1-GROOVE	8-97161-198-1	01	1	1305-	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	1302-1505	●	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	1506-	●	●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97386-869-0	01	1	1305-	●
27	PULLEY; IDLE,A/C 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-323-0	01	1	1302-1505	●	●
27	PULLEY; IDLE,A/C 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-323-0	01	1	1506-	●	●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97384-114-0	01	1	1305-	●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97384-115-0	01	1	1305-	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-329-0	01	1	1302-1505	●	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-329-0	01	1	1506-	●	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97605-330-0	01	1	1302-1505	●	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97605-330-0	01	1	1506-	●	●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-117-0	01	1	1305-	●
30	COLLAR; IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-328-0	01	1	1302-1505	●	●
30	COLLAR; IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-328-0	01	1	1506-	●	●
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-113-0	01	1	1305-	●
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-325-0	01	1	1302-1505	●	●
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-325-0	01	1	1506-	●	●
33	NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-118-0	01	1	1305-	●
33	NUT; IDLER PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-326-0	01	1	1302-1505	●	●
33	NUT; IDLER PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-326-0	01	1	1506-	●	●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-116-0	01	1	1305-	●
34	SHAFT; IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-327-0	01	1	1302-1505	●	●
34	SHAFT; IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-327-0	01	1	1506-	●	●
112	BOLT; STAY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●	●
112	BOLT; STAY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
131	STAY; CMPR BRKT 6HK1-TCS ENG(80L) FRIGID ZONE KIT(YL3) (B)	8-97601-869-1	01	1	1302-1505	●
131	STAY; CMPR BRKT 6HK1-TCS ENG(80L) FRIGID ZONE KIT(YL3) (B)	8-97601-869-1	01	1	1506-	●
131	STAY; CMPR BRKT 6HK1-TCC ENG(81L) (B)	8-97601-869-1	01	1	1506-	●
131	STAY; CMPR BRKT 6HK1-TCS ENG(80L) EXC. FRIGID ZONE KIT(YL3) (A)	8-94393-451-0	01	1	1302-	●
131	STAY; CMPR BRKT 6HK1-TCN ENG(82L) (A)	8-94393-451-0	01	1	1302-	●
131	STAY; CMPR BRKT (A)	8-94393-451-0	01	1	1302-		●
222	GASKET; CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	8-94312-733-0	02	1	1302-1505	●	●
222	GASKET; CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	8-94312-733-0	02	1	1506-	●	●
529	SPACER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-271-0	01	1	1302-1505	●	●
529	SPACER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-271-0	01	1	1506-	●	●

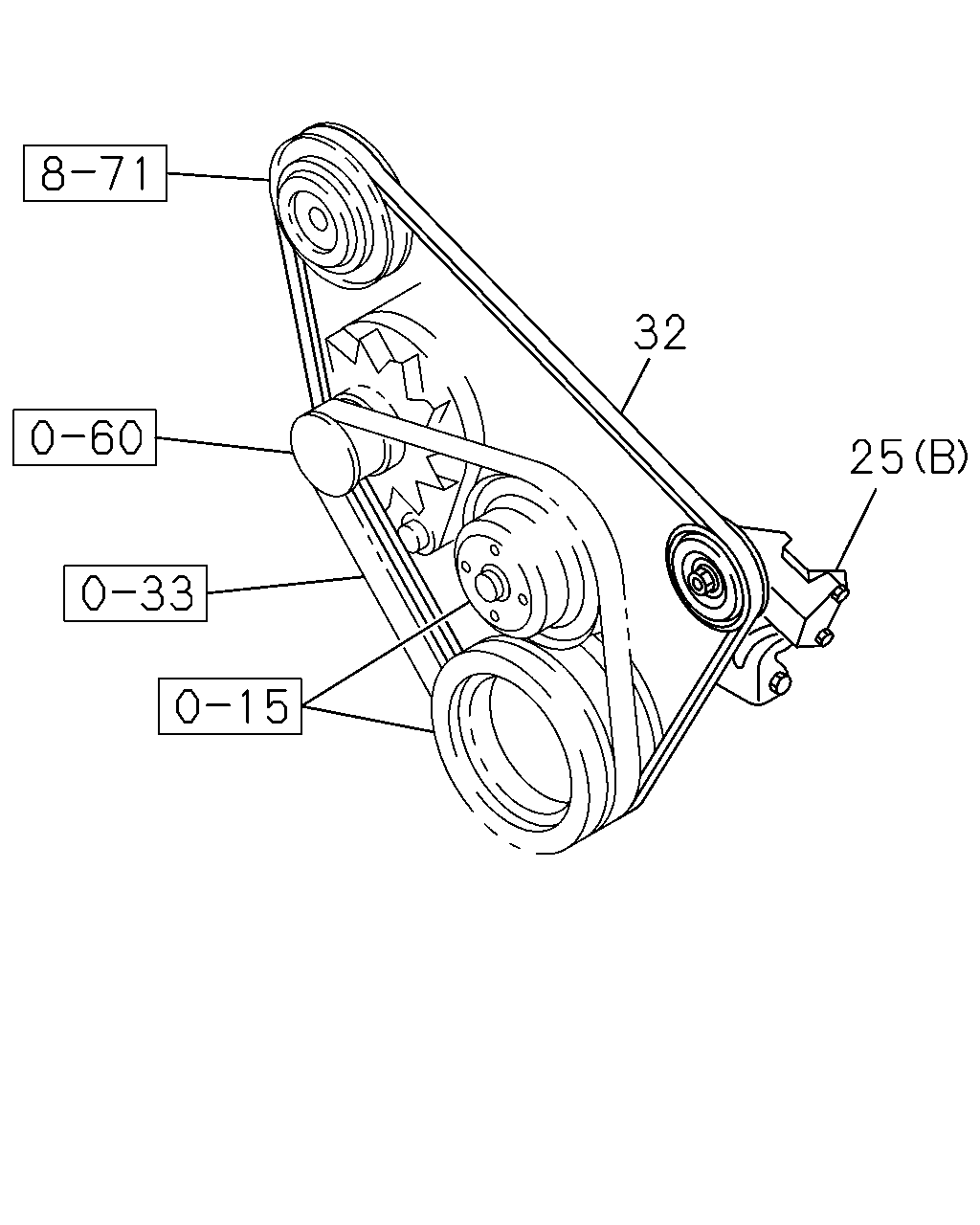

32 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 1-GROOVE	8-97161-198-1	01	1	1305-	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	1302-1505	●	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	1506-	●	●
32	BELT; A/C CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS	1-87610-100-0	01	1	1305-	●
32	BELT; A/C CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) L=1594	8-97383-577-1	01	1	1305-	●

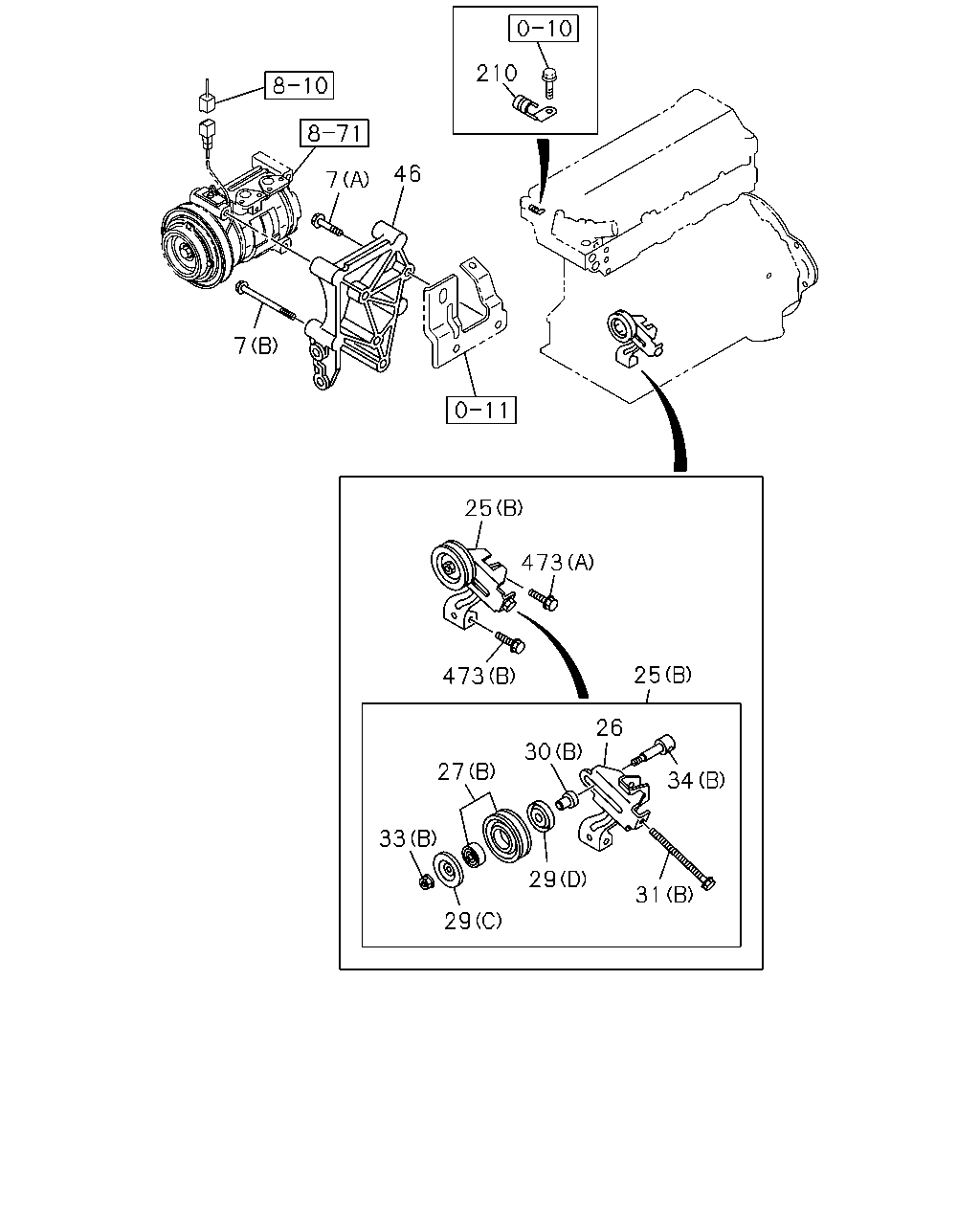

210 46 7 7 25 473 473 25 26 30 34 31 29 29 33 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X45 FLANGE	0-28151-045-0	02	1	1305-	●
7	BOLT; BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	01	1	1305-	●
7	BOLT; BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X130 FLANGE	0-28156-013-0	01	1	1305-	●
7	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	02	1	1305-	●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 1-GROOVE	8-97161-198-1	01	1	1305-	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	1302-1505	●	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	1506-	●	●
26	BRACKET; IDLE PULLEY,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-031-1	01	1	1305-	●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97386-869-0	01	1	1305-	●
27	PULLEY; IDLE,A/C 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-323-0	01	1	1302-1505	●	●
27	PULLEY; IDLE,A/C 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-323-0	01	1	1506-	●	●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97384-114-0	01	1	1305-	●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97384-115-0	01	1	1305-	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-329-0	01	1	1302-1505	●	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-329-0	01	1	1506-	●	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97605-330-0	01	1	1302-1505	●	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97605-330-0	01	1	1506-	●	●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-117-0	01	1	1305-	●
30	COLLAR; IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-328-0	01	1	1302-1505	●	●
30	COLLAR; IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-328-0	01	1	1506-	●	●
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-113-0	01	1	1305-	●
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-325-0	01	1	1302-1505	●	●
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-325-0	01	1	1506-	●	●
33	NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-118-0	01	1	1305-	●
33	NUT; IDLER PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-326-0	01	1	1302-1505	●	●
33	NUT; IDLER PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-326-0	01	1	1506-	●	●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-116-0	01	1	1305-	●
34	SHAFT; IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-327-0	01	1	1302-1505	●	●
34	SHAFT; IDLE PULLEY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-327-0	01	1	1506-	●	●
46	BRACKET; CMPR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44)	8-98101-365-0	01	1	1305-	●
46	BRACKET; CMPR 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44)	8-98101-364-0	01	1	1305-	●
210	CLIP; HARNESS 4HK1-TCS ENG(RJS) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1305-	●
473	BOLT; TENSIONER 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X50 FLANGE	0-28050-850-0	01	1	1305-	●
473	BOLT; TENSIONER 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE	8-94344-540-1	01	1	1305-	●

71 378 378 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98017-235-1	01	1	1302-	●	●
201	CLIP; HOSE,CMPR TO EVAP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94423-042-0	01	1	1302-1505	●
201	CLIP; HOSE,CMPR TO EVAP 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94423-042-0	01	1	1302-1505		●
201	CLIP; HOSE,CMPR TO EVAP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94423-042-0	01	1	1506-	●
201	CLIP; HOSE,CMPR TO EVAP 6HK1-TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94423-042-0	01	1	1506-		●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98204-846-0	01	1	1302-	●	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98062-954-0	01	1	1302-	●	●

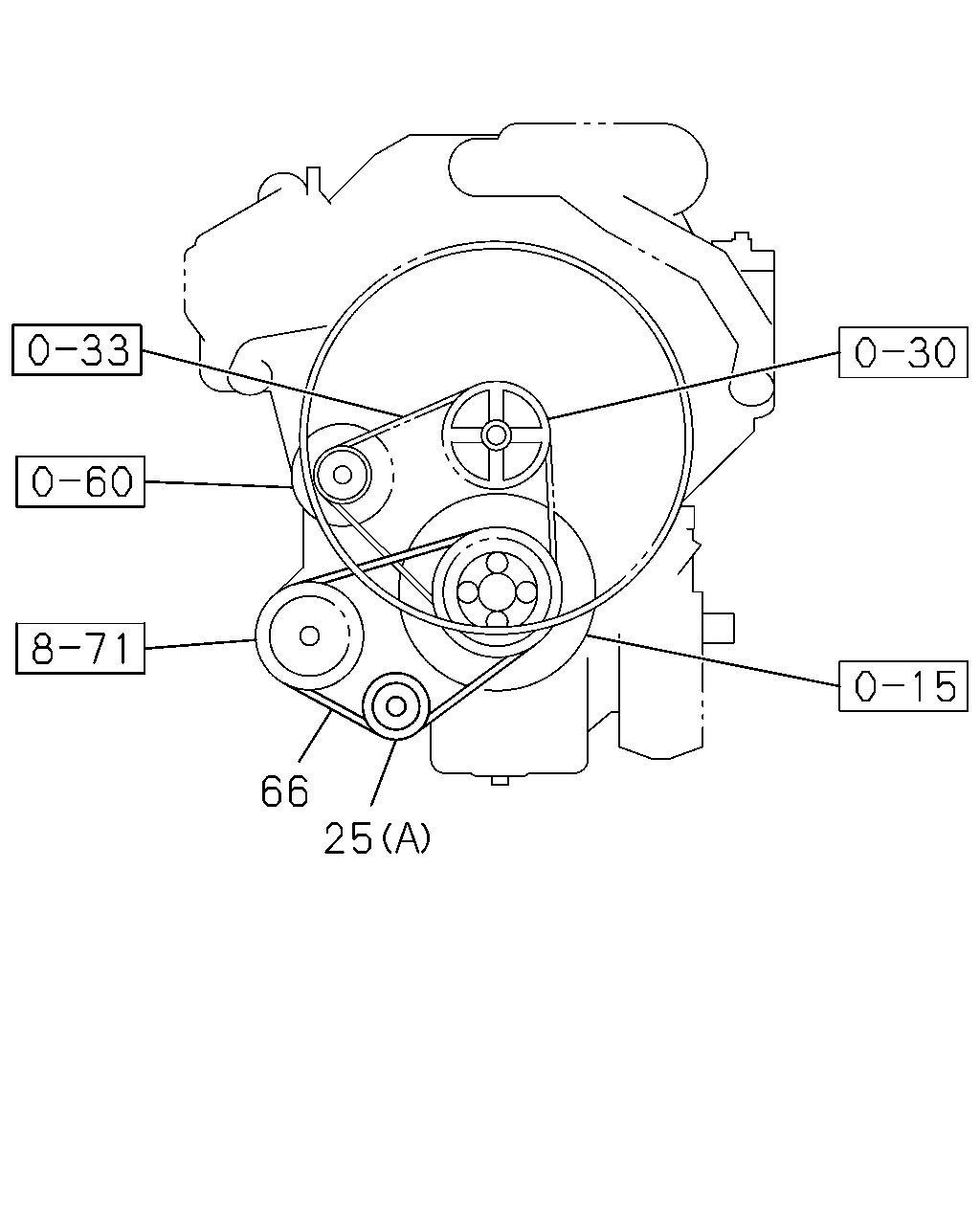

66 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 1-GROOVE	8-97161-198-1	01	1	1305-	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	1302-1505	●	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	1506-	●	●
66	BELT; A/C CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS	1-87610-104-0	01	1	1302-1505	●	●
66	BELT; A/C CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS	1-87610-104-0	01	1	1506-	●	●
66	BELT; A/C CMPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=1114	8-97605-102-0	01	1	1302-1505	●	●
66	BELT; A/C CMPR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=1114	8-97605-102-0	01	1	1506-	●	●
