Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#113154) — 38 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀

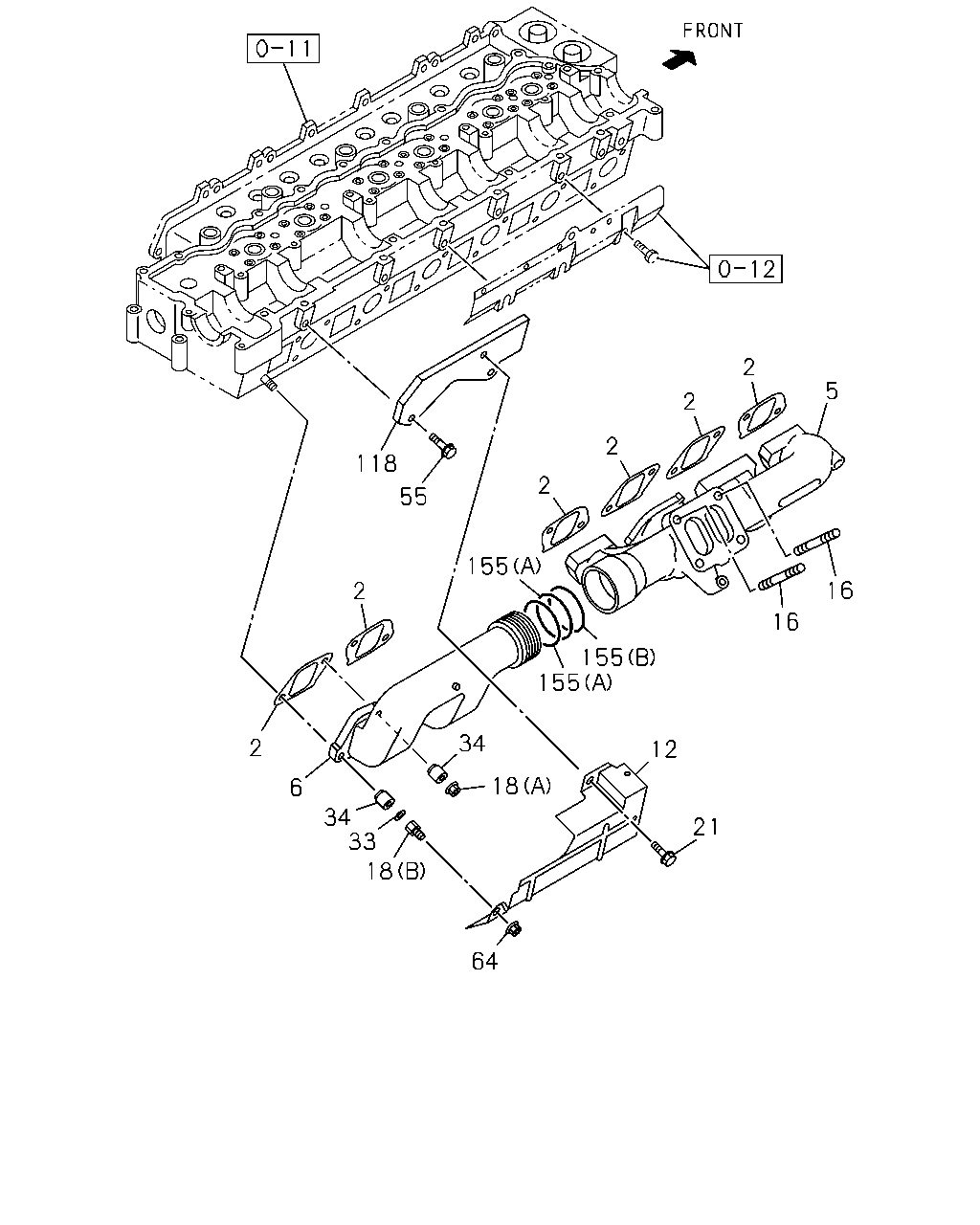

[027A] 6HK1 (20 parça)

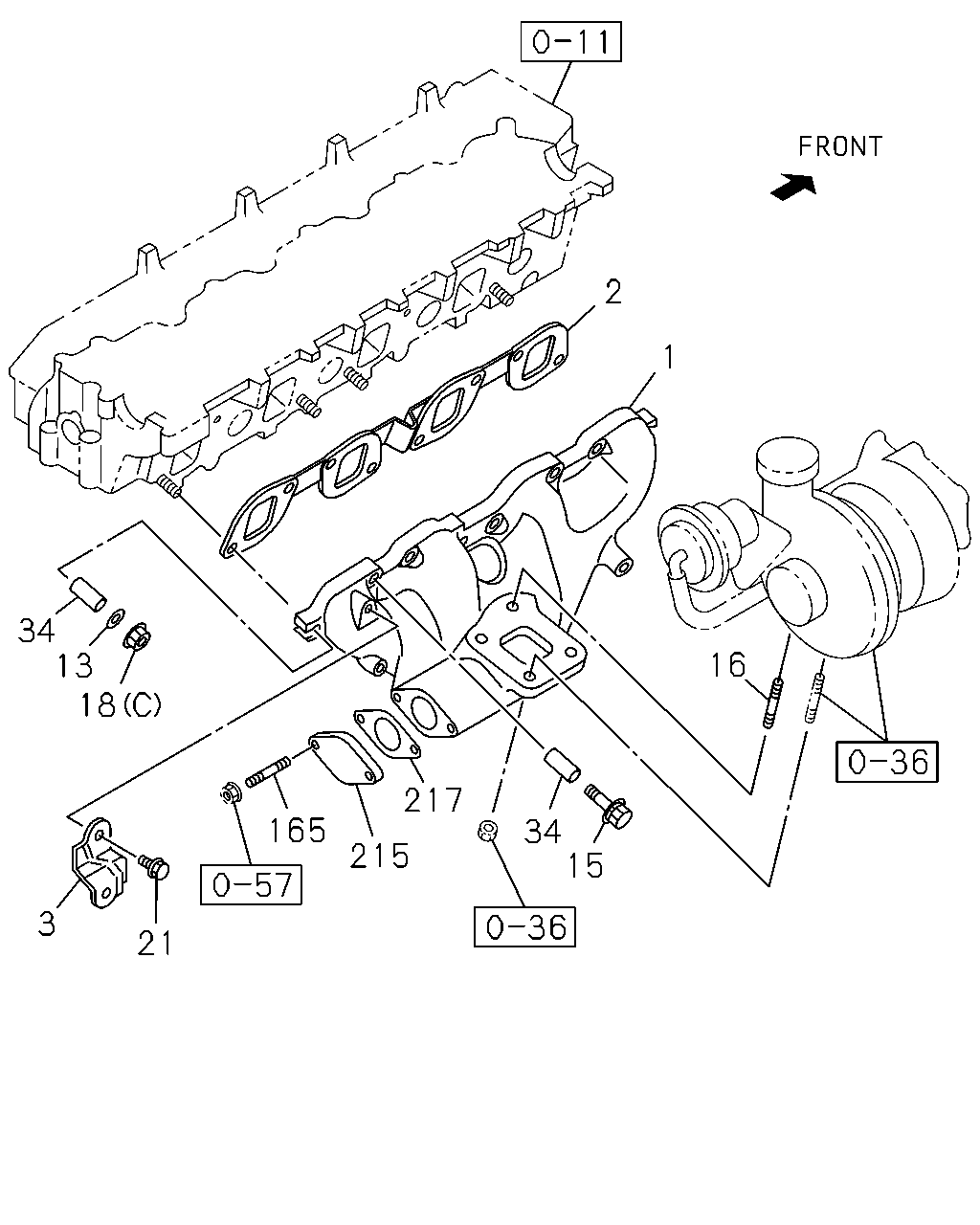

[027A] 4HK1 (18 parça)
▶
118
55
155
2
2
2
2
5
16
16
155
155
12
21
18
34
2
2
6
34
33
18
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-4
06
1
1302-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
1305-
●
5
MANIFOLD; EXH,FRT
8-97602-056-0
01
1
1302-
●
6
MANIFOLD; EXH,RR
8-97600-970-0
01
1
1302-
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
8-97601-632-0
01
1
1302-
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
1302-1304
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
1305-
●
●
18
NUT; EXH MANIF
(A) M10 LOCK NUT
0-91370-010-0
10
1
1302-
●
18
NUT; EXH MANIF
(B) M10
8-98205-394-0
02
1
1302-
●
18
NUT; EXH MANIF
(C) M10
0-91110-510-0
02
1
1305-
●
21
BOLT; HEAT PROTECTOR
M8X16 FLANGE
0-28050-816-0
01
1
1302-
●
21
BOLT; HEAT PROTECTOR
M6X12 FLANGE
8-97108-669-0
02
1
1305-
●
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
02
1
1302-
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
1302-
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
1305-
●
55
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
1302-
●
64
NUT; HEAT PROTECTOR
M10 FLANGE
0-91180-210-0
02
1
1302-
●
118
BRACKET; HEAT PROTECTOR
8-97603-366-0
01
1
1302-
●
155
RING; SEAL,EXH MANIF
(B) STAMP RH
1-14149-151-0
01
1
1302-
●
155
RING; SEAL,EXH MANIF
(A)
1-14149-184-0
02
1
1302-
●
34
15
215
165
21
3
18
13
34
2
1
16
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
8-98027-968-1
01
1
1305-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-4
06
1
1302-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
1305-
●
3
PROTECTOR; HEAT,EXH MANIF
8-97039-753-1
01
1
1305-
●
13
WASHER; LK,EXH MANIF
T=2.2
1-09556-015-0
02
1
1305-
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
1305-
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
1302-1304
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
1305-
●
●
18
NUT; EXH MANIF
(A) M10 LOCK NUT
0-91370-010-0
10
1
1302-
●
18
NUT; EXH MANIF
(B) M10
8-98205-394-0
02
1
1302-
●
18
NUT; EXH MANIF
(C) M10
0-91110-510-0
02
1
1305-
●
21
BOLT; HEAT PROTECTOR
M8X16 FLANGE
0-28050-816-0
01
1
1302-
●
21
BOLT; HEAT PROTECTOR
M6X12 FLANGE
8-97108-669-0
02
1
1305-
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
1302-
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
1305-
●
165
STUD; EGR PIPE
M8X45 L=57
8-94105-162-1
02
1
1305-
●
215
PLATE; BOSS,EXH MANIF
8-98170-965-0
01
1
1305-
●
217
GASKET; EXH MANIF TO PLATE
8-94340-670-0
01
1
1305-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
