Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11521 - FVZ(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

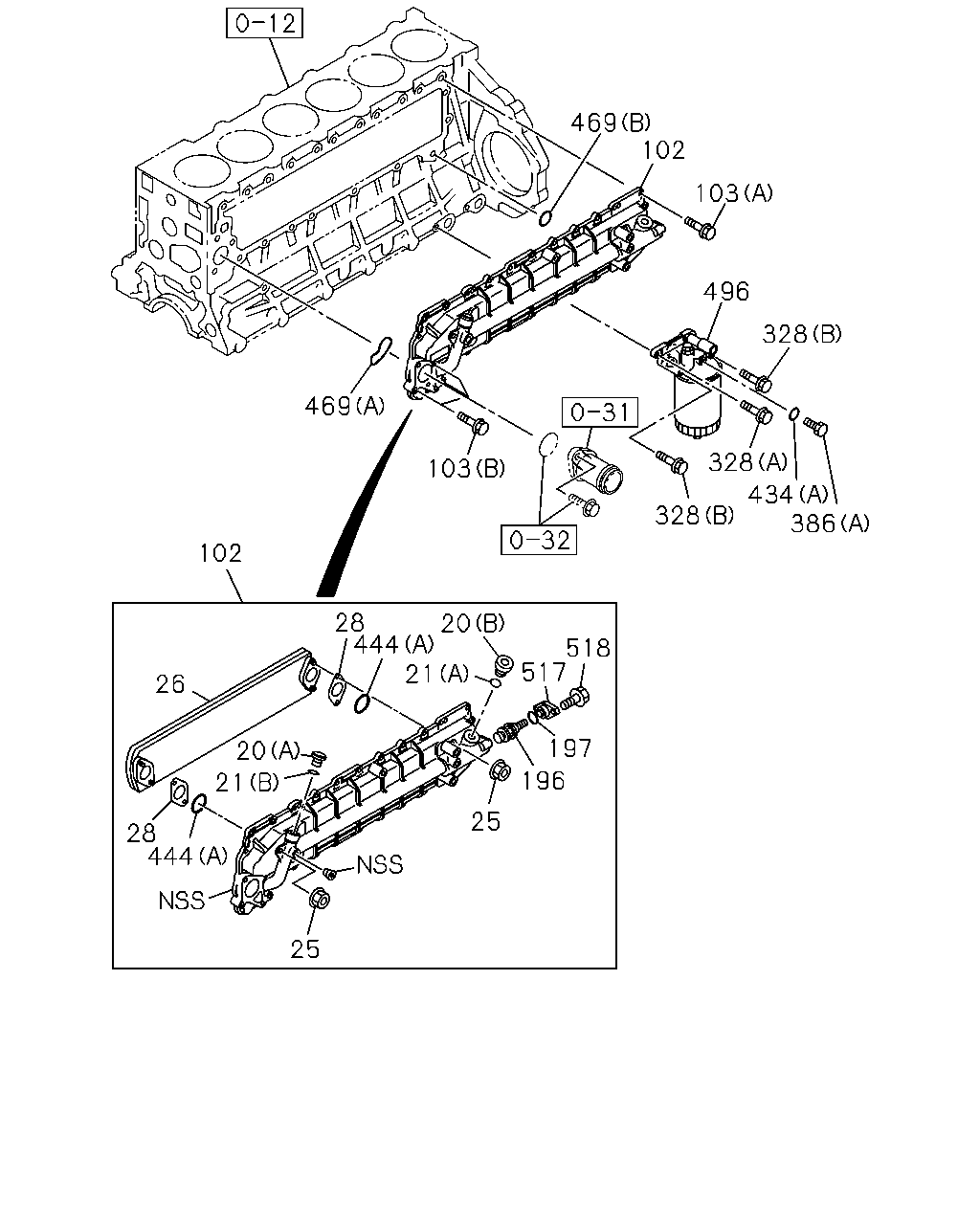

0-50 — OIL COOLER AND OIL FILTER (#113152) — 89 parça

469 103 496 328 328 386 328 103 469 102 28 20 518 517 197 196 21 444 25 20 26 21 28 444 25 102 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1302-
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1302-
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	1-13219-240-0	02	1	1302-
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D)	8-97608-567-0	02	1	1302-
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1302-
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1302-
21	GASKET; PLUG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-97608-568-0	02	1	1302-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1302-
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	1302-
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1302-
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	1302-1307
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-98251-758-0	04	1	1309-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1302-
197	GASKET; THERMOSTAT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	1302-
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-97601-801-0	02	1	1309-
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1302-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=38.7	1-09623-299-0	02	1	1302-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1302-
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	1302-
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1302-

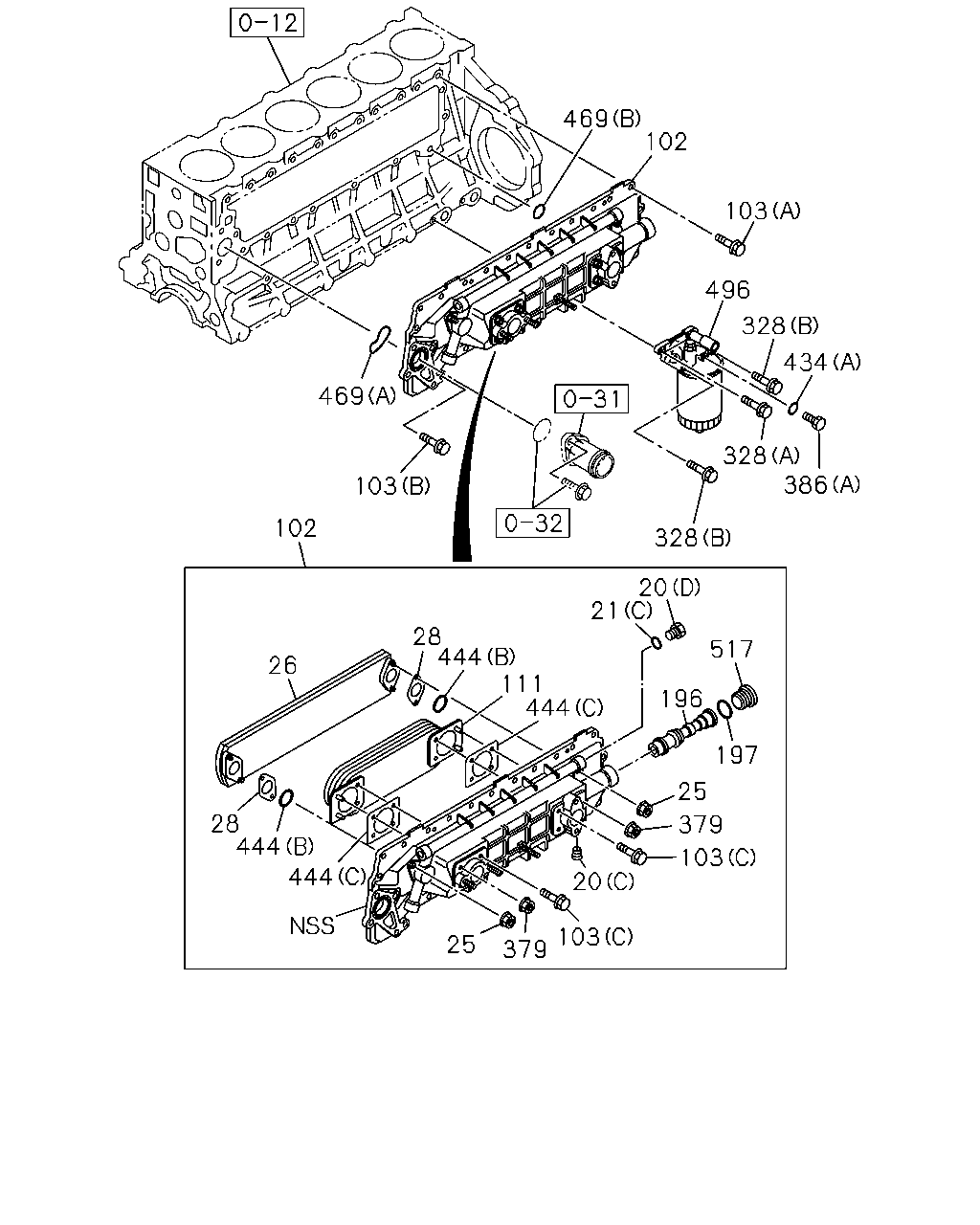

469 102 103 496 328 434 328 386 328 469 103 102 26 28 444 444 25 379 20 103 103 379 25 197 196 517 21 444 111 444 28 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1302-
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1302-
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	1-13219-240-0	02	1	1302-
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D)	8-97608-567-0	02	1	1302-
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1302-
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1302-
21	GASKET; PLUG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-97608-568-0	02	1	1302-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1302-
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	1302-
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1302-
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	1302-1307
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-98251-758-0	04	1	1309-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-
111	CORE; OIL COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1302-
197	GASKET; THERMOSTAT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	1302-
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-
379	NUT; OIL COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-97601-801-0	02	1	1309-
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1302-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=38.7	1-09623-299-0	02	1	1302-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1302-
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	1302-

496 386 434 13 66 265 308 307 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-
66	SPRING; VLV	8-98238-943-0	01	1	1308-
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-
307	VALVE; OVERFLOW	8-94395-700-0	01	1	1302-1307
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	1302-1307
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1302-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1302-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
