0-42 — FUEL PUMP AND PIPE (#113151) — 93 parça

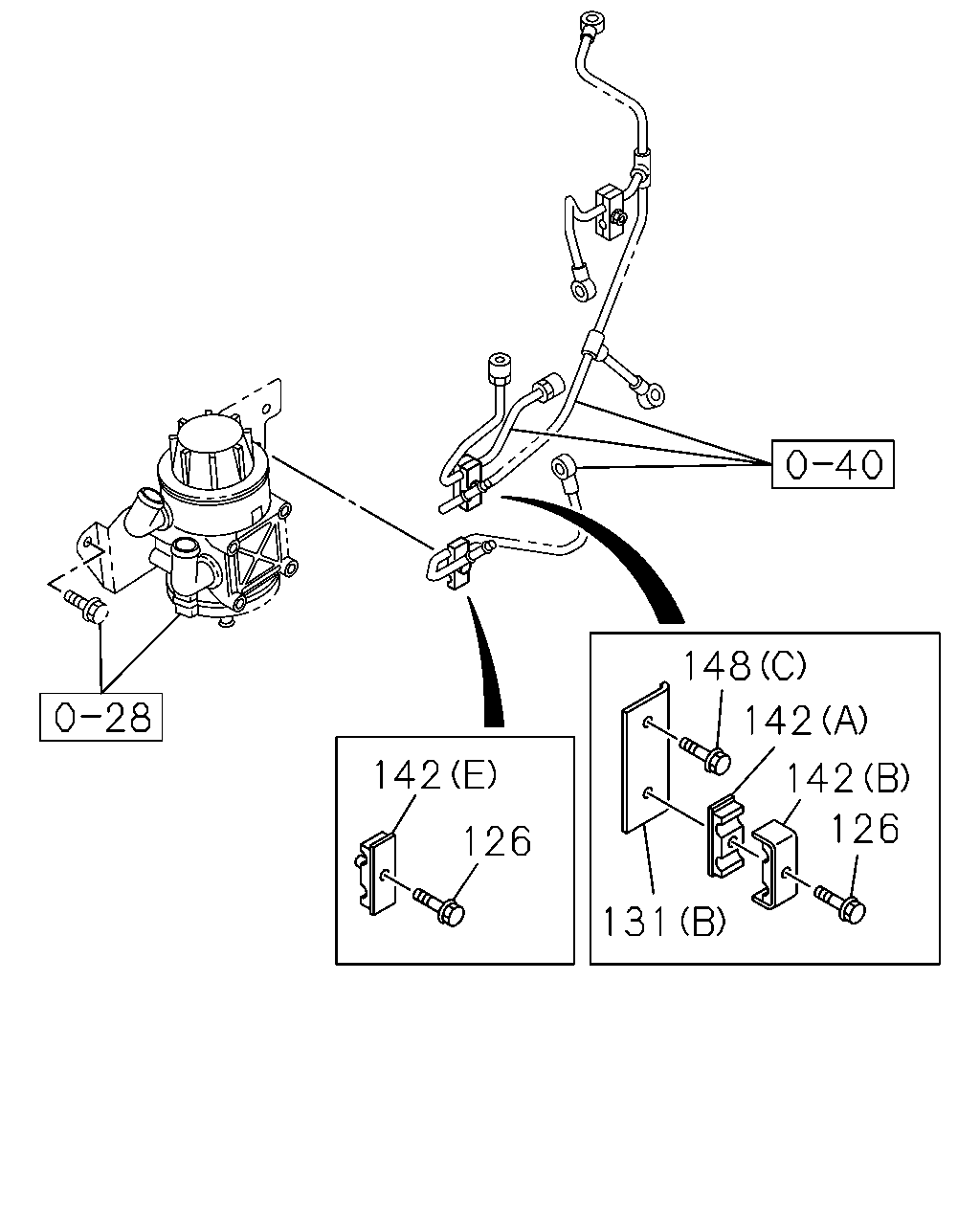

142 126 148 142 142 126 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
126	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	01	1	1302-	●	●
126	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	01	1	1302-	●	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28151-025-0	01	1	1302-1511	●	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28151-025-0	01	1	1512-	●	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M6X35 FLANGE	0-28650-635-0	02	1	1302-1505	●	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X35 FLANGE	0-28650-635-0	02	1	1506-1511	●	●	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X35 FLANGE	0-28650-635-0	02	1	1512-	●	●	●
131	BRACKET; FUEL PIPE CLIP EURO2 SPECIFICATION<NT2> (A)	8-98059-806-0	01	1	1302-	●	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	1-15419-391-1	01	1	1302-1505	●	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	1-15419-391-1	01	1	1506-1511	●	●	●
131	BRACKET; FUEL PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	1-15419-391-1	01	1	1512-	●	●	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1302-	●	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	8-98000-011-2	01	1	1302-	●	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (D) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-	●	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (C) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) L=48	5-09709-103-0	01	1	1302-1505	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=48	5-09709-103-0	01	1	1506-1511	●	●	●
142	CLIP; FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=48	5-09709-103-0	01	1	1512-	●	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1302-1505	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1506-1511	●	●	●
142	CLIP; FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1512-	●	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) ID=7 & 9 L=25	8-98000-011-2	01	1	1302-1505	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=7 & 9 L=25	8-98000-011-2	01	1	1506-1511	●	●	●
142	CLIP; FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=7 & 9 L=25	8-98000-011-2	01	1	1512-	●	●	●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	01	1	1302-	●	●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X25 FLANGE	0-28151-025-0	01	1	1302-	●	●
148	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●	●
148	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X12 FLANGE	0-28050-812-0	01	1	1506-1511	●	●	●
148	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X12 FLANGE	0-28050-812-0	01	1	1512-	●	●	●
148	BOLT; BRKT (D) M6X12 FLANGE	0-28050-612-0	01	1	1305-				●

142 126 142 131 142 142 126 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
126	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	01	1	1302-	●	●
126	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	01	1	1302-	●	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28151-025-0	01	1	1302-1511	●	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28151-025-0	01	1	1512-	●	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M6X35 FLANGE	0-28650-635-0	02	1	1302-1505	●	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X35 FLANGE	0-28650-635-0	02	1	1506-1511	●	●	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X35 FLANGE	0-28650-635-0	02	1	1512-	●	●	●
131	BRACKET; FUEL PIPE CLIP EURO2 SPECIFICATION<NT2> (A)	8-98059-806-0	01	1	1302-	●	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	1-15419-391-1	01	1	1302-1505	●	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	1-15419-391-1	01	1	1506-1511	●	●	●
131	BRACKET; FUEL PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	1-15419-391-1	01	1	1512-	●	●	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1302-	●	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	8-98000-011-2	01	1	1302-	●	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (D) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-	●	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (C) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) L=48	5-09709-103-0	01	1	1302-1505	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=48	5-09709-103-0	01	1	1506-1511	●	●	●
142	CLIP; FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=48	5-09709-103-0	01	1	1512-	●	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1302-1505	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1506-1511	●	●	●
142	CLIP; FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=7 & 9 L=25	8-98000-010-2	01	1	1512-	●	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) ID=7 & 9 L=25	8-98000-011-2	01	1	1302-1505	●	●
142	CLIP; FUEL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=7 & 9 L=25	8-98000-011-2	01	1	1506-1511	●	●	●
142	CLIP; FUEL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=7 & 9 L=25	8-98000-011-2	01	1	1512-	●	●	●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	01	1	1302-	●	●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X25 FLANGE	0-28151-025-0	01	1	1302-	●	●
148	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●	●
148	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X12 FLANGE	0-28050-812-0	01	1	1506-1511	●	●	●
148	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X12 FLANGE	0-28050-812-0	01	1	1512-	●	●	●
148	BOLT; BRKT (D) M6X12 FLANGE	0-28050-612-0	01	1	1305-				●

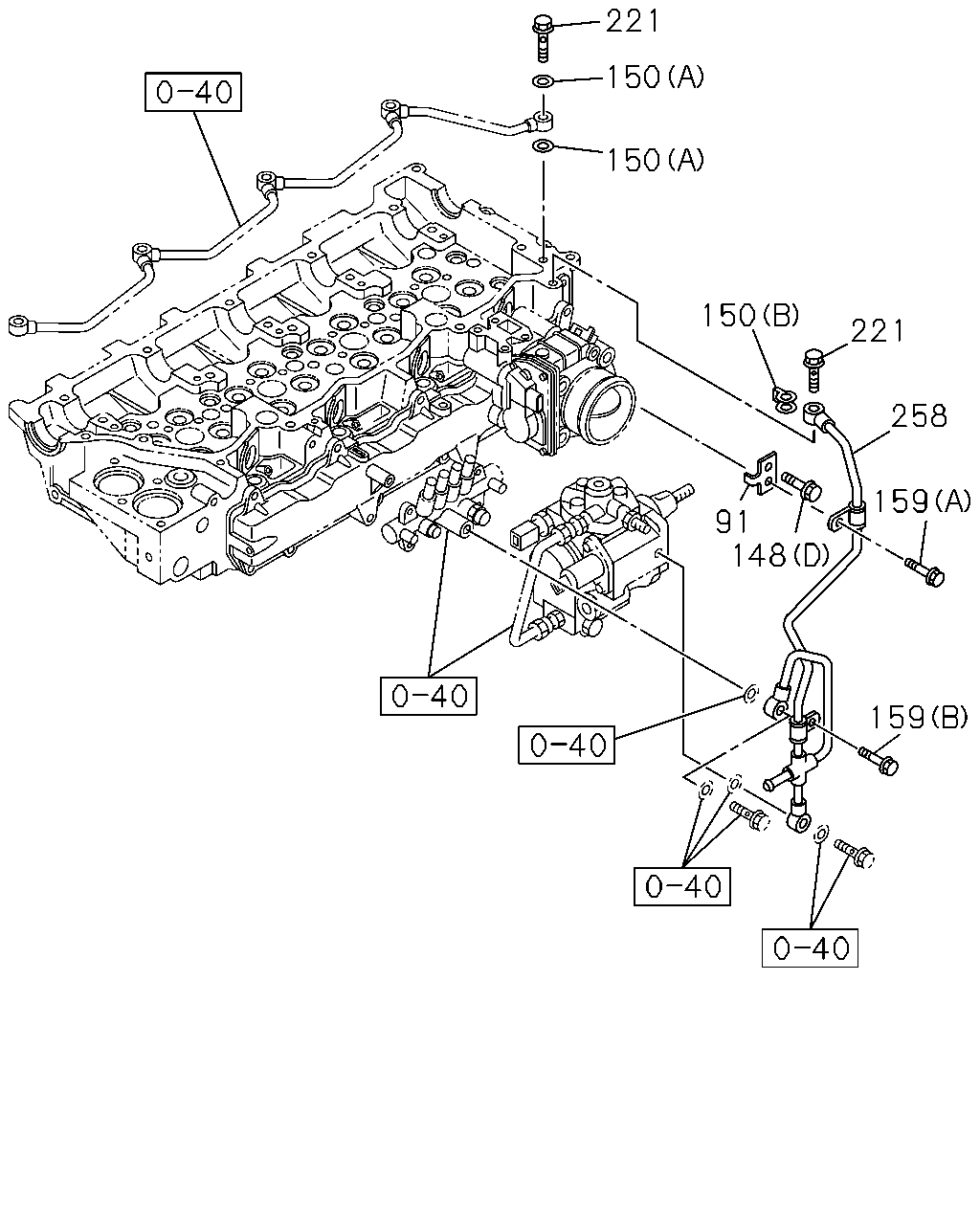

221 150 150 150 221 258 159 148 91 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
91	BRACKET; FUEL PIPE TO INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98033-979-0	01	1	1305-1511				●
91	BRACKET; FUEL PIPE TO INL MANIF EURO2 SPECIFICATION<NT2>	8-98033-979-0	01	1	1512-				●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	01	1	1302-	●	●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X25 FLANGE	0-28151-025-0	01	1	1302-	●	●
148	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●	●
148	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X12 FLANGE	0-28050-812-0	01	1	1506-1511	●	●	●
148	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X12 FLANGE	0-28050-812-0	01	1	1512-	●	●	●
148	BOLT; BRKT (D) M6X12 FLANGE	0-28050-612-0	01	1	1305-				●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1305-				●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1305-				●
159	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	01	1	1305-				●
159	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M6X16 FLANGE	0-28050-616-0	01	1	1305-1511				●
159	BOLT; CLIP EURO2 SPECIFICATION<NT2> (B) M6X16 FLANGE	0-28050-616-0	01	1	1512-				●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	1305-				●
258	PIPE ASM; FUEL,LEAK OFF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98055-815-1	01	1	1305-1511				●
258	PIPE ASM; FUEL,LEAK OFF EURO2 SPECIFICATION<NT2>	8-98055-815-1	01	1	1512-				●
258	PIPE ASM; FUEL,LEAK OFF EURO4 SPECIFICATION<NT4>	8-98089-667-0	01	1	1305-				●

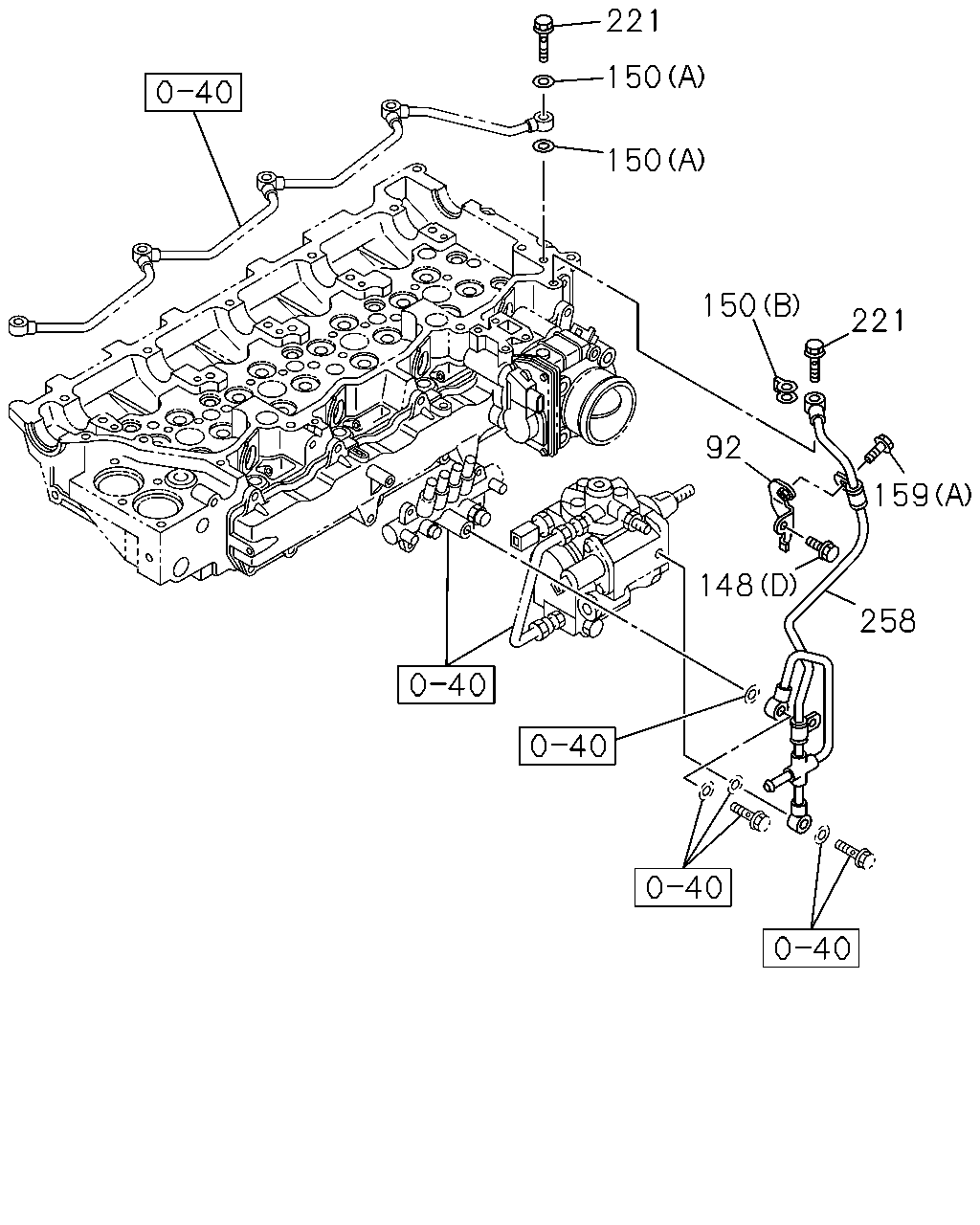

221 150 150 150 221 92 159 148 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
92	BRACKET; FUEL PIPE EURO4 SPECIFICATION<NT4>	8-98045-008-1	01	1	1305-				●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	01	1	1302-	●	●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X25 FLANGE	0-28151-025-0	01	1	1302-	●	●
148	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●	●
148	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X12 FLANGE	0-28050-812-0	01	1	1506-1511	●	●	●
148	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X12 FLANGE	0-28050-812-0	01	1	1512-	●	●	●
148	BOLT; BRKT (D) M6X12 FLANGE	0-28050-612-0	01	1	1305-				●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1305-				●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1305-				●
159	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	01	1	1305-				●
159	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M6X16 FLANGE	0-28050-616-0	01	1	1305-1511				●
159	BOLT; CLIP EURO2 SPECIFICATION<NT2> (B) M6X16 FLANGE	0-28050-616-0	01	1	1512-				●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	1305-				●
258	PIPE ASM; FUEL,LEAK OFF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98055-815-1	01	1	1305-1511				●
258	PIPE ASM; FUEL,LEAK OFF EURO2 SPECIFICATION<NT2>	8-98055-815-1	01	1	1512-				●
258	PIPE ASM; FUEL,LEAK OFF EURO4 SPECIFICATION<NT4>	8-98089-667-0	01	1	1305-				●
