◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#11315) — 57 parça

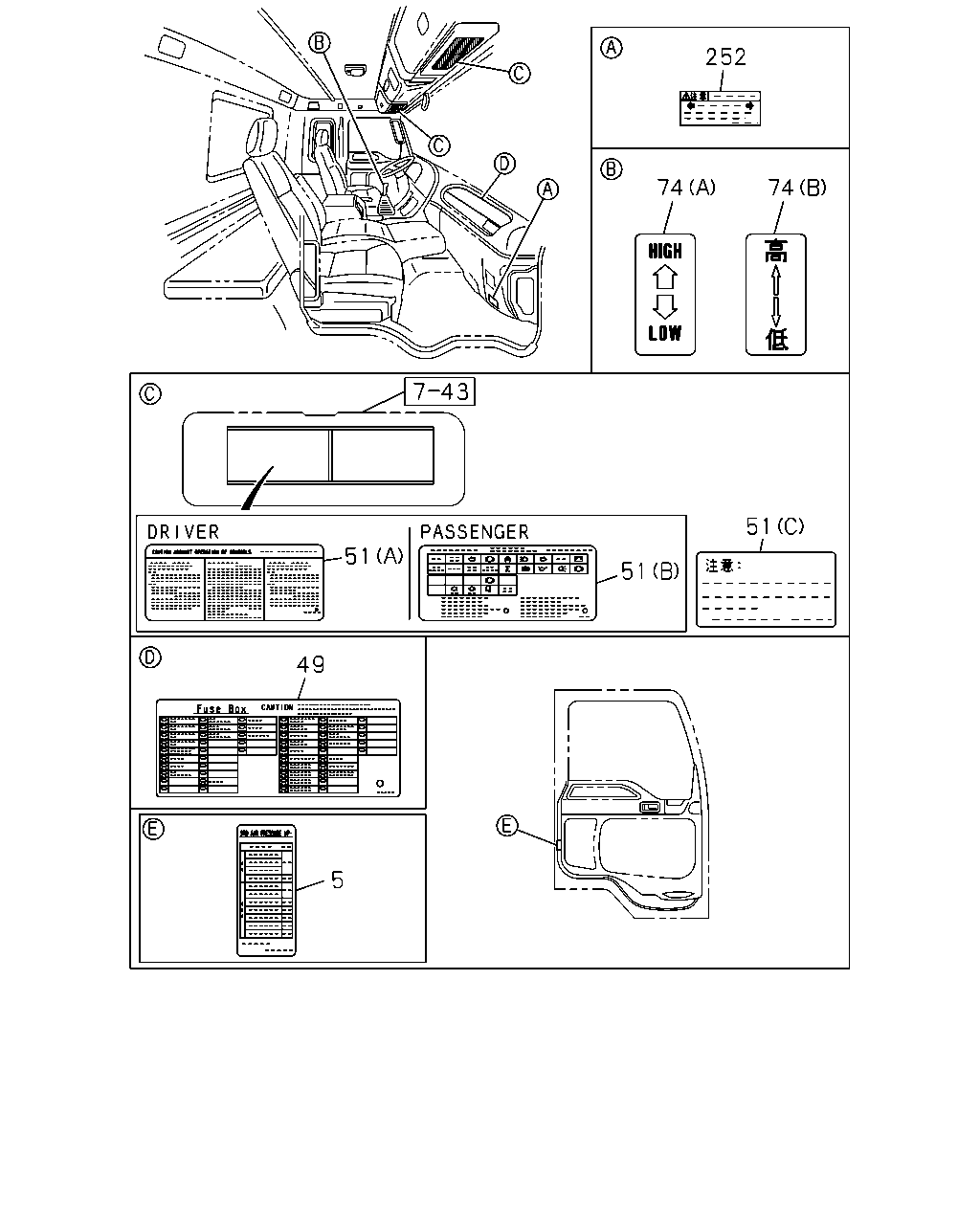

çizim 20132
49 5 51 51 51 74 74 252
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-764-0 01 1 0106-0405
5 LABEL; TIRE AIR PRESSURE 1-85880-780-0 01 1 0406-0410
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0411-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-331-0 01 1 0106-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-329-0 01 1 0106-0106
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-359-0 01 1 0106-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-330-0 01 1 0106-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS PORTUGUESE<NAT> 		1-85878-332-0 01 1 0106-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0106-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-328-0 01 1 0106-
51 PLATE; CAUTION,WARNING
CHINA EQUIPMENT(YT2) (C) 		8-97606-278-0 01 1 0408-0605
51 PLATE; CAUTION,WARNING
CHINA EQUIPMENT(YT2) (C) 		8-97616-500-0 01 1 0606-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85878-335-1 01 1 0106-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-758-0 01 1 0106-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85880-727-0 01 1 0106-0207
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-85880-727-0 01 1 0208-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-334-1 01 1 0106-0207
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-85878-334-1 01 1 0208-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-726-0 01 1 0106-
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (B) 		1-85878-336-1 01 1 0106-
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		1-85880-759-0 01 1 0106-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-333-1 01 1 0106-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-725-0 01 1 0106-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) CAUTIONS CHINESE<SL7> (B) 		1-85881-666-2 01 1 0106-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAUTIONS CHINESE<SL7> (A) 		1-85881-736-1 01 1 0106-
252 PLATE; CAUTION,HARNESS
CHINA GB VAR1<JAC> ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-85878-515-0 01 1 0408-

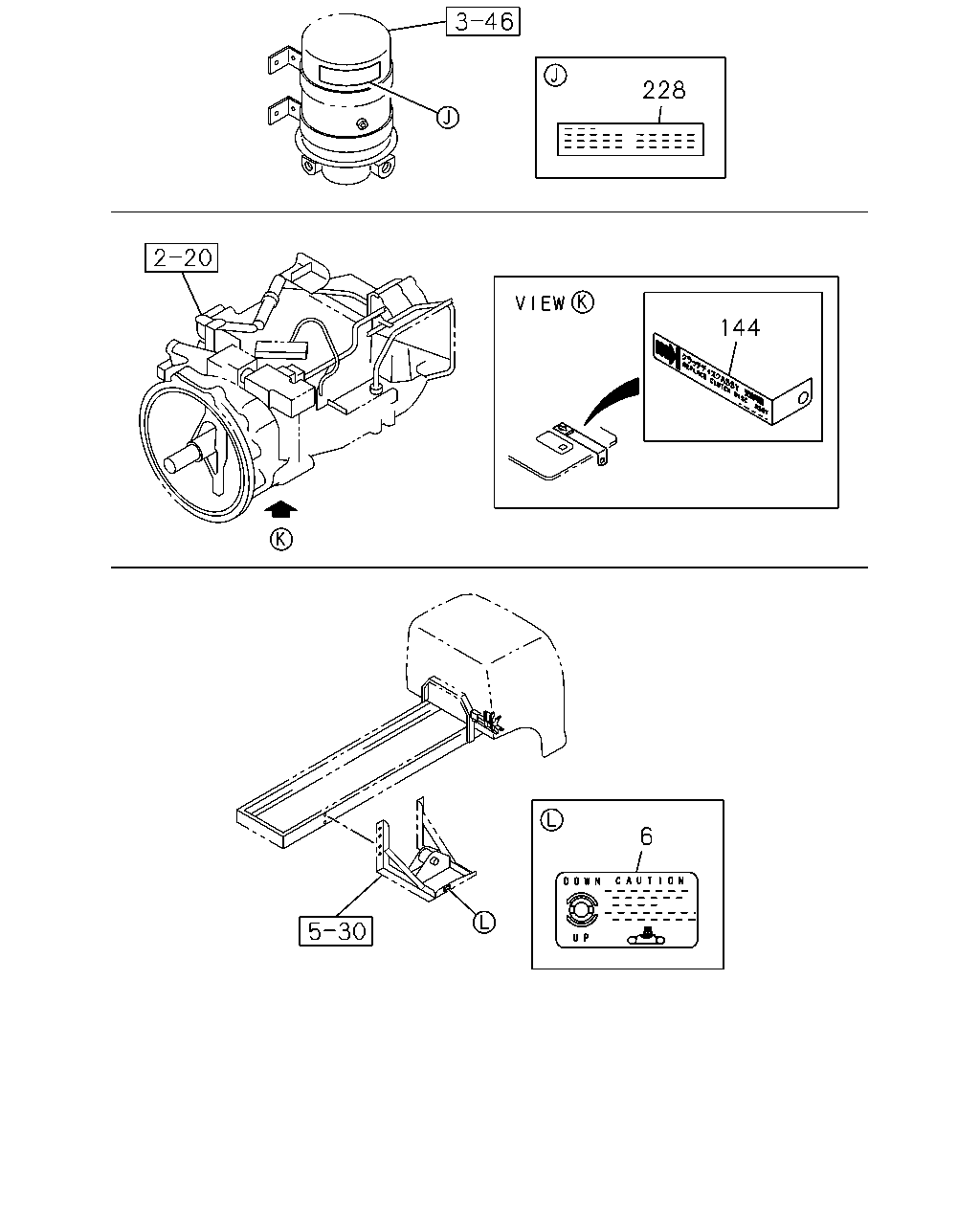

çizim 20133
6 144 228
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> 		1-53639-045-0 01 1 0106-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 01 1 0106-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 01 1 0106-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 01 1 0106-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 0106-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> 		1-53639-005-0 01 1 0106-
144 PLATE; CAUTION,CLU
ZF M/T<X9E> 		1-85888-690-0 01 1 0106-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7> 		1-85877-948-0 01 1 0106-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 0106-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 0106-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 0106-
228 PLATE; CAUTION,AIR DRYER
CAUTIONS PORTUGUESE<NAT> AIR DRYER<PS7> 		1-85877-998-0 01 1 0106-
çizim 20681
181 181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
CAUTIONS PORTUGUESE<NAT> (B) 		1-85886-884-0 01 1 0106-
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B) 		1-85886-884-0 01 1 0106-
181 PLATE; CAUTION,AIR CLEANER
CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A) 		1-85886-796-1 01 1 0106-
181 PLATE; CAUTION,AIR CLEANER
EXC. CAUTIONS PORTUGUESE<NAT>,ACL DRY DONALDSON 13"DBL ELEMENT<Q2Y>,CAUTIONS CHINESE<SL7>,CAUTIONS AR ABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A) 		1-85886-796-1 01 1 0106-

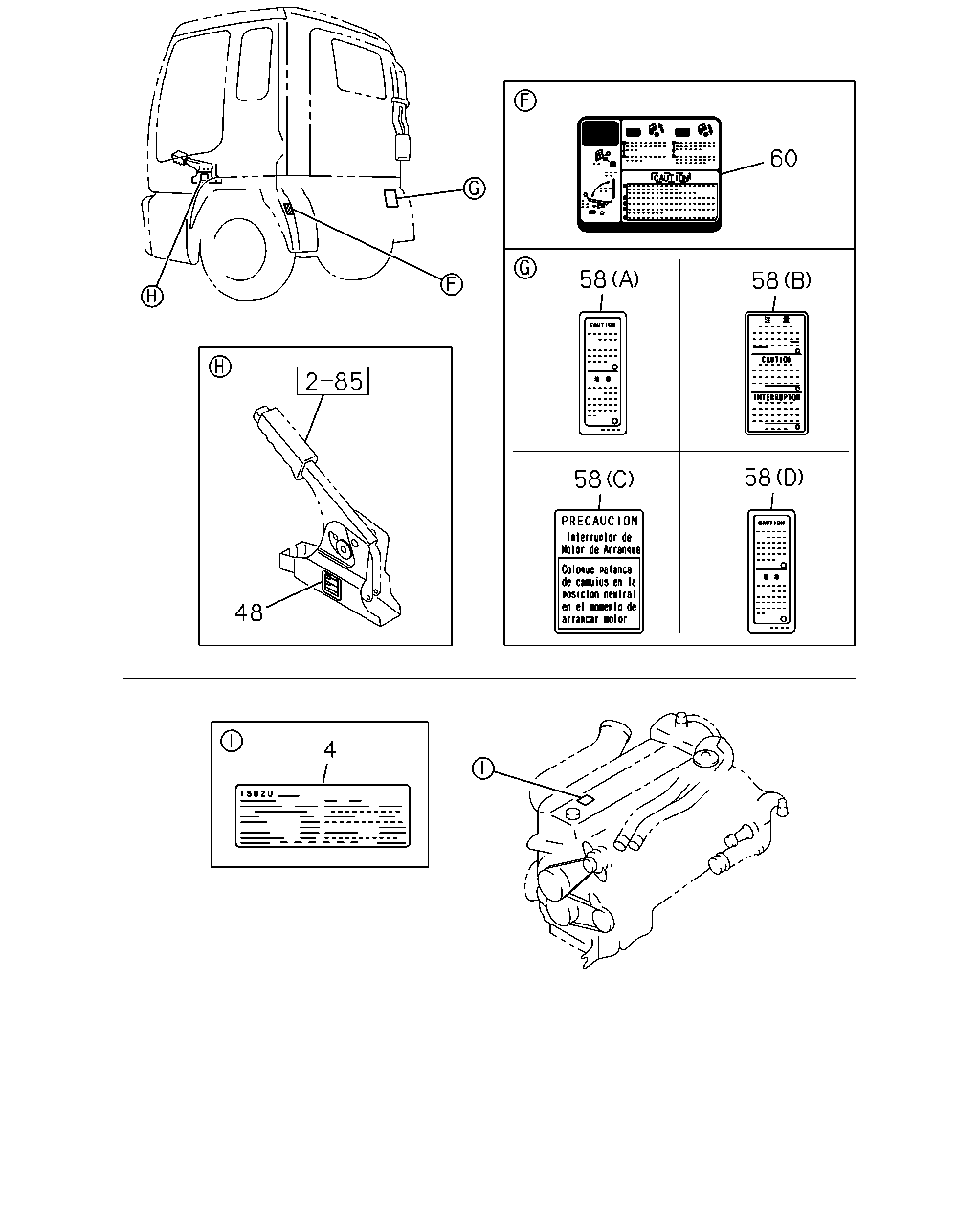

çizim 74647
4 48 58 58 58 60 58
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
6WA1 TC-C(55L) 		1-85886-840-0 01 1 0106-
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L) 		1-85886-863-0 01 1 0106-
48 PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4> 		1-85881-254-0 01 1 0106-0404
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> (A) 		1-85887-537-0 01 1 0106-
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (D) 		1-85887-536-0 01 1 0106-
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> (A) 		1-85887-535-0 01 1 0106-
58 PLATE; CAUTION,ENG START
CAUTIONS PORTUGUESE<NAT> (A) 		1-85878-007-0 01 1 0106-
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 0106-
58 PLATE; CAUTION,ENG START
CAUTIONS SPANISH<YN1> (C) 		9-83999-419-0 01 1 0106-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 0106-
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0106-
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 0106-
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> 		1-85883-182-0 01 1 0106-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0106-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
