Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#113142) — 250 parça

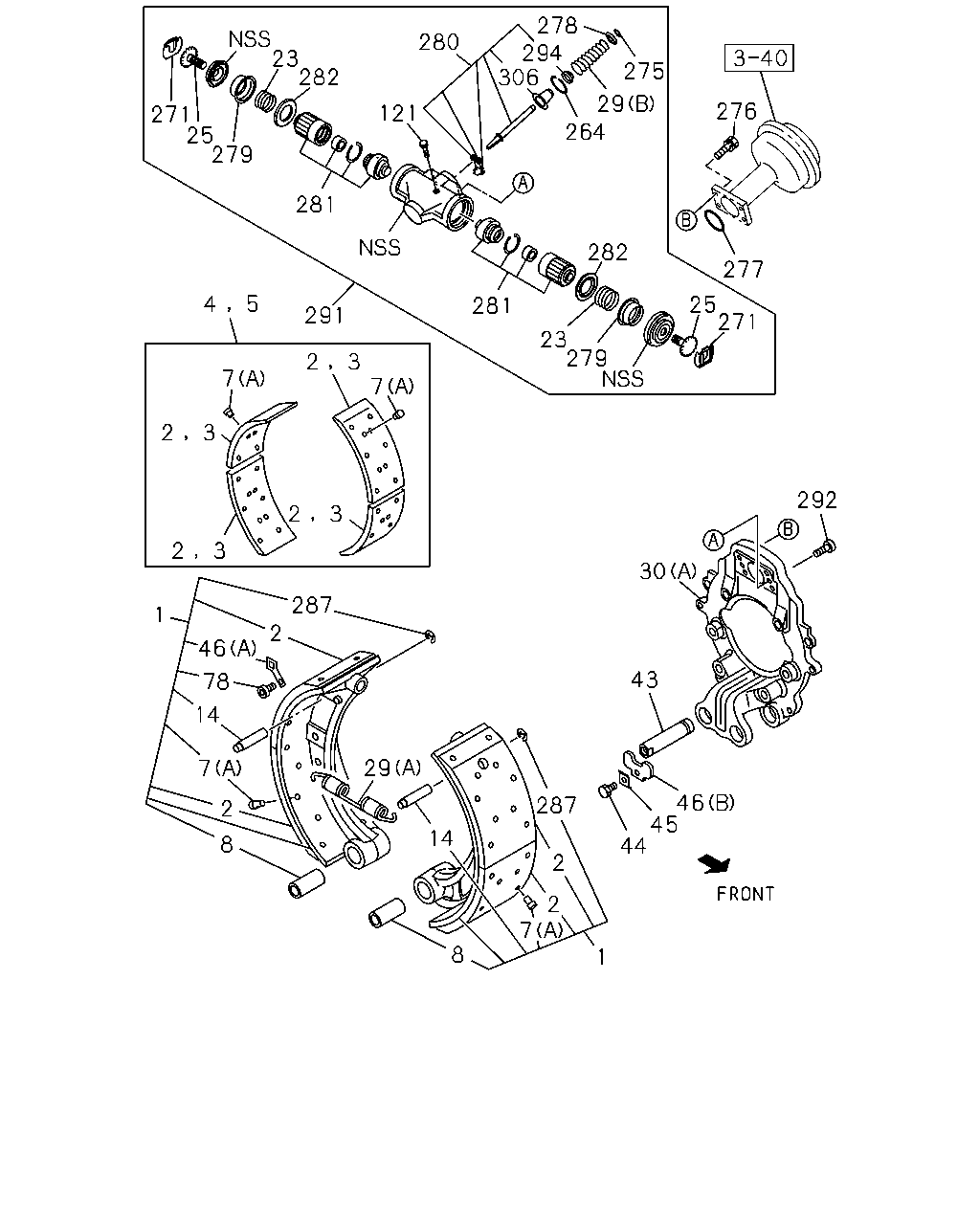

304 23 271 282 279 121 306 294 278 275 29 264 282 23 271 279 305 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1302-
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	1302-
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1302-
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-034-1	02	1	1302-
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1302-
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1302-
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-031-0	02	1	1302-
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1302-
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1302-
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1302-
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1302-
304	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	1302-
305	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	1302-
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1302-

275 278 280 294 306 264 29 121 282 23 271 281 279 25 281 282 277 276 25 279 23 4 5 287 46 1 78 14 7 2 8 29 14 287 44 43 45 30 292 46 2 2 7 2 1 8 291 271 7 3 2 3 7 3 2 2 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-316-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-317-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-318-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-319-0	01	1	1506-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1302-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1302-
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1302-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1302-
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-252-0	02	1	1302-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1302-
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1302-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1302-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1302-
45	WASHER; LK	1-47133-011-0	02	1	1302-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	1302-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	1302-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	1302-
78	BOLT; LK,PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	1302-
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1302-
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-034-1	02	1	1302-
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1302-
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1302-
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-031-0	02	1	1302-
276	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X42.5	1-47139-163-0	08	1	1302-
277	RING; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	1302-
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1302-
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1302-
280	WEDGE; FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	1302-
281	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	1302-
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1302-
287	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	08	1	1302-
291	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	1302-
292	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1302-
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1302-
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1302-

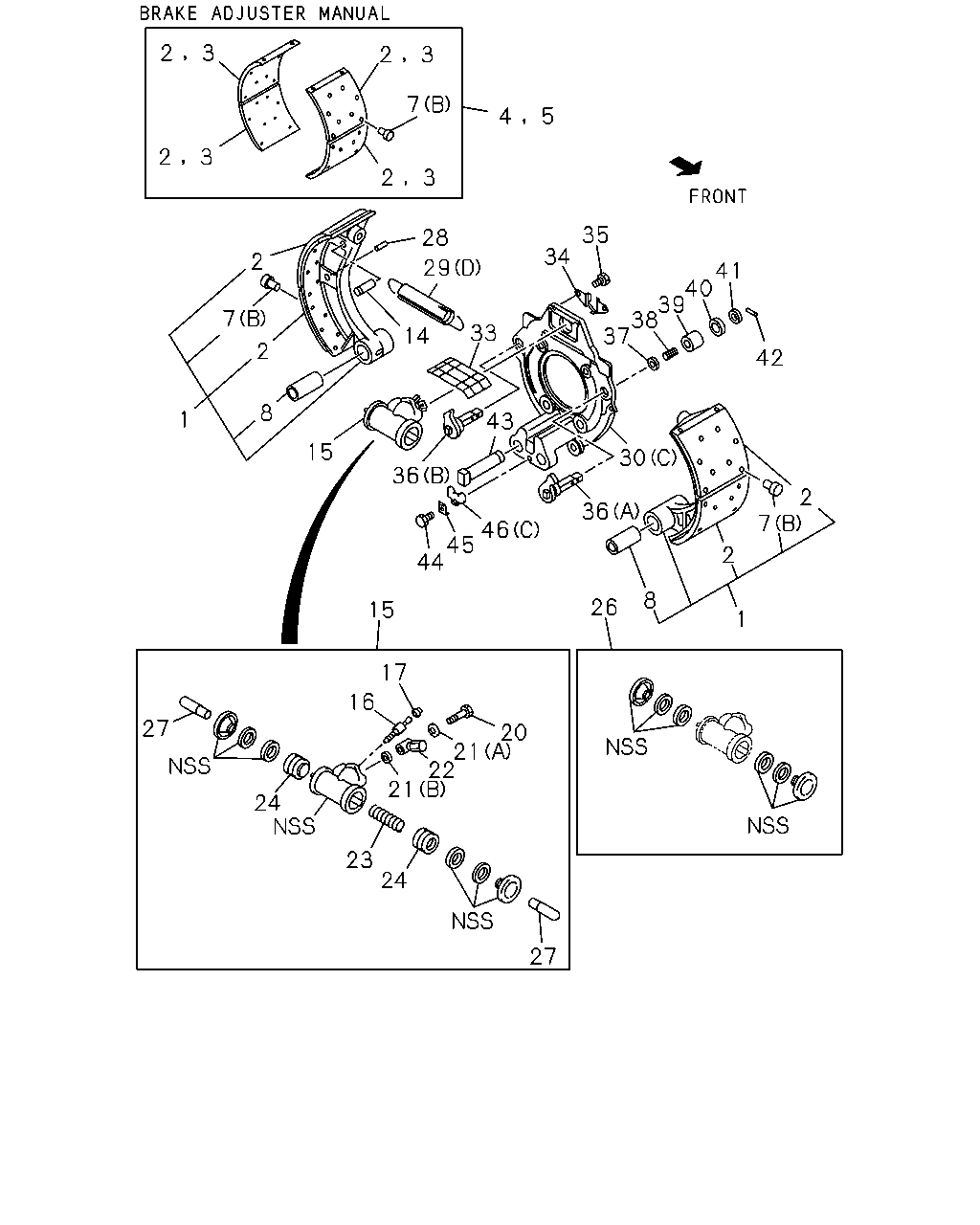

2 3 2 3 2 3 7 3 2 4 5 28 29 2 7 1 8 15 14 33 43 36 15 44 45 46 34 35 37 38 39 40 41 42 30 36 26 8 1 2 7 2 27 24 16 17 23 24 27 21 22 21 20 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-316-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-317-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-318-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-319-0	01	1	1506-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1302-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1302-
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	1302-
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	1302-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1302-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	1302-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	1302-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	1302-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	1302-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1302-
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	1302-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	1302-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	1302-
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1302-
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-252-0	02	1	1302-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1302-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1302-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	1302-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	1302-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1302-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1302-
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1302-
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1302-
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1302-
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1302-
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1302-
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1302-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1302-
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1302-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1302-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1302-
45	WASHER; LK	1-47133-011-0	02	1	1302-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	1302-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	1302-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	1302-

26 271 272 24 245 273 274 120 24 271 272 120 246 17 22 21 21 20 245 35 34 30 33 5 4 15 5 4 2 3 7 2 3 7 7 2 3 2 3 7 2 3 7 2 3 7 1 2 7 14 7 2 8 29 14 8 7 1 2 2 7 46 44 45 15 43 29 2 2 3 7 7 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1302-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-316-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-317-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-318-0	01	1	1506-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	1302-1505
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47170-319-0	01	1	1506-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1302-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1302-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1302-
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1302-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	1302-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1302-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	1302-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	1302-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	1302-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	1302-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	1302-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	1302-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-252-0	02	1	1302-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1302-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1302-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	1302-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	1302-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1302-
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1302-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1302-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1302-
45	WASHER; LK	1-47133-011-0	02	1	1302-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	1302-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	1302-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	1302-
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1302-
245	SHAFT; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47623-027-1	04	1	1302-
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1302-
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1302-
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1302-
272	ADJUSTER; MANUAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1302-
273	HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	1302-
274	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
