2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#113140) — 127 parça

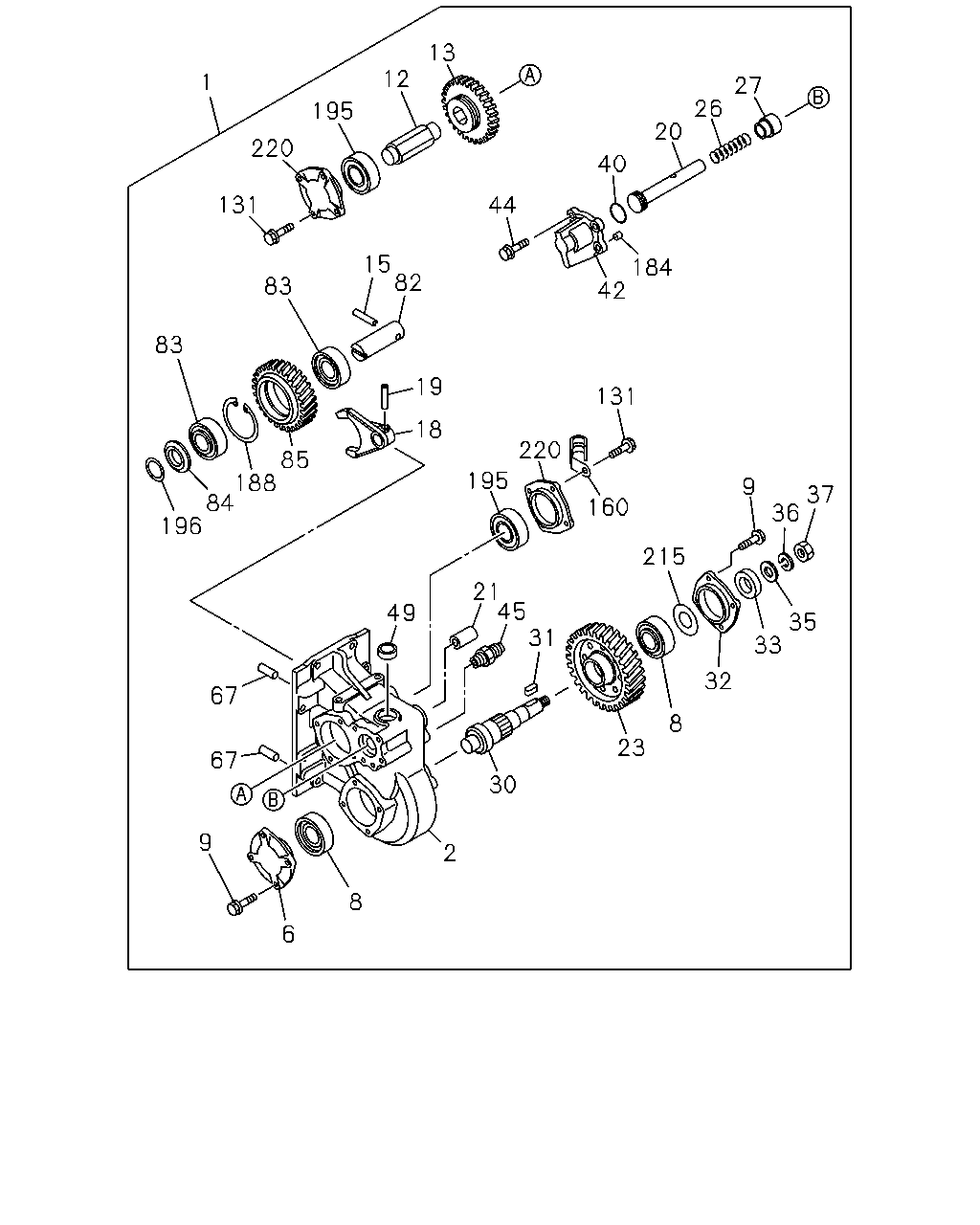

1 83 196 84 188 67 67 9 6 2 8 85 19 82 15 83 131 220 195 12 13 40 20 26 27 44 42 184 131 220 195 18 21 49 30 23 31 45 160 9 215 8 33 32 35 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE PTO CONTROL<SV6>	8-98118-443-3	01	1	1302-1312
1	POWER TAKE OFF ASM; TRANS SIDE PTO CONTROL<SV6>	8-98238-577-0	01	1	1401-
2	CASE; GEAR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98134-894-1	01	1	1302-1312
2	CASE; GEAR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-784-0	01	1	1401-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98134-910-0	01	1	1302-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	5-09820-017-0	02	1	1302-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	08	1	1302-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98140-219-1	01	1	1302-1312
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-791-0	01	1	1401-
13	GEAR; IDLE,TRANS SIDE PTO PTO CONTROL<SV6> Z=27	8-98134-900-1	01	1	1302-1312
13	GEAR; IDLE,TRANS SIDE PTO PTO CONTROL<SV6> Z=27	8-98238-793-0	01	1	1401-
15	PIN; SPR,TRANS SIDE PTO PTO CONTROL<SV6> L=20 OD=4	9-09678-514-0	01	1	1302-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98204-322-0	01	1	1302-1312
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-797-0	01	1	1401-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO CONTROL<SV6>	8-97306-596-0	01	1	1302-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO CONTROL<SV6>	1-38371-062-0	01	1	1302-1312
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO CONTROL<SV6>	1-38371-057-0	01	1	1401-
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO CONTROL<SV6>	8-98046-619-0	01	1	1302-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO CONTROL<SV6> Z=37	8-98134-902-0	01	1	1302-1312
23	GEAR; OUTPUT,TRANS SIDE PTO PTO CONTROL<SV6> Z=37	8-98238-789-0	01	1	1401-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO CONTROL<SV6>	1-38121-004-1	01	1	1302-
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO PTO CONTROL<SV6>	8-98134-912-0	01	1	1302-1312
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO PTO CONTROL<SV6>	8-98153-945-0	01	1	1401-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO CONTROL<SV6>	8-97374-129-1	01	1	1302-1312
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-787-0	01	1	1401-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6> L=25	8-98068-088-0	01	1	1302-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-97305-794-0	01	1	1302-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	1-38159-007-0	01	1	1302-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO CONTROL<SV6> ID=15	0-91610-514-0	01	1	1302-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO CONTROL<SV6> ID=14.2	0-91510-814-0	01	1	1302-
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO CONTROL<SV6> M14	0-91111-514-0	01	1	1302-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO PTO CONTROL<SV6>	9-09561-324-0	01	1	1302-
42	CYLINDER; AIR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98134-911-1	01	1	1302-1312
42	CYLINDER; AIR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-798-0	01	1	1401-
44	BOLT; COVER,TRANS SIDE PTO PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	04	1	1302-
45	NIPPLE; AIR CYL,TRANS SIDE PTO PTO CONTROL<SV6> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
49	PLUG; IDLE SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98037-773-0	01	1	1302-
67	PIN; STRAIGHT PTO CONTROL<SV6> L=22	8-94483-674-0	02	1	1302-1312
67	PIN; STRAIGHT PTO CONTROL<SV6> L=22	8-98238-799-0	02	1	1401-
82	SHAFT; INPUT PTO CONTROL<SV6>	8-98134-904-0	01	1	1302-
83	BEARING; INPUT SHAFT PTO CONTROL<SV6>	5-09820-017-0	02	1	1302-
84	COLLAR; INPUT SHAFT PTO CONTROL<SV6>	9-38245-603-1	01	1	1302-1312
84	COLLAR; INPUT SHAFT PTO CONTROL<SV6>	8-98238-800-0	01	1	1401-
85	GEAR; INPUT SHAFT PTO CONTROL<SV6> Z=28	8-98134-898-1	01	1	1302-1312
85	GEAR; INPUT SHAFT PTO CONTROL<SV6> Z=28	8-98238-795-0	01	1	1401-
131	BOLT; FLANGE PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	08	1	1302-
160	CLIP; PTO A/T SIDE PTO CONTROL<SV6> ID=8.5	5-09700-275-0	01	1	1302-
184	DOWEL; PTO PTO CONTROL<SV6> OD=11 L=8	9-11229-058-1	01	1	1302-
188	RING; SNAP,INPUT SHAFT PTO CONTROL<SV6> T=2.2	1-09587-103-1	01	1	1302-
195	BEARING; ROLLER,TAPER,PTO PTO CONTROL<SV6> NSK	8-97360-312-0	02	1	1302-
196	PIECE; THRUST PTO CONTROL<SV6> T=1.50	8-97106-724-0	02	1	1302-
196	PIECE; THRUST PTO CONTROL<SV6> T=1.60	8-97106-725-0	02	1	1302-
196	PIECE; THRUST PTO CONTROL<SV6> T=1.65	8-97106-726-0	02	1	1302-
196	PIECE; THRUST PTO CONTROL<SV6> T=1.70	8-97106-727-0	02	1	1302-
196	PIECE; THRUST PTO CONTROL<SV6> T=1.80	8-97106-728-0	02	1	1302-
196	PIECE; THRUST PTO CONTROL<SV6> T=1.85	8-97106-729-0	02	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.1	5-33156-022-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.2	5-33156-024-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.15	8-98067-573-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.40	8-98067-574-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.65	8-98067-575-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.80	8-98067-576-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=1.00	8-98134-917-0	AR	1	1302-
220	COVER; IDLE SHAFT PTO CONTROL<SV6>	8-98134-910-0	02	1	1302-

9 6 8 2 30 264 134 8 134 32 35 37 36 9 215 23 265 31 45 21 49 19 67 67 96 18 220 131 195 84 83 188 85 83 15 82 44 304 40 20 27 26 42 184 160 131 220 195 266 12 13 1 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE PTO CONTROL<SV6>	8-98118-443-3	01	1	1302-1312
1	POWER TAKE OFF ASM; TRANS SIDE PTO CONTROL<SV6>	8-98238-577-0	01	1	1401-
2	CASE; GEAR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98134-894-1	01	1	1302-1312
2	CASE; GEAR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-784-0	01	1	1401-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98134-910-0	01	1	1302-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	5-09820-017-0	02	1	1302-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	08	1	1302-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98140-219-1	01	1	1302-1312
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-791-0	01	1	1401-
13	GEAR; IDLE,TRANS SIDE PTO PTO CONTROL<SV6> Z=27	8-98134-900-1	01	1	1302-1312
13	GEAR; IDLE,TRANS SIDE PTO PTO CONTROL<SV6> Z=27	8-98238-793-0	01	1	1401-
15	PIN; SPR,TRANS SIDE PTO PTO CONTROL<SV6> L=20 OD=4	9-09678-514-0	01	1	1302-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98204-322-0	01	1	1302-1312
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-797-0	01	1	1401-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO CONTROL<SV6>	8-97306-596-0	01	1	1302-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO CONTROL<SV6>	1-38371-062-0	01	1	1302-1312
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO CONTROL<SV6>	1-38371-057-0	01	1	1401-
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO CONTROL<SV6>	8-98046-619-0	01	1	1302-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO CONTROL<SV6> Z=37	8-98134-902-0	01	1	1302-1312
23	GEAR; OUTPUT,TRANS SIDE PTO PTO CONTROL<SV6> Z=37	8-98238-789-0	01	1	1401-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO CONTROL<SV6>	1-38121-004-1	01	1	1302-
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO PTO CONTROL<SV6>	8-98134-912-0	01	1	1302-1312
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO PTO CONTROL<SV6>	8-98153-945-0	01	1	1401-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO CONTROL<SV6>	8-97374-129-1	01	1	1302-1312
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-787-0	01	1	1401-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6> L=25	8-98068-088-0	01	1	1302-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-97305-794-0	01	1	1302-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	1-38159-007-0	01	1	1302-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO CONTROL<SV6> ID=15	0-91610-514-0	01	1	1302-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO CONTROL<SV6> ID=14.2	0-91510-814-0	01	1	1302-
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO CONTROL<SV6> M14	0-91111-514-0	01	1	1302-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO PTO CONTROL<SV6>	9-09561-324-0	01	1	1302-
42	CYLINDER; AIR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98134-911-1	01	1	1302-1312
42	CYLINDER; AIR,TRANS SIDE PTO PTO CONTROL<SV6>	8-98238-798-0	01	1	1401-
44	BOLT; COVER,TRANS SIDE PTO PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	04	1	1302-
45	NIPPLE; AIR CYL,TRANS SIDE PTO PTO CONTROL<SV6> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
49	PLUG; IDLE SHAFT,TRANS SIDE PTO PTO CONTROL<SV6>	8-98037-773-0	01	1	1302-
67	PIN; STRAIGHT PTO CONTROL<SV6> L=22	8-94483-674-0	02	1	1302-1312
67	PIN; STRAIGHT PTO CONTROL<SV6> L=22	8-98238-799-0	02	1	1401-
82	SHAFT; INPUT PTO CONTROL<SV6>	8-98134-904-0	01	1	1302-
83	BEARING; INPUT SHAFT PTO CONTROL<SV6>	5-09820-017-0	02	1	1302-
84	COLLAR; INPUT SHAFT PTO CONTROL<SV6>	9-38245-603-1	01	1	1302-1312
84	COLLAR; INPUT SHAFT PTO CONTROL<SV6>	8-98238-800-0	01	1	1401-
85	GEAR; INPUT SHAFT PTO CONTROL<SV6> Z=28	8-98134-898-1	01	1	1302-1312
85	GEAR; INPUT SHAFT PTO CONTROL<SV6> Z=28	8-98238-795-0	01	1	1401-
131	BOLT; FLANGE PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	08	1	1302-
134	BEARING; NEEDLE,OUTPUT SHAFT PTO CONTROL<SV6>	8-98238-803-0	02	1	1401-
160	CLIP; PTO A/T SIDE PTO CONTROL<SV6> ID=8.5	5-09700-275-0	01	1	1302-
184	DOWEL; PTO PTO CONTROL<SV6> OD=11 L=8	9-11229-058-1	01	1	1302-
188	RING; SNAP,INPUT SHAFT PTO CONTROL<SV6> T=2.2	1-09587-103-1	01	1	1302-
195	BEARING; ROLLER,TAPER,PTO PTO CONTROL<SV6> NSK	8-97360-312-0	02	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.1	5-33156-022-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.2	5-33156-024-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.15	8-98067-573-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.40	8-98067-574-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.65	8-98067-575-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=0.80	8-98067-576-0	AR	1	1302-
215	SHIM; BEARING,PTO PTO CONTROL<SV6> T=1.00	8-98134-917-0	AR	1	1302-
220	COVER; IDLE SHAFT PTO CONTROL<SV6>	8-98134-910-0	02	1	1302-
264	CLUTCH; OUTPUT SHAFT PTO CONTROL<SV6>	8-98238-804-0	01	1	1401-
265	SLEEVE; OUTPUT SHAFT PTO CONTROL<SV6>	8-98238-802-0	01	1	1401-
266	COLLAR; IDLE SHAFT PTO CONTROL<SV6>	8-98238-806-0	01	1	1401-
304	PACKING; PTO PTO CONTROL<SV6>	8-98328-479-0	01	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
