Isuzu WW
▶
TRUCKS
▶
FVM
▶
11516 - FVM(RHD)
▶
2 - Clutch, Transmission, Trans Axle
▶

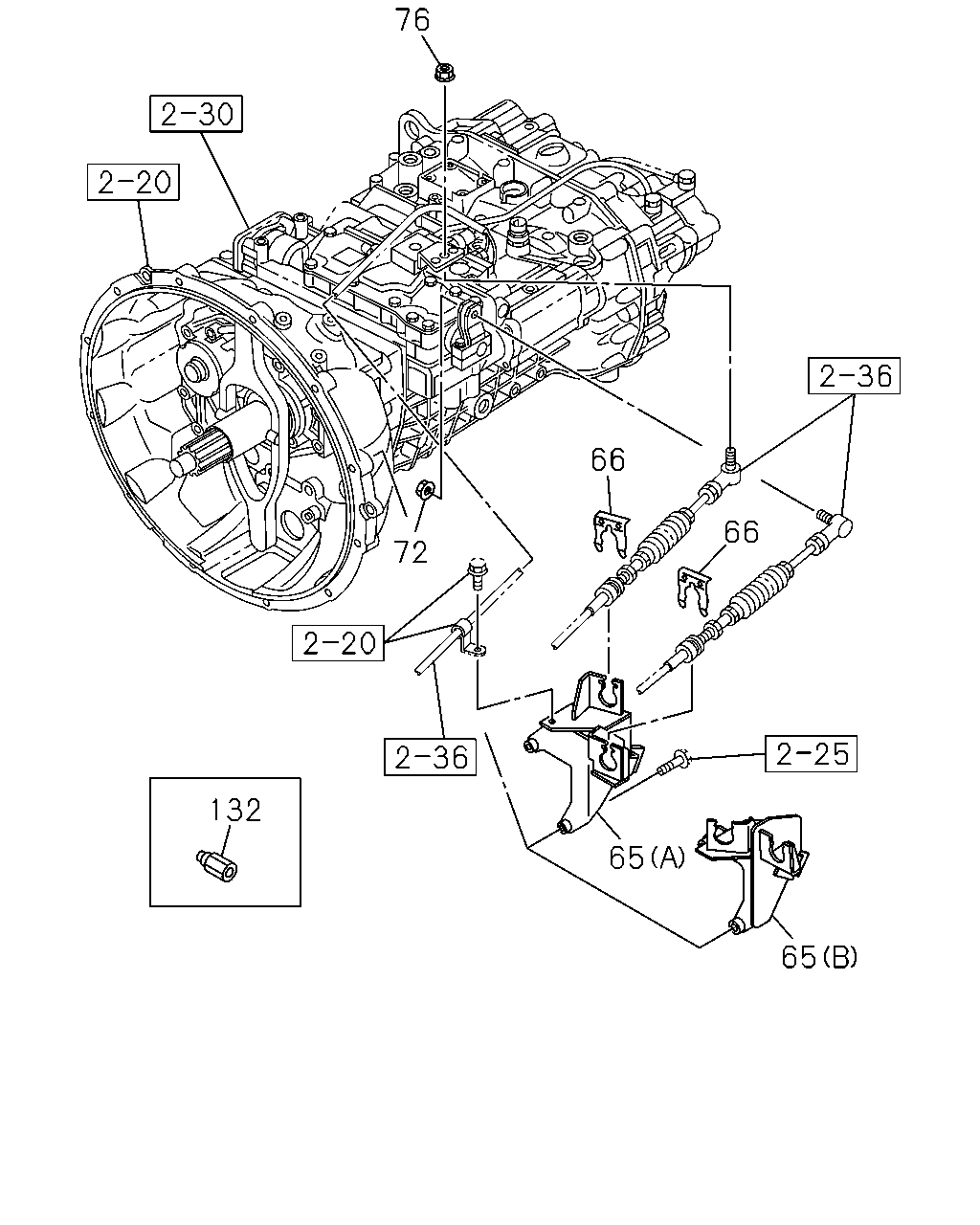

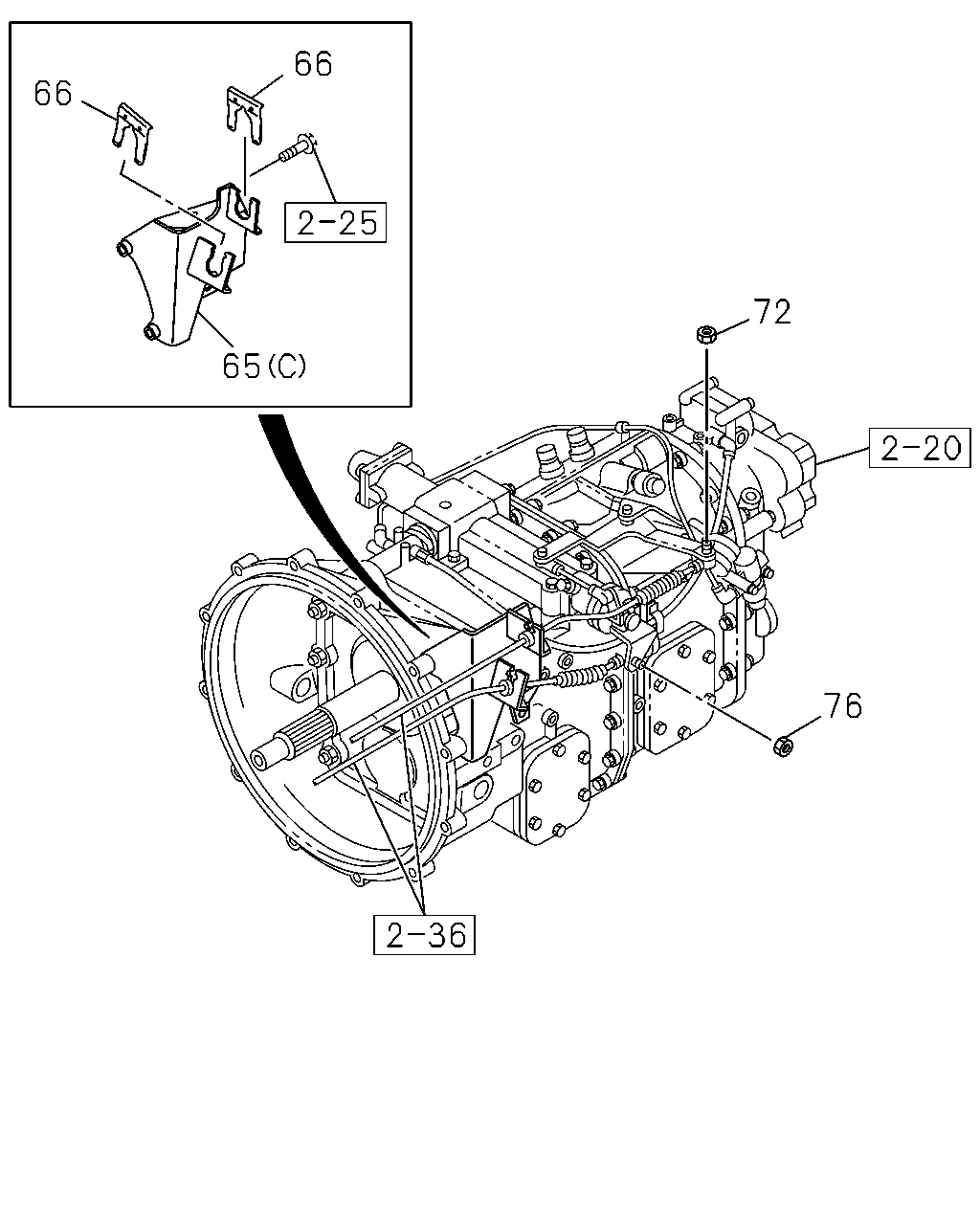

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#113137) — 15 parça
◀
[237A01] (8 parça)
[237A02] (7 parça)
▶
76
66
66
72
132
65
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF6S1000 M/T(Y5D) (B)
8-98017-430-1
01
1
1302-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)
8-98049-613-1
01
1
1302-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)
8-98060-386-0
01
1
1302-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1302-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1302-
76
NUT; BALL JOINT,SELECT WIRE
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE
1-09440-049-0
01
1
1302-
76
NUT; BALL JOINT,SELECT WIRE
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE
1-09440-056-0
01
1
1302-
132
CONNECTOR; FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1302-
66
66
65
72
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF6S1000 M/T(Y5D) (B)
8-98017-430-1
01
1
1302-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)
8-98049-613-1
01
1
1302-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)
8-98060-386-0
01
1
1302-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1302-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1302-
76
NUT; BALL JOINT,SELECT WIRE
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE
1-09440-049-0
01
1
1302-
76
NUT; BALL JOINT,SELECT WIRE
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE
1-09440-056-0
01
1
1302-
