Isuzu WW
▶
TRUCKS
▶
FSS
▶
11511 - FSS(LHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#113135) — 30 parça
◀

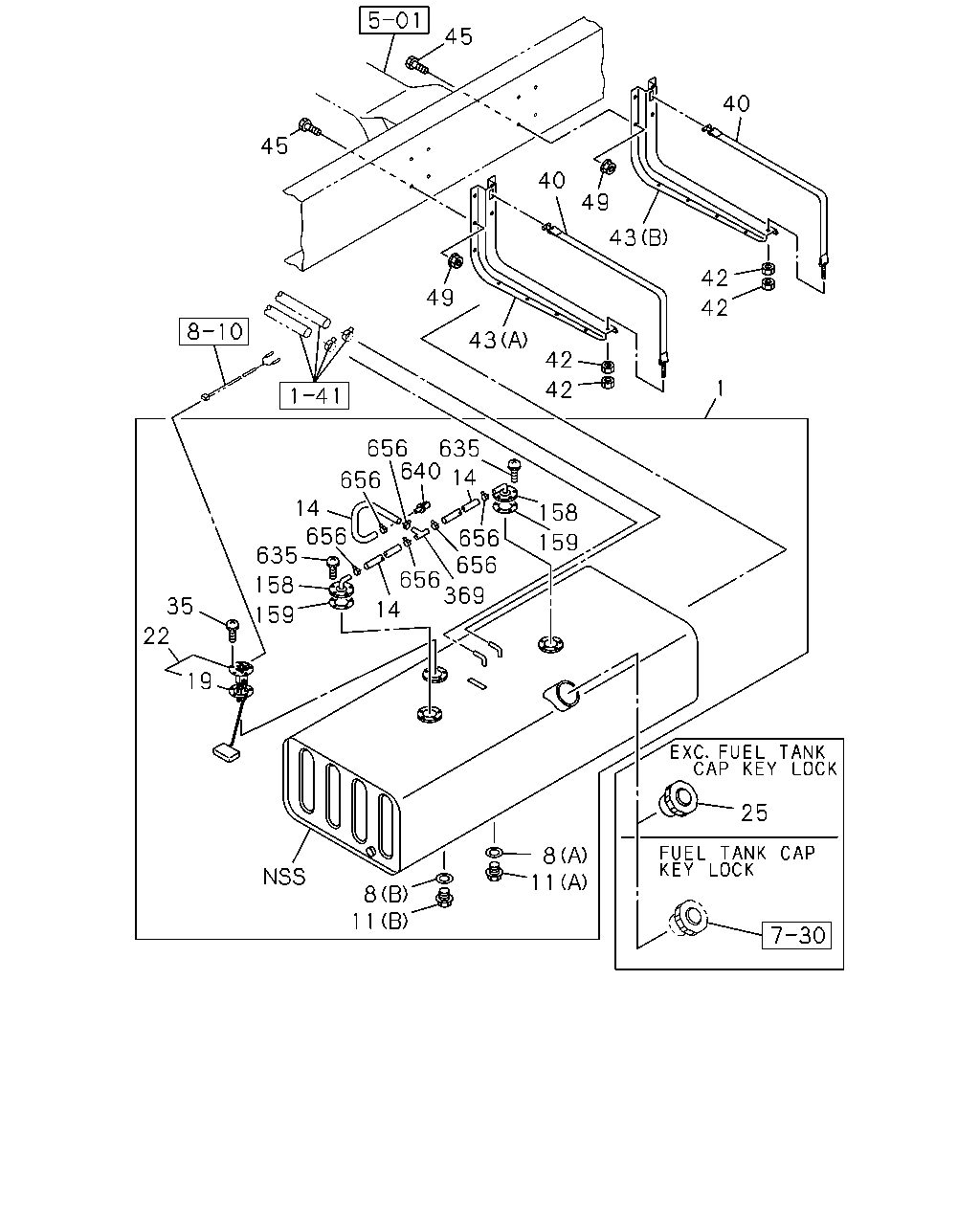

[140A] FUEL TANK (28 parça)

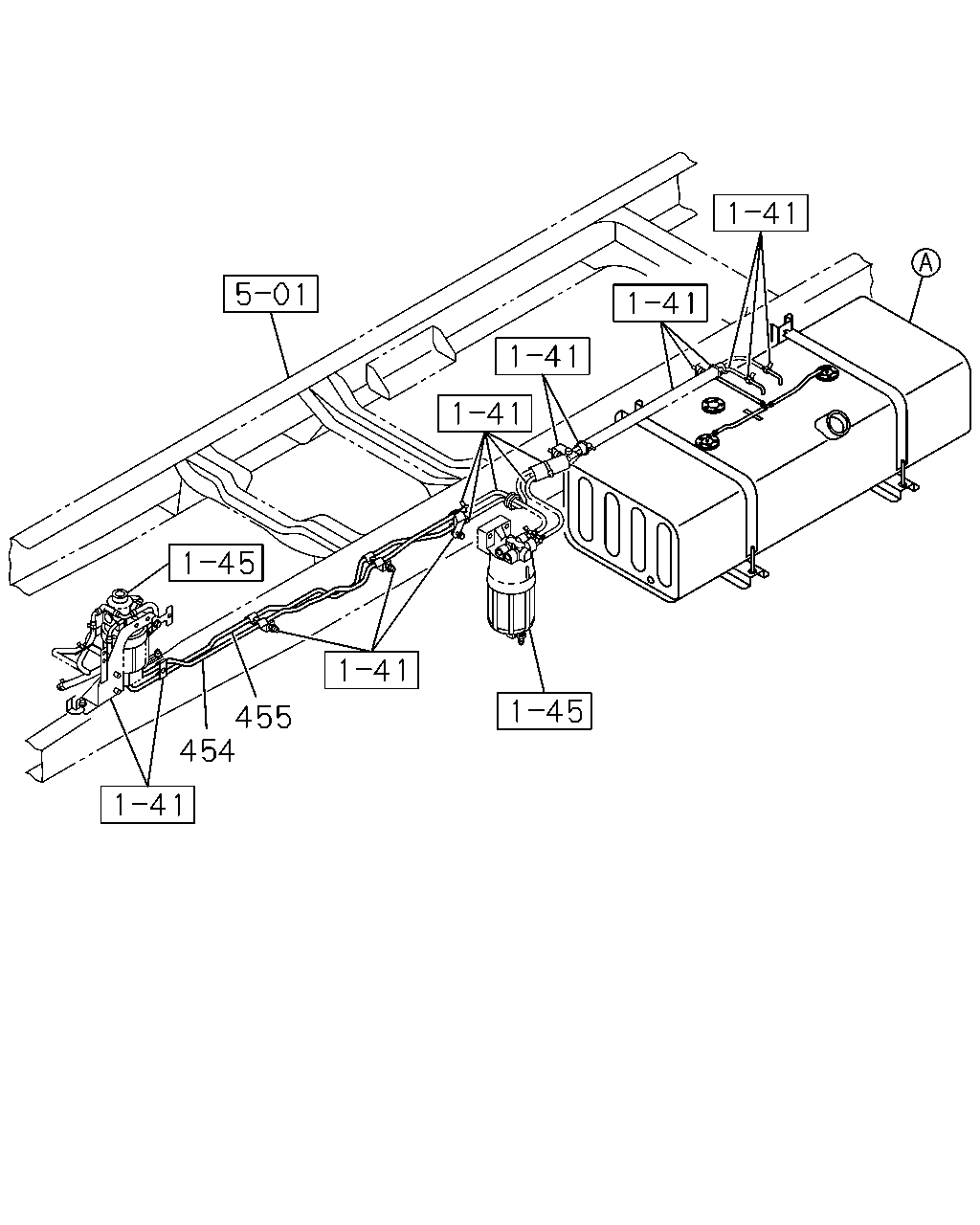

[140A] PIPING (2 parça)
▶
45
45
49
43
42
42
1
42
42
43
49
40
40
635
640
656
656
14
656
635
158
159
35
22
19
8
11
8
11
14
369
656
656
656
158
159
25
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1345X532X322 200L
8-98122-992-3
01
1
1302-
8
GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30
8-98067-041-0
01
1
1302-
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0
9-09571-418-0
01
1
1302-
11
PLUG; DRAIN,FUEL TANK
(A) M18X12
0-92002-418-0
01
1
1302-1504
11
PLUG; DRAIN,FUEL TANK
(A) M18
8-98068-006-0
01
1
1505-
11
PLUG; DRAIN,FUEL TANK
(B) M30
8-98067-038-0
01
1
1302-
14
HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000
0-01256-300-0
01
1
1302-1504
14
HOSE; BREATHER,OUTLET
L=430
8-98131-037-0
01
1
1505-
14
HOSE; BREATHER,OUTLET
L=440 SERVICED BY L=3000
0-01256-300-0
01
1
1302-1504
14
HOSE; BREATHER,OUTLET
L=460
8-98304-414-0
01
1
1505-
14
HOSE; BREATHER,OUTLET
L=450 SERVICED BY L=3000
0-01256-300-0
01
1
1302-1504
14
HOSE; BREATHER,OUTLET
L=90
8-98304-415-0
01
1
1505-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1302-
22
UNIT; FUEL TANK
8-98099-320-0
01
1
1302-
25
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05>
8-97387-179-0
01
1
1302-
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
1302-
40
BELT; SUPPORT,FUEL TANK
L=880
8-98042-715-1
02
1
1302-
42
NUT; SUPPORT BELT
M12
0-91110-512-0
04
1
1302-
43
BRACKET; FUEL TANK
(A)
8-98088-123-0
01
1
1302-
43
BRACKET; FUEL TANK
(B)
8-98122-883-0
01
1
1302-
45
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
0-28651-035-0
12
1
1302-
49
NUT; BRKT
M10 FLANGE
0-91180-210-0
12
1
1302-
158
VALVE; ROLL OVER & FLOAT
8-98067-039-0
02
1
1302-
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
02
1
1302-
369
JOINT; HOSE
8-98067-080-0
01
1
1302-
635
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
0-36220-512-0
10
1
1302-
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1302-
656
CLAMP; FUEL TANK
8-98304-416-0
06
1
1505-
455
454
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
454
PIPE; FUEL,DELIVERY
L=1377
8-98131-424-0
01
1
1302-
455
PIPE; FUEL,RETURN
L=1553
8-98131-425-0
01
1
1302-
