3-01 — FRONT WHEEL BRAKE (#113134) — 684 parça

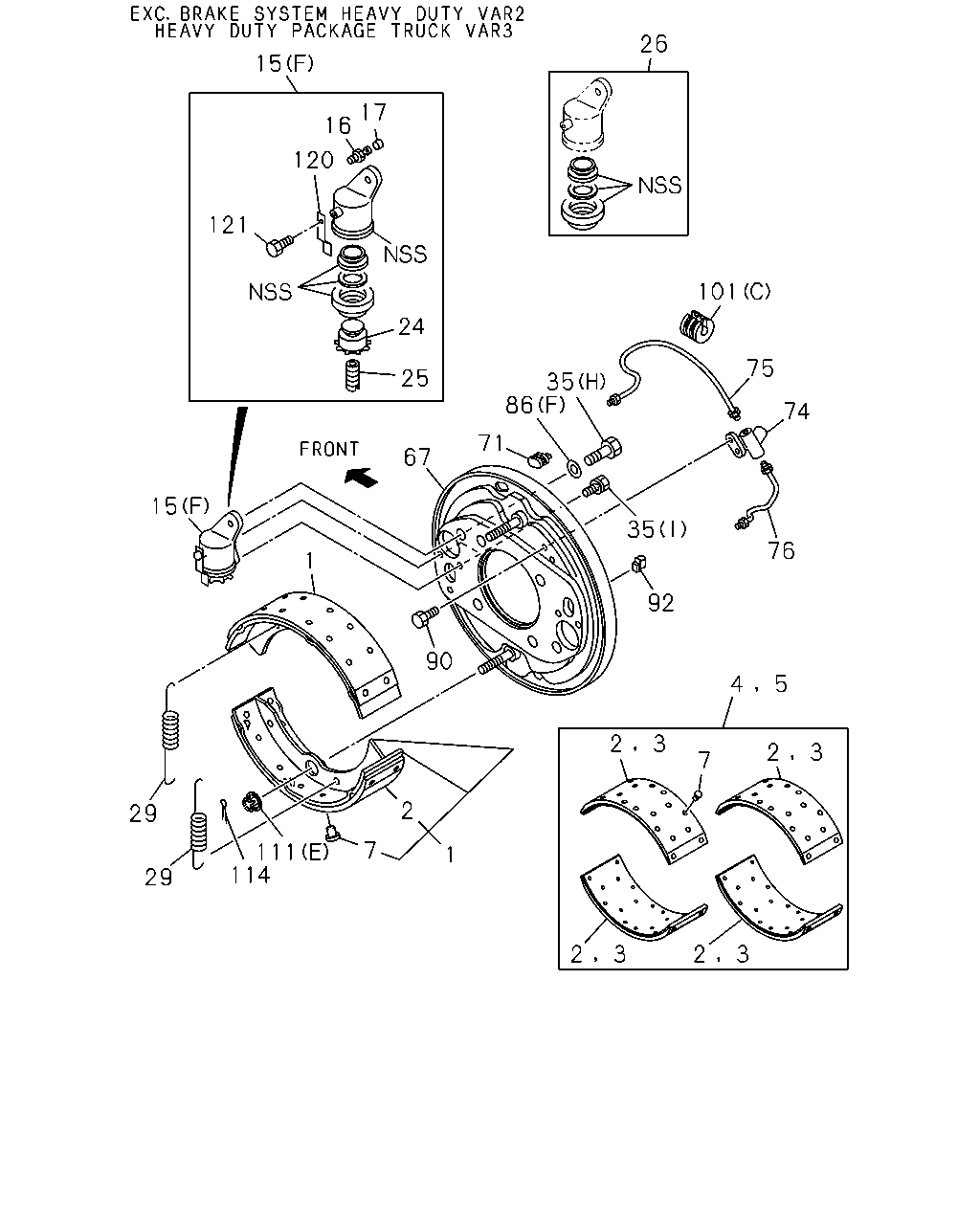

çizim 331273
3 3 3 3 2 2 2 2 7 4 5 92 35 76 74 75 101 35 26 86 71 67 25 24 121 120 16 17 15 15 90 2 1 7 111 114 29 29 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-628-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-624-0 04 1 1302-
1 SHOE; BRK,FRT
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-483-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-519-0 02 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-999-1 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-801-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-805-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-800-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-818-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-802-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-806-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-819-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-162-0 08 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-505-0 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-501-1 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-385-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BEST VALUE PARTS 		1-87610-127-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-506-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-502-1 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-403-0 02 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 56 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=18.5 		1-09732-034-0 80 1 1302-
7 RIVET; LINING,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 96 1 1302-
7 RIVET; LINING,FRT BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D6X11.5 		1-09732-019-0 64 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-481-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-483-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-480-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-482-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-938-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-939-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-174-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-175-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-172-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-173-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-203-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-202-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-135-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-134-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=44 		1-47615-007-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47615-009-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-476-0 04 1 1302-
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-476-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=9.5 		9-47619-005-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-479-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-757-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-756-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-319-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-318-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47620-237-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-395-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-394-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-015-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-014-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH THREAD 		1-47622-021-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH THREAD 		1-47622-020-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-070-0 04 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 LH THREAD 		1-47622-062-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		1-47622-061-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-417-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-679-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-309-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-922-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-176-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-126-1 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-288-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-385-2 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-362-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		0-23851-022-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) 		0-23851-630-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) M14X30 		1-09000-365-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) M8X22 		9-09802-475-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-47159-227-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47119-111-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-501-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-500-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-376-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-375-0 01 1 1302-
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-717-1 01 1 1302-
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-716-1 01 1 1302-
67 PLATE; BACK,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-679-0 01 1 1302-
67 PLATE; BACK,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-678-0 01 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-058-1 04 1 1302-
71 GROMMET; CHECK HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-139-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-151-0 04 1 1302-
71 GROMMET; CHECK HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09333-033-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-033-0 04 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-030-0 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-029-0 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-014-1 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-013-1 01 1 1302-
74 CONNECTOR; FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-036-0 01 1 1302-
74 CONNECTOR; FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-035-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47423-927-0 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-238-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-237-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49167-859-0 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-737-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-735-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47424-940-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47424-939-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-242-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-241-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-738-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-736-0 01 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98188-784-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98188-785-0 08 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=14.2 		0-91510-614-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47159-110-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=12.2 		0-91510-512-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47159-131-0 08 1 1302-
90 BOLT; CONNECTOR
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-787-0 02 1 1302-
90 BOLT; CONNECTOR
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		5-09030-036-1 02 1 1302-
90 BOLT; CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		5-09030-016-1 02 1 1302-
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-010-0 04 1 1302-
92 GROMMET; ADJ HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-138-0 04 1 1302-
92 GROMMET; ADJ HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09956-640-0 04 1 1302-
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09956-640-0 04 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=5 OD=18 T=8 		1-09332-063-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09332-133-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		9-47461-158-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47143-008-0 02 1 1302-
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 		0-91111-516-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-09440-002-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-09440-101-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47159-111-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09440-003-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47169-048-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09874-040-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09874-040-0 04 1 1302-
120 SPRING; LK,ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-072-0 04 1 1302-
120 SPRING; LK,ADJ,FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09580-544-0 04 1 1302-
121 SCREW; LK SPR FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-94128-727-0 04 1 1302-

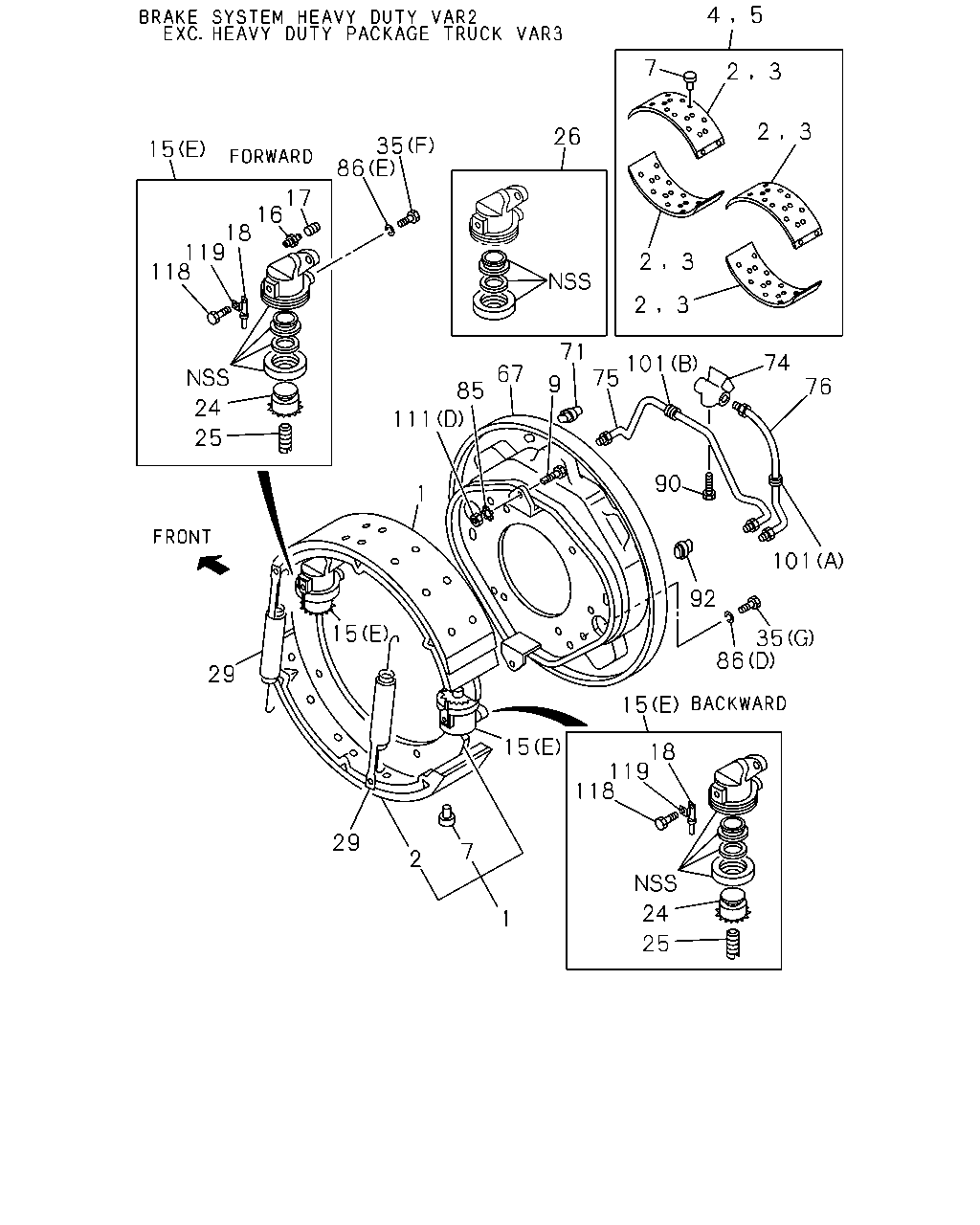

çizim 331456
25 118 24 119 15 18 1 7 2 15 86 92 35 101 29 29 15 1 111 85 67 71 9 90 75 101 74 3 76 3 3 3 5 4 7 2 2 2 2 26 35 86 17 16 18 119 118 15 24 25
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-628-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-624-0 04 1 1302-
1 SHOE; BRK,FRT
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-483-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-519-0 02 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-999-1 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-801-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-805-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-800-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-818-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-802-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-806-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-819-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-162-0 08 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-505-0 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-501-1 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-385-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BEST VALUE PARTS 		1-87610-127-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-506-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-502-1 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-403-0 02 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 56 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=18.5 		1-09732-034-0 80 1 1302-
7 RIVET; LINING,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 96 1 1302-
7 RIVET; LINING,FRT BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D6X11.5 		1-09732-019-0 64 1 1302-
9 PIN; SHOE HOLDER
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-036-0 04 1 1302-
9 PIN; SHOE HOLDER
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-046-0 04 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-481-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-483-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-480-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-482-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-938-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-939-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-174-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-175-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-172-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-173-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-203-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-202-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-135-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-134-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=44 		1-47615-007-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47615-009-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-476-0 04 1 1302-
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-476-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=9.5 		9-47619-005-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-479-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 04 1 1302-
18 STOPPER; ADJ SCREW
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47169-008-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-757-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-756-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-319-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-318-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47620-237-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-395-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-394-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-015-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-014-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH THREAD 		1-47622-021-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH THREAD 		1-47622-020-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-070-0 04 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 LH THREAD 		1-47622-062-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		1-47622-061-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-417-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-679-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-309-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-922-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-176-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-126-1 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-288-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-385-2 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-362-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		0-23851-022-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) 		0-23851-630-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) M14X30 		1-09000-365-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) M8X22 		9-09802-475-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-47159-227-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47119-111-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-501-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-500-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-376-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-375-0 01 1 1302-
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-717-1 01 1 1302-
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-716-1 01 1 1302-
67 PLATE; BACK,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-679-0 01 1 1302-
67 PLATE; BACK,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-678-0 01 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-058-1 04 1 1302-
71 GROMMET; CHECK HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-139-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-151-0 04 1 1302-
71 GROMMET; CHECK HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09333-033-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-033-0 04 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-030-0 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-029-0 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-014-1 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-013-1 01 1 1302-
74 CONNECTOR; FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-036-0 01 1 1302-
74 CONNECTOR; FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-035-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47423-927-0 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-238-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-237-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49167-859-0 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-737-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-735-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47424-940-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47424-939-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-242-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-241-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-738-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-736-0 01 1 1302-
85 PLATE; LK,CONNECTOR
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09533-006-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98188-784-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98188-785-0 08 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=14.2 		0-91510-614-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47159-110-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=12.2 		0-91510-512-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47159-131-0 08 1 1302-
90 BOLT; CONNECTOR
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-787-0 02 1 1302-
90 BOLT; CONNECTOR
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		5-09030-036-1 02 1 1302-
90 BOLT; CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		5-09030-016-1 02 1 1302-
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-010-0 04 1 1302-
92 GROMMET; ADJ HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-138-0 04 1 1302-
92 GROMMET; ADJ HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09956-640-0 04 1 1302-
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09956-640-0 04 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=5 OD=18 T=8 		1-09332-063-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09332-133-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		9-47461-158-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47143-008-0 02 1 1302-
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 		0-91111-516-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-09440-002-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-09440-101-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47159-111-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09440-003-0 04 1 1302-
118 BOLT; STOPPER
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X10 		8-98030-649-0 04 1 1302-
118 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-050-0 04 1 1302-
119 PLATE; LK,STOPPER
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47169-009-0 04 1 1302-

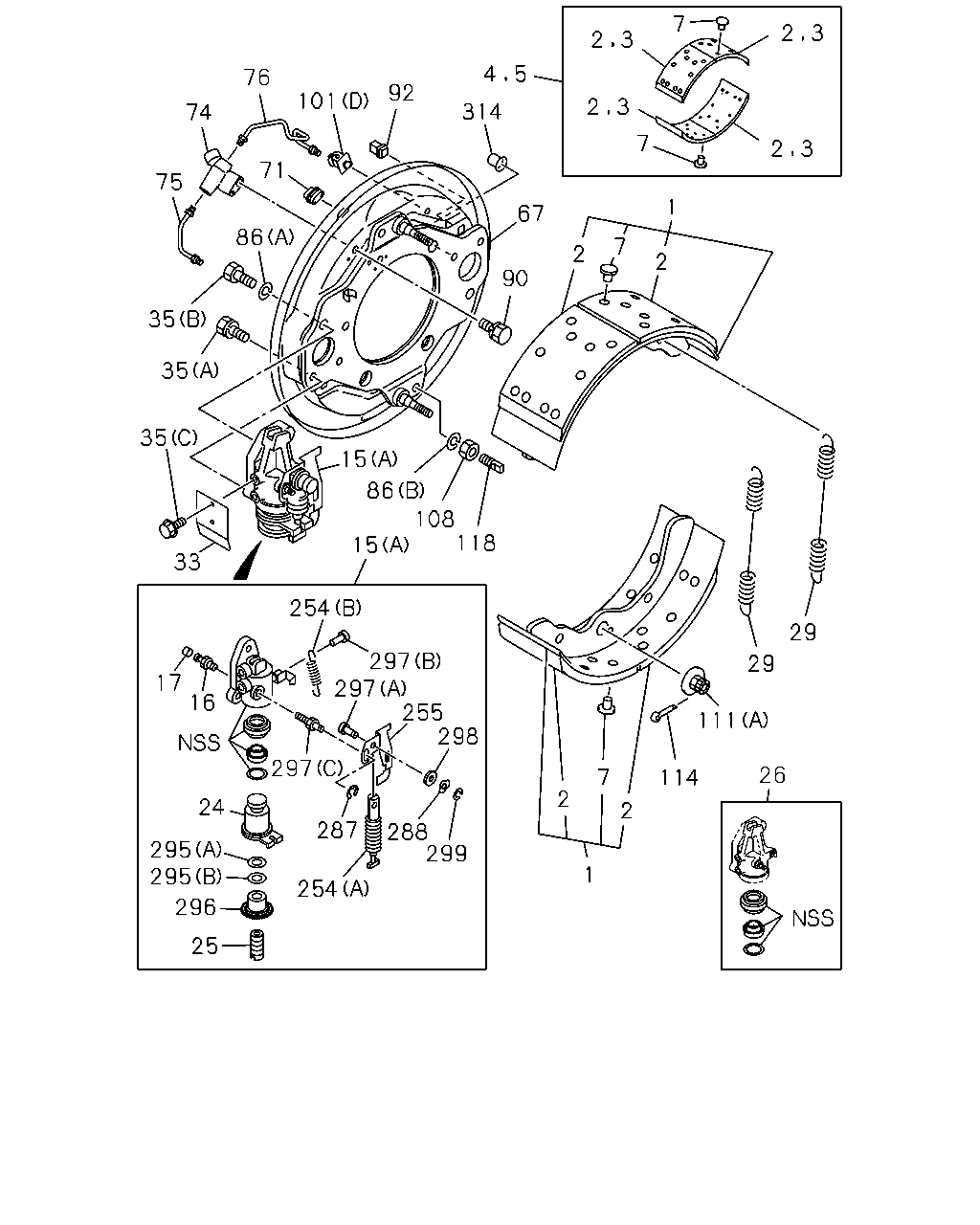

çizim 331457
26 114 7 2 2 1 111 29 2 29 2 7 1 25 296 295 24 295 254 287 297 298 255 297 254 17 16 288 299 118 108 15 86 15 33 35 35 35 86 75 74 76 71 101 92 4 67 314 90 5 2 3 2 2 2 3 3 3 7 7 297
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-628-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-624-0 04 1 1302-
1 SHOE; BRK,FRT
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-483-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-519-0 02 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-999-1 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-801-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-805-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-800-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-818-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-802-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-806-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-819-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-162-0 08 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-505-0 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-501-1 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-385-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BEST VALUE PARTS 		1-87610-127-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-506-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-502-1 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-403-0 02 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 56 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=18.5 		1-09732-034-0 80 1 1302-
7 RIVET; LINING,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 96 1 1302-
7 RIVET; LINING,FRT BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D6X11.5 		1-09732-019-0 64 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-481-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-483-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-480-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-482-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-938-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-939-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-174-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-175-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-172-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-173-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-203-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-202-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-135-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-134-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=44 		1-47615-007-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47615-009-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-476-0 04 1 1302-
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-476-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=9.5 		9-47619-005-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-479-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-757-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-756-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-319-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-318-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47620-237-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-395-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-394-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-015-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-014-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH THREAD 		1-47622-021-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH THREAD 		1-47622-020-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-070-0 04 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 LH THREAD 		1-47622-062-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		1-47622-061-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-417-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-679-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-309-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-922-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-176-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-126-1 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-288-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-385-2 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-362-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 1302-
33 COVER; WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-197-0 02 1 1302-
33 COVER; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-163-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		0-23851-022-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) 		0-23851-630-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) M14X30 		1-09000-365-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) M8X22 		9-09802-475-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-47159-227-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47119-111-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-501-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-500-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-376-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-375-0 01 1 1302-
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-717-1 01 1 1302-
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-716-1 01 1 1302-
67 PLATE; BACK,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-679-0 01 1 1302-
67 PLATE; BACK,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-678-0 01 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-058-1 04 1 1302-
71 GROMMET; CHECK HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-139-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-151-0 04 1 1302-
71 GROMMET; CHECK HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09333-033-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-033-0 04 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-030-0 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-029-0 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-014-1 01 1 1302-
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-013-1 01 1 1302-
74 CONNECTOR; FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-036-0 01 1 1302-
74 CONNECTOR; FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47630-035-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47423-927-0 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-238-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-237-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49167-859-0 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-737-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-735-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47424-940-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47424-939-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-242-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-241-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-738-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-736-0 01 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98188-784-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98188-785-0 08 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=14.2 		0-91510-614-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47159-110-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=12.2 		0-91510-512-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47159-131-0 08 1 1302-
90 BOLT; CONNECTOR
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-787-0 02 1 1302-
90 BOLT; CONNECTOR
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		5-09030-036-1 02 1 1302-
90 BOLT; CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		5-09030-016-1 02 1 1302-
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-010-0 04 1 1302-
92 GROMMET; ADJ HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-138-0 04 1 1302-
92 GROMMET; ADJ HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09956-640-0 04 1 1302-
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09956-640-0 04 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=5 OD=18 T=8 		1-09332-063-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09332-133-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		9-47461-158-0 02 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47143-008-0 02 1 1302-
108 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09400-100-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 		0-91111-516-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-09440-002-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-09440-101-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47159-111-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09440-003-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47169-048-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09874-040-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09874-040-0 04 1 1302-
118 BOLT; STOPPER
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X10 		8-98030-649-0 04 1 1302-
118 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-050-0 04 1 1302-
254 SPRING; ADJ LEVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09583-345-0 04 1 1302-
254 SPRING; ADJ LEVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47629-141-0 04 1 1302-
255 LEVER; ADJ
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-143-0 02 1 1302-
255 LEVER; ADJ
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-142-0 02 1 1302-
287 RING; SNAP
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-263-0 04 1 1302-
288 WASHER; WAVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-107-0 04 1 1302-
295 WASHER; PL,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47629-135-0 04 1 1302-
295 WASHER; PL,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47629-136-0 04 1 1302-
296 GEAR; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-134-0 02 1 1302-
296 GEAR; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-133-0 02 1 1302-
297 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47619-106-0 04 1 1302-
297 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47629-112-0 04 1 1302-
297 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47629-268-0 04 1 1302-
298 WASHER; PL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-108-0 04 1 1302-
299 RETAINER; LEVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-109-0 04 1 1302-
314 COVER; CYL,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47154-008-0 04 1 1302-

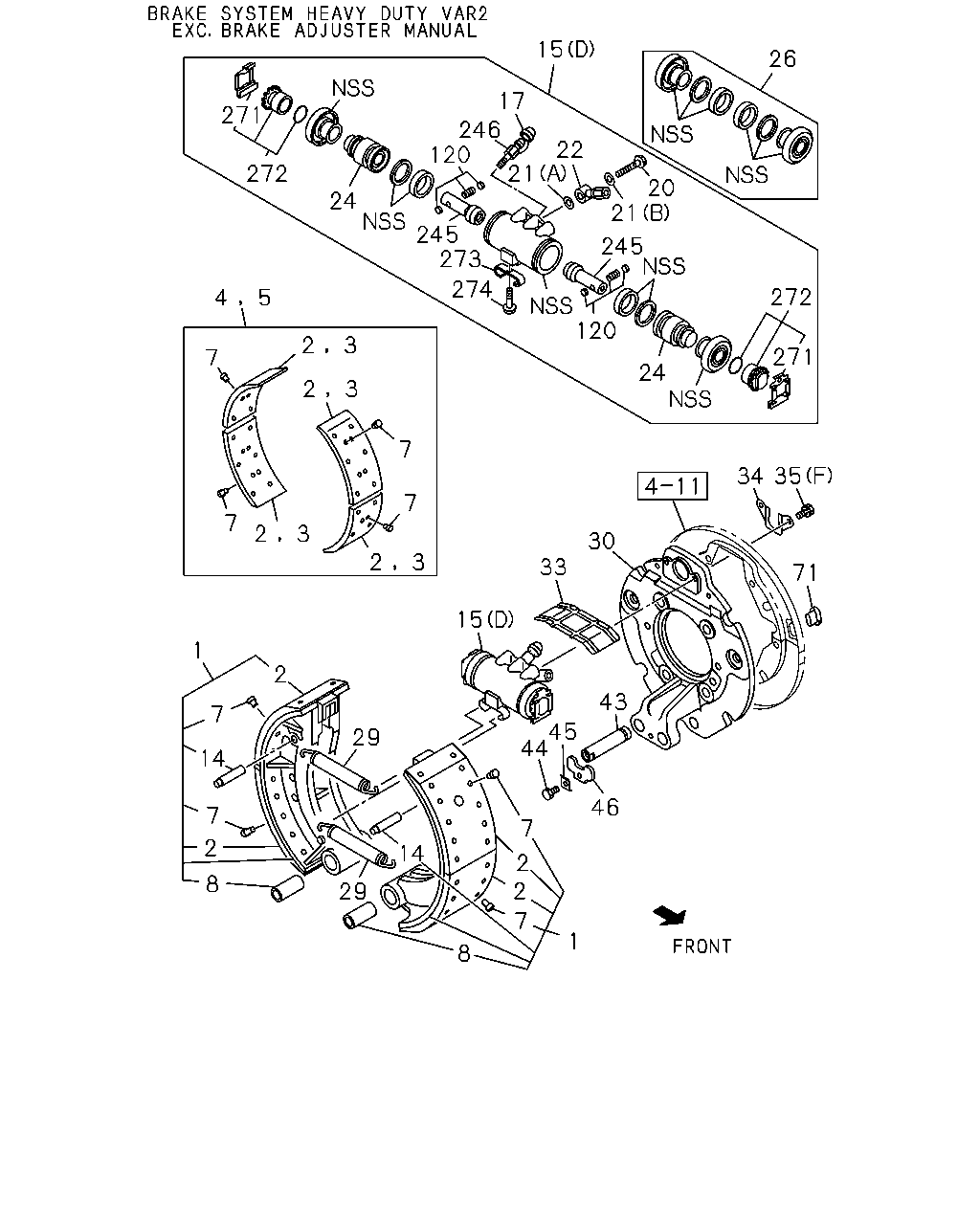

çizim 331469
1 7 7 2 8 29 8 7 2 14 29 14 7 1 2 15 44 46 45 33 43 30 34 71 35 3 2 3 2 7 7 7 7 3 3 2 2 5 4 274 120 271 272 24 245 21 20 26 15 17 22 21 246 120 271 272 245 24 273 2
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-628-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-624-0 04 1 1302-
1 SHOE; BRK,FRT
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-483-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-519-0 02 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-999-1 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-801-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-805-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-800-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-818-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-802-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-806-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-819-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-162-0 08 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-505-0 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-501-1 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-385-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BEST VALUE PARTS 		1-87610-127-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-506-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-502-1 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-403-0 02 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 56 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=18.5 		1-09732-034-0 80 1 1302-
7 RIVET; LINING,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 96 1 1302-
7 RIVET; LINING,FRT BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D6X11.5 		1-09732-019-0 64 1 1302-
8 BUSHING; BRK SHOE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47112-011-0 04 1 1302-
14 PIN; SHOE RETURN SPR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47119-134-0 04 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-481-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-483-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-480-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-482-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-938-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-939-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-174-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-175-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-172-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-173-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-203-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-202-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-135-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-134-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=9.5 		9-47619-005-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-479-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 04 1 1302-
20 BOLT; JOINT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40.5 EYE BOLT 		1-47634-006-0 02 1 1302-
21 GASKET; UNION BOLT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=15.2 		1-09630-019-0 02 1 1302-
21 GASKET; UNION BOLT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=12.2 		1-09630-020-0 02 1 1302-
22 JOINT; PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47631-057-1 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-757-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-756-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-319-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-318-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47620-237-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-395-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-394-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-417-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-679-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-309-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-922-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-176-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-126-1 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-288-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-385-2 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-362-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 1302-
30 BRACKET; ANCHOR,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47137-578-0 02 1 1302-
33 COVER; WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-197-0 02 1 1302-
33 COVER; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-163-0 04 1 1302-
34 PLATE; DIRECTION,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-094-0 02 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		0-23851-022-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) 		0-23851-630-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) M14X30 		1-09000-365-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) M8X22 		9-09802-475-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-47159-227-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47119-111-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 1302-
43 PIN; ANCHOR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=106.5 		1-47131-038-0 04 1 1302-
44 BOLT; LOCK,ANCHOR PIN
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X16 		0-20851-016-0 02 1 1302-
45 WASHER; LK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47133-011-0 02 1 1302-
46 PLATE; LOCK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47133-005-0 02 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-058-1 04 1 1302-
71 GROMMET; CHECK HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-139-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-151-0 04 1 1302-
71 GROMMET; CHECK HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09333-033-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-033-0 04 1 1302-
120 SPRING; LK,ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-072-0 04 1 1302-
120 SPRING; LK,ADJ,FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09580-544-0 04 1 1302-
245 SHAFT; ADJ
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47623-027-1 04 1 1302-
246 BLEEDER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47615-002-0 02 1 1302-
271 CLIP; ADJ
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47621-016-0 04 1 1302-
272 ADJUSTER; MANUAL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47621-015-0 04 1 1302-
273 HANGER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-145-0 02 1 1302-
274 BOLT; HANGER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302-
çizim 331496
133 315 35 35 4 7 2 2 7 2 2 17 16 15 24 25 241 92 111 86 15 2 1 5 241 25 24 26 29 29 111 2 112 7 114 1 2 7 2 15 66 9 67 71 75 88
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-628-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-624-0 04 1 1302-
1 SHOE; BRK,FRT
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-483-0 04 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-519-0 02 1 1302-
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47120-999-1 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-801-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47125-805-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-800-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-818-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-505-0 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-501-1 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-385-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BEST VALUE PARTS 		1-87610-127-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-506-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-502-1 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88311-403-0 02 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 56 1 1302-
7 RIVET; LINING,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=18.5 		1-09732-034-0 80 1 1302-
7 RIVET; LINING,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 96 1 1302-
7 RIVET; LINING,FRT BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D6X11.5 		1-09732-019-0 64 1 1302-
9 PIN; SHOE HOLDER
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-036-0 04 1 1302-
9 PIN; SHOE HOLDER
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-046-0 04 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-481-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-483-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) FORWARD 		8-98188-480-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) BACKWARD 		8-98188-482-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-938-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		1-47600-939-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-174-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-175-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-172-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) FORWARD 		1-47601-173-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-203-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		1-47601-202-0 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-135-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47601-134-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=44 		1-47615-007-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47615-009-0 02 1 1302-
16 SCREW; BLEEDER,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-476-0 04 1 1302-
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-476-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=9.5 		9-47619-005-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-98050-479-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-757-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-756-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-319-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-318-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47620-237-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-395-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-394-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-015-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-014-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH THREAD 		1-47622-021-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH THREAD 		1-47622-020-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-070-0 04 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 LH THREAD 		1-47622-062-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		1-47622-061-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-417-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-679-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-309-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87830-922-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-87831-176-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-126-1 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-288-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-385-2 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-362-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		0-23851-022-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) 		0-23851-630-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) M14X30 		1-09000-365-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) M8X22 		9-09802-475-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-47159-227-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47119-111-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 1302-
66 BOLT; OIL SHIELD COVER
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X60 		0-20951-460-0 04 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-501-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-500-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-376-0 01 1 1302-
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-375-0 01 1 1302-
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-717-1 01 1 1302-
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-716-1 01 1 1302-
67 PLATE; BACK,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-679-0 01 1 1302-
67 PLATE; BACK,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-678-0 01 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-058-1 04 1 1302-
71 GROMMET; CHECK HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-139-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-151-0 04 1 1302-
71 GROMMET; CHECK HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09333-033-0 04 1 1302-
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-033-0 04 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47423-927-0 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-238-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47414-237-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49167-859-0 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-737-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49166-735-0 01 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98188-784-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98188-785-0 08 1 1302-
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=14.2 		0-91510-614-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47159-110-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=12.2 		0-91510-512-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47159-131-0 08 1 1302-
88 BOLT; BRK PIPE CLAMP
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X10 		9-01900-610-0 02 1 1302-
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-010-0 04 1 1302-
92 GROMMET; ADJ HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-138-0 04 1 1302-
92 GROMMET; ADJ HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09956-640-0 04 1 1302-
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09956-640-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 		0-91111-516-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		1-09440-002-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-09440-101-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47159-111-0 04 1 1302-
111 NUT; FLANGE,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09440-003-0 04 1 1302-
112 WASHER; PL,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47169-037-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47169-048-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09874-040-0 04 1 1302-
114 PIN; SPLIT,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09874-040-0 04 1 1302-
133 BOLT; BRKT
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 W/LK WASHER 		0-50540-820-0 04 1 1302-
241 HOLDER
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-097-0 04 1 1302-
315 BRACKET; BRAKE FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-243-0 01 1 1302-
315 BRACKET; BRAKE FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-242-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
