Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#113133) — 318 parça

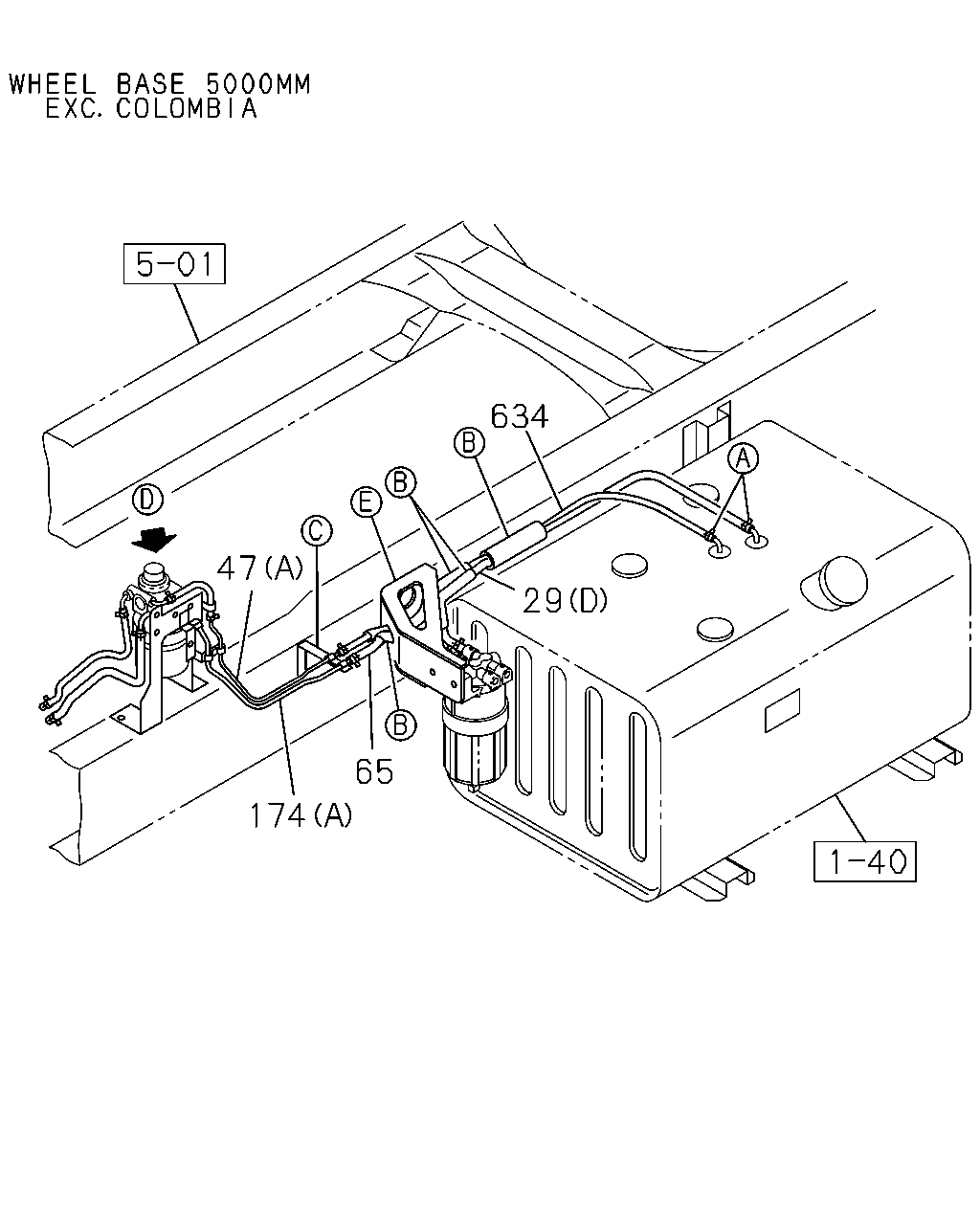

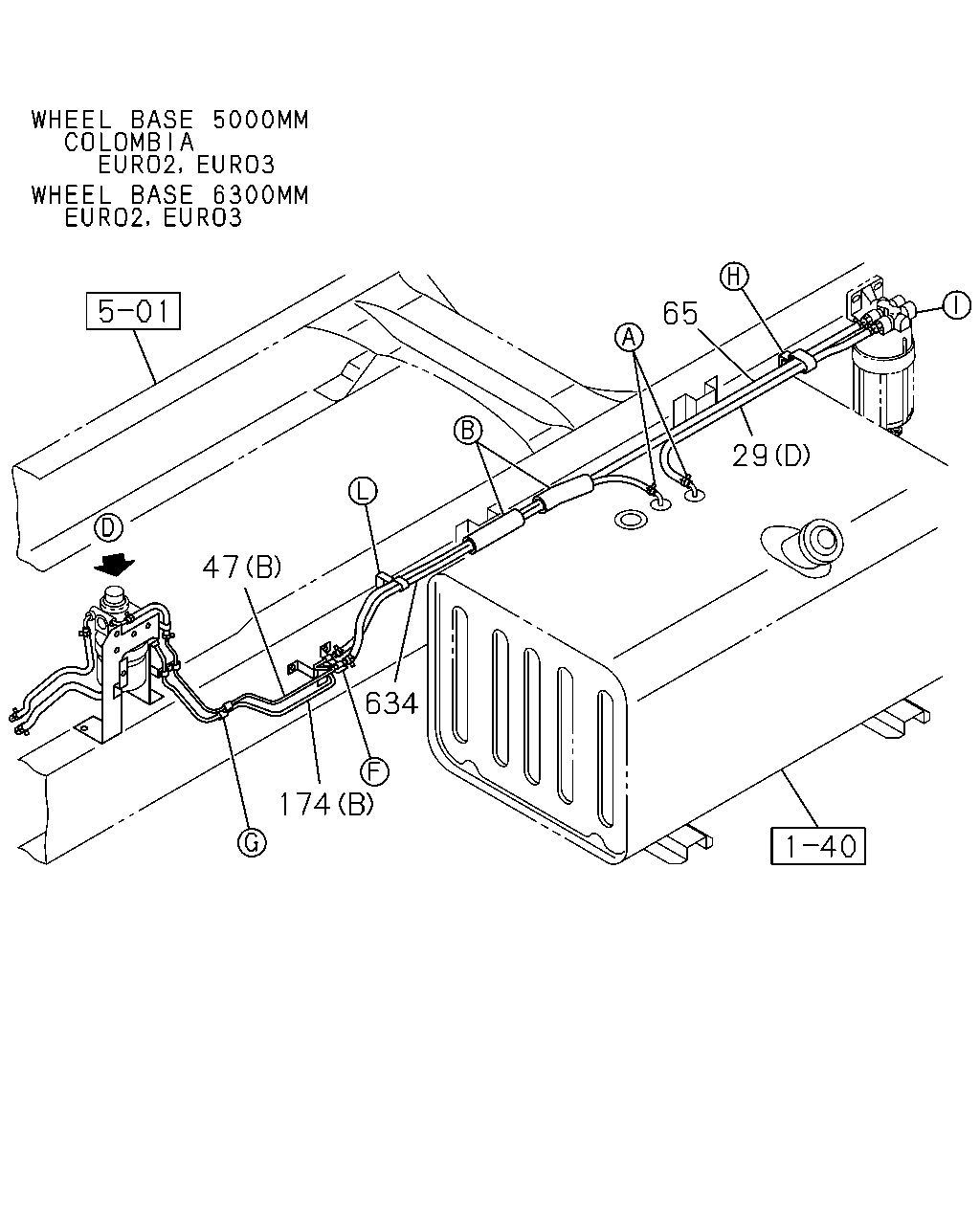

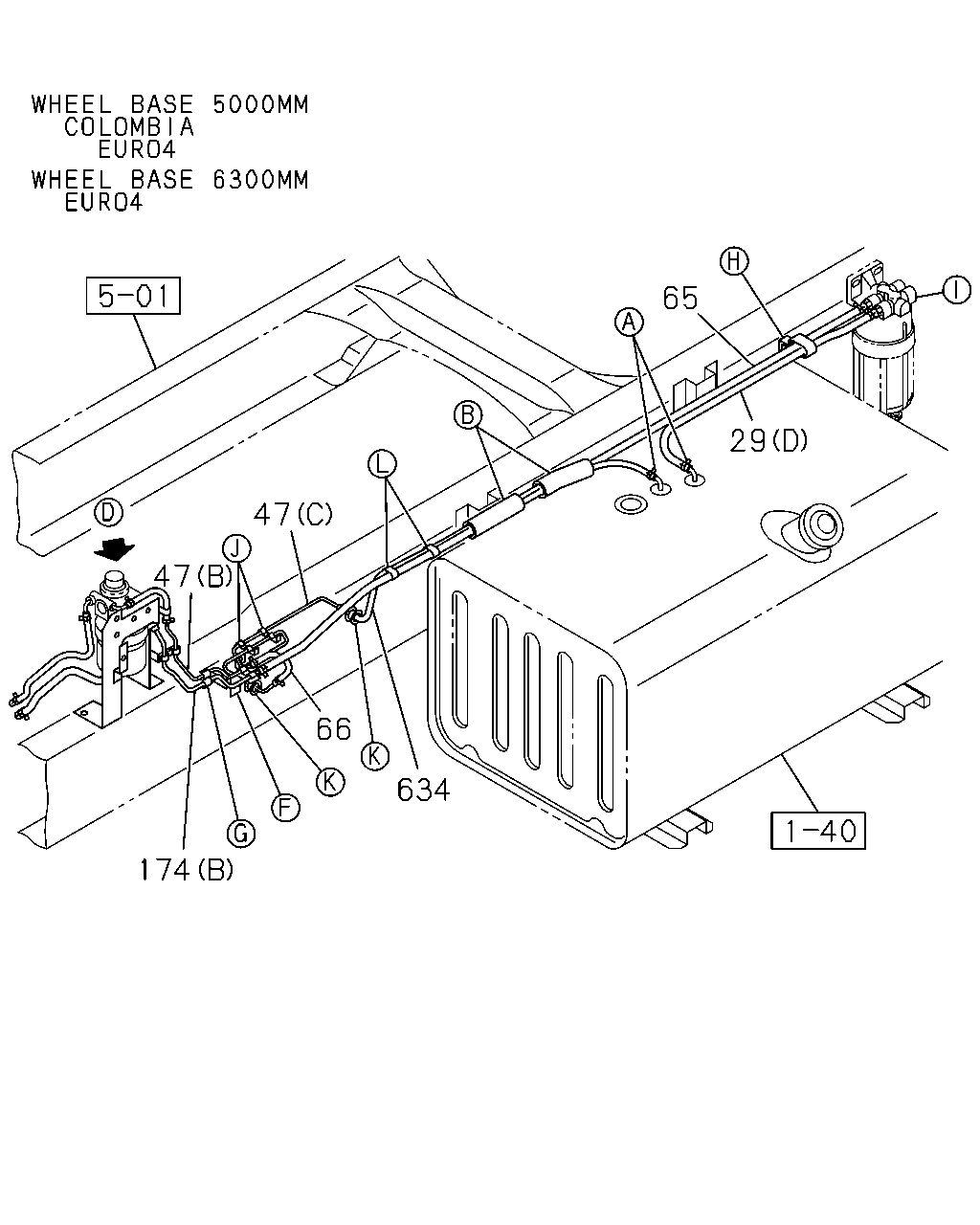

634 29 65 47 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D) L=900	8-98157-879-0	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (C)	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 6300MM(63W) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=539	8-98117-709-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=300	8-98157-878-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 6300MM(63W) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=548	8-98117-708-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=1050	8-98128-212-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 200L FRAME SIDE<N20> L=810	8-98186-973-0	01	1	1302-

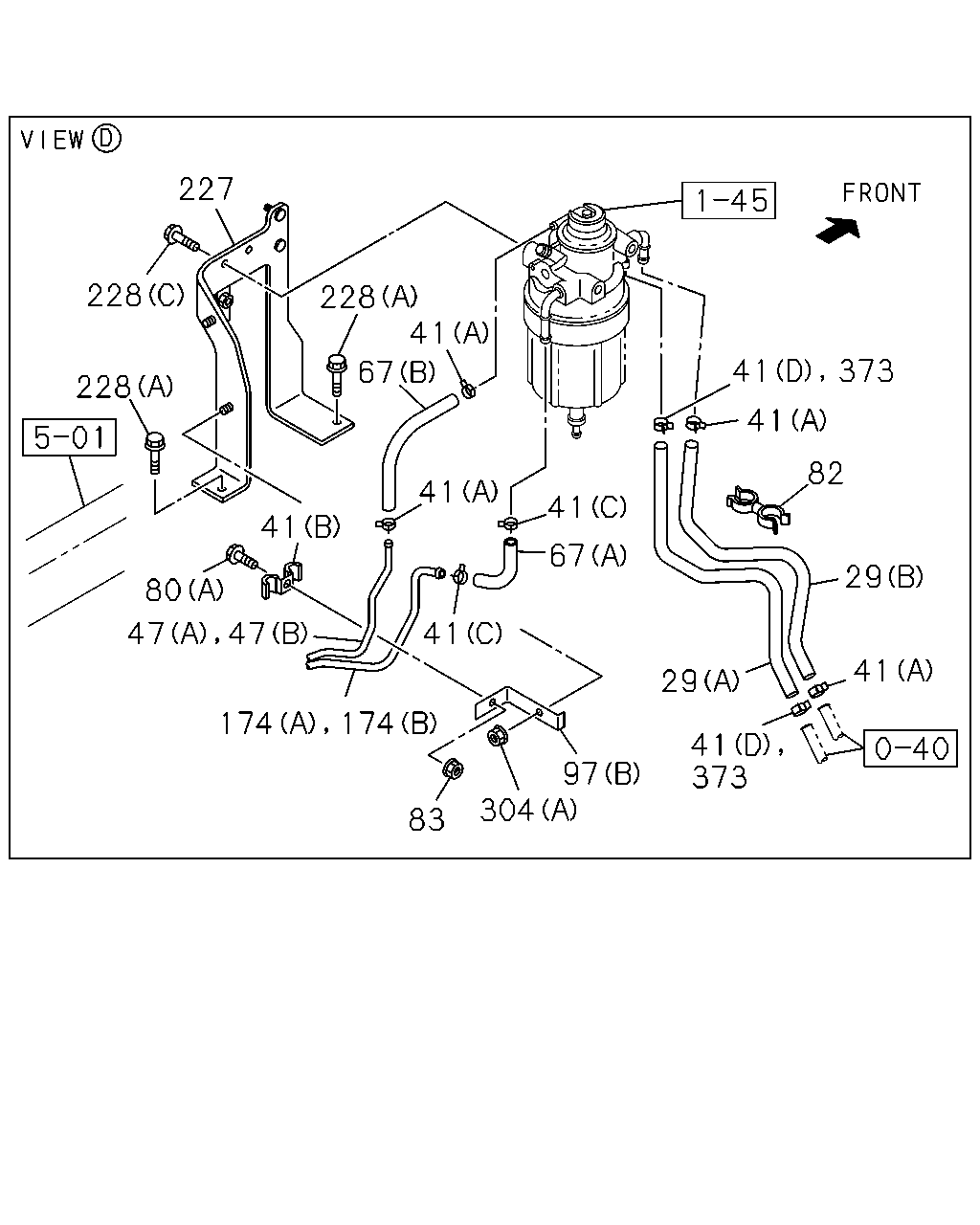

227 228 228 228 41 67 41 373 41 82 29 41 29 41 373 97 304 83 41 67 41 41 41 80 47 47 174 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D) L=900	8-98157-879-0	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (E) L=250	5-09707-030-1	02	1	1302-
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (C)	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 6300MM(63W) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=539	8-98117-709-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 6300MM(63W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	1302-
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1302-
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-98126-612-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 6300MM(63W) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=548	8-98117-708-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) M10X50 FLANGE	0-28051-050-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	1302-

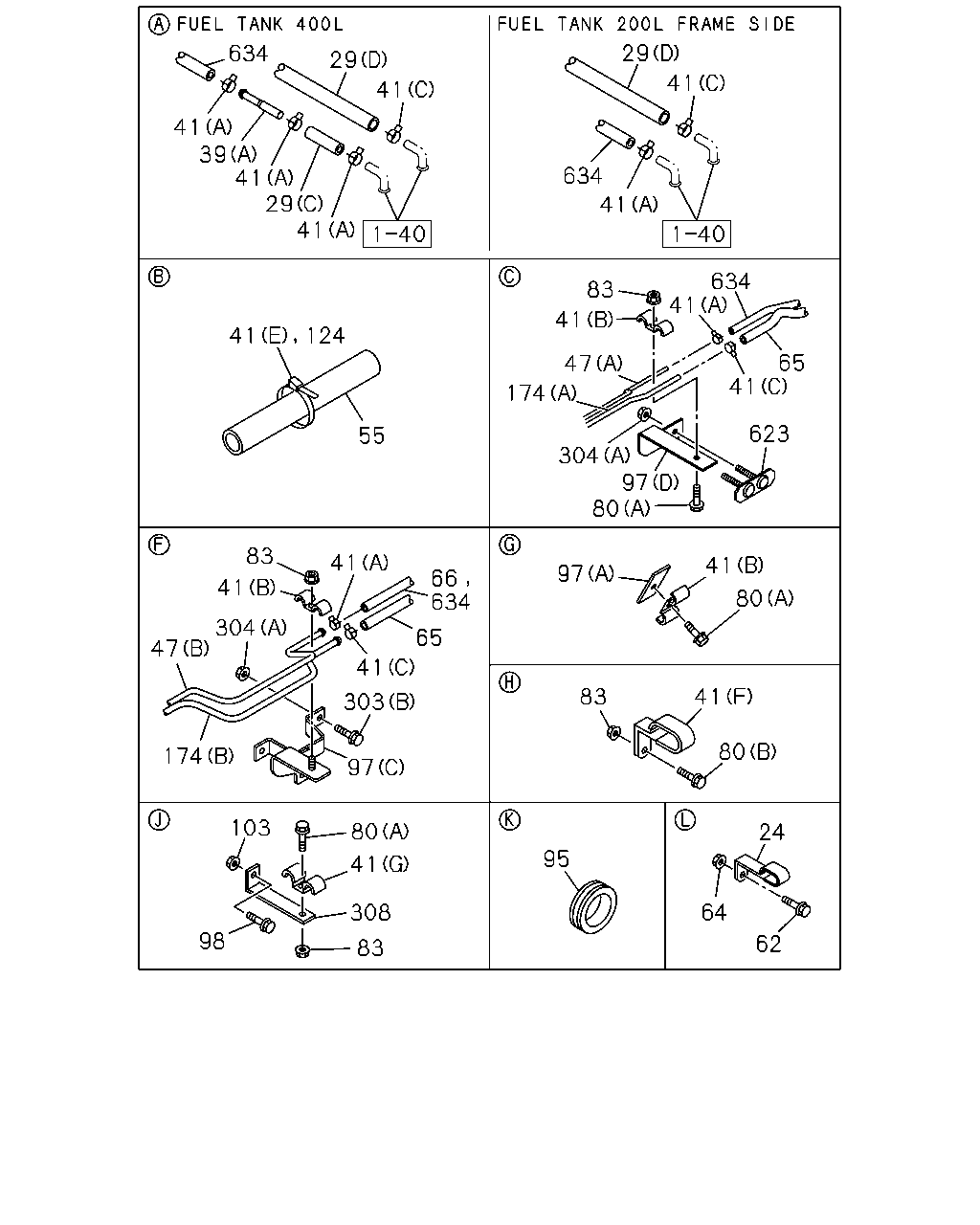

65 29 634 66 174 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D) L=900	8-98157-879-0	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (C)	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 6300MM(63W) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=539	8-98117-709-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=300	8-98157-878-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 6300MM(63W) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=548	8-98117-708-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=1050	8-98128-212-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 200L FRAME SIDE<N20> L=810	8-98186-973-0	01	1	1302-

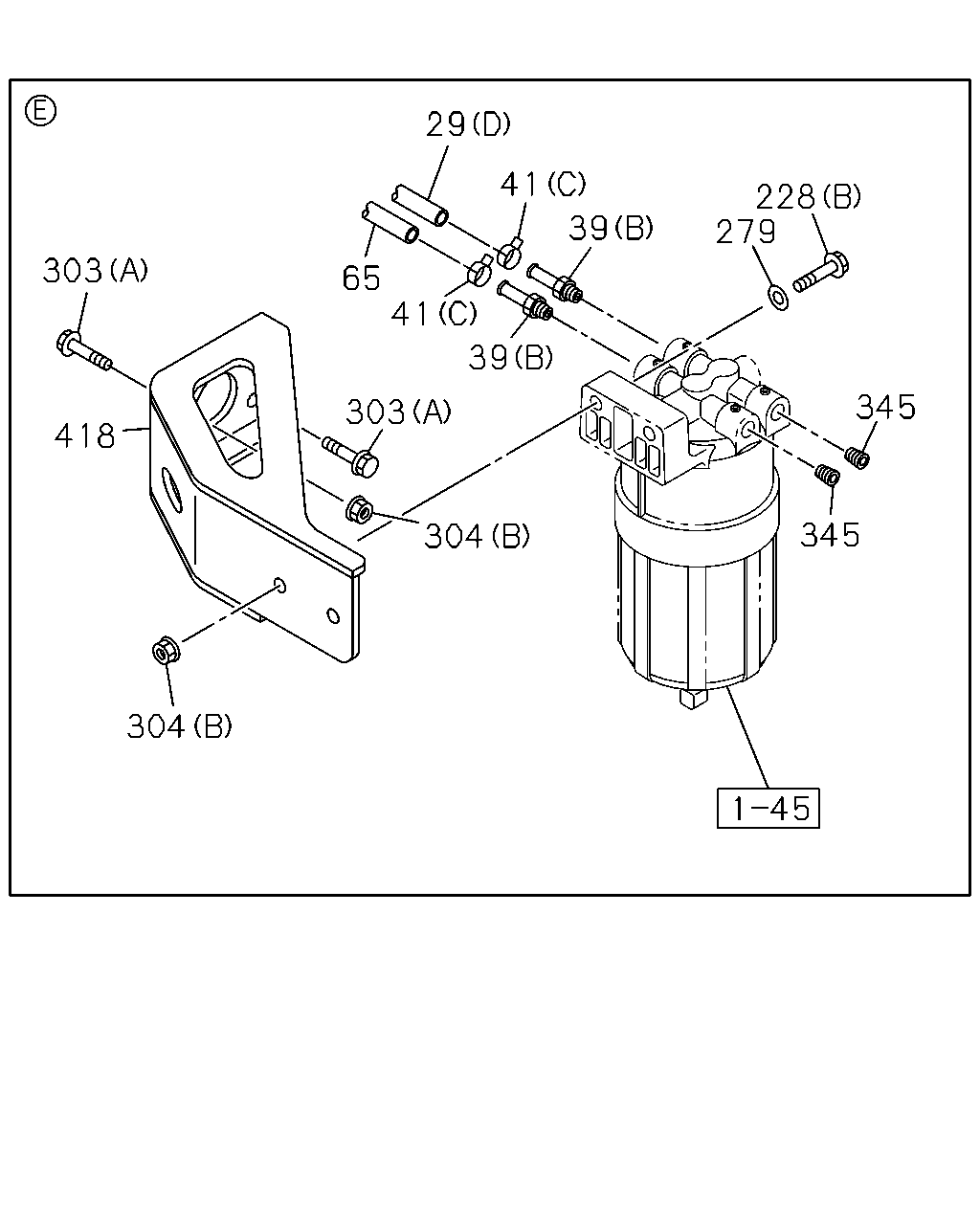

29 41 39 228 279 345 345 304 303 65 41 39 303 418 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D) L=900	8-98157-879-0	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (E) L=250	5-09707-030-1	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=300	8-98157-878-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) M10X50 FLANGE	0-28051-050-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7)	8-98128-254-0	01	1	1302-

29 65 41 39 304 279 228 345 345 39 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D) L=900	8-98157-879-0	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (E) L=250	5-09707-030-1	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=300	8-98157-878-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) M10X50 FLANGE	0-28051-050-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1310
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1311-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

174 634 29 65 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D) L=900	8-98157-879-0	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (C)	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 6300MM(63W) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=539	8-98117-709-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=300	8-98157-878-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 6300MM(63W) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=548	8-98117-708-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=1050	8-98128-212-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 200L FRAME SIDE<N20> L=810	8-98186-973-0	01	1	1302-

634 29 41 41 39 41 29 41 29 41 634 41 634 65 41 623 83 41 47 174 304 80 97 124 41 55 41 83 41 304 47 174 66 634 65 41 303 97 97 41 80 41 80 83 95 24 64 62 80 41 308 83 103 98 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	1302-
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D) L=900	8-98157-879-0	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (E) L=250	5-09707-030-1	02	1	1302-
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (C)	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 6300MM(63W) (B) L=688	8-98129-921-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=539	8-98117-709-0	01	1	1302-
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1302-
62	BOLT; CLIP FIX EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1302-
64	NUT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=300	8-98157-878-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 6300MM(63W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1302-
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-
95	BUSHING; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-98126-612-0	01	1	1302-
98	BOLT; BRKT,FUEL PIPE EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	1302-
103	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-
124	CLIP; HOSE WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=250	5-09707-030-1	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 6300MM(63W) (B) L=685	8-98129-920-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) L=548	8-98117-708-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
308	BRACKET; FUEL PIPE EURO4 SPECIFICATION<NT4> L=75	1-47478-323-0	02	1	1302-
623	PLATE; STUD BOLT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7)	8-98126-633-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) L=1050	8-98128-212-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 200L FRAME SIDE<N20> L=810	8-98186-973-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
