Isuzu WW
▶
TRUCKS
▶
FVM
▶
11517 - FVM(LHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

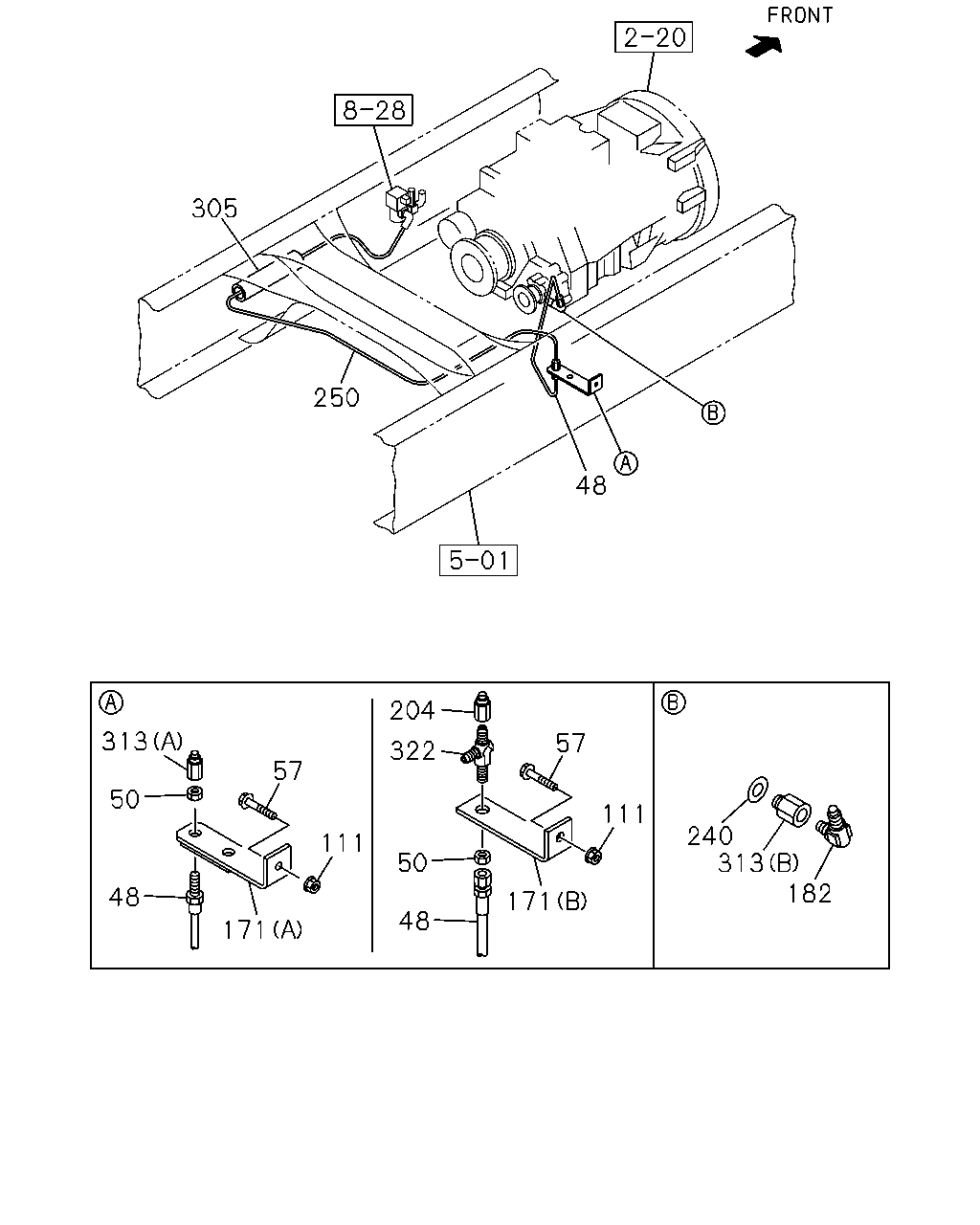

2-85 — POWER TAKE OFF CONTROL
(#113130) — 21 parça
Tümü
A - ZF6S1000 M/T
B - ZF9S1110 M/T
◀
[285A] FLEX HOSE AND NYLON TUBE (19 parça)
[285A] DUMP CONTROL LEVER (2 parça)
▶
182
313
240
111
171
48
50
322
57
204
171
111
57
50
48
313
48
250
305
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=350
1-09363-624-0
01
1
1302-
●
48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=320
1-09363-625-0
01
1
1302-
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
9-09840-280-0
01
1
1302-
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
0-91111-512-0
01
1
1302-
●
57
BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE
0-28650-830-0
01
1
1302-
●
●
111
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
01
1
1302-
●
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A)
8-98100-228-0
01
1
1302-1512
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A)
8-98100-228-0
01
1
1302-1512
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A)
8-98100-228-0
01
1
1601-
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (B)
8-98225-544-0
01
1
1302-
●
182
CONNECTOR; FLARE
PTO CONTROL<SV6> M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1302-
●
●
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1302-
●
240
GASKET; CONNECTOR,PTO
PTO CONTROL<SV6> ID=12.2
1-09630-084-0
01
1
1302-1312
●
●
240
GASKET; CONNECTOR,PTO
PTO CONTROL<SV6> ID=12.2
8-98251-344-0
01
1
1401-
●
●
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1302-
●
●
305
TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10
1-87411-019-0
01
1
1302-
●
●
313
ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1302-
●
313
ADAPTER
PTO CONTROL<SV6> (B) PT1/4
1-09654-396-0
01
1
1302-
●
●
322
UNION
PTO ZF TRANS RR(BDM) M12 2WAY
1-09654-059-2
01
1
1302-
●
3
15
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1302-
●
●
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1302-
●
●
